Anti-Lock Brake Control System: Specifications

Anti-Lock Control -- Traction Control System General Specifications Chart

Item	Specification
High Performance DOT-3 Motor Vehicle Brake Fluid C6AZ-19542-AB	ESA-M6C25-A DOT-3

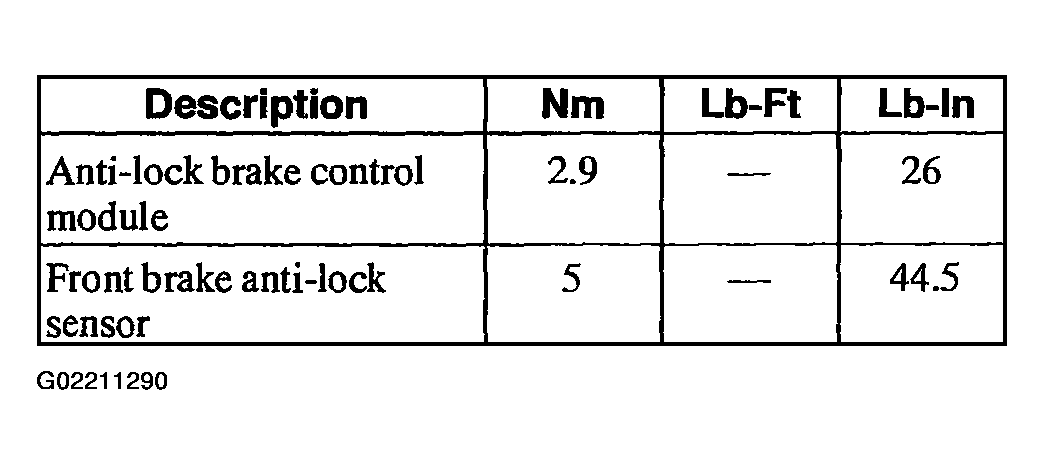

Fig 1: Anti-Lock Control - Traction Control System Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

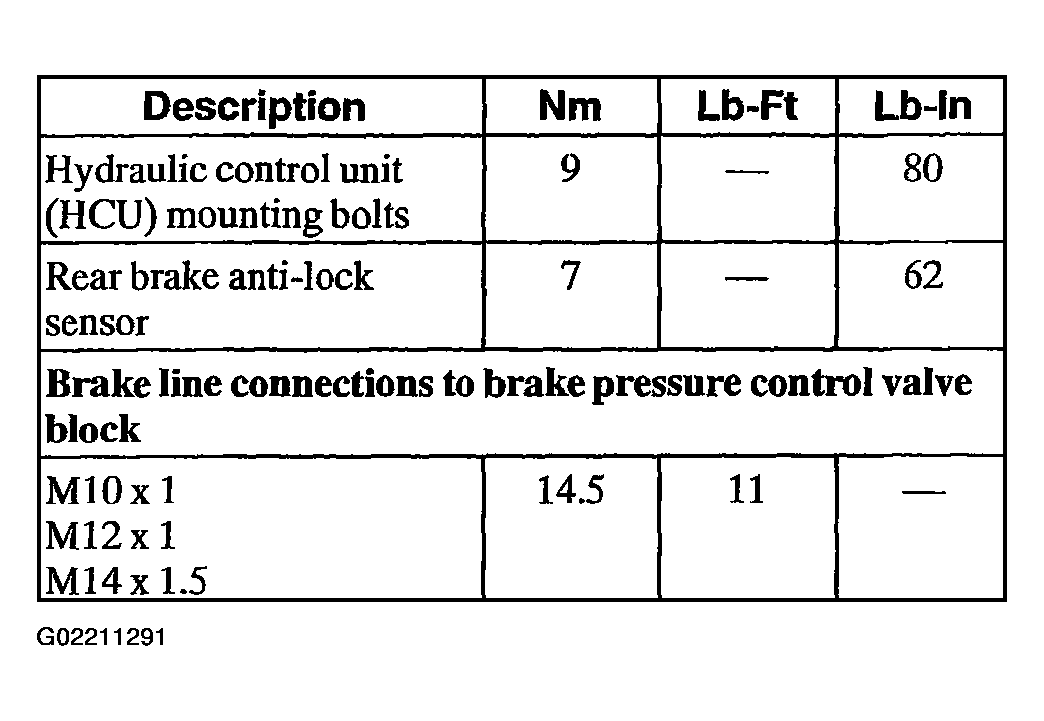

Fig 2: Anti-Lock Control - Traction Control System Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.
