Removal and Installation

1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
2. Remove the components in the order indicated in the following illustration.
3. To install, reverse the removal procedure.

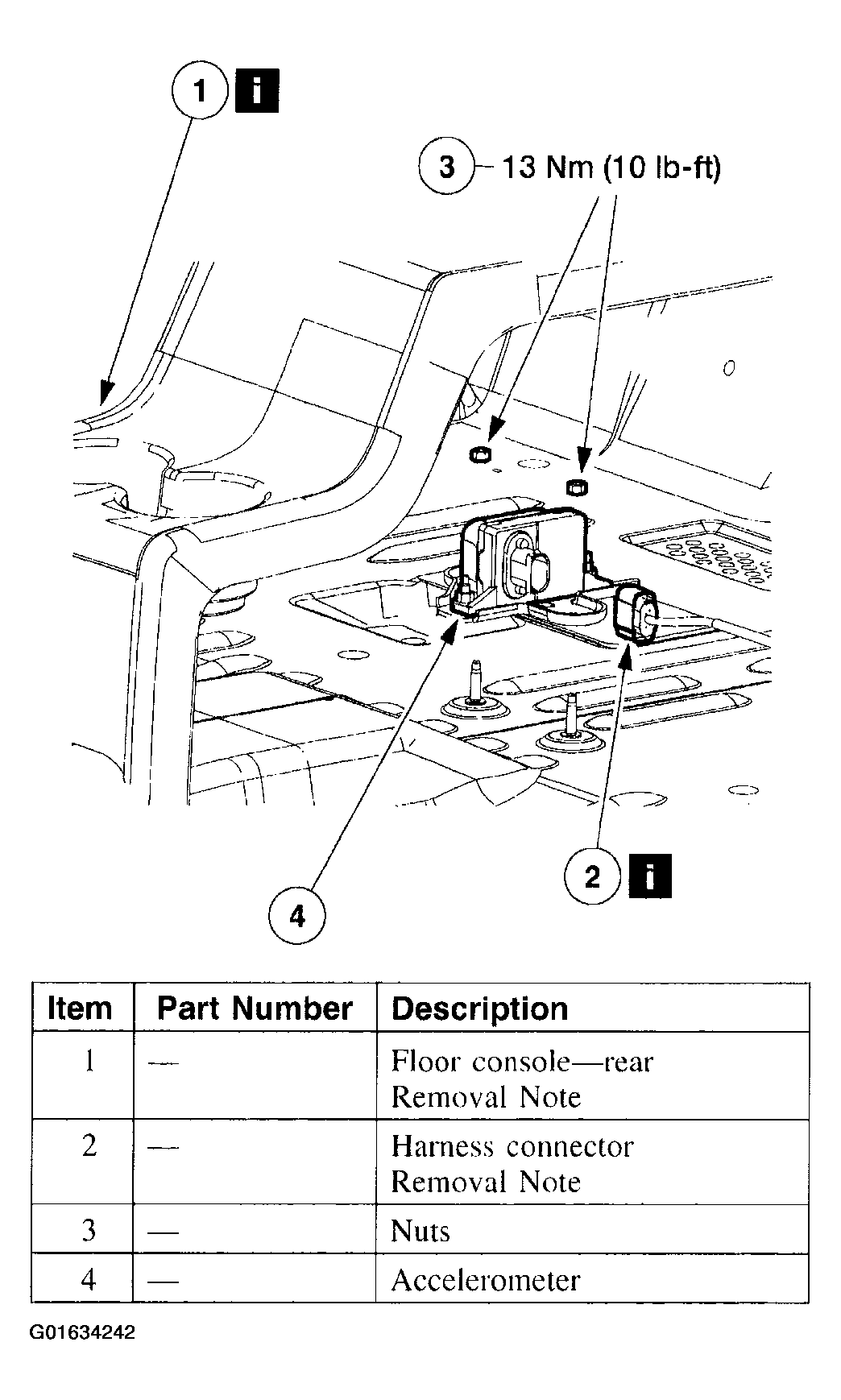

   Fig 1: Removing Accelerometer Components Sequence

   Courtesy of FORD MOTOR CO.

Item 1: Floor Console - Rear Removal Note

1. If equipped, remove the floor console - rear. For additional information, refer to BODY SYSTEM - INTERIOR .

Item 2: Harness Connector Removal Note

1. Fold back the carpeting flap to gain access to the accelerometer connector.
