Removal and Installation

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

CAUTION: Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

NOTE: When installing a new ABS module it must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the configuration and calibration procedures. For additional information, refer to MODULE COMMUNICATIONS NETWORK .

Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
Remove the components in the order indicated in the following illustration.
To install, reverse the removal procedure.

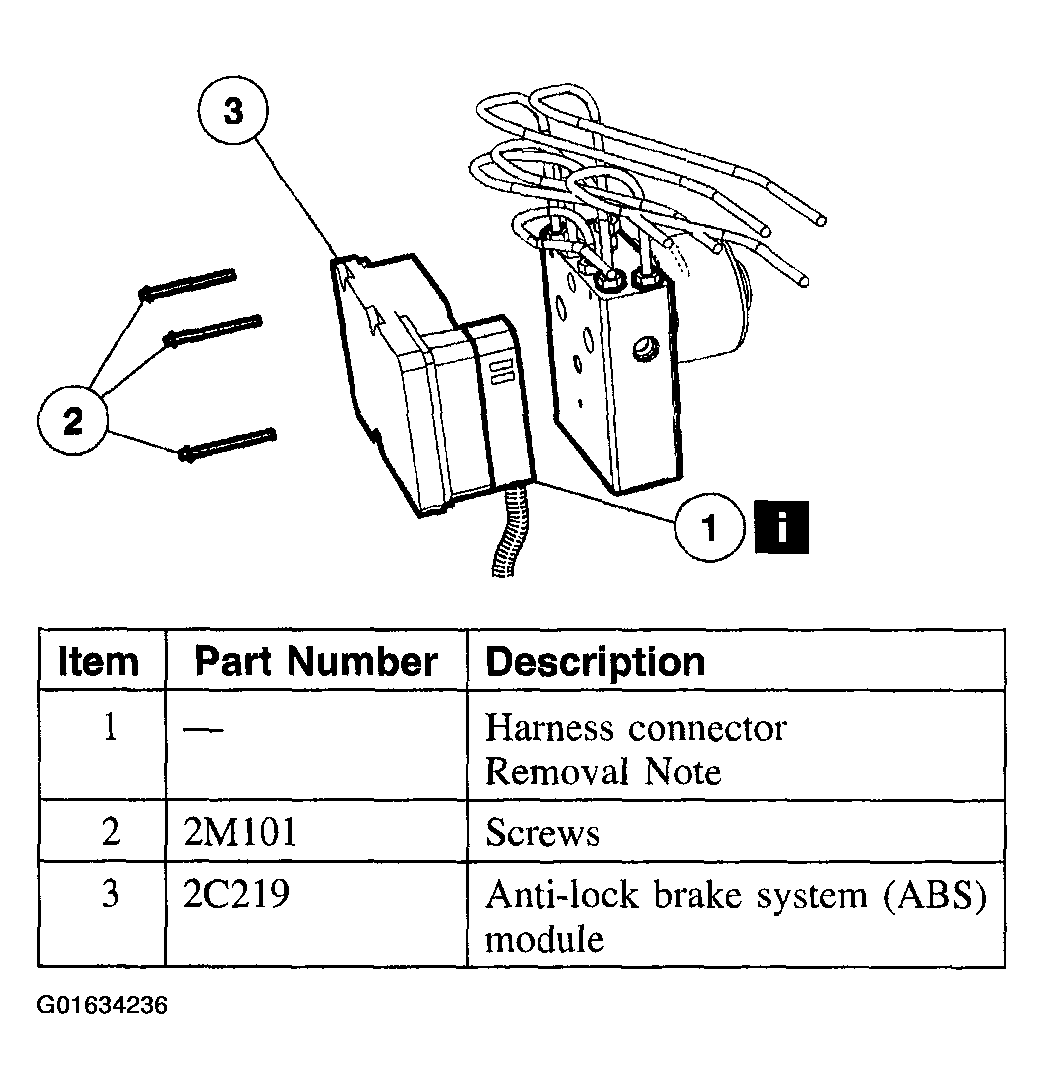

Fig 1: Removal Sequence Of ABS Module
Courtesy of FORD MOTOR CO.

Item 1: Harness Connector Removal Note

Disconnect the electrical connector by rotating the protective cover.

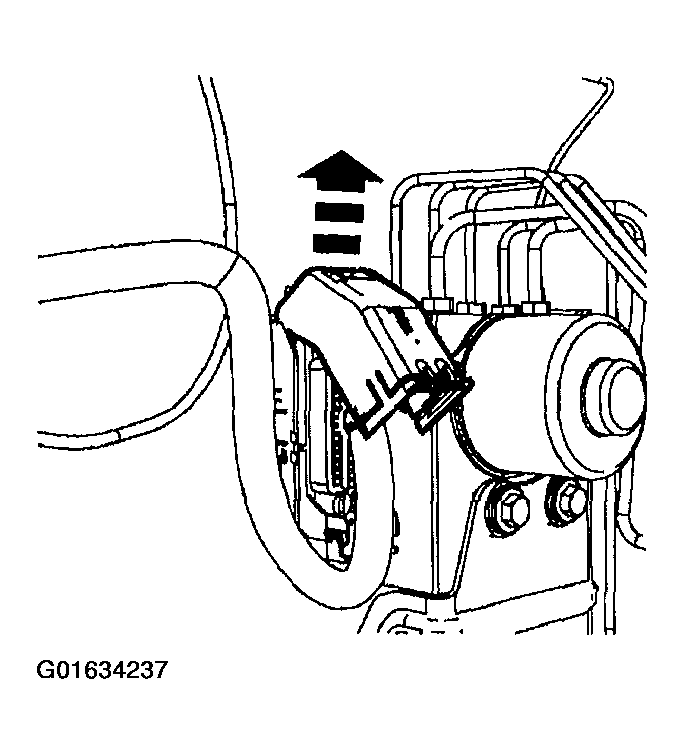

Fig 2: Removing Harness Connector
Courtesy of FORD MOTOR CO.
