Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

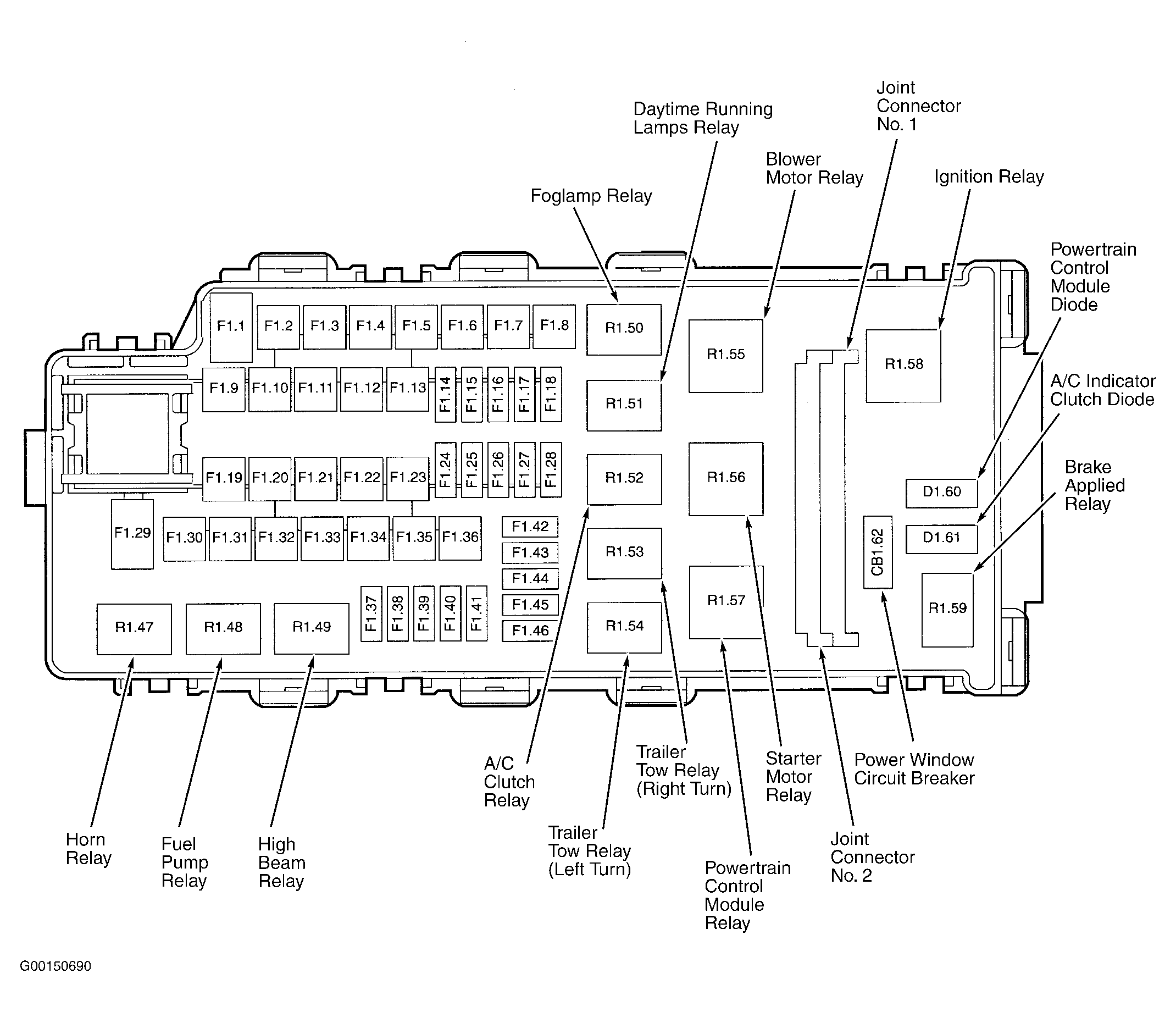

| A/C Indicator Clutch Diode | In battery junction box. See Figure . |

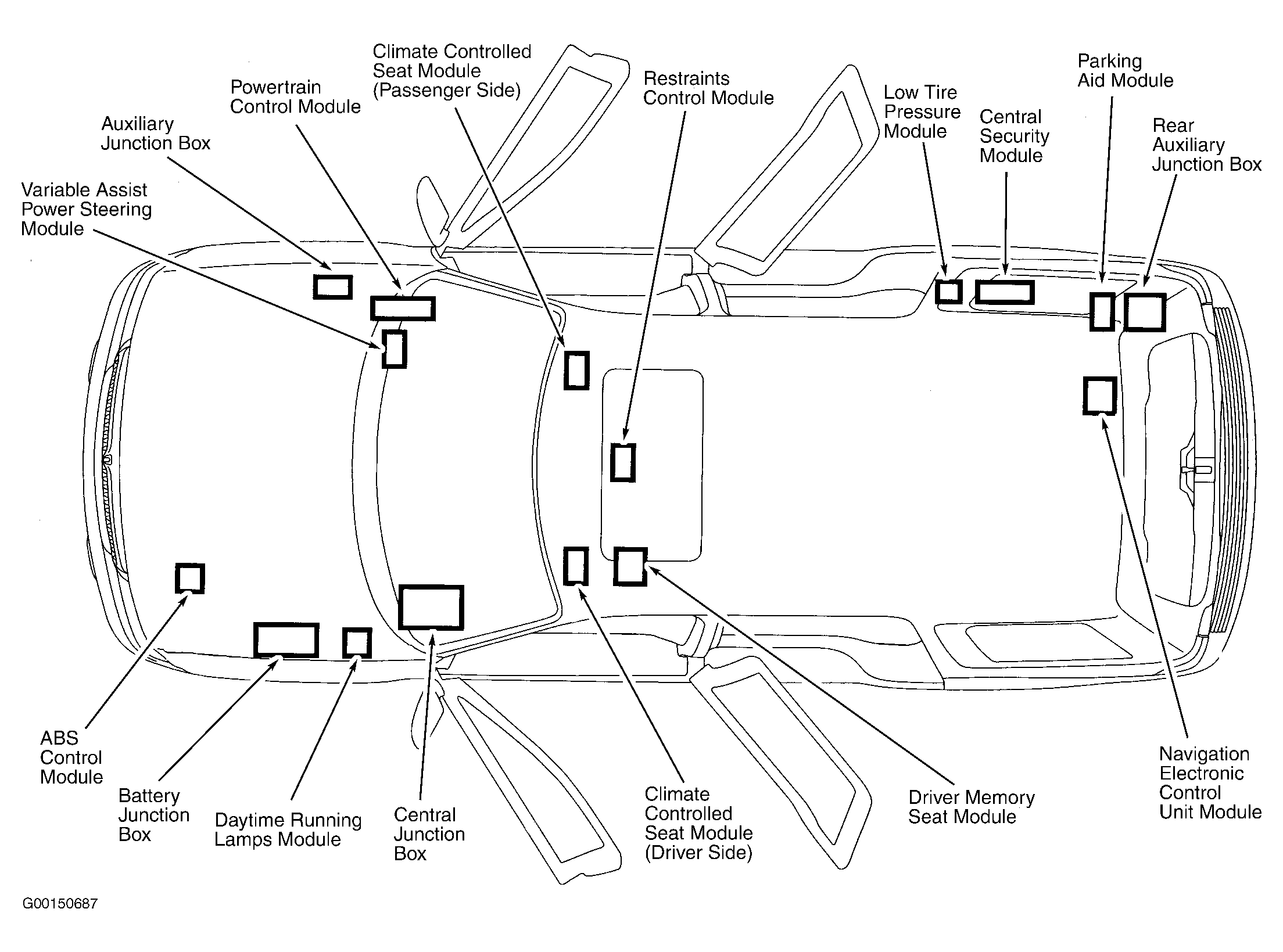

| Auxiliary Junction Box | Right side of engine compartment, at fender apron. See Figure . |
| Battery Junction Box | Left side of engine compartment, at fender apron. See Figure . |
| Central Junction Box | Behind left side of dash. See Figure . |
| Powertrain Control Module Diode | In battery junction box. See Figure . |
| Power Window Circuit Breaker | In battery junction box. See Figure . |
| Rear Auxiliary Junction Box | In right rear of cargo area. See Figure . |
