Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Vehicle Overview

Courtesy of FORD MOTOR CO.

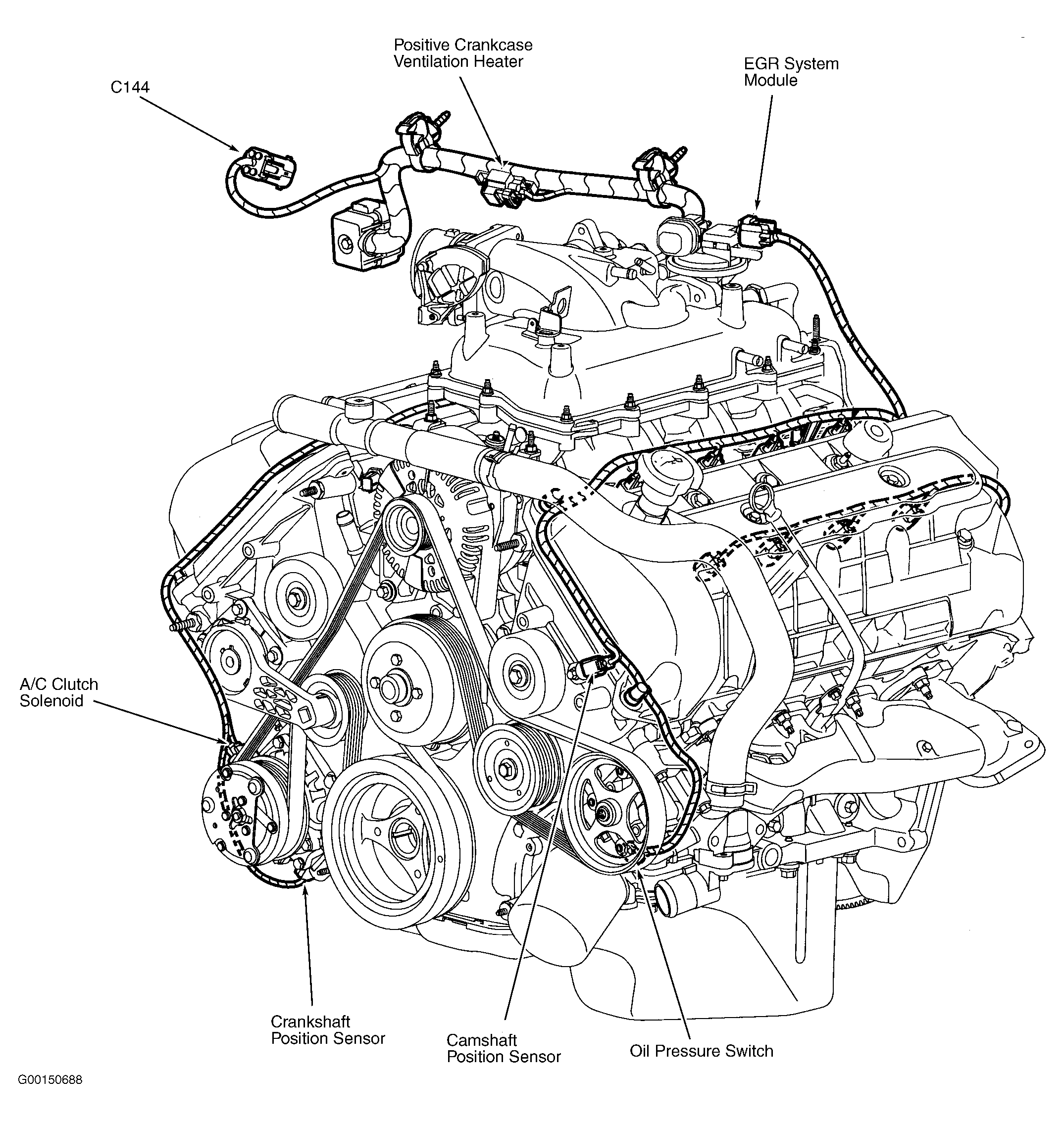

Fig 2: Left Front Side Of Engine

Courtesy of FORD MOTOR CO.

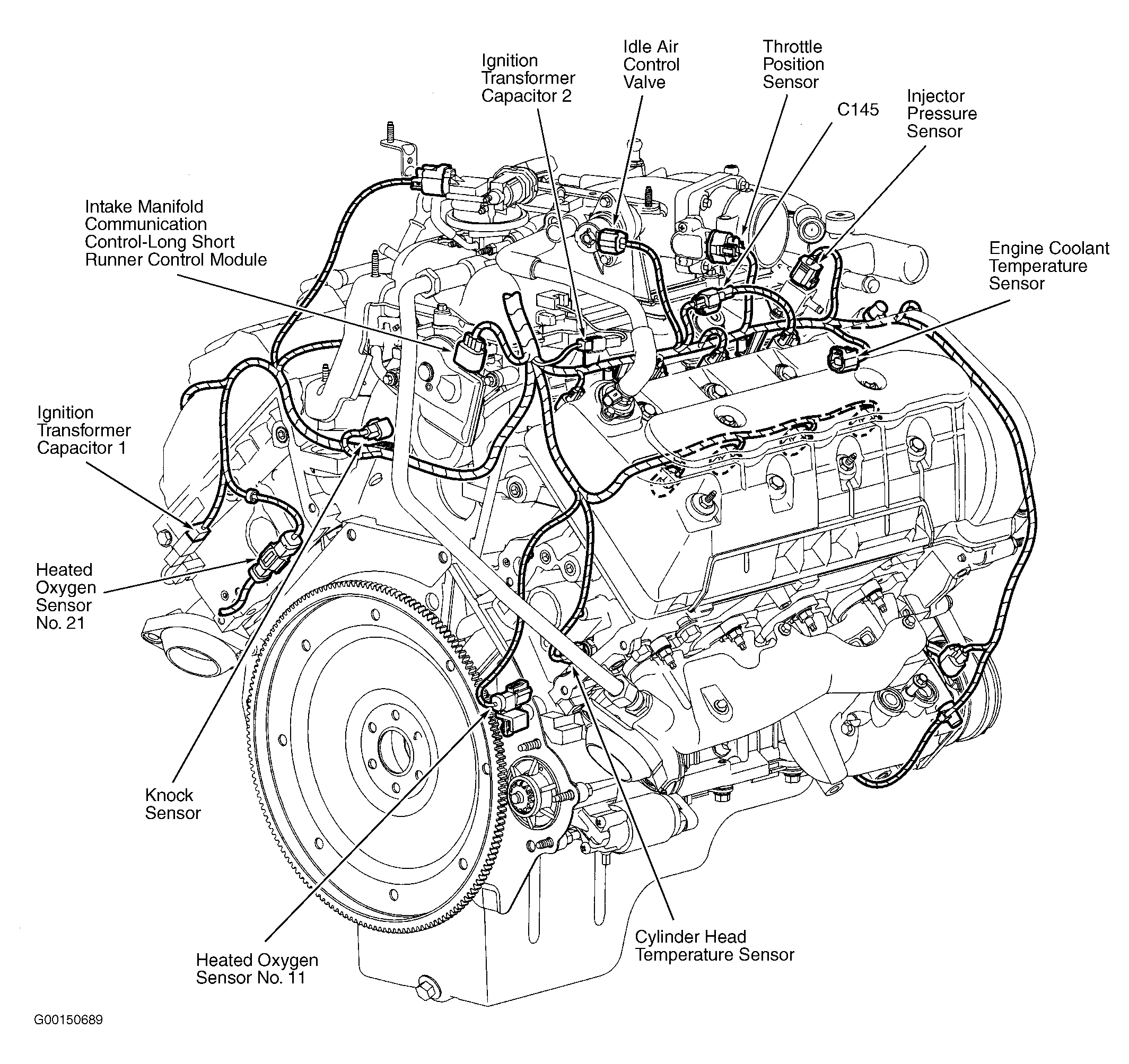

Fig 3: Right Rear Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 4: Battery Junction Box

Courtesy of FORD MOTOR CO.

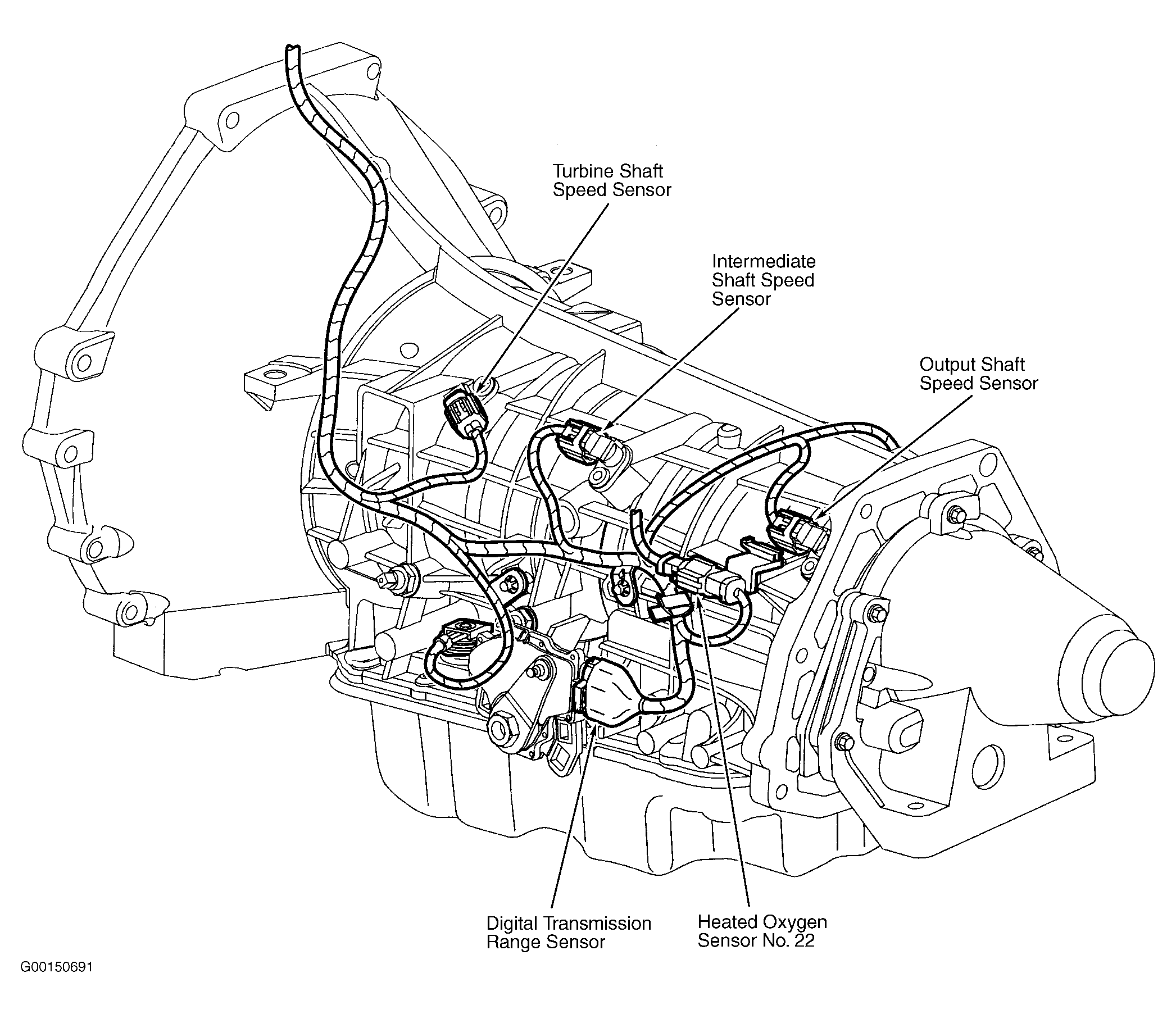

Fig 5: Transmission

Courtesy of FORD MOTOR CO.

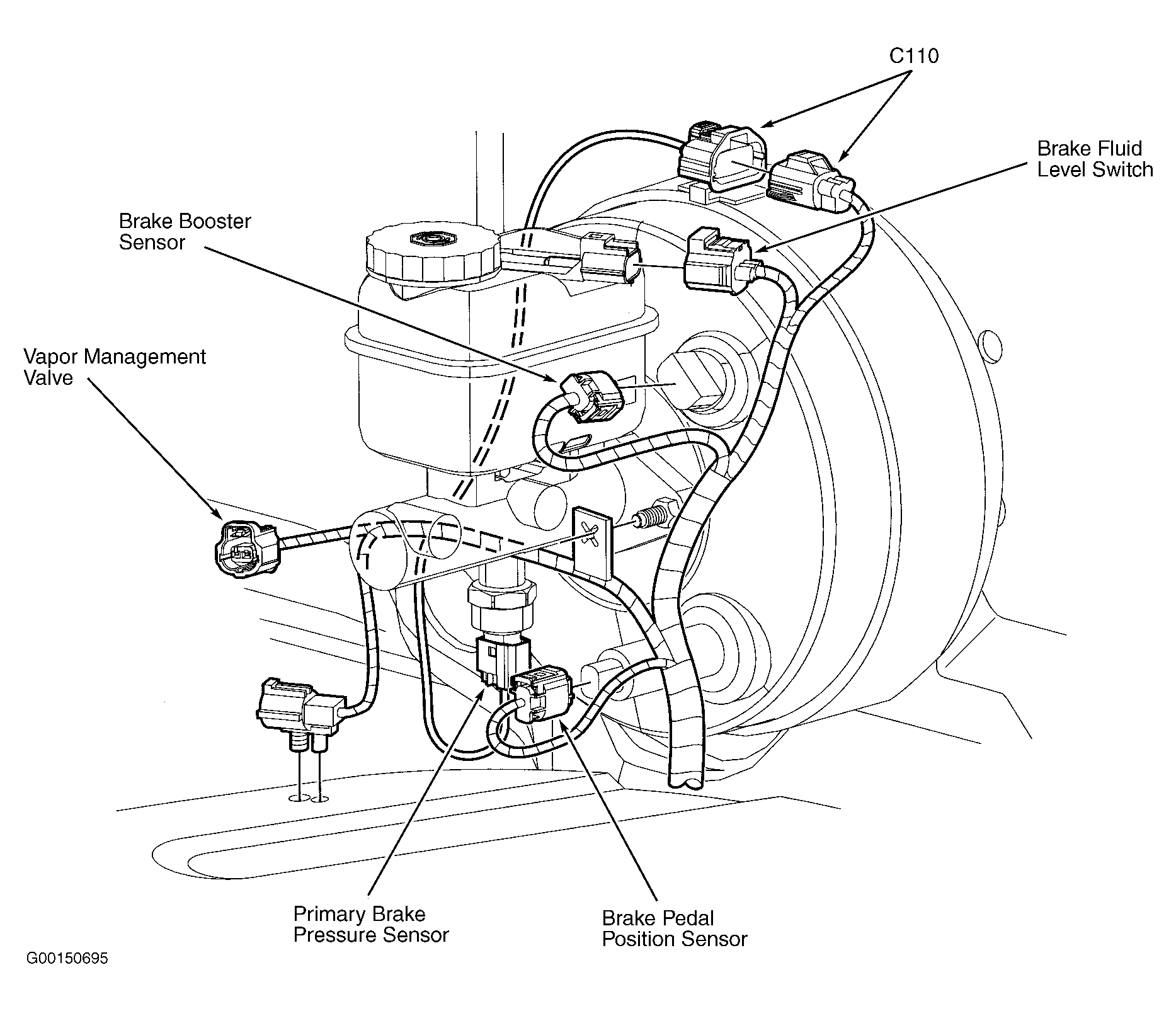

Fig 6: Brake Booster Assembly

Courtesy of FORD MOTOR CO.

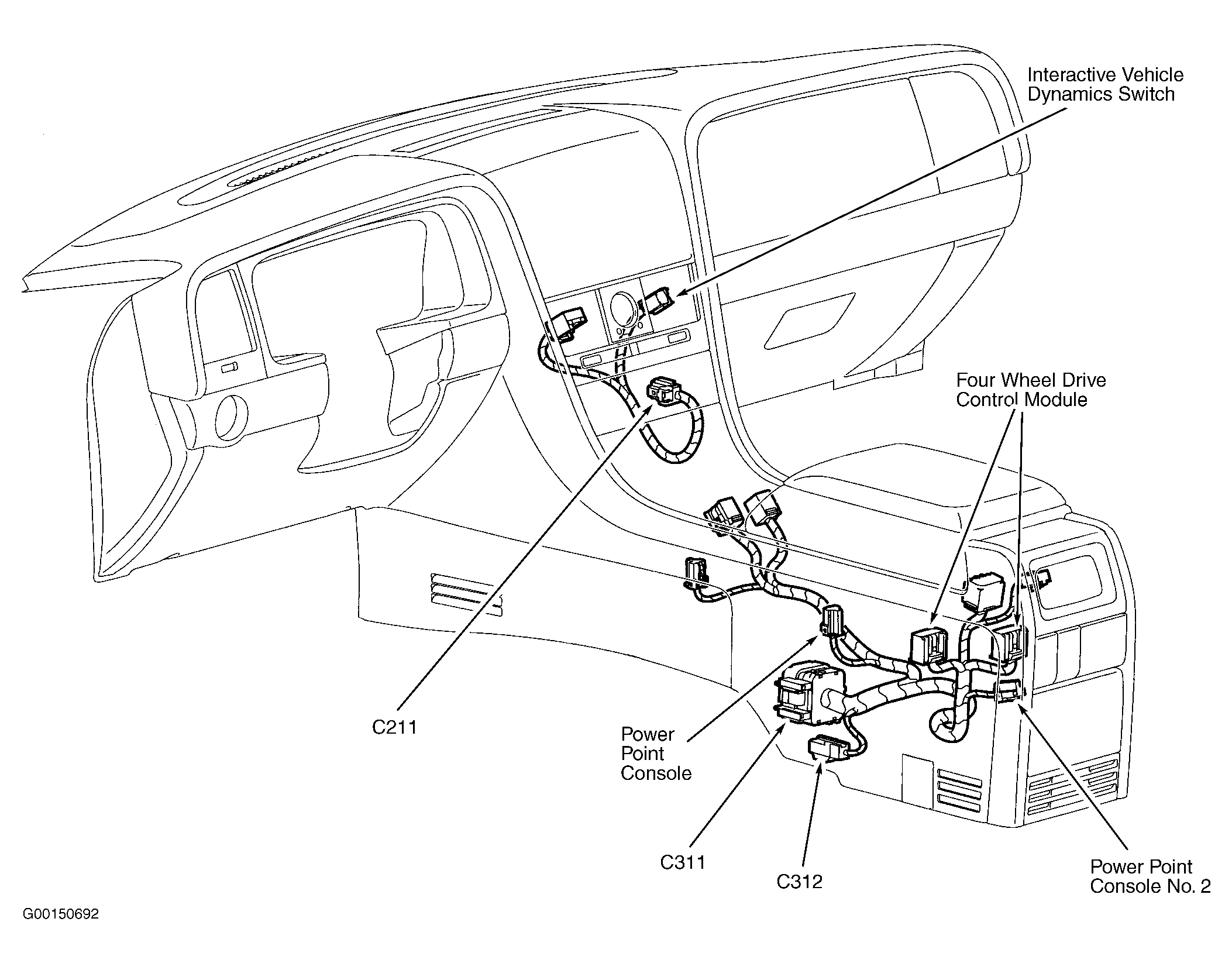

Fig 7: Center Console

Courtesy of FORD MOTOR CO.

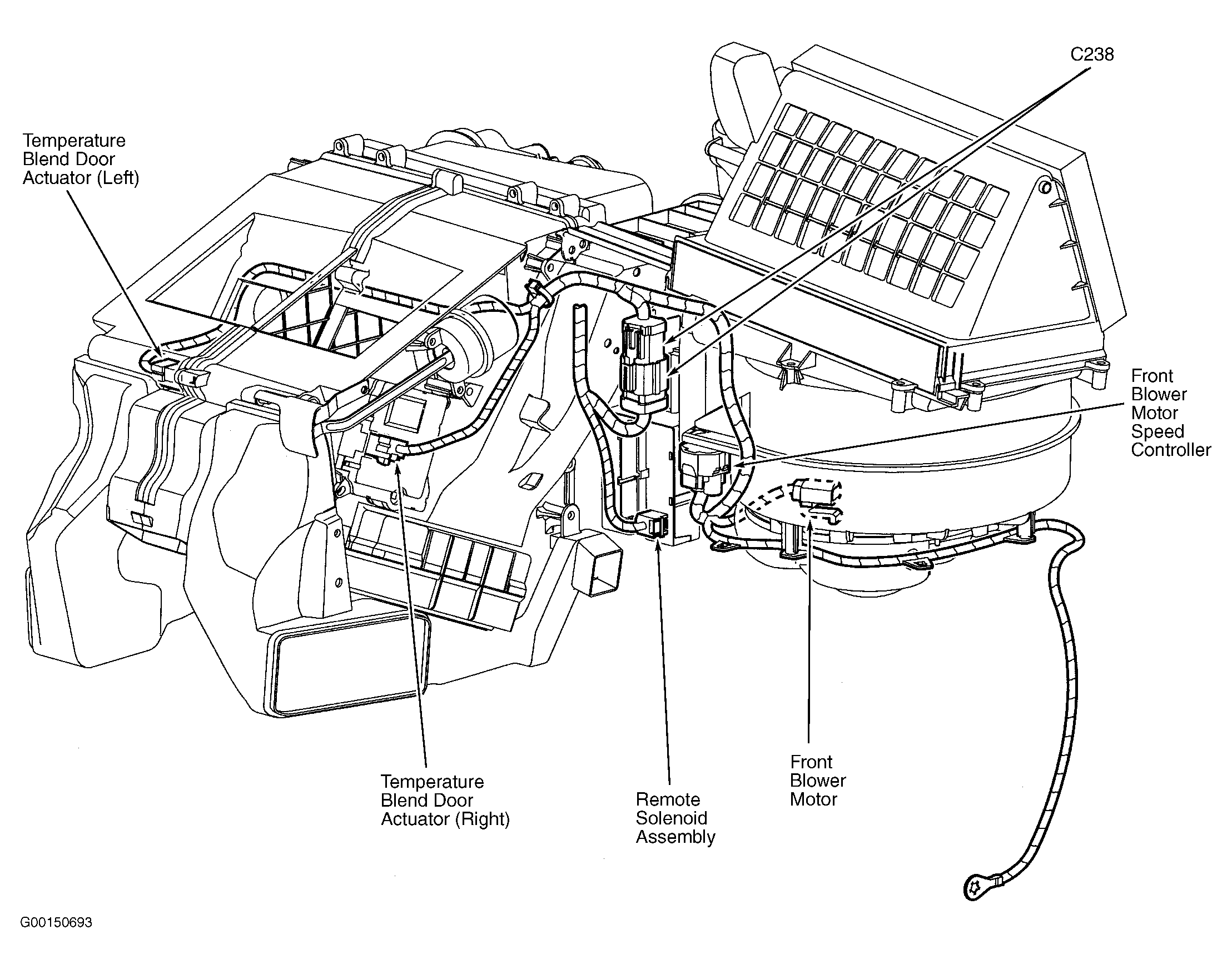

Fig 8: HVAC Unit, Under Right Side Of Dash

Courtesy of FORD MOTOR CO.

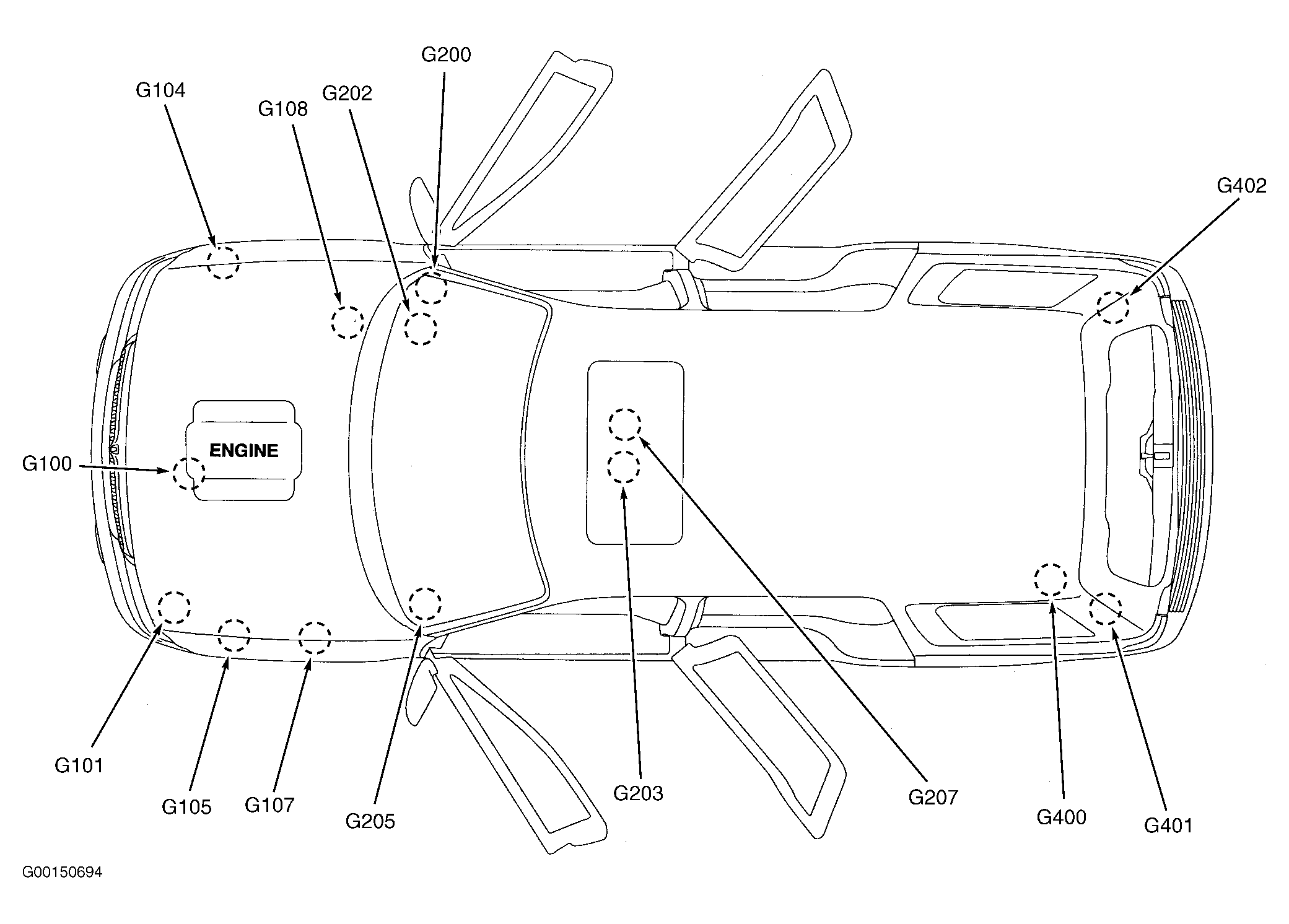

Fig 9: Vehicle Overview

Courtesy of FORD MOTOR CO.
