Disassembly And Assembly Of Subassemblies: Piston

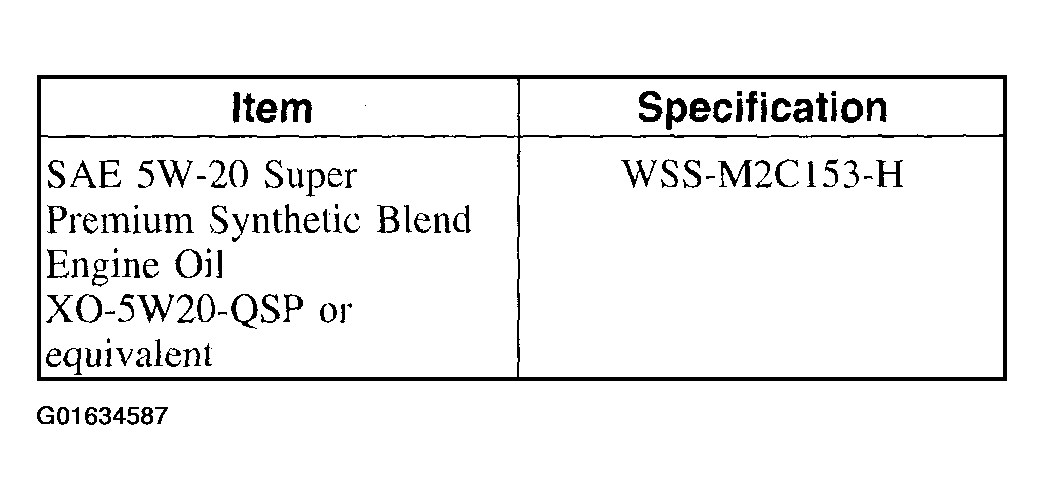

Fig 1: Material Specifications

Courtesy of FORD MOTOR CO.

1. Remove the components in the order indicated in the following illustration.
2. To assemble, reverse the disassembly procedure.

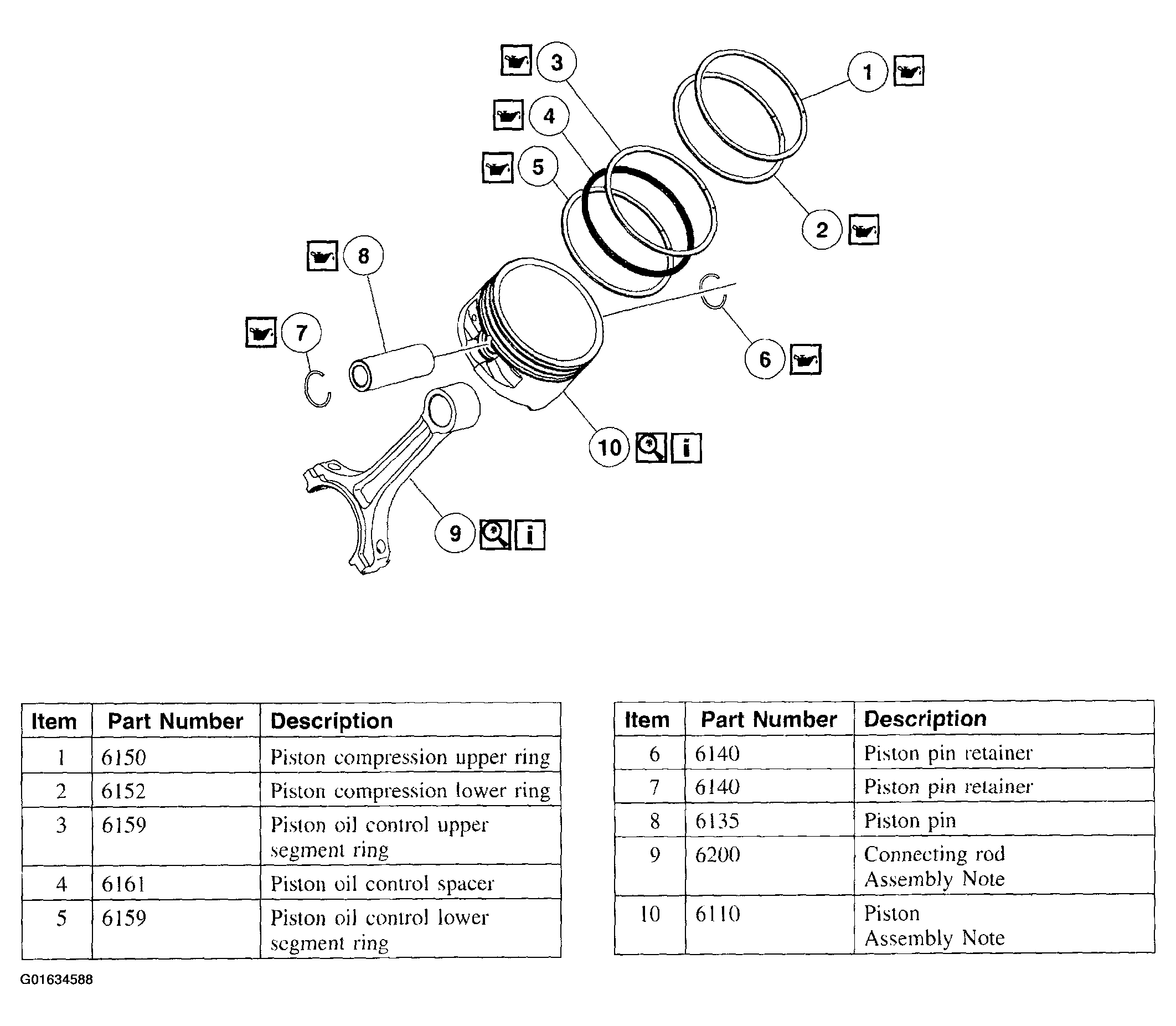

   Fig 2: Removal Sequence Of Piston

   Courtesy of FORD MOTOR CO.

Items 9 and 10: Piston and Connecting Rod Assembly Note

NOTE: Connecting rod must be installed into the piston with identification markings toward the front.

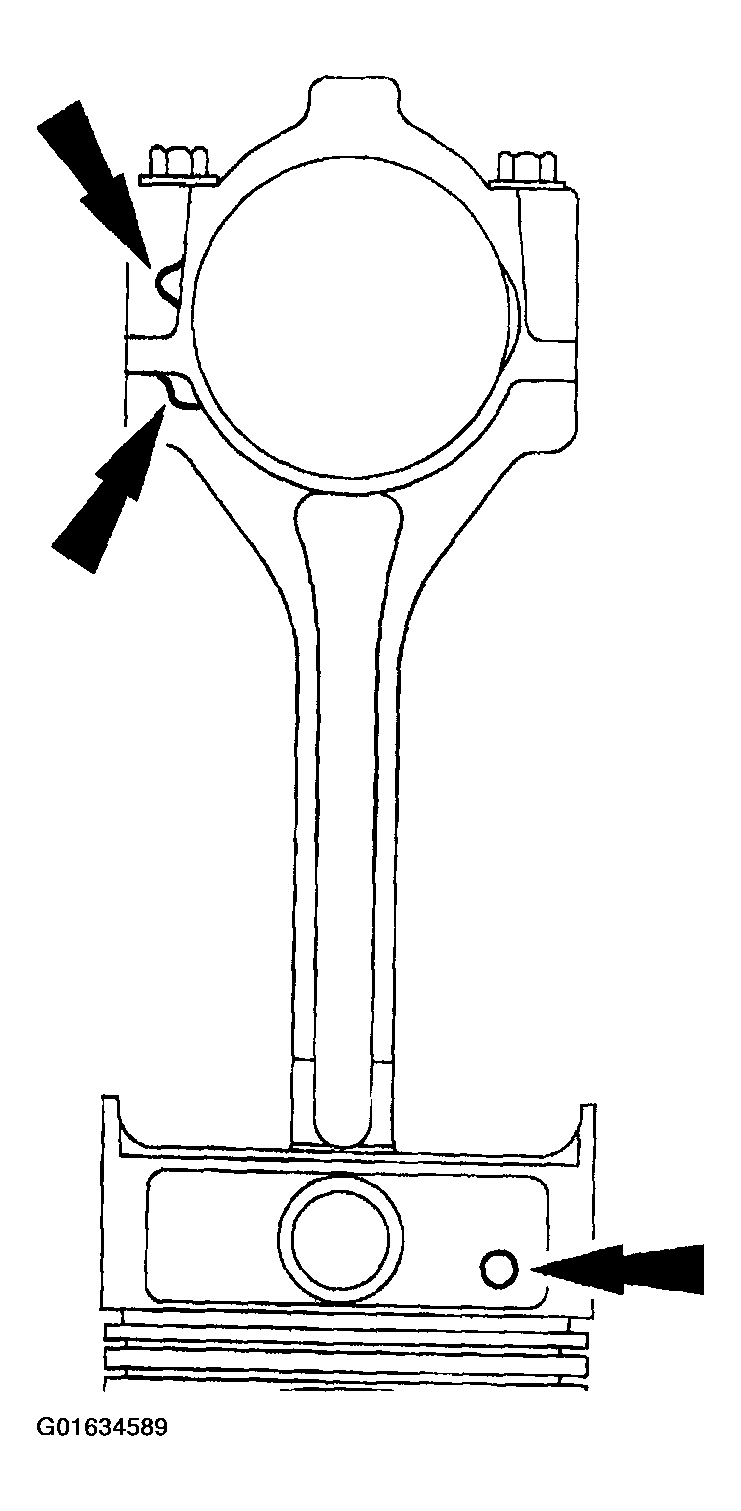

Fig 3: Positioning Connecting Rod In Piston
Courtesy of FORD MOTOR CO.
1. Position the connecting rod in the piston.
