Lower Intake Manifold

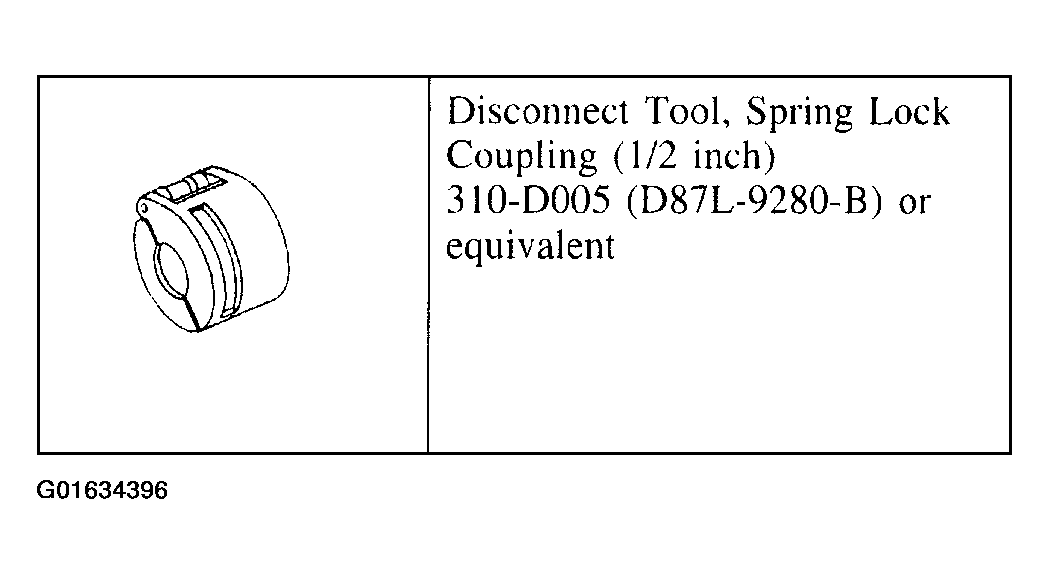

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
2. Remove the components in the order indicated in the following illustration.
3. To install, reverse the removal procedure.

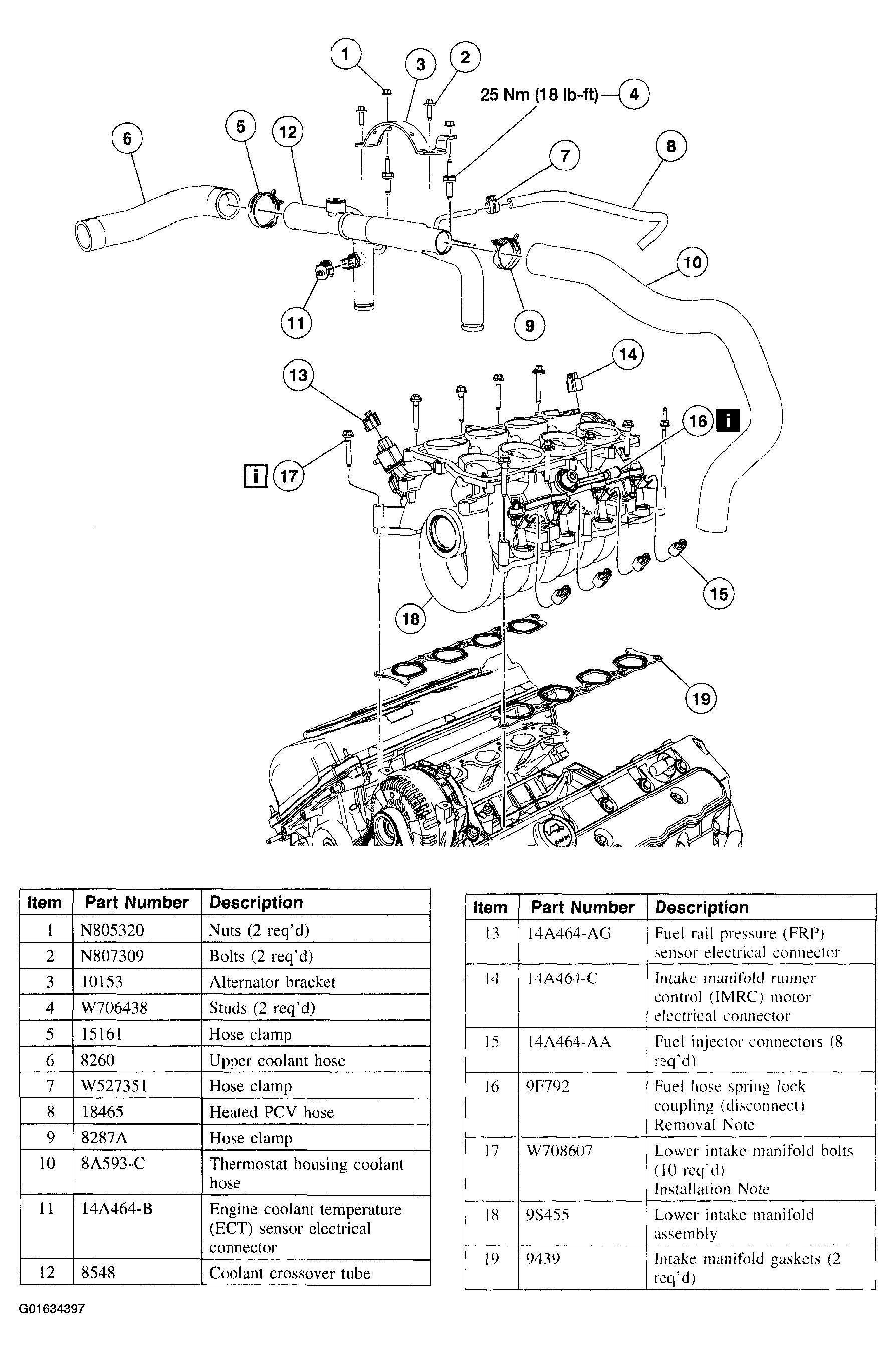

   Fig 2: Removal Sequence Of Lower Intake Manifold

   Courtesy of FORD MOTOR CO.

Item 16: Fuel Hose Spring Lock Coupling Removal Note

1. Install the special tool.

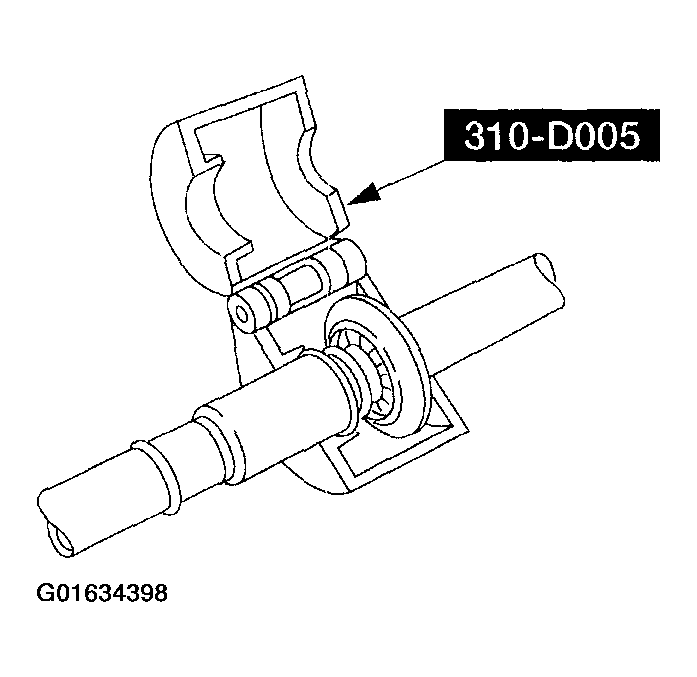

   Fig 3: Identifying Special Tool (310-D005)

   Courtesy of FORD MOTOR CO.
2. Press the special tool into the open end of the cage.

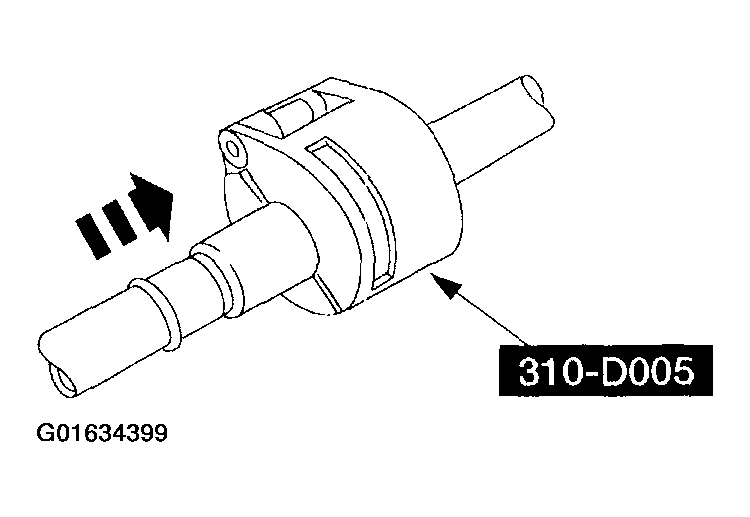

   Fig 4: Pressing Special Tool Into Open End Of Cage

   Courtesy of FORD MOTOR CO.
3. Separate the coupling.

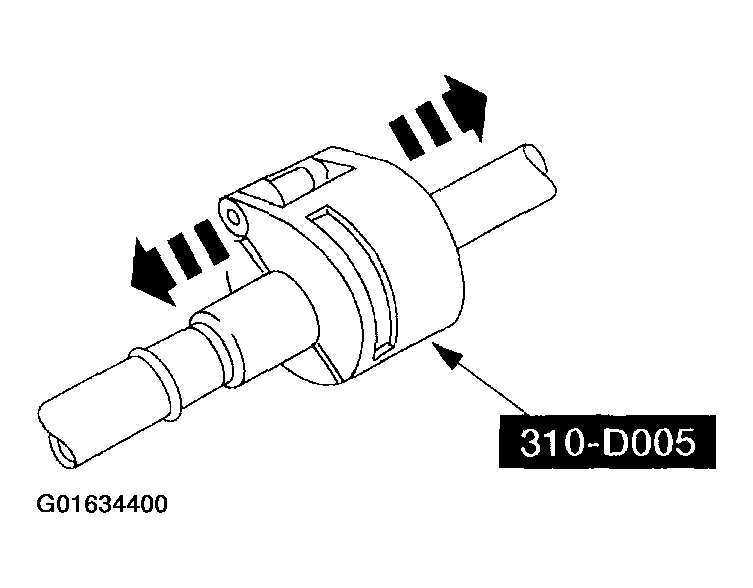

   Fig 5: Separating Coupling

   Courtesy of FORD MOTOR CO.

Item 17: Lower Intake Manifold Bolts Installation Note

1. Hand-start all fasteners.
2. Torque all fasteners in the sequence shown in the illustration to 10 Nm (89 lb-in).

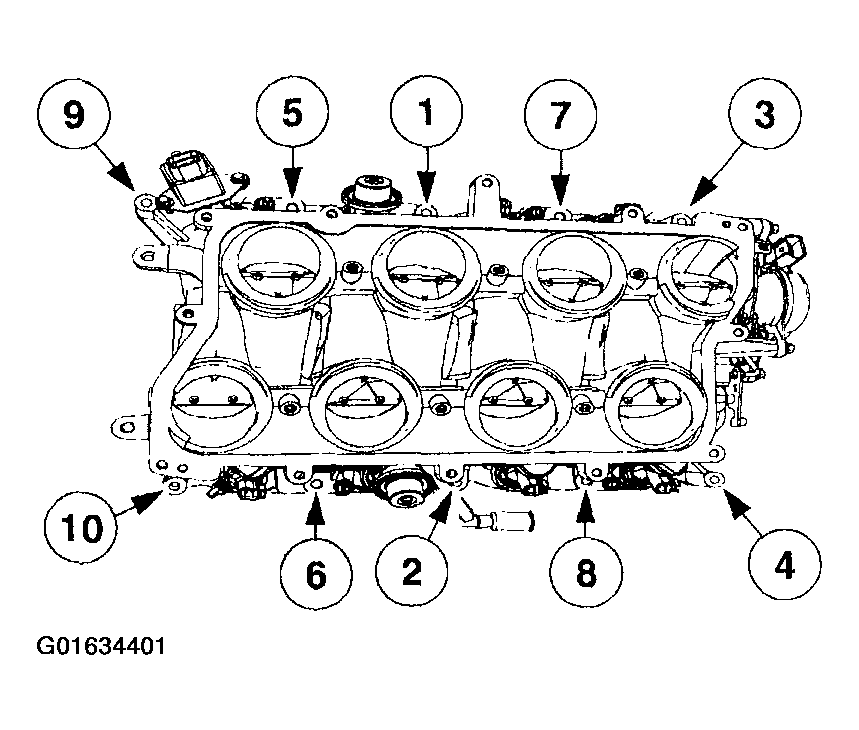

   Fig 6: Identifying Torque Tightening Sequence Of Lower Intake Manifold Bolts
