Power Steering System Filling

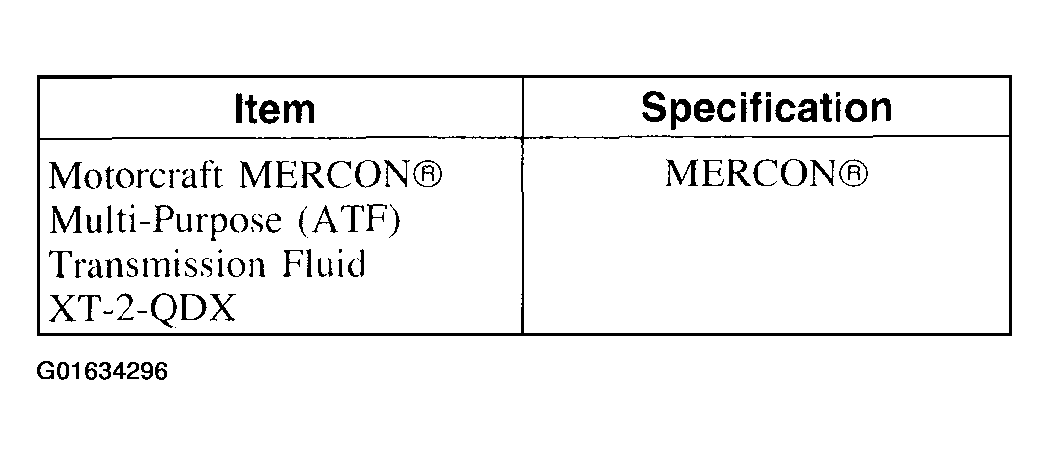

Fig 1: Material
G01634296Courtesy of FORD MOTOR CO.
    WARNING: Do not mix oil types, any mixture or any unapproved oil could lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

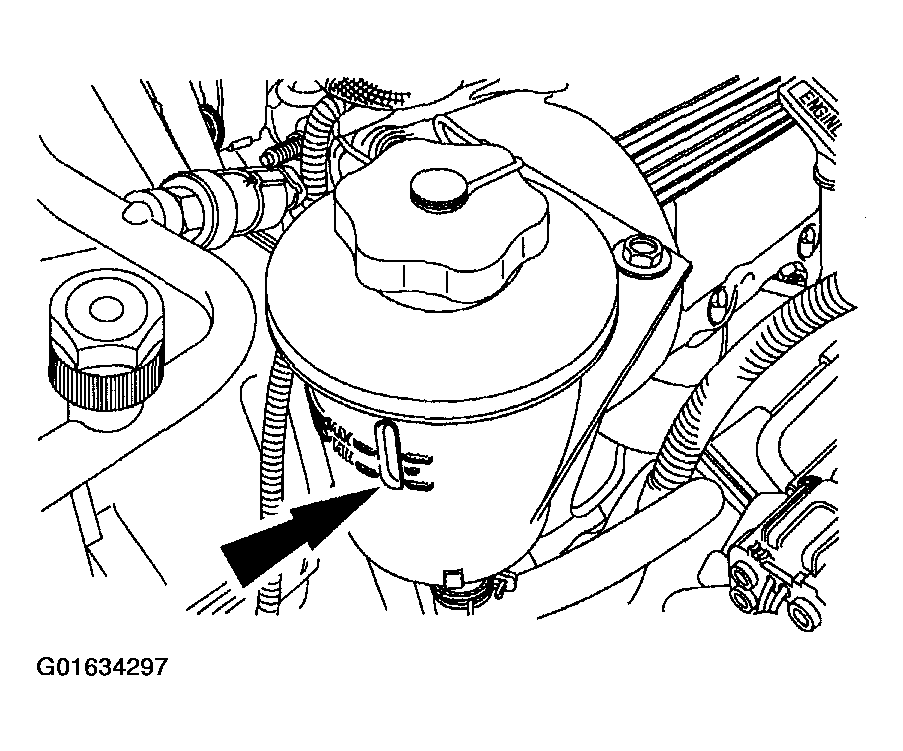

    Fig 2: Checking Power Steering Fluid Level
    G01634297Courtesy of FORD MOTOR CO.
  1. Fill the reservoir.
  2. Remove the ignition coil fuse to disable the vehicle.
  3. Raise the front wheels off the floor.
    4. CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
    CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump can occur.
  4. Turn the steering wheel from stop-to-stop while cranking the engine.
  5. Lower the vehicle.
    6. CAUTION: Do not overfill the reservoir.

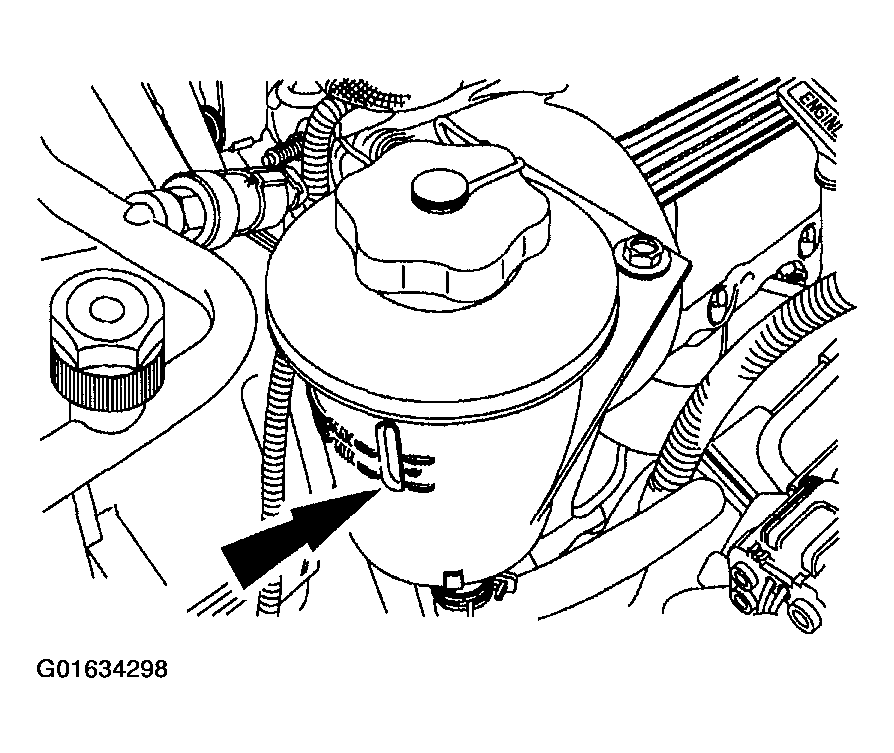

    Fig 3: Checking Power Steering Fluid Level
    G01634298Courtesy of FORD MOTOR CO.
  6. Fill the reservoir.
  7. Install the ignition coil fuse.
