Steering Column Switches

WARNING: To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
1. Disconnect the battery ground cable and wait at least one minute to allow for the depletion of the supplemental restraint system (SRS) backup power supply. For additional information, refer to BATTERY & CHARGING SYSTEM .
2. Remove the components in the order indicated in the following illustrations.
3. To install, reverse the removal procedure.

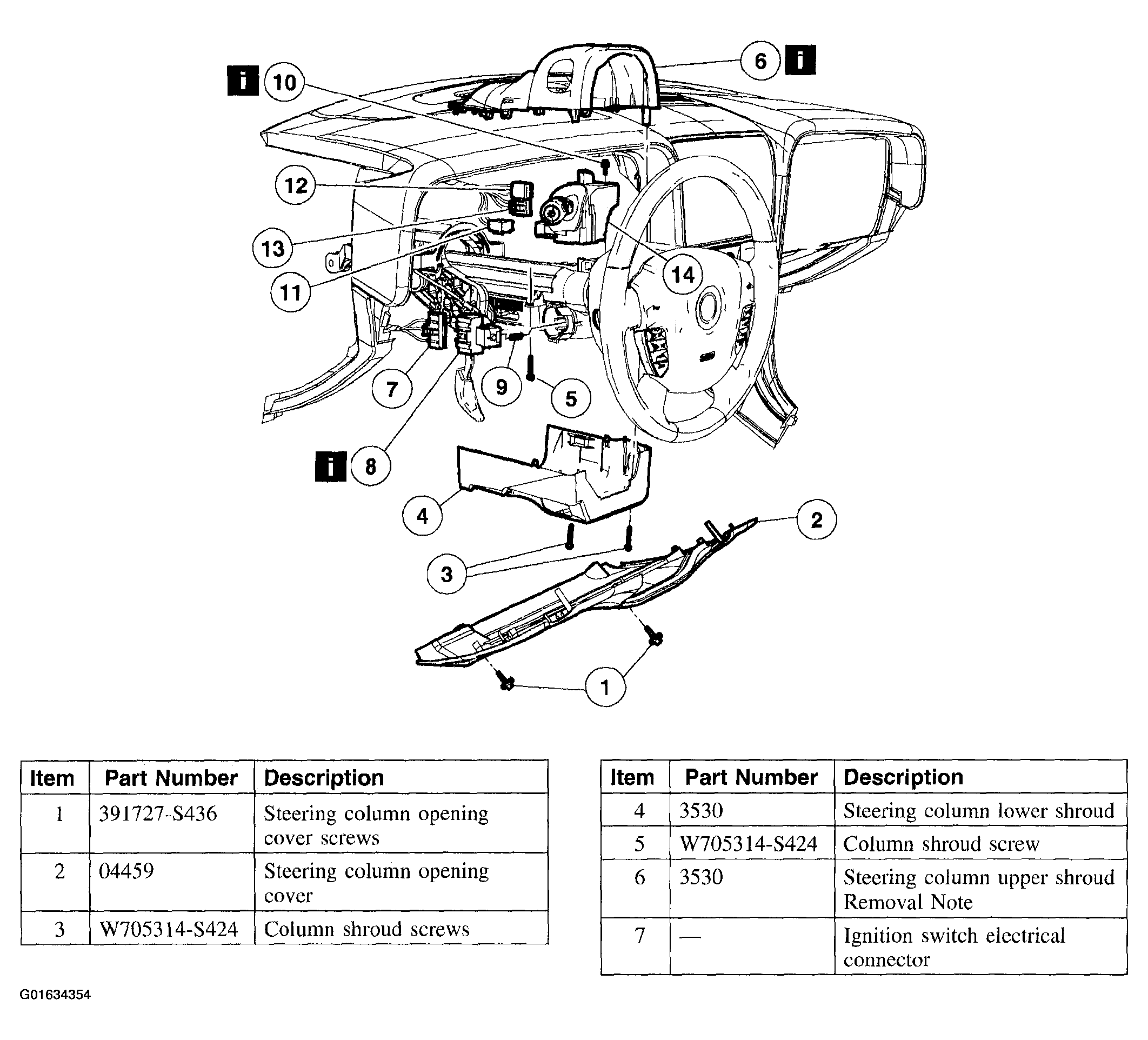

   Fig 1: Removal Sequence Of Steering Column Switches (1 Of 2)

   Courtesy of FORD MOTOR CO.

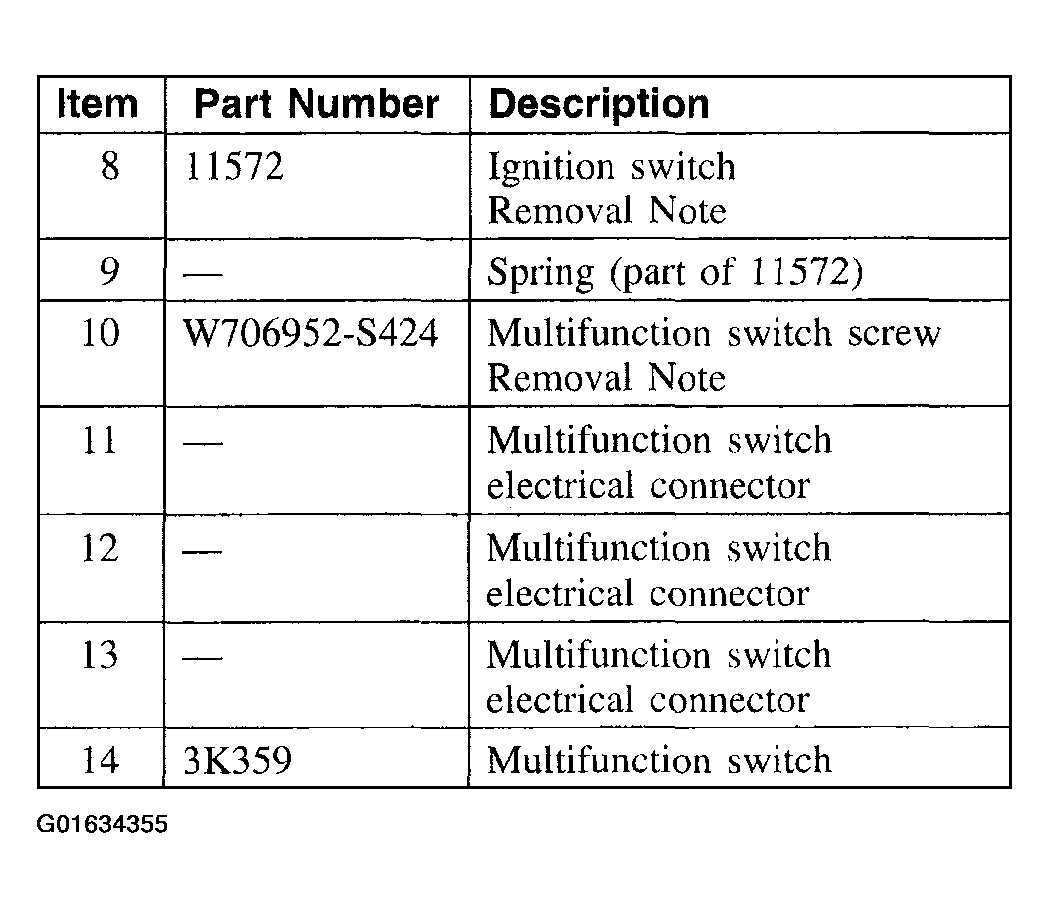

   Fig 2: Removal Sequence Of Steering Column Switches (2 Of 2)

   Courtesy of FORD MOTOR CO.

Item 6: Steering Column Upper Shroud Removal Note

1. Remove the upper steering column shroud.
   1. Release the retaining clips and rotate the upper steering column trim panel out of the instrument panel.
   2. Remove the upper steering column shroud hard shell.
      Fig 3: Removing Upper Steering Column Shroud

      Courtesy of FORD MOTOR CO.

Item 8: Ignition Switch Removal Note

1. Release the two locking tabs and remove the switch.

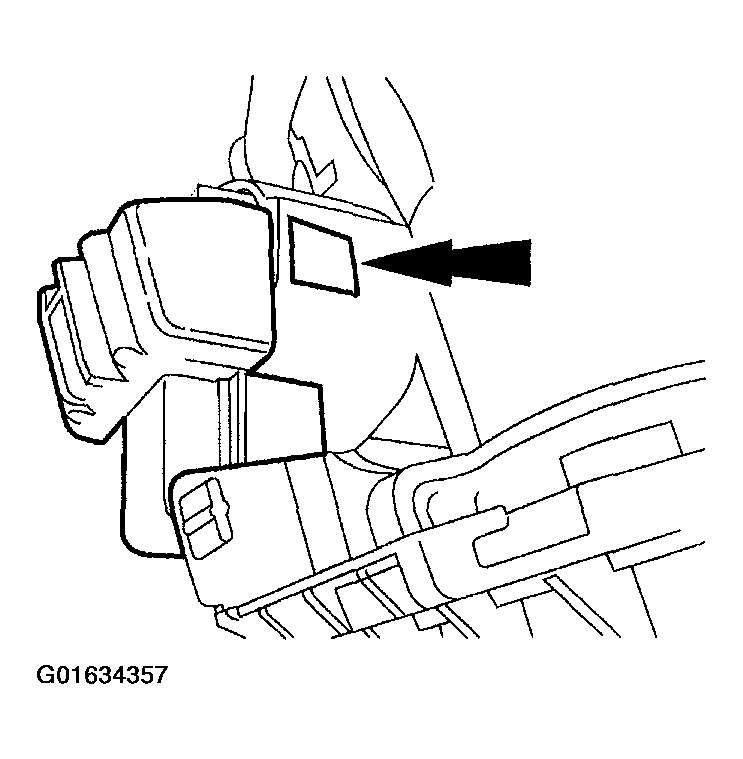

   Fig 4: Removing Ignition Switch

   Courtesy of FORD MOTOR CO.

Item 10: Multifunction Switch Removal Note

1. Remove the screw, push the release tab and raise the switch.

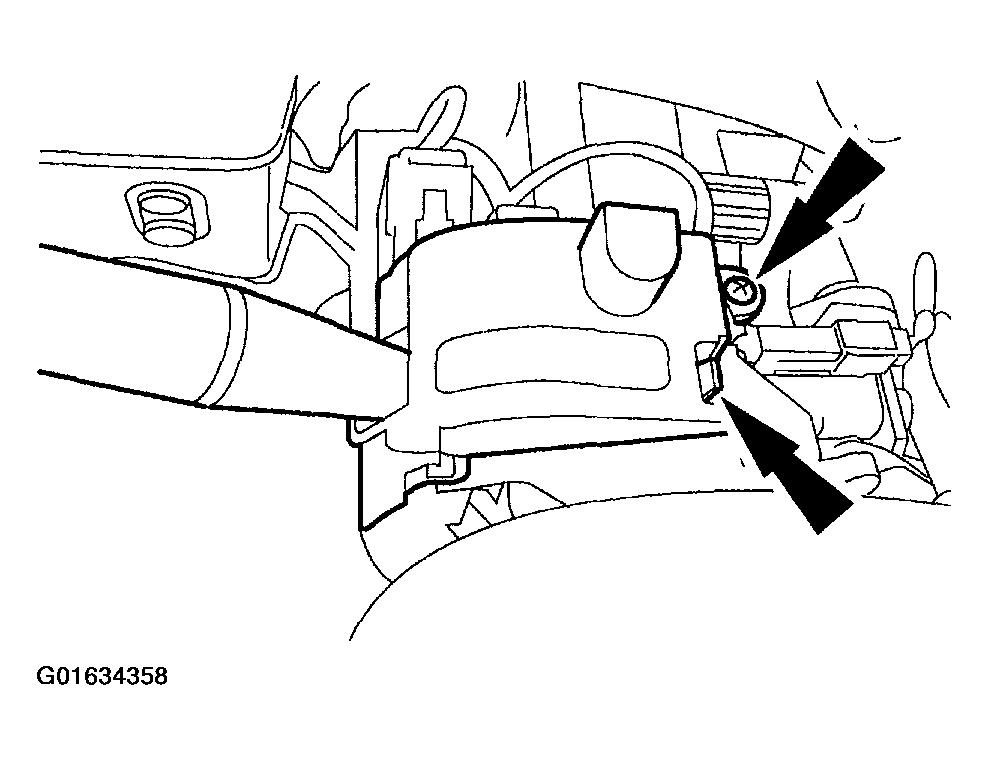

   Fig 5: Removing Screw

   Courtesy of FORD MOTOR CO.

Item 5: Steering Column Upper Shroud Installation Note

1. Make sure that the upper shroud retainer clips and the upper-to-lower shroud screws secure tightly or a new upper shroud must be installed.
