Variable Assist Power Steering (VAPS) Module

NOTE: The variable assist power steering (VAPS) module is located under the RH side of the instrument panel, attached to the heater core and evaporator core housing.

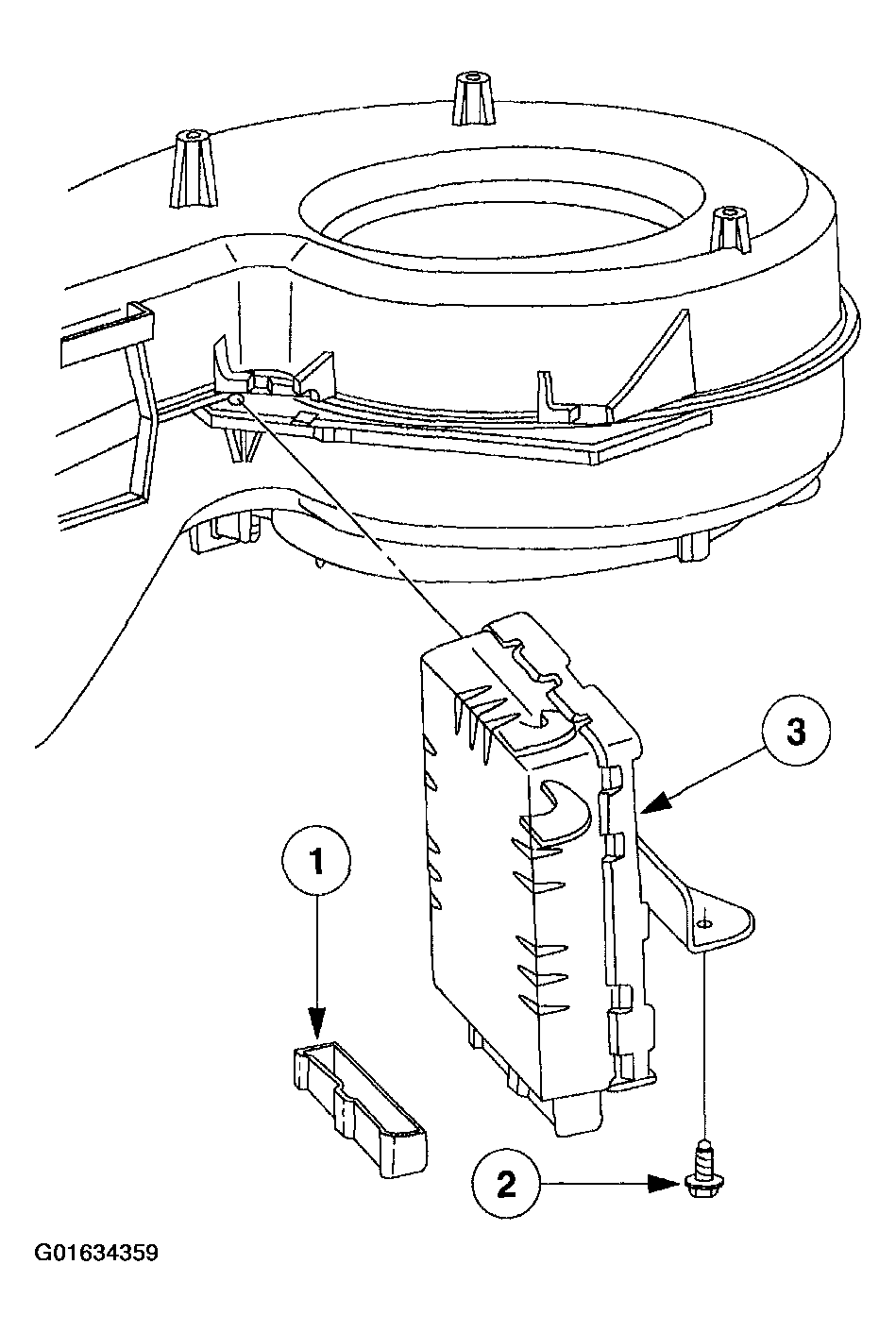

Fig 1: Removal Sequence Of Variable Assist Power Steering (VAPS) Module

Courtesy of FORD MOTOR CO.

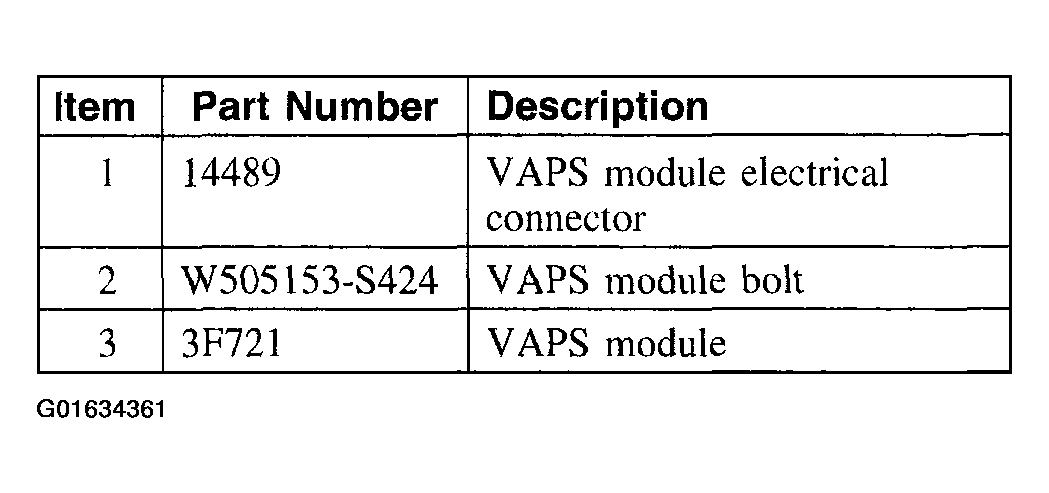

Fig 2: Variable Assist Power Steering Table

Courtesy of FORD MOTOR CO.

Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.
- Calibrate the VAPS module. For additional information, refer to MODULE COMMUNICATIONS NETWORK .
