Disassembled Views

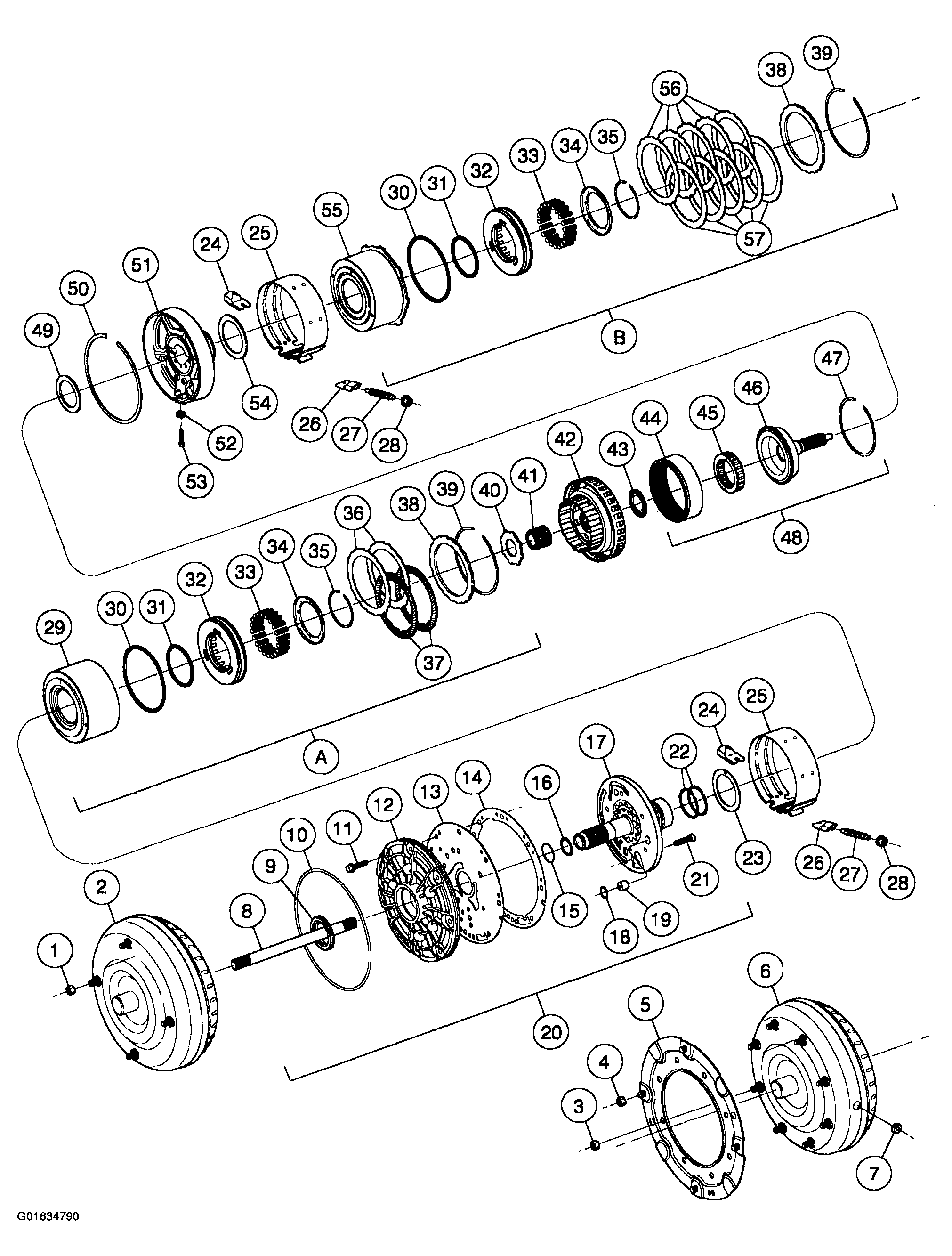

Fig 1: Exploded View Of Automatic Transmission (1 Of 3)

Courtesy of FORD MOTOR CO.

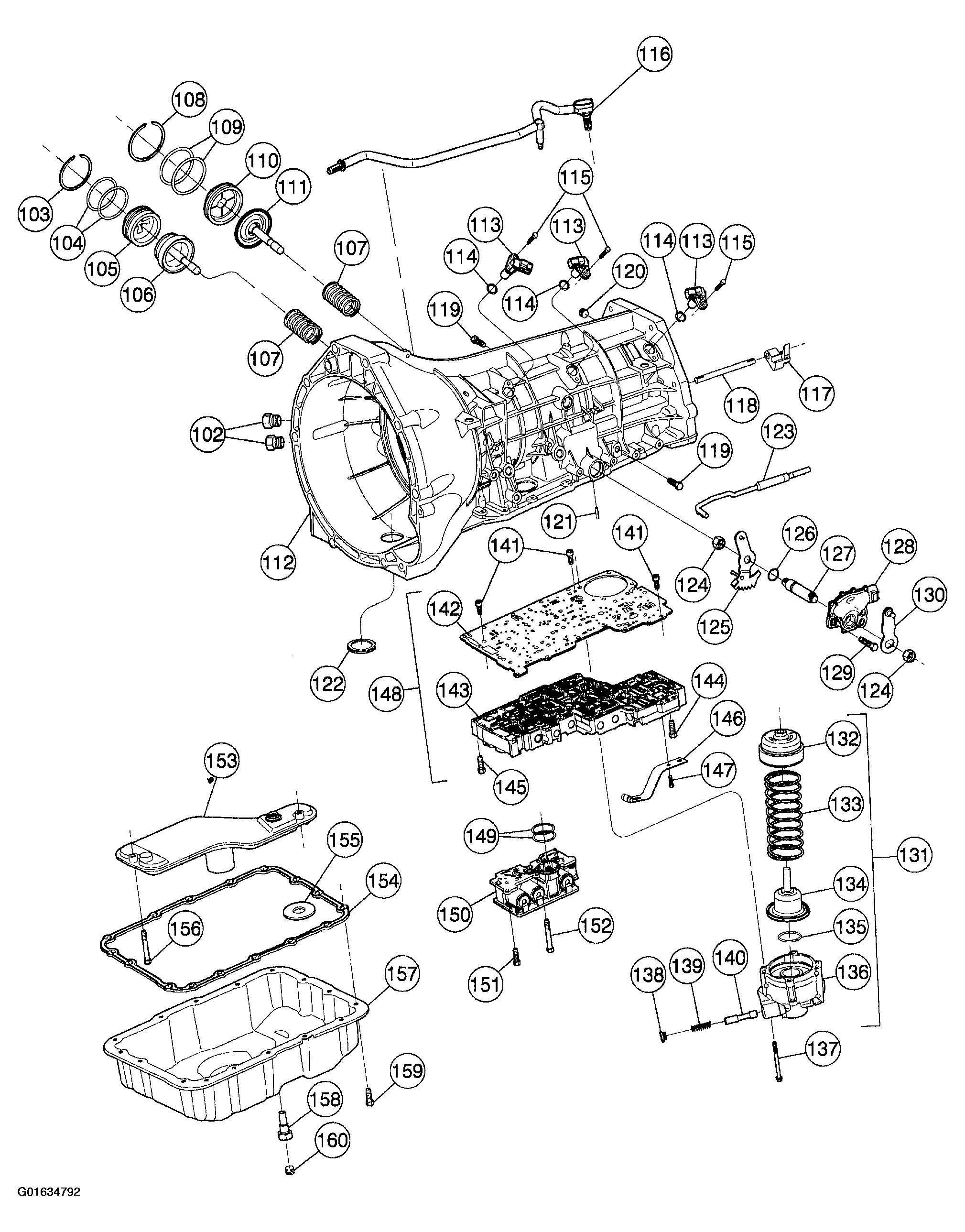

Fig 2: Exploded View Of Automatic Transmission (2 Of 3)

Courtesy of FORD MOTOR CO.

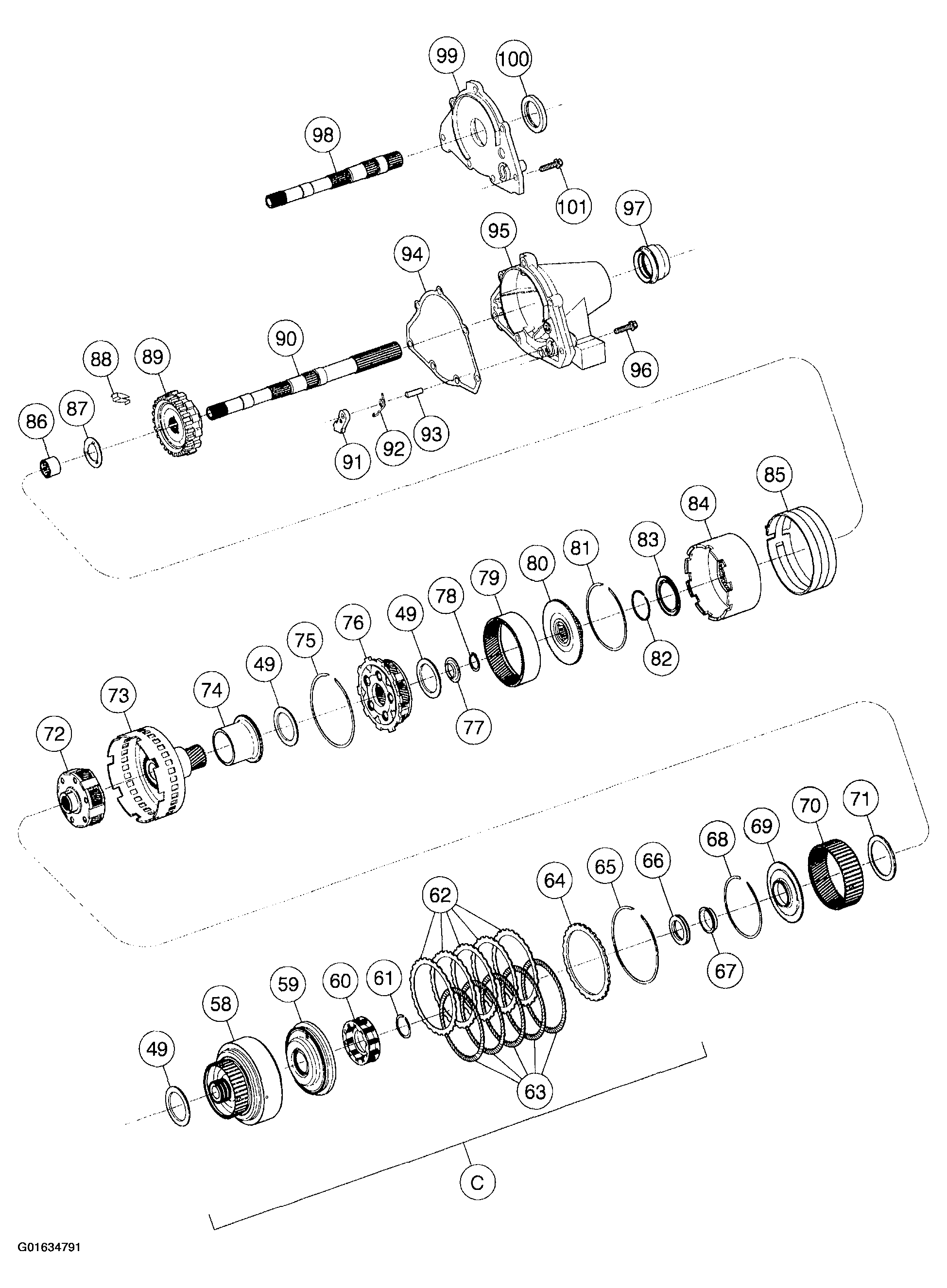

Fig 3: Exploded View Of Automatic Transmission (3 Of 3)

Courtesy of FORD MOTOR CO.

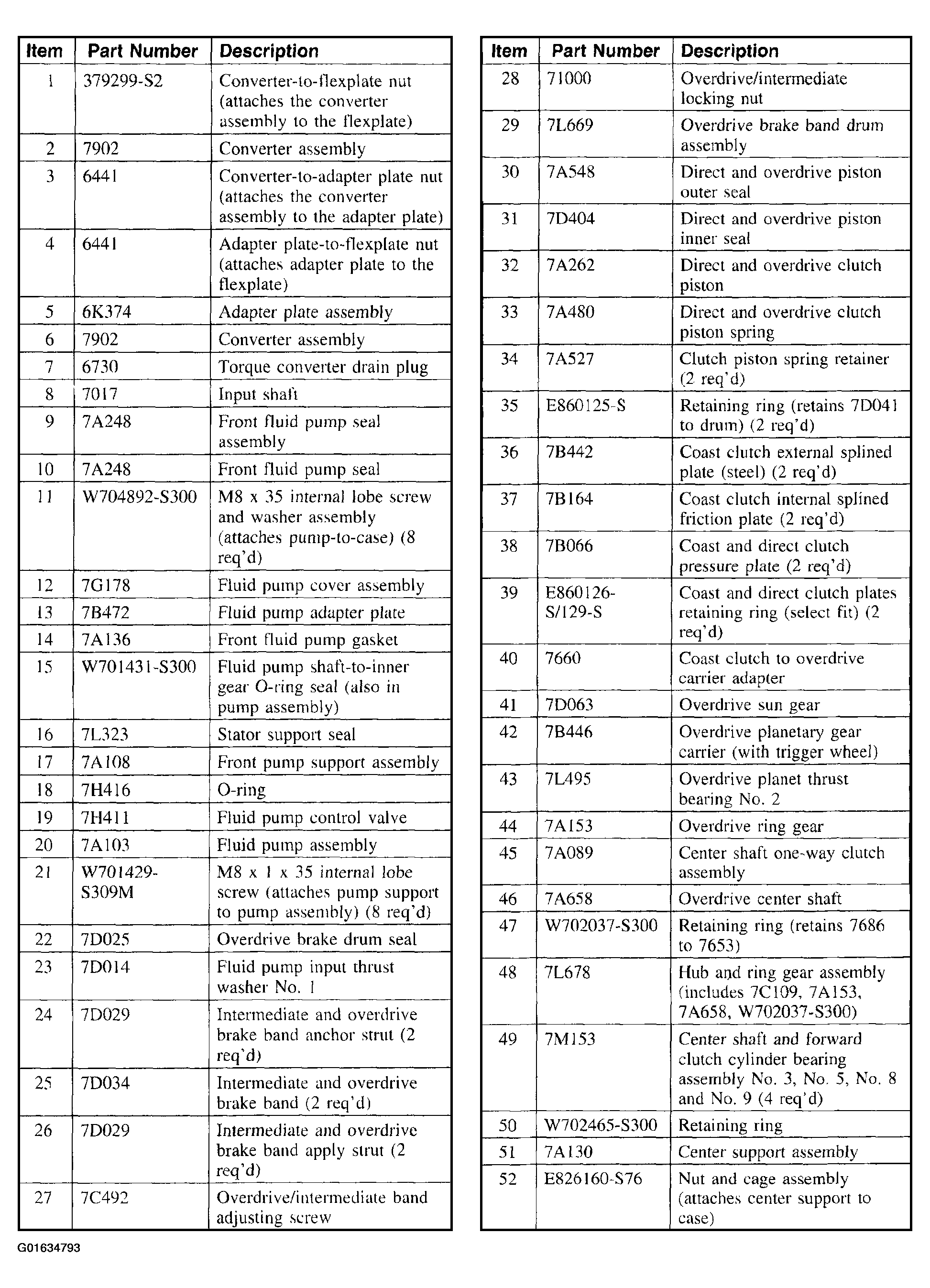

Fig 4: Automatic Transmission Legend (Components 1-52)

Courtesy of FORD MOTOR CO.

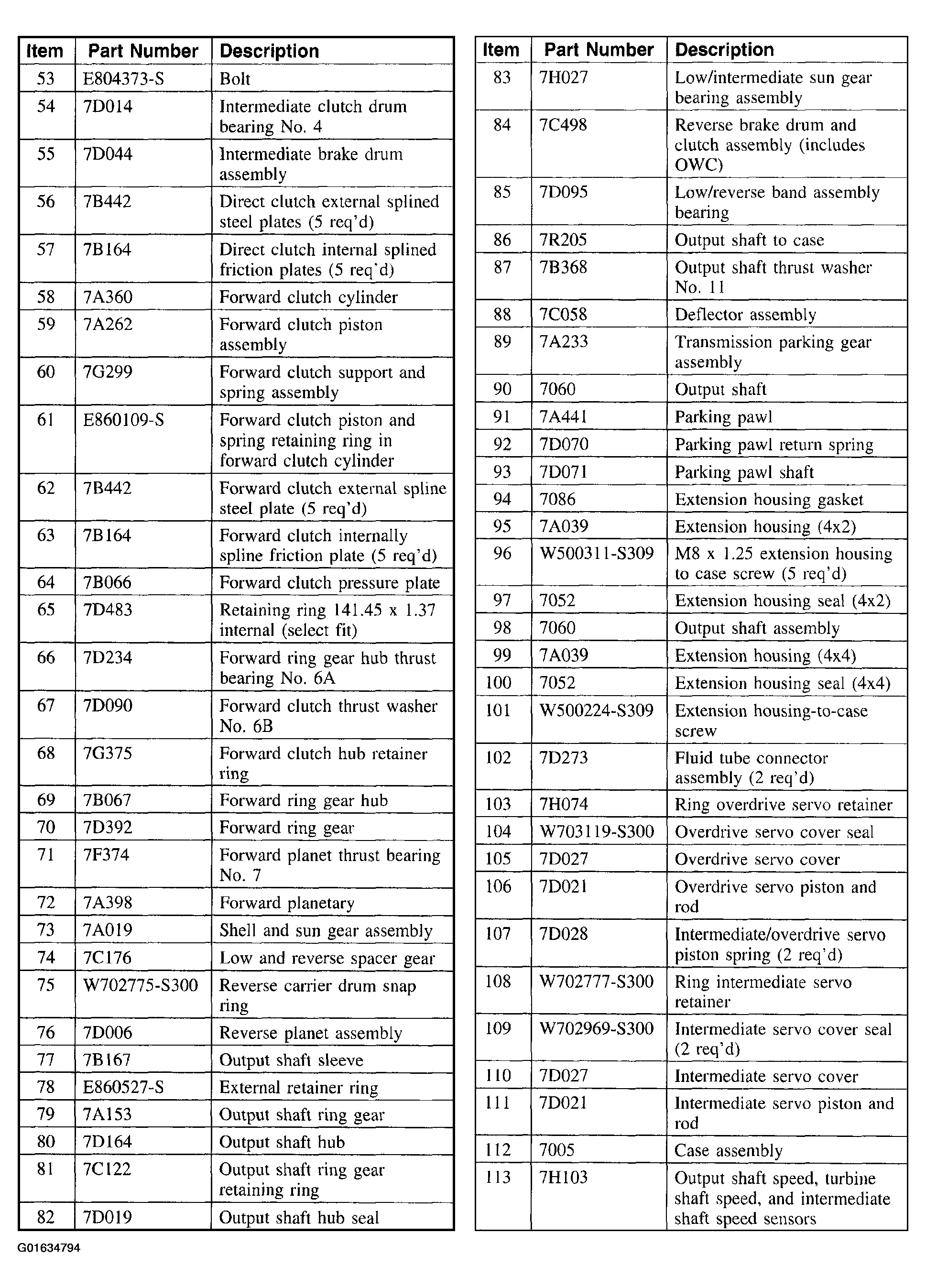

Fig 5: Automatic Transmission Legend (Components 53-113)

Courtesy of FORD MOTOR CO.

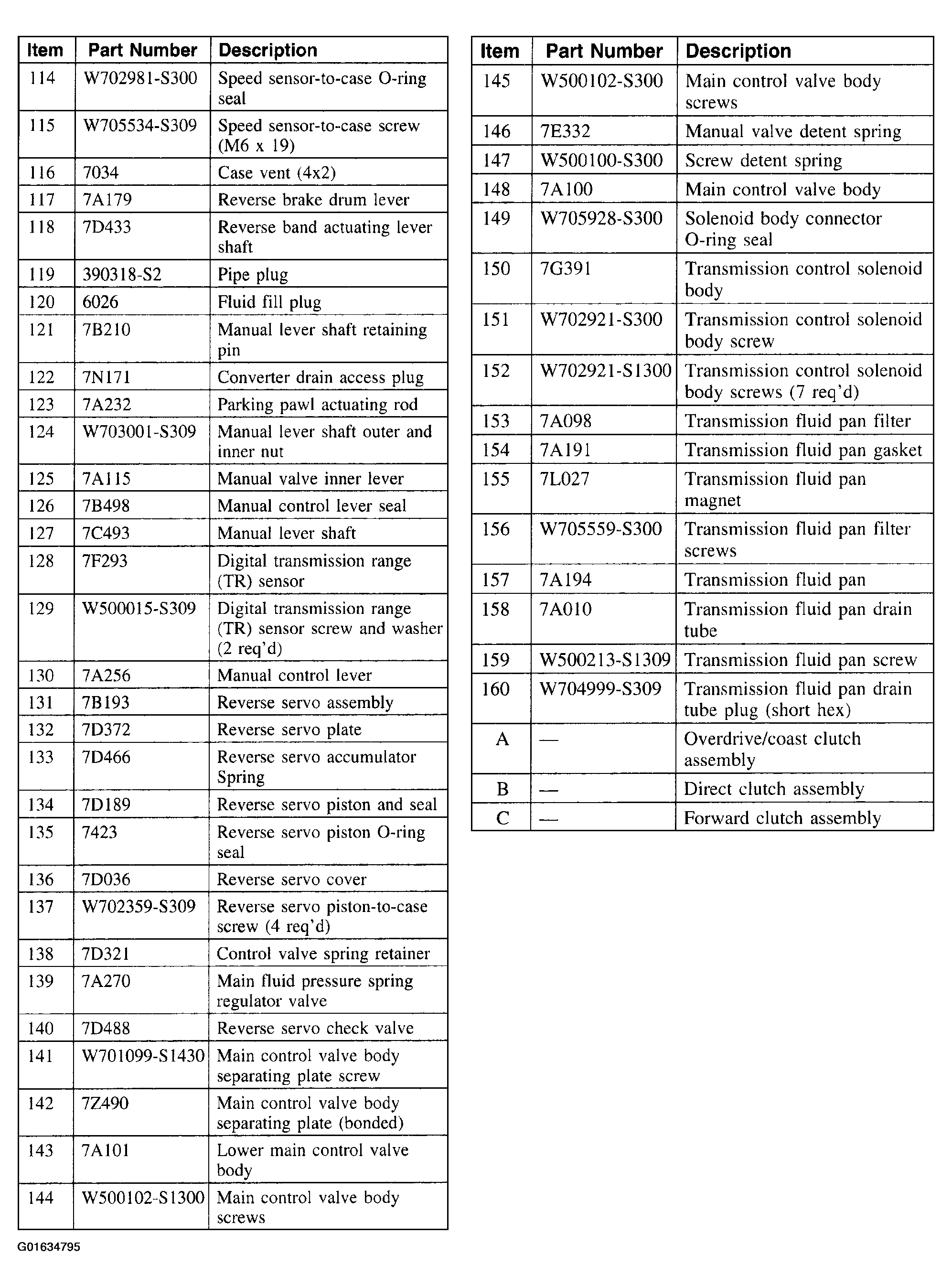

Fig 6: Automatic Transmission Legend (Components 114-160 A, B & C)

Courtesy of FORD MOTOR CO.
