Shift Interlock System

The shift interlock system prevents the shifting from PARK unless the brake pedal is depressed. The shift interlock system consists of a shift lock actuator mounted on the base of the floor shift housing. If the ignition switch is in the RUN position, the shift lock actuator is continually on unless the brake pedal is depressed.

If the selector lever will not move out of park with the key in the ON position it will need to be unlocked manually.

1. Make sure that the transmission range selector lever is in the PARK position.

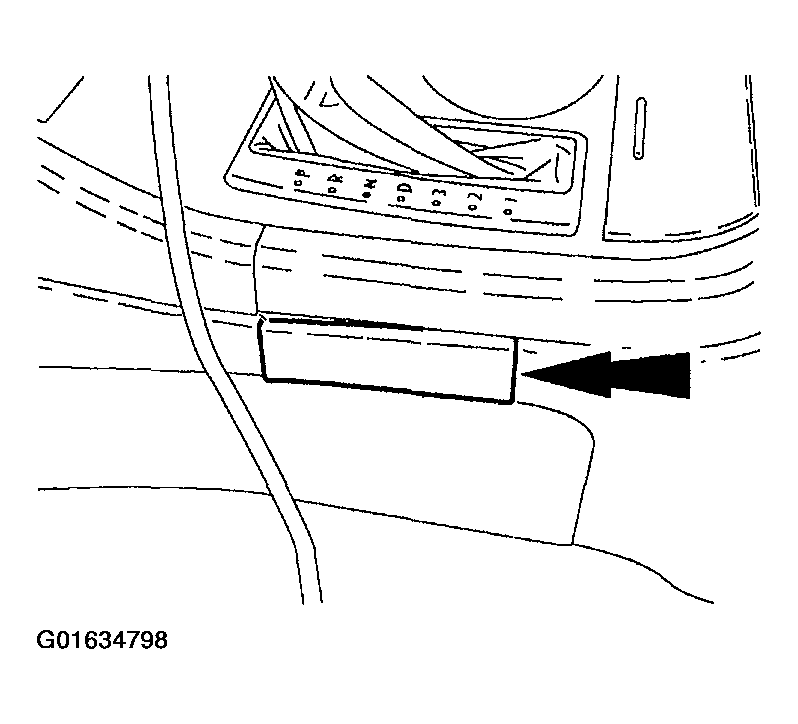

   Fig 1: Removing Side Access Panel

   Courtesy of FORD MOTOR CO.
2. Remove the side access panel

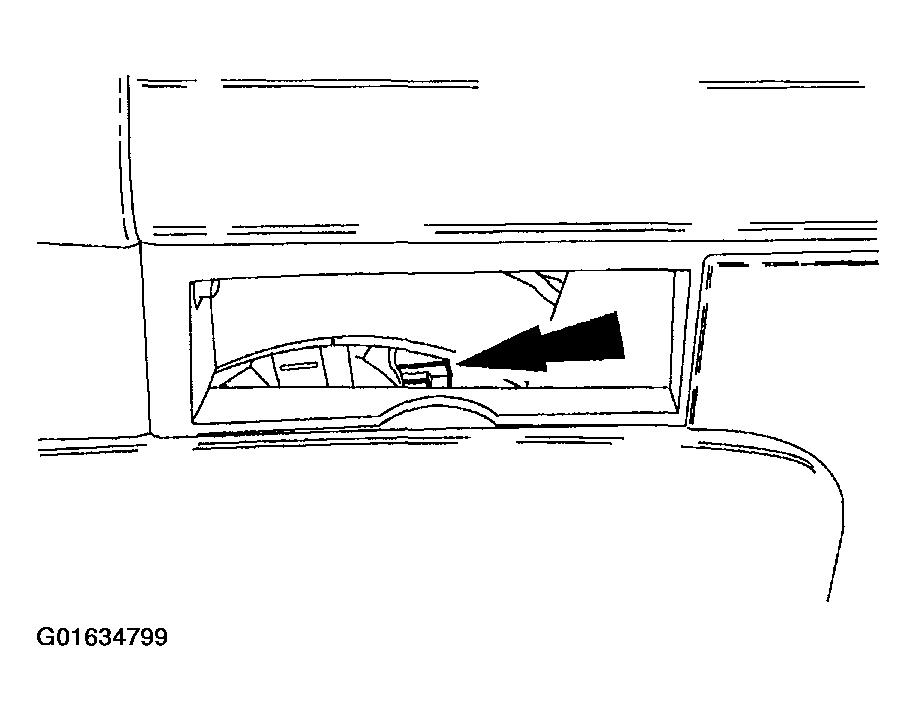

   Fig 2: Locating White Plastic Tab To Unlock Transmission Range Selector Lever

   Courtesy of FORD MOTOR CO.
3. Locate the white plastic tab, press up and forward on the tab to unlock the transmission range selector lever. The transmission range selector lever should now be able to move.
