1. Remove the components in the order indicated in the following illustration. To remove, clean and inspect the valves, carry out the steps listed
   Fig 2: Components Chart

   Courtesy of FORD MOTOR CO.
2. After cleaning the main control valve body, carry out the following.
   • Inspect all valve and plug bores for scoring or burrs.
   • Check all fluid passages for obstructions.
   • Inspect all valves and plugs for burrs.
   • Inspect all mating surfaces for burrs or distortion.
   • Inspect all springs for distortion.
   • Check all valves and plugs for free movement in their respective bores.
     • Valves and plugs, when dry, must fall from their own weight into their respective bores.
   • Roll the manual valve on a flat surface to check for a bent condition.
3. Assemble in the reverse order of disassembly.

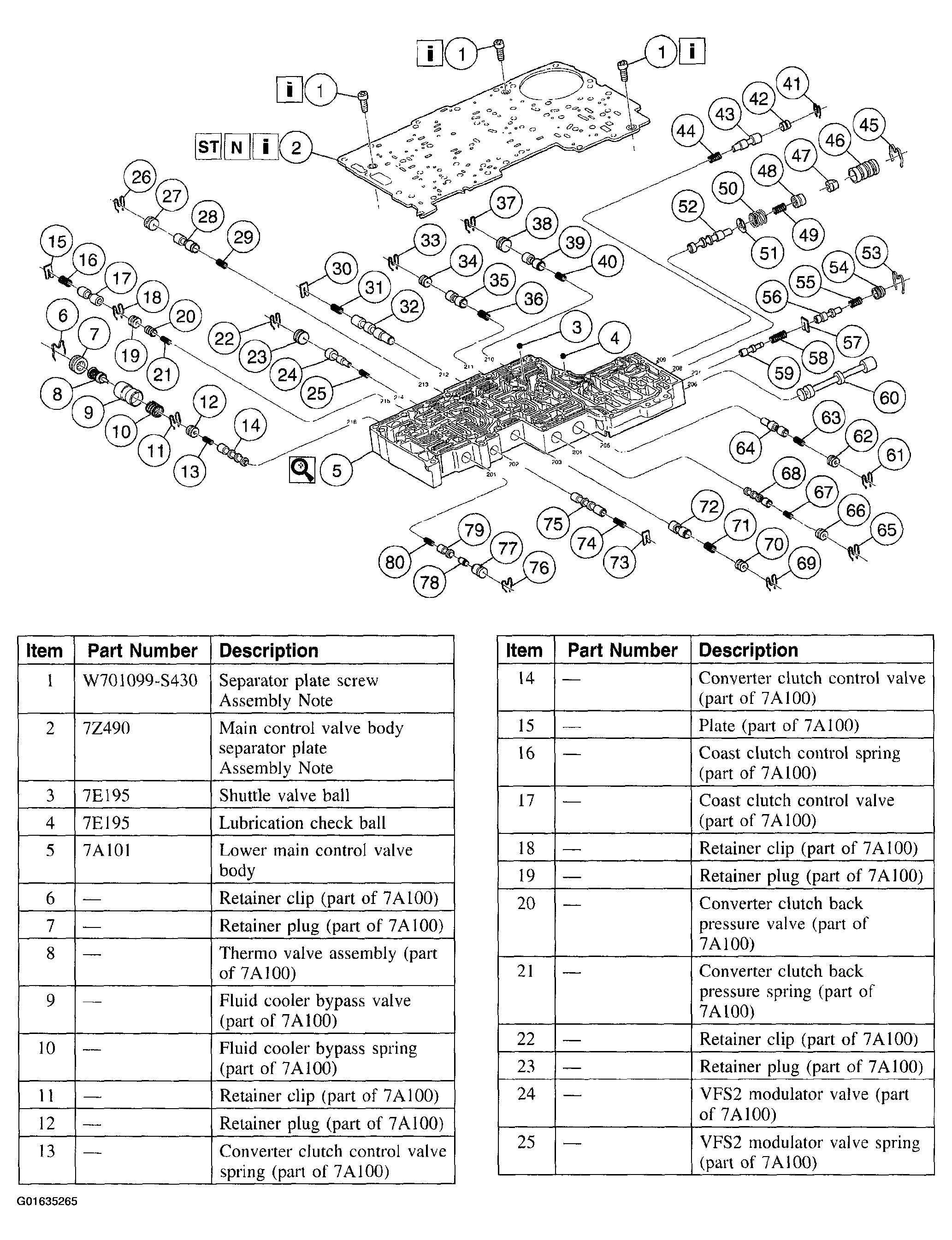

   Fig 3: Removal Procedure Of Main Control Valve Body (Steps 1-25)

   Courtesy of FORD MOTOR CO.

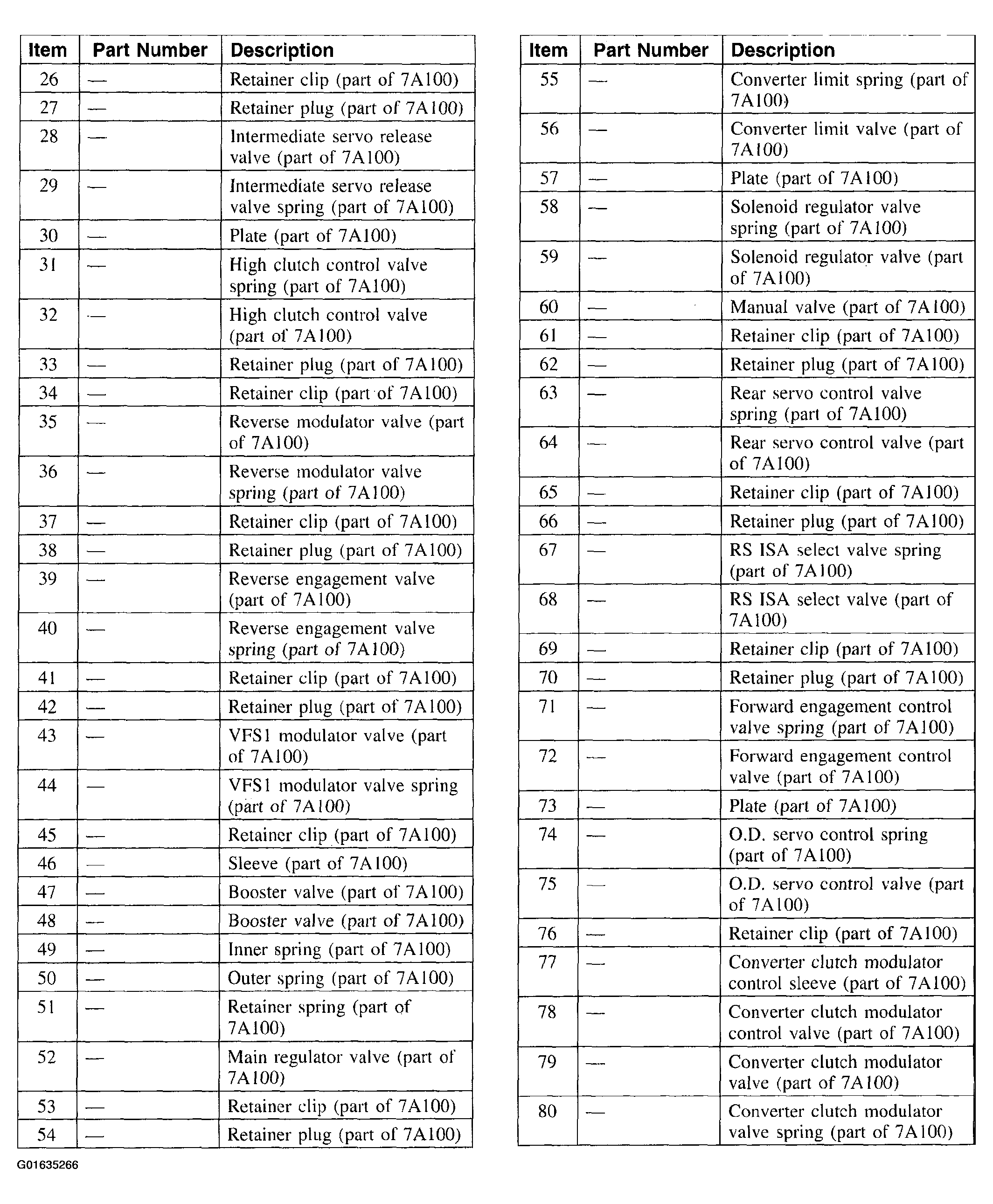

Fig 4: Removal Procedure Of Main Control Valve Body (Steps 26-80)

Courtesy of FORD MOTOR CO.

Items 1 and 2: Main Control Valve Body Separator Plate Assembly Note

NOTE: Use a new valve body separator plate for main control valve body installation.

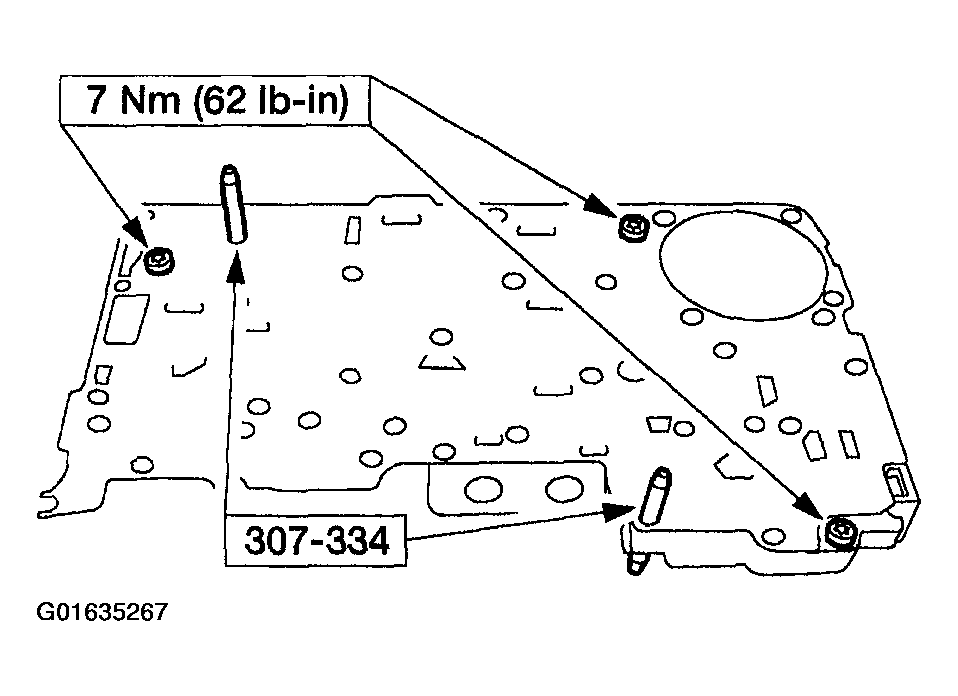

Fig 5: Installing Main Control Valve Body Separator Plate
Courtesy of FORD MOTOR CO.
1. Using the special tools, install the main control valve body separator plate.
