Reverse Servo Assembly

NOTE: Inspect the reverse servo piston seal for damage. If damaged, a new piston and seal assembly will need to be installed.

Disassemble the components in the order indicated in the following illustration.
To assemble, reverse the disassembly procedure.

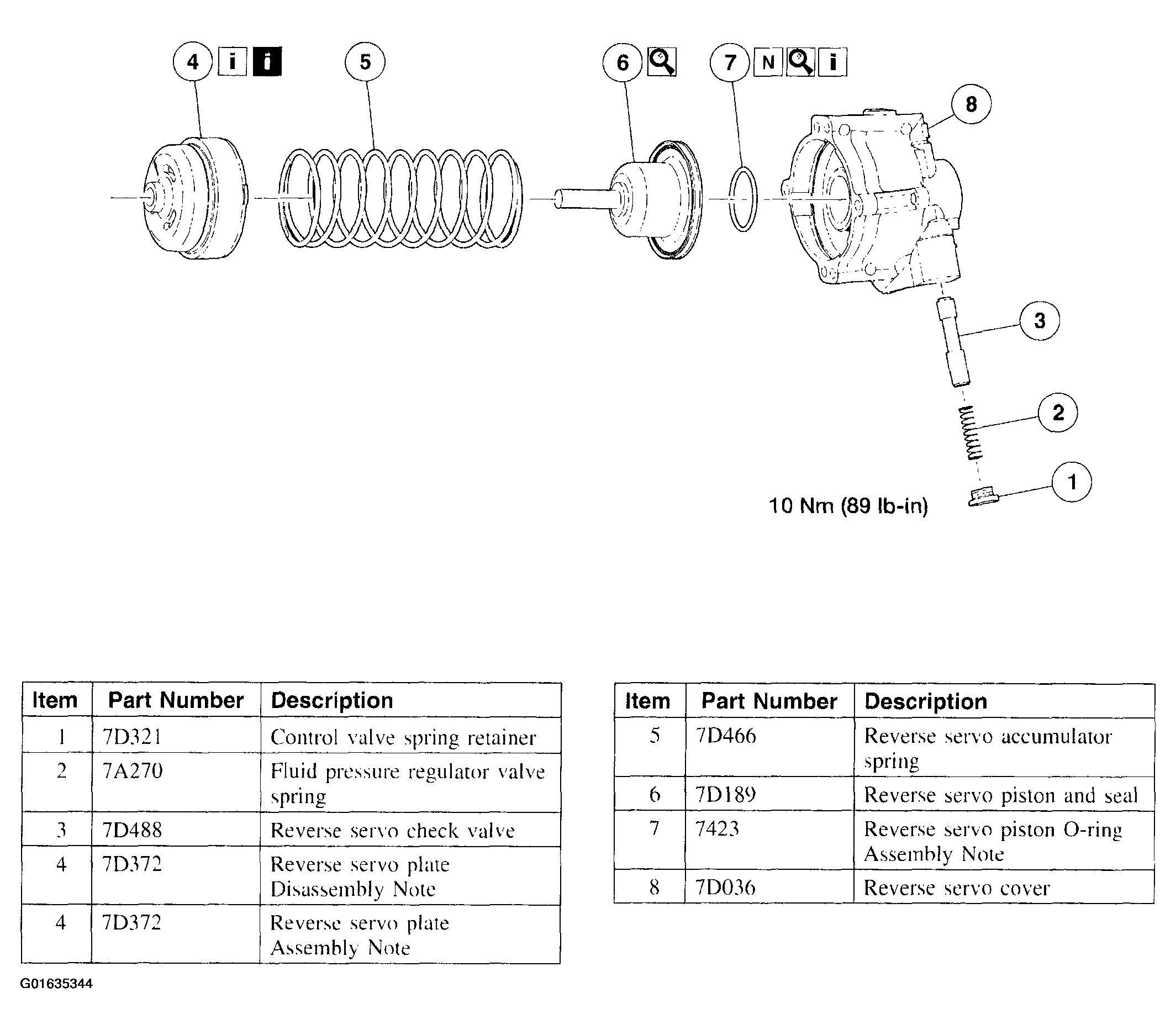

Fig 1: Disassembling Sequence Of Reverse Servo Assembly
Courtesy of FORD MOTOR CO.

Item 4: Reverse Servo Plate Disassembly Note

WARNING: The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions may result in personal injury.

NOTE: Tabs on servo plate mate with slots on cover every 120 degrees.

Remove the reverse servo plate by turning in either direction to release.
- Align the arrow on the servo plate with any slot on the cover.

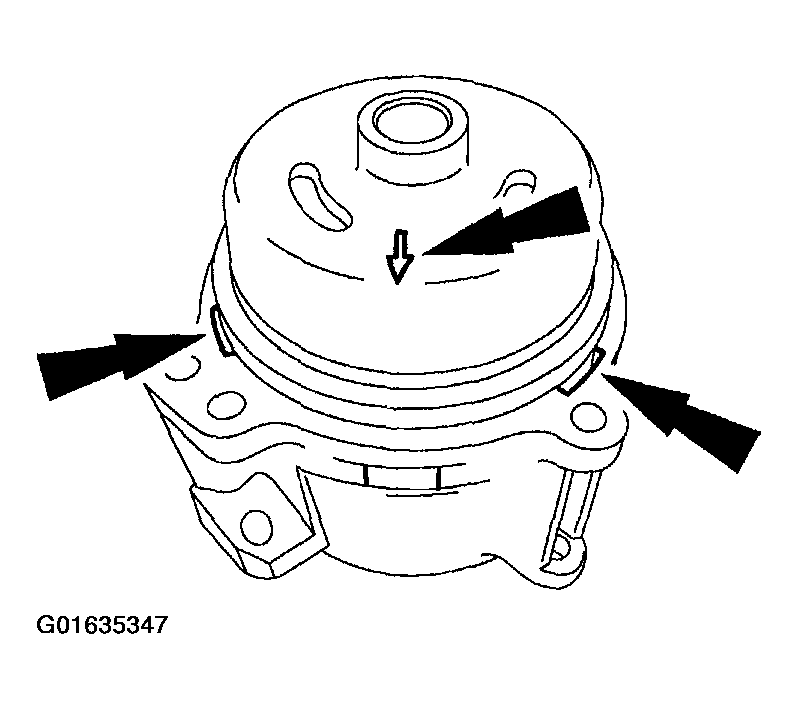

  Fig 2: Aligning Arrow On Servo Plate With Any Slot On Cover
  Courtesy of FORD MOTOR CO.

Item 7: Reverse Servo Piston O-Ring Assembly Note

NOTE: Try not to roll the seal onto the housing when installing the seal or damage to the seal can occur.

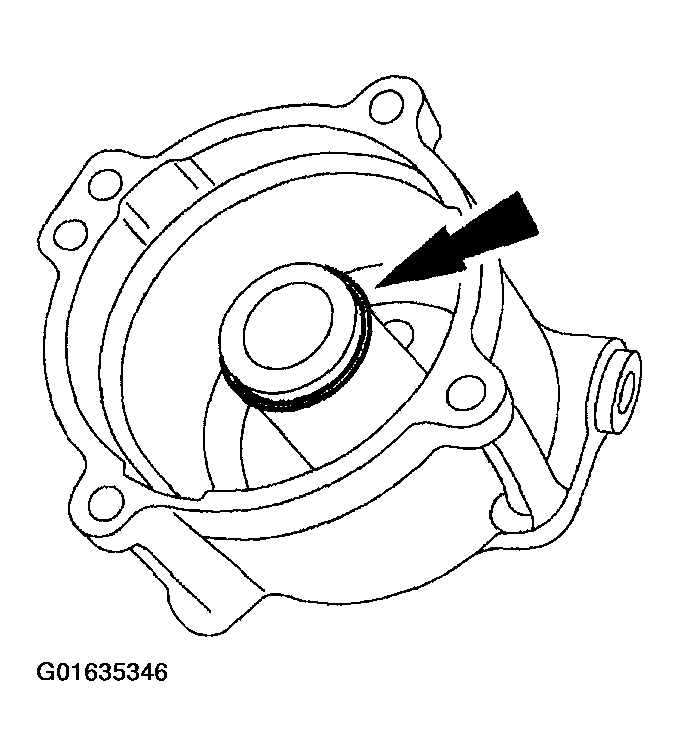

Fig 3: Installing Reverse Servo Piston Seal

Courtesy of FORD MOTOR CO.

Lubricate and install a new reverse servo piston seal.

Item 4: Reverse Servo Plate Assembly Note

WARNING: The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions may result in personal injury.

CAUTION: The arrow on the servo plate must be aligned evenly between any two slots on the cover.

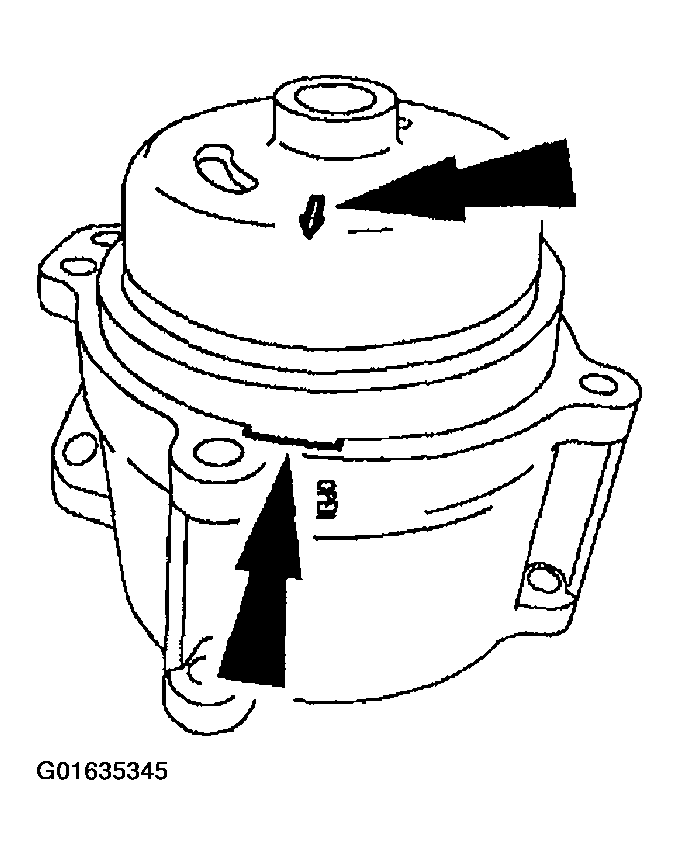

Fig 4: Installing Reverse Servo Plate

Courtesy of FORD MOTOR CO.

Install the reverse servo plate.
