Transmission Range (TR) Sensor Adjustment: Adjust

With the vehicle in the NEUTRAL, position on a hoist.

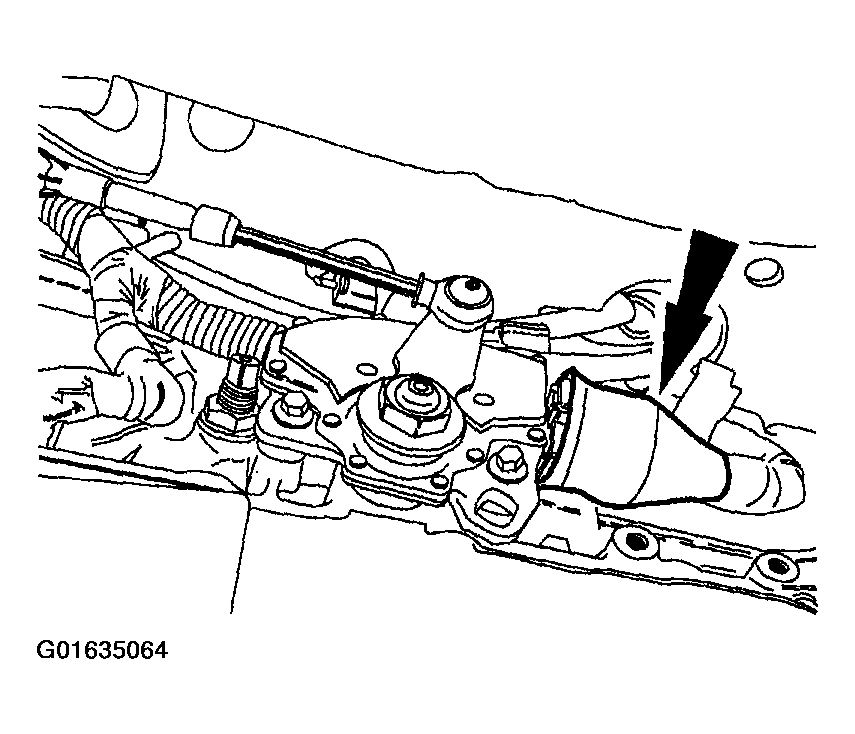

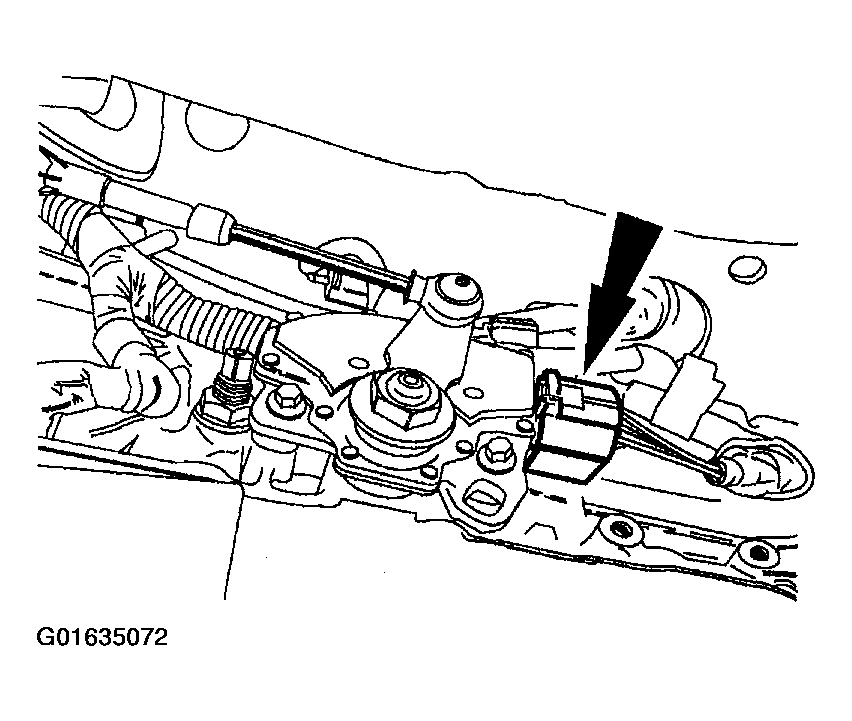

Move the rubber boot back to gain access to the connector.

Fig 1: Removing Rubber Boot Back To Gain Access To Connector
Courtesy of FORD MOTOR CO.

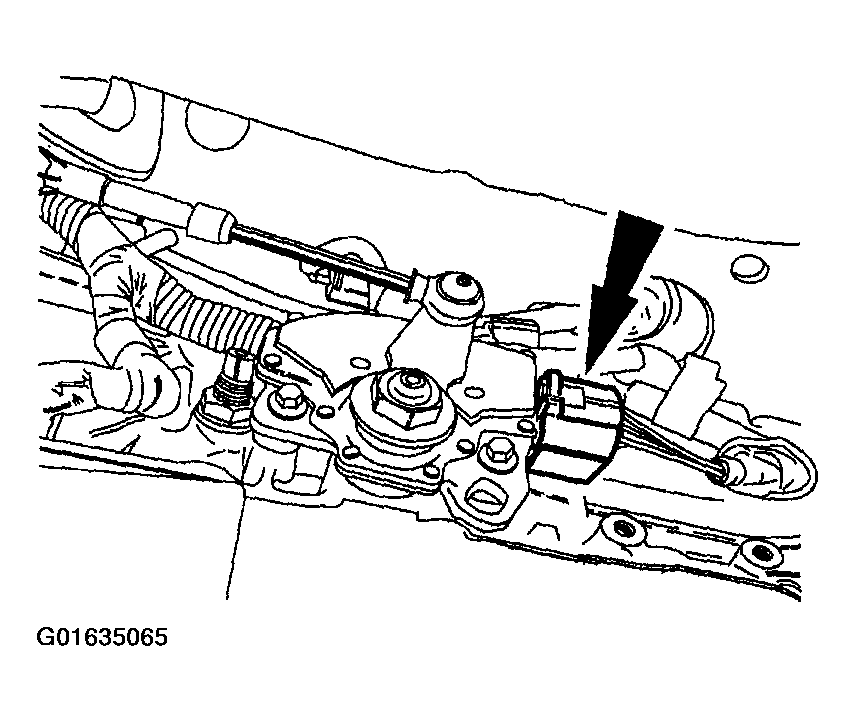

Disconnect the digital TR sensor connector.

Fig 2: Disconnecting Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.

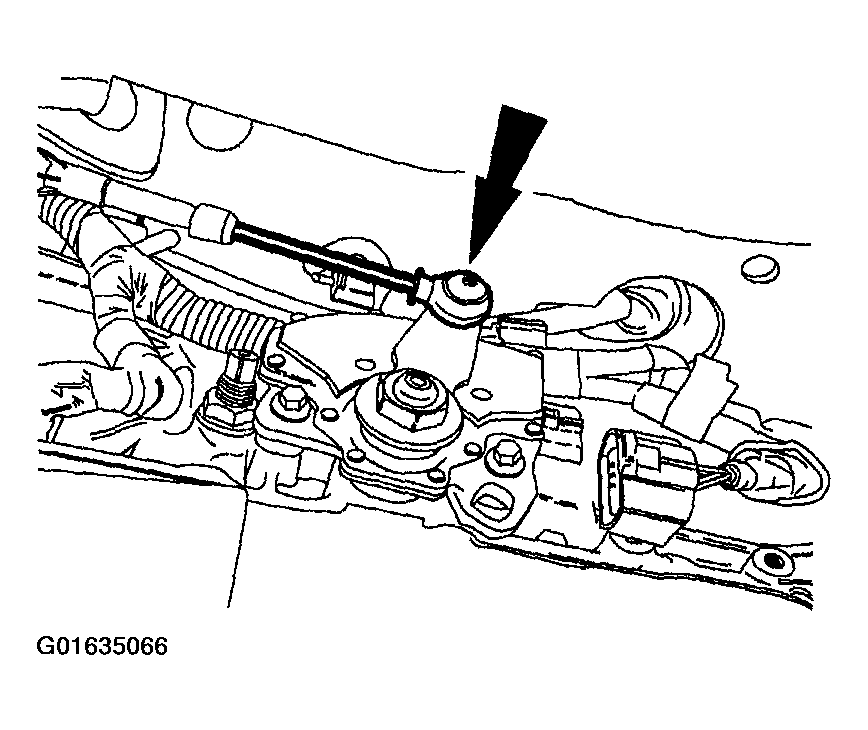

Remove the shift cable from the manual control lever.

Fig 3: Removing Shift Cable
Courtesy of FORD MOTOR CO.

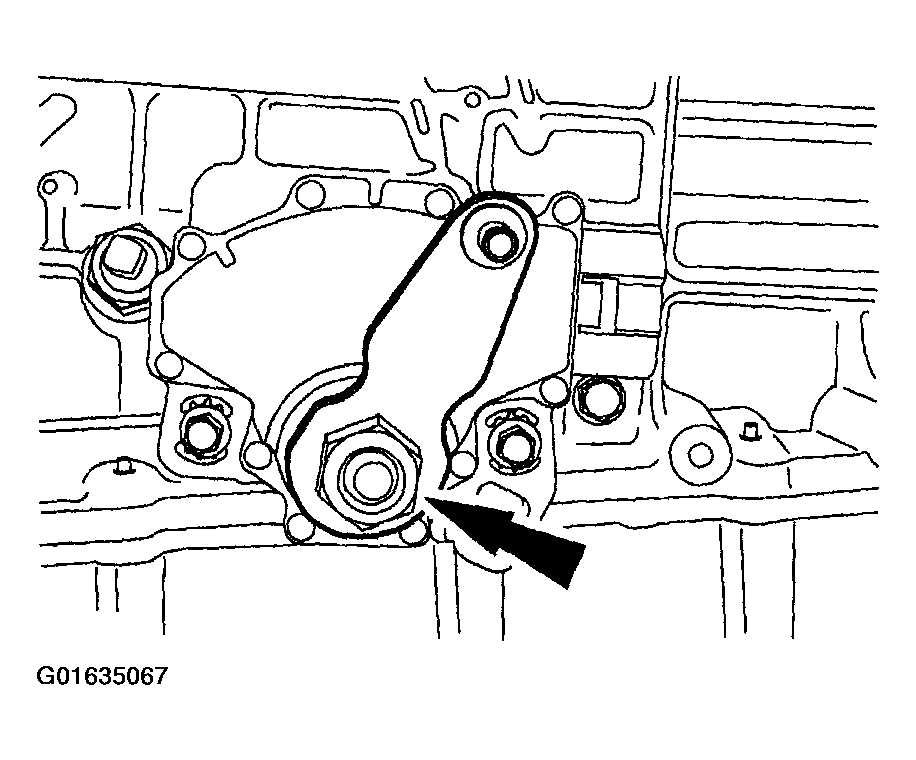

Remove the outer manual control lever.

Fig 4: Removing Outer Manual Control Lever
Courtesy of FORD MOTOR CO.

CAUTION: The digital transmission range sensor must fit flush against the boss on the case to prevent damage to the sensor.

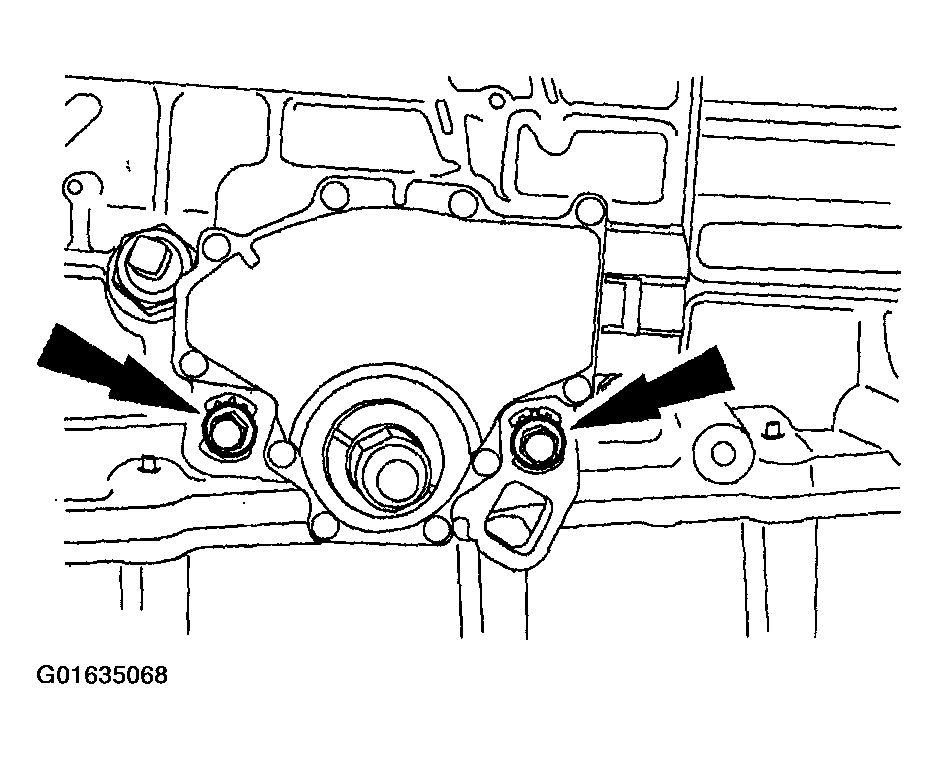

Fig 5: Loosening Screws

Courtesy of FORD MOTOR CO.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

NOTE: The manual lever must be in the NEUTRAL position.

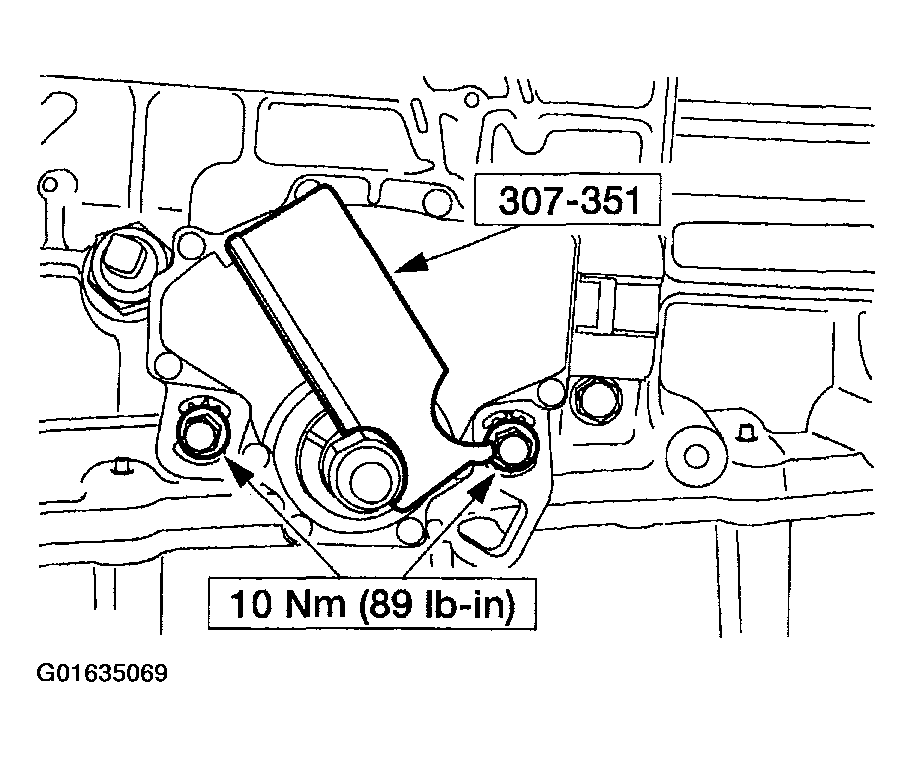

Fig 6: Installing Special Tool

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.

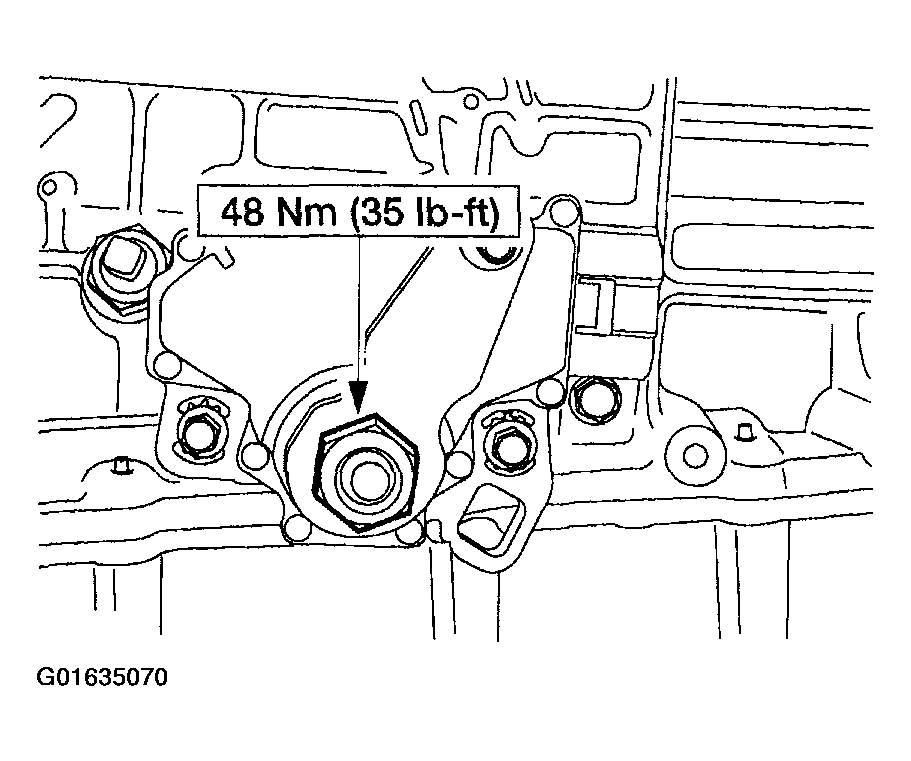

Install the outer manual lever.

Fig 7: Installing Outer Manual Lever
Courtesy of FORD MOTOR CO.

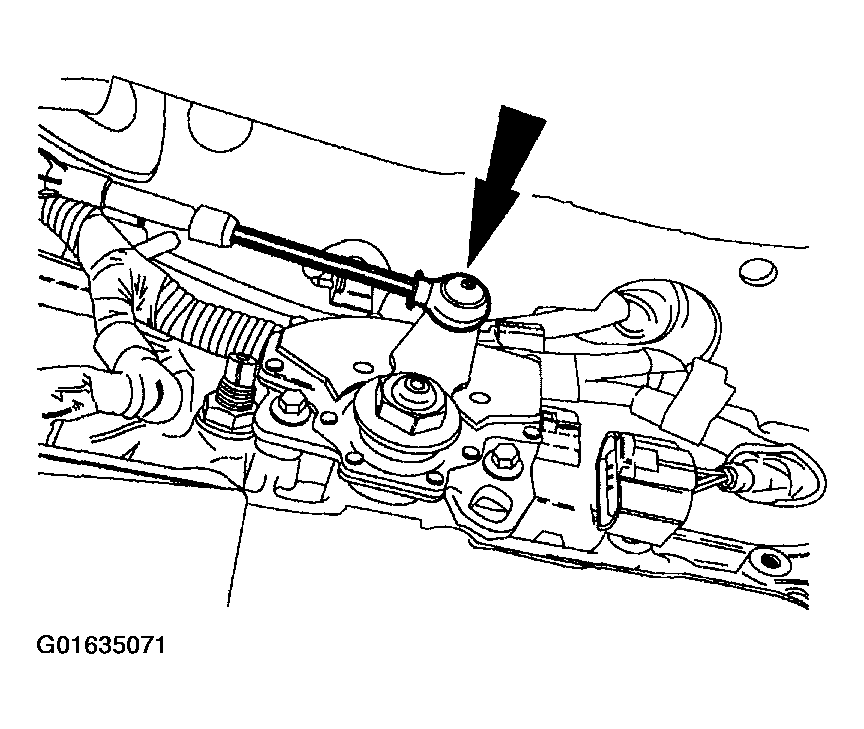

Install the shift cable to the manual control lever.

Fig 8: Installing Shift Cable
Courtesy of FORD MOTOR CO.
Reconnect the digital TR sensor connector.

Fig 9: Connecting Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.
Move the rubber boot back over the connector.

Fig 10: Installing Rubber Boot Back Over Connector
Courtesy of FORD MOTOR CO.
Verify that the shift cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
Lower the vehicle.
Verify that the vehicle will start in PARK and NEUTRAL, and that the reverse lamps illuminate in REVERSE.
