Reverse Servo Assembly: Material

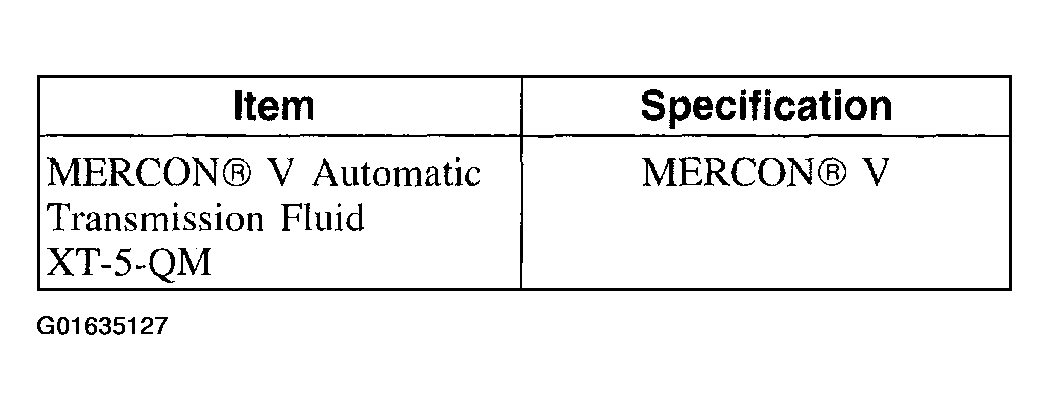

Fig 1: Materials

Courtesy of FORD MOTOR CO.

1. With the vehicle in PARK, position on a hoist.
2. Remove the components in the order indicated in the following illustration.
3. To install, reverse the removal procedure.

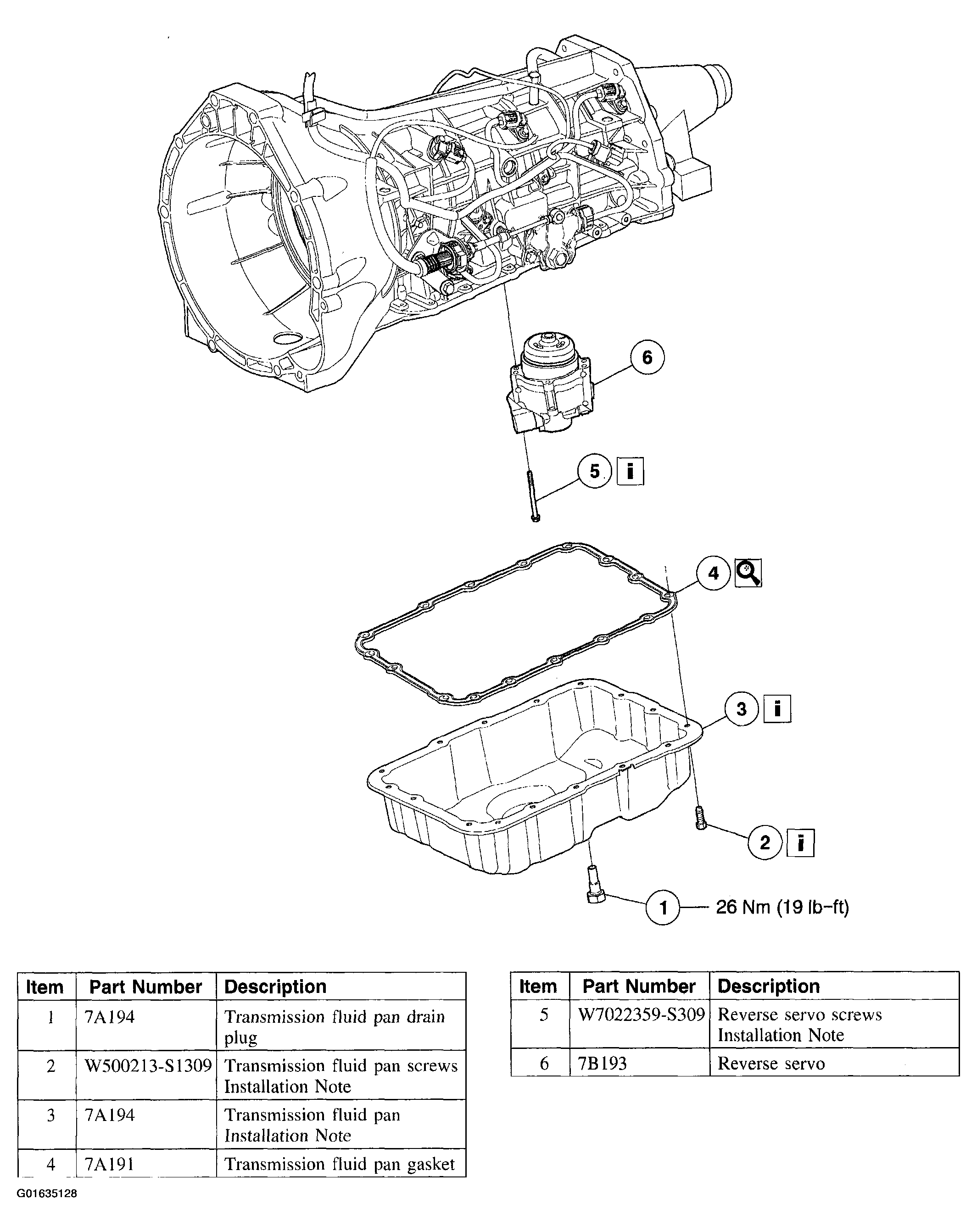

   Fig 2: Removal Sequence Of Reverse Servo Assembly

   Courtesy of FORD MOTOR CO.
4. Partially fill the transmission. For additional information, refer to TRANSMISSION FLUID DRAIN AND REFILL - WITHOUT TORQUE CONVERTER DRAIN PLUG .

Item 5: Reverse Servo Screws Installation Note

1. Install the reverse servo. Tighten the screws in the sequence shown in two stages.
   • Stage 1: Tighten screws to 5 Nm (44 lb-in)
   • Stage 2: Tighten screws to 11 Nm (8 lb-ft)

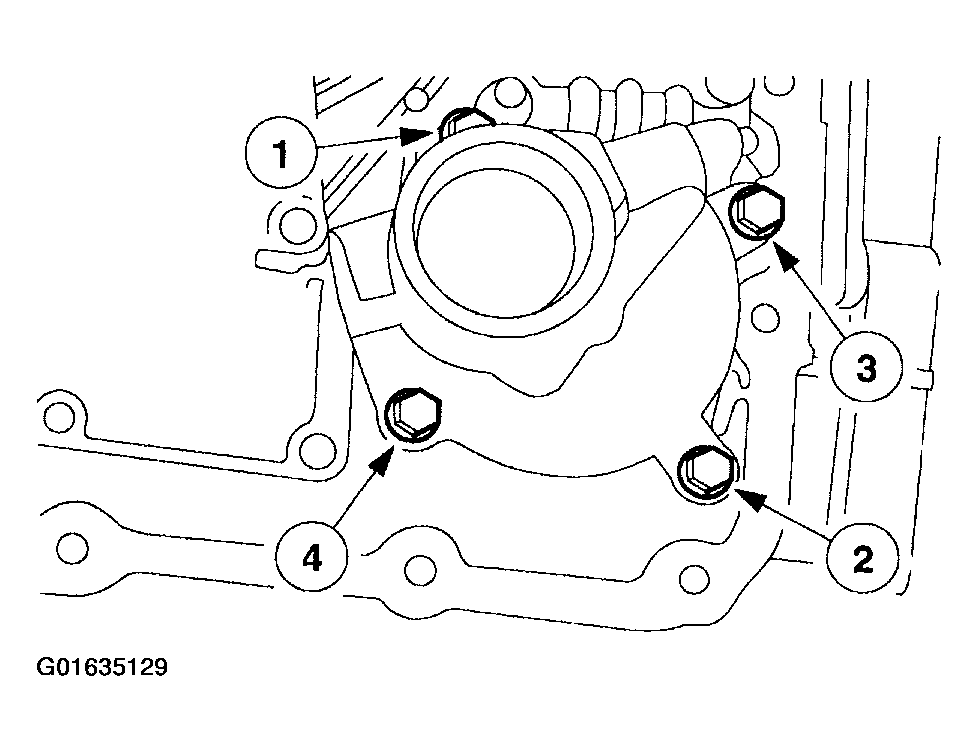

     Fig 3: Reverse Servo Screw Tightening Sequence

     Courtesy of FORD MOTOR CO.

Item 3: Transmission Fluid Pan Installation Note

1. Install the transmission fluid pan and gasket, and loosely install the screws.

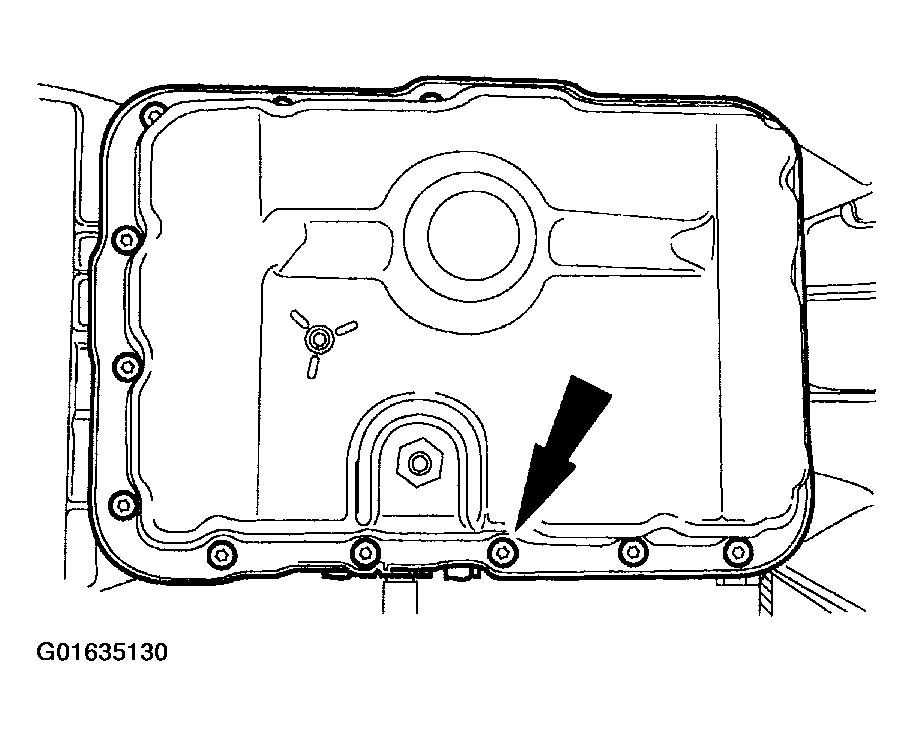

   Fig 4: Installing Transmission Fluid Pan And Gasket

   Courtesy of FORD MOTOR CO.

Item 2: Transmission Fluid Pan Screws Installation Note

1. Tighten the screws in a crisscross sequence.

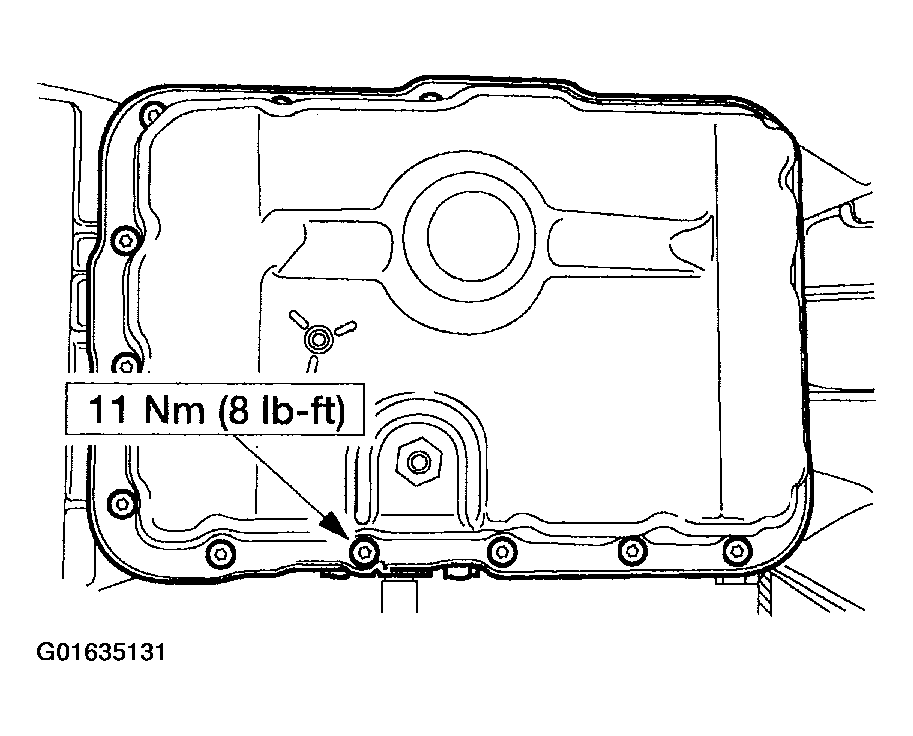

   Fig 5: Tightening Transmission Fluid Pan Screws In A Crisscross Sequence

   Courtesy of FORD MOTOR CO.
