Transmission Support Insulator - 4x2

1. With the vehicle in PARK, position on a hoist.
2. Support the transmission with a transmission jack.
3. Remove the components in the order indicated in the following illustration.
4. To install, reverse the removal procedure.

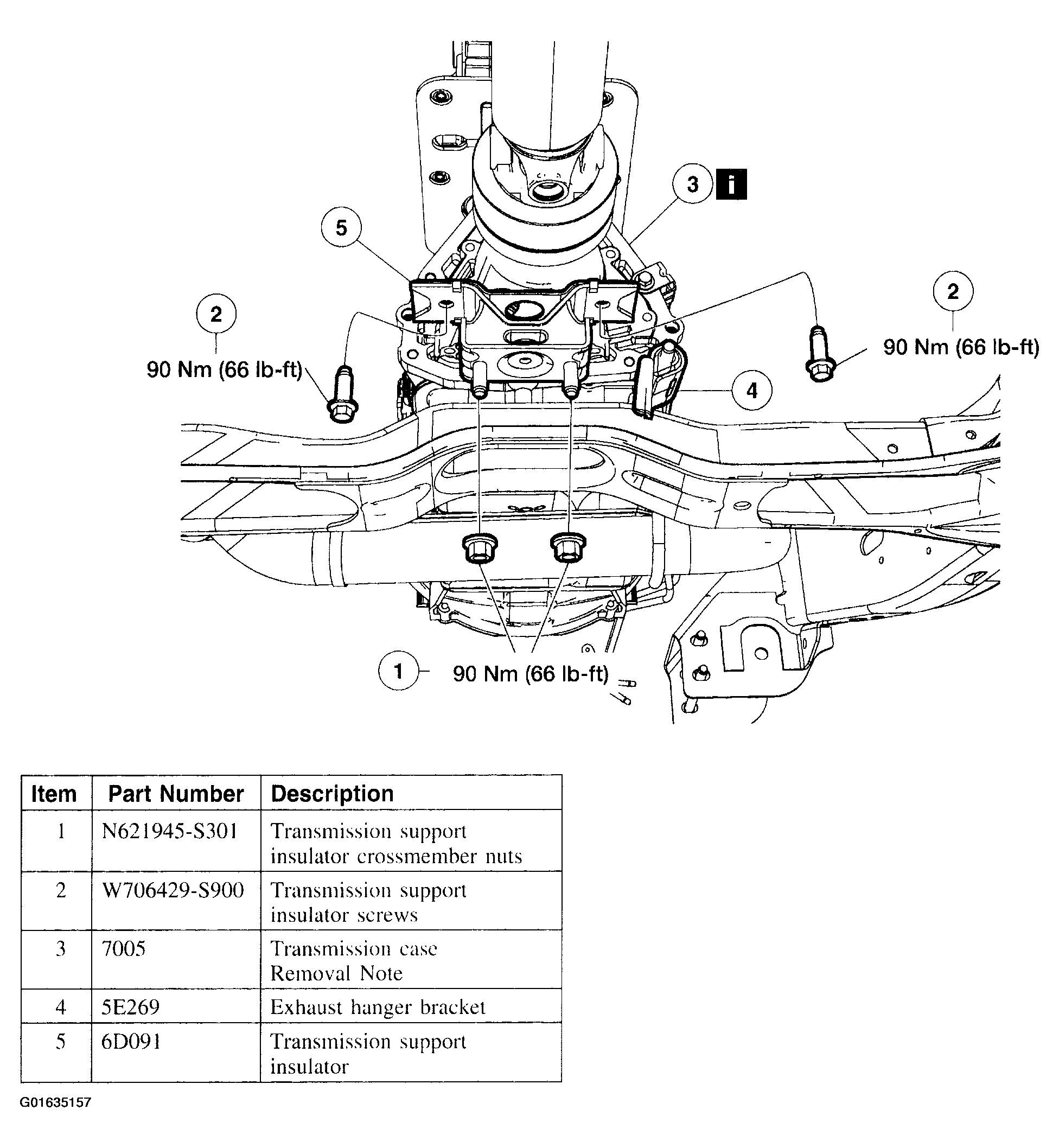

   Fig 1: Removal Sequence Of Transmission Support Insulator - 4x2

   Courtesy of FORD MOTOR CO.

Item 3: Transmission Case Removal Note

1. Raise the transmission up to gain access to the rear transmission mount.

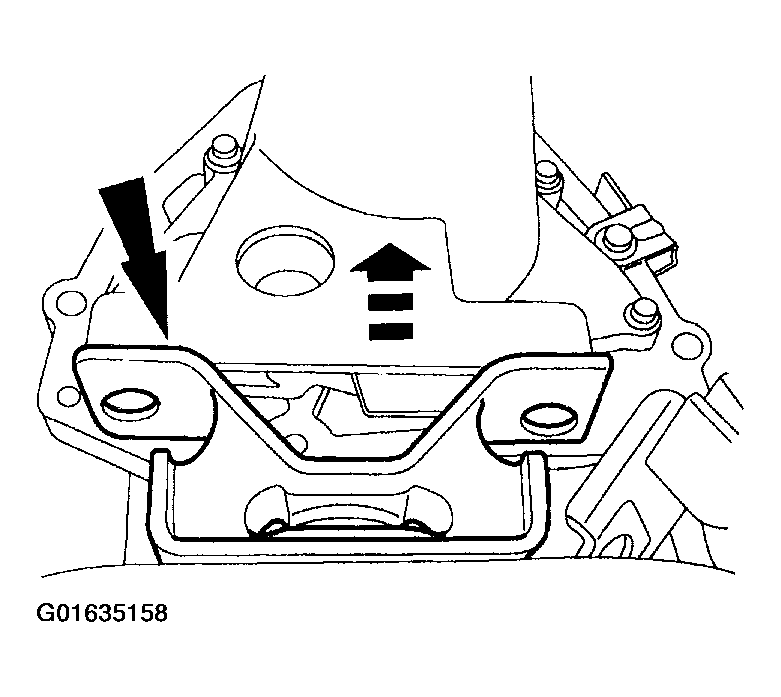

   Fig 2: View Of Rear Transmission Mount

   Courtesy of FORD MOTOR CO.
