Band Adjustment and Torque Chart

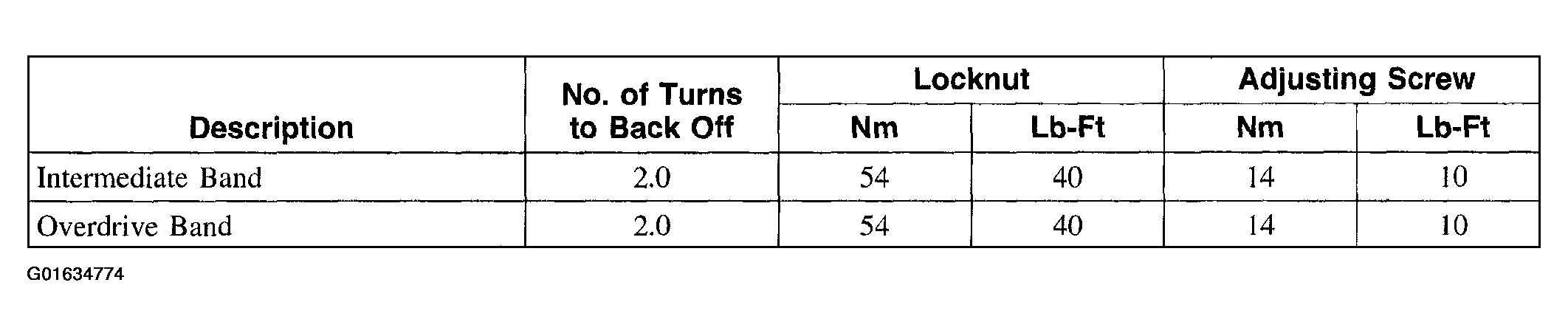

Fig 1: Band Adjustment and Torque Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
