Band and Clutch Application Chart B

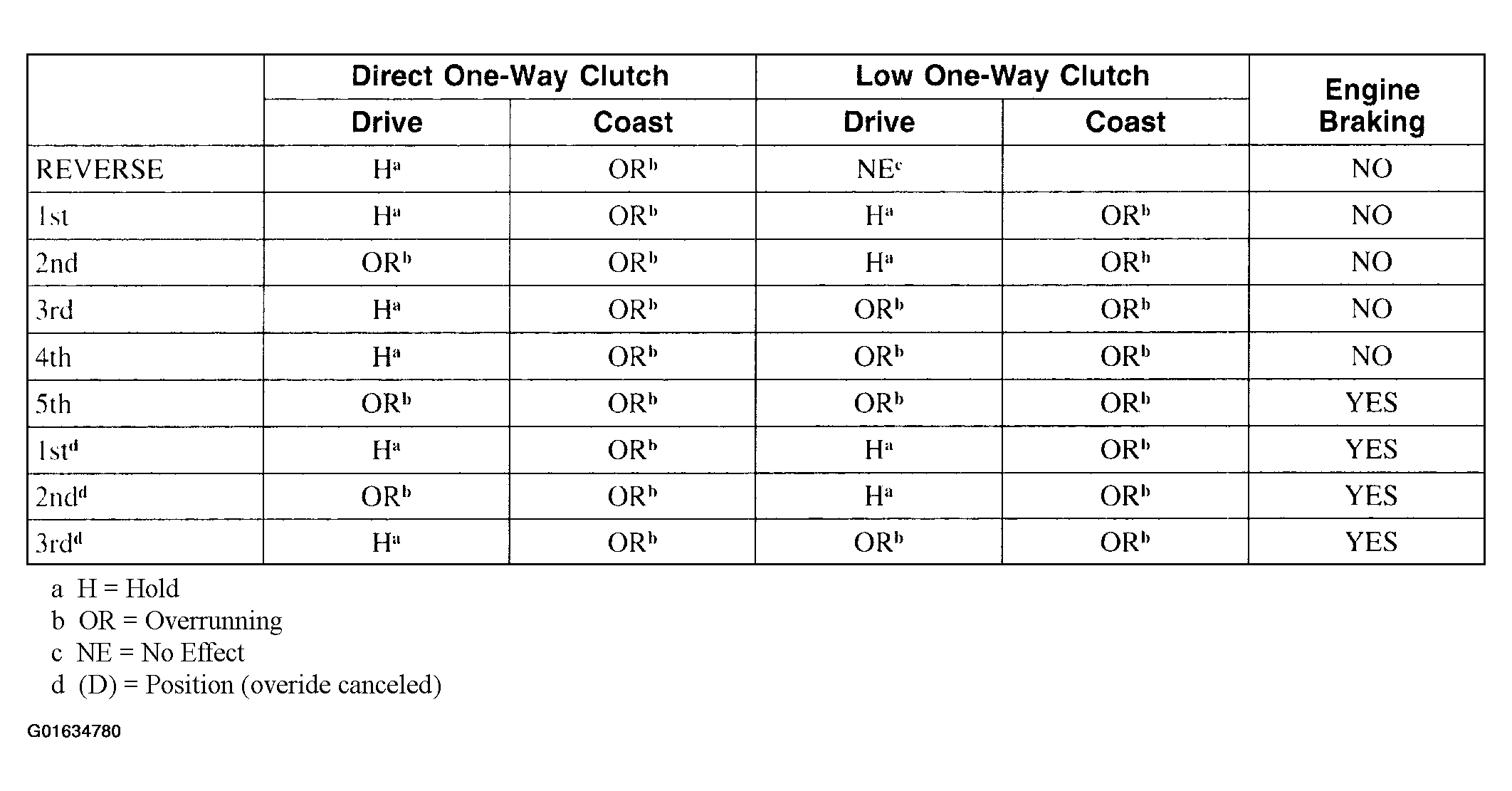

Fig 1: Band and Clutch Application Chart B (1 Of 2)
G01634780Courtesy of FORD MOTOR CO.

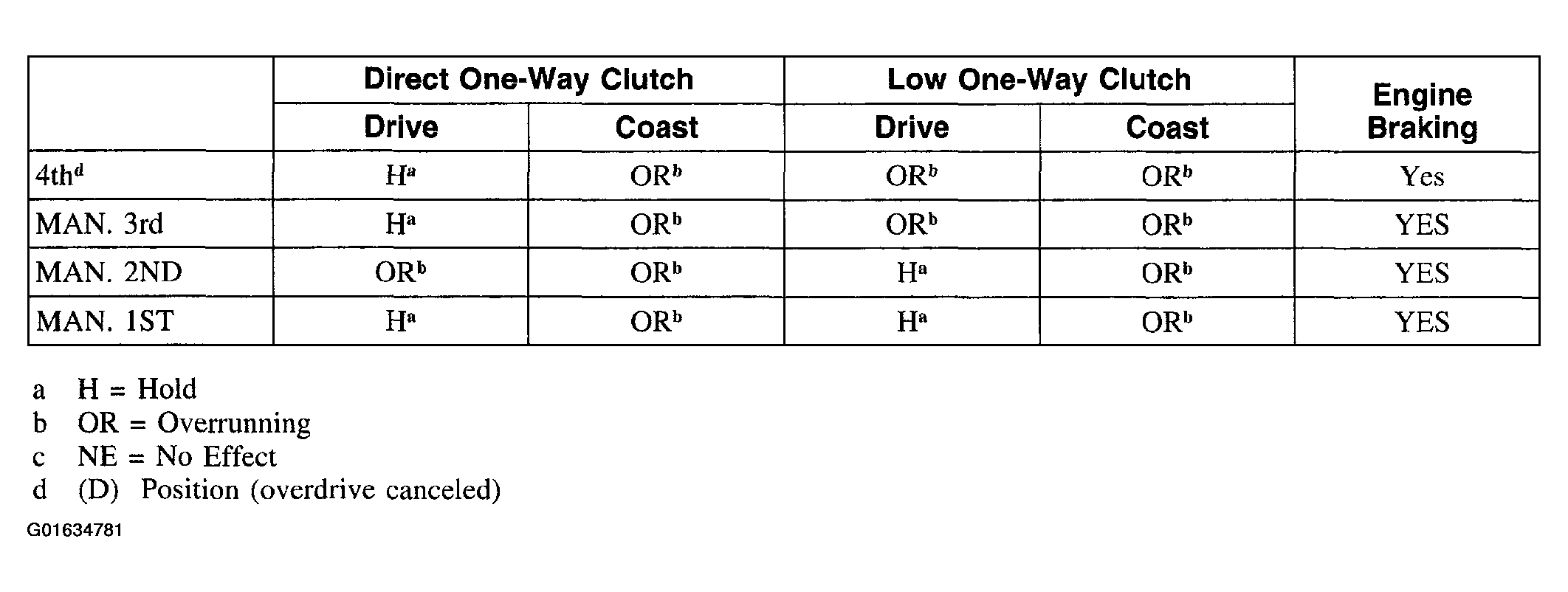

Fig 2: Band and Clutch Application Chart B (2 Of 2)
G01634781Courtesy of FORD MOTOR CO.
