Selective Snap Rings

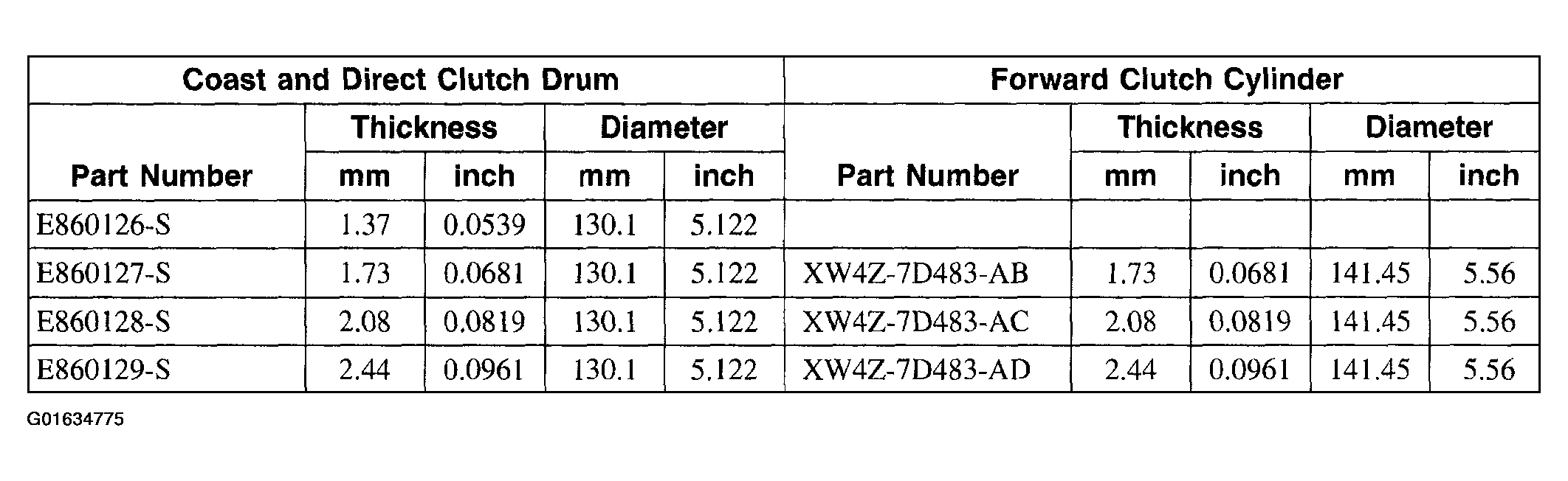

Fig 1: Selective Snap Rings Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
