Engine Mechanical: Mechanical: Engine: Installation: Engine

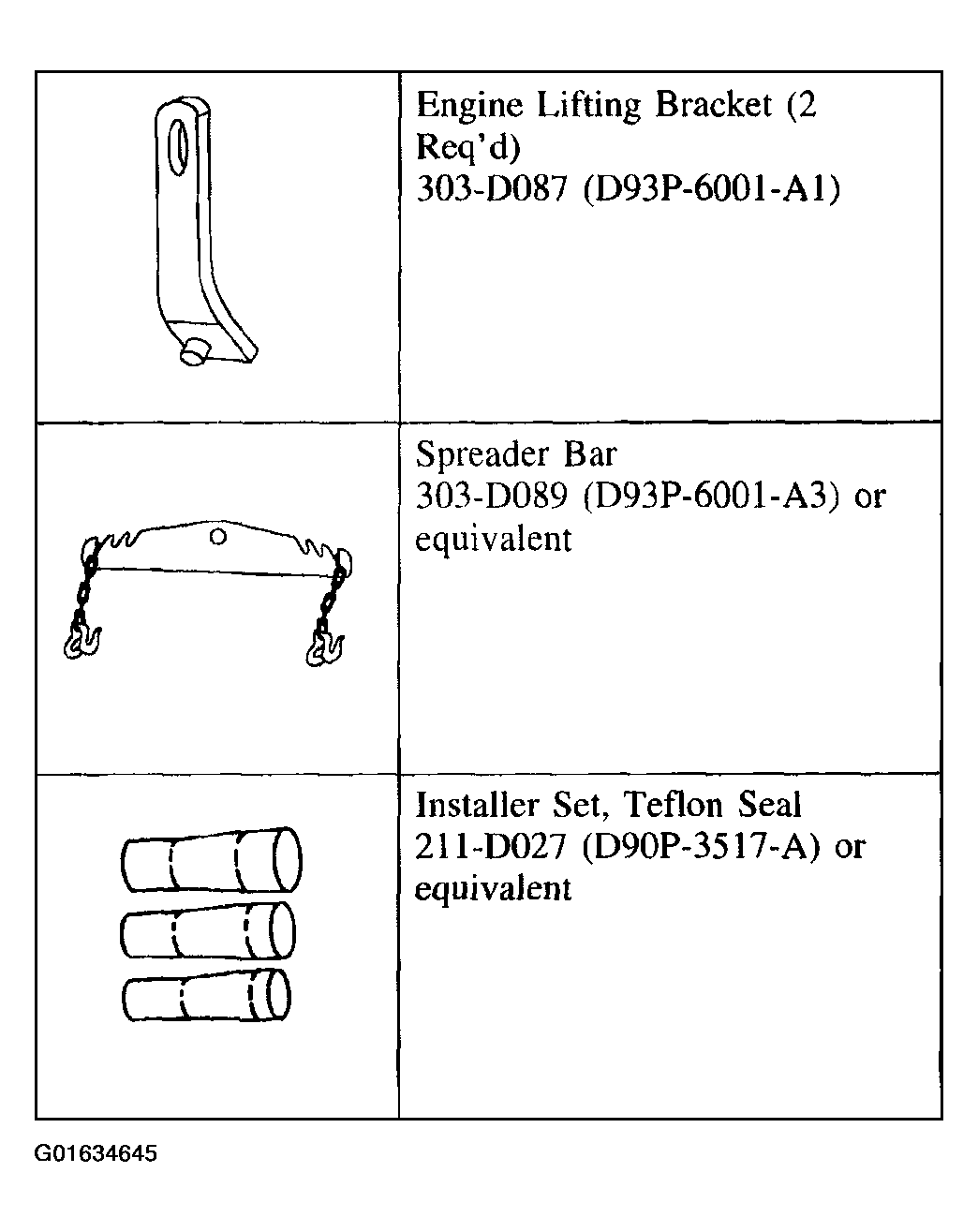

1. Install the components in the order indicated in the following illustration.

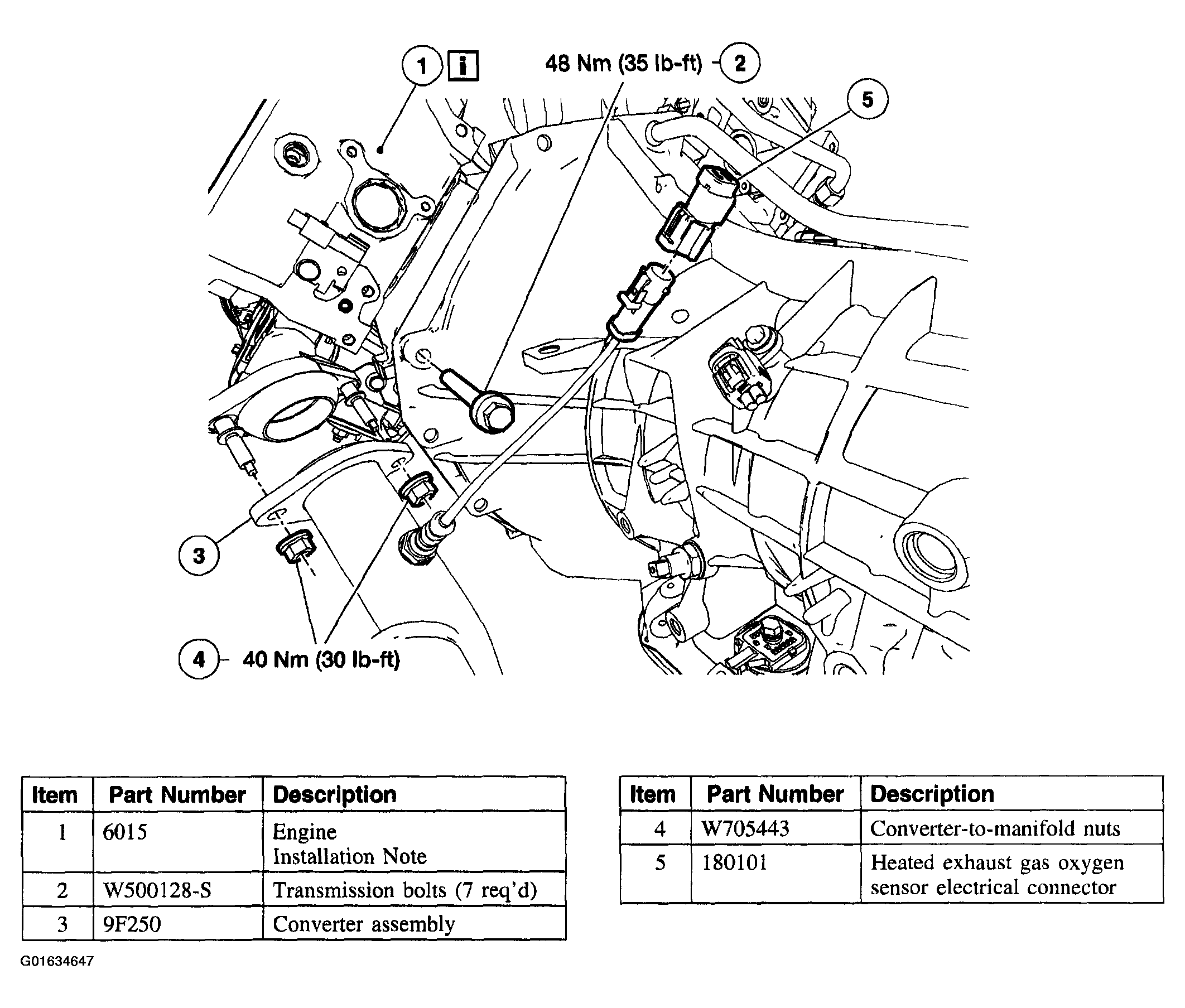

   Fig 3: Engine Installation Procedure (Steps 1-5)

   Courtesy of FORD MOTOR CO.
2. Install the components in the order indicated in the following illustration.

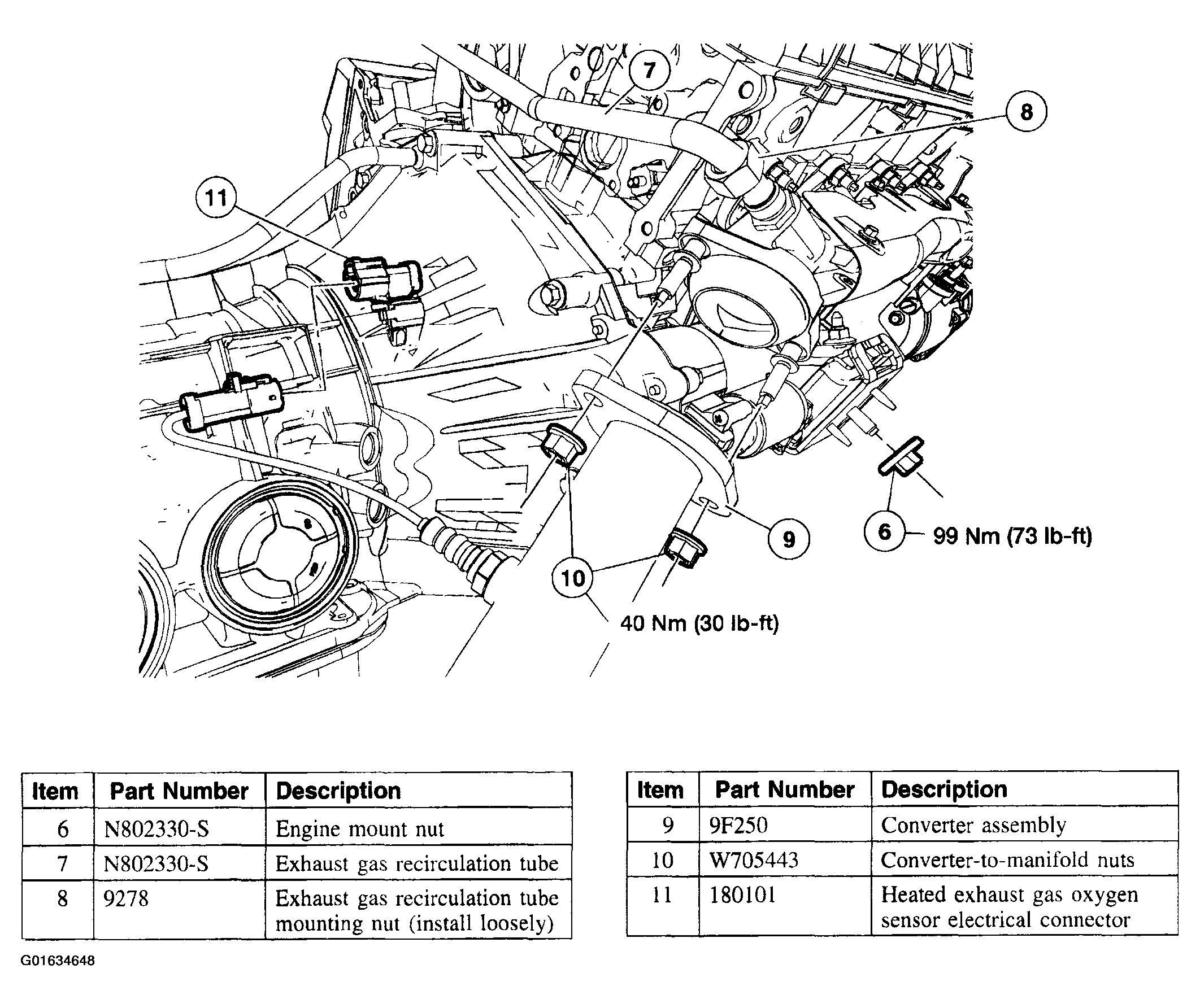

   Fig 4: Engine Installation Procedure (Steps 6-11)

   Courtesy of FORD MOTOR CO.
3. Install the components in the order indicated in the following illustration.

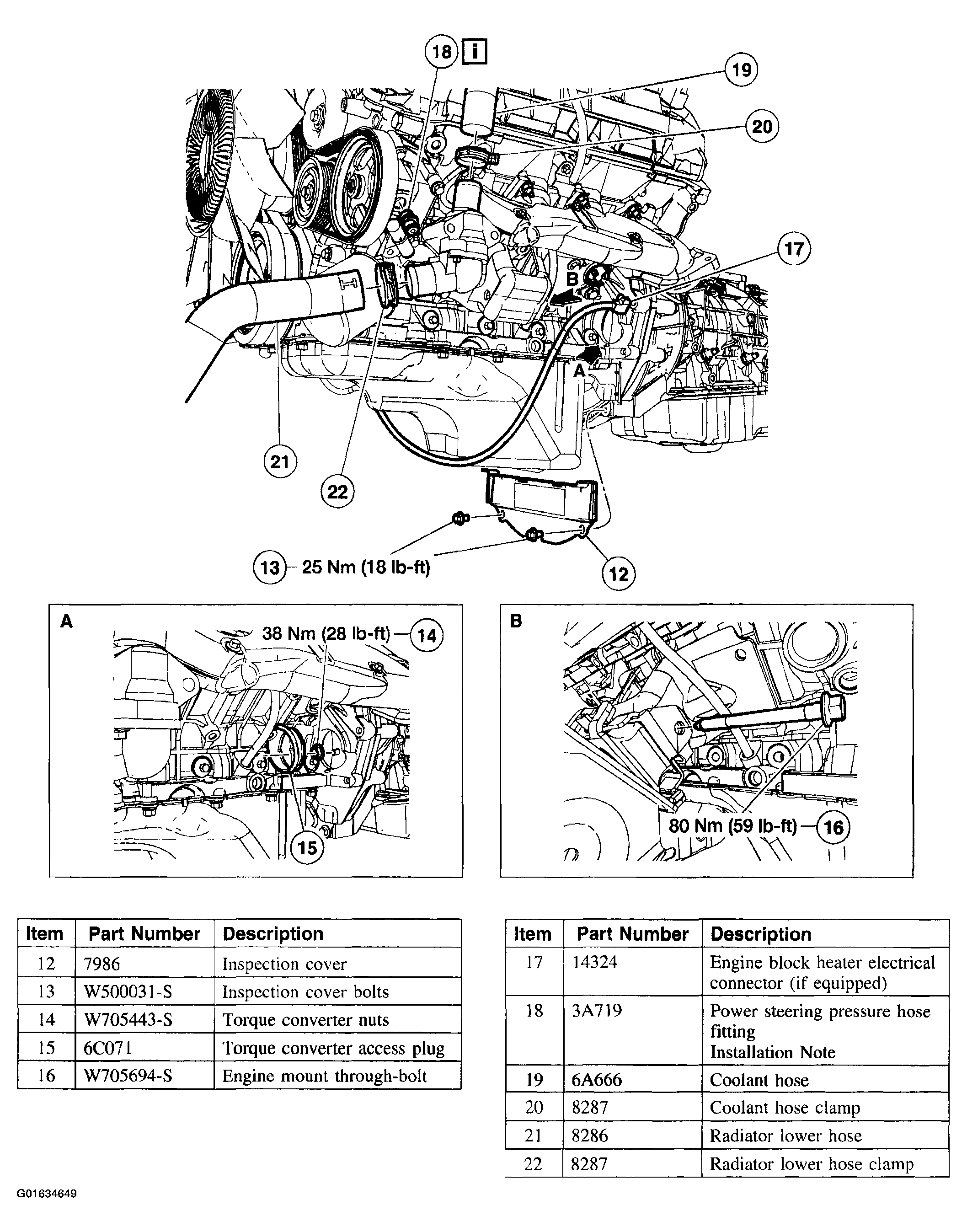

   Fig 5: Engine Installation Procedure (Steps 12-22)

   Courtesy of FORD MOTOR CO.
4. Install the components in the order indicated in the following illustration.

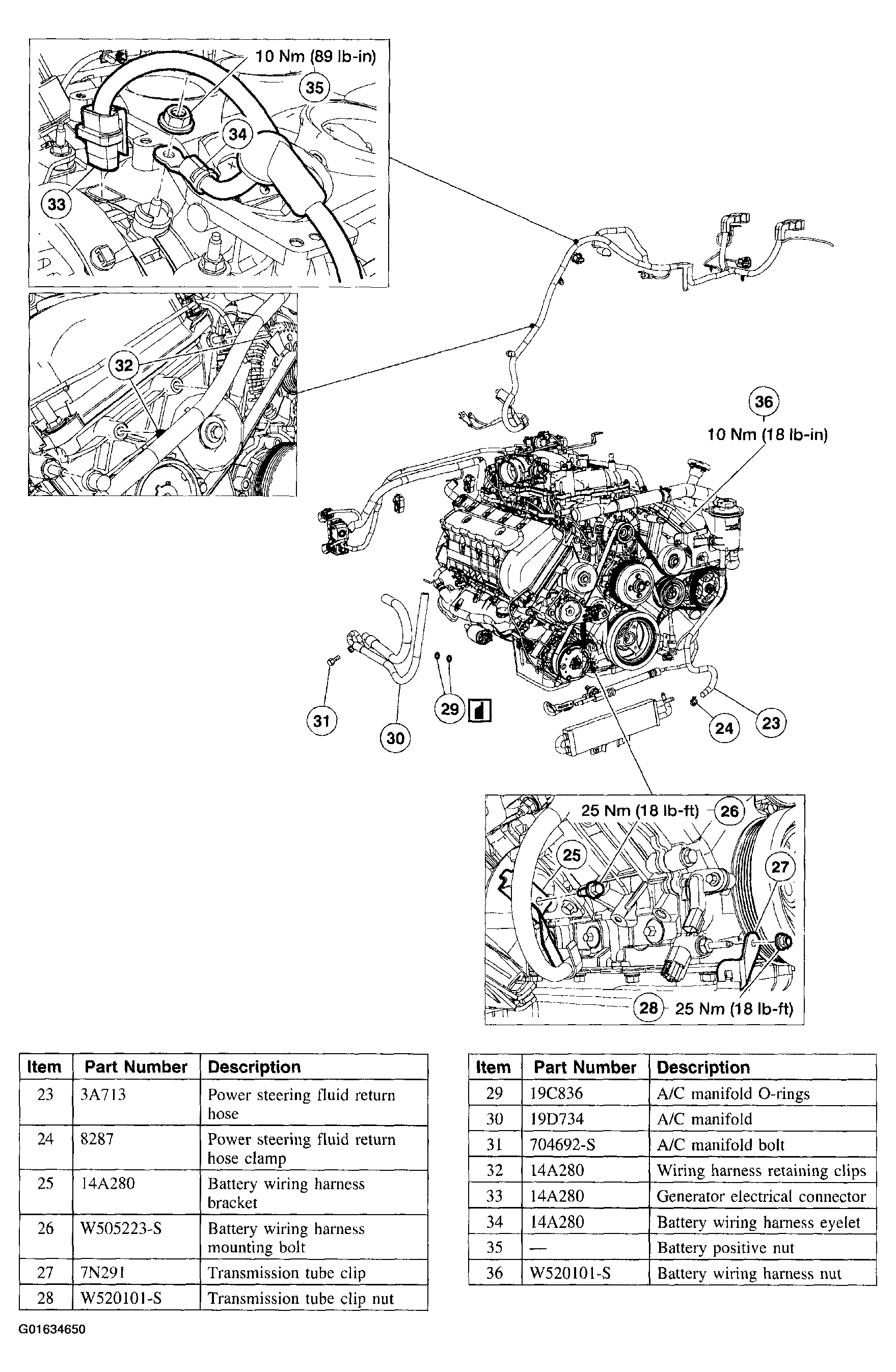

   Fig 6: Engine Installation Procedure (Steps 23-36)

   Courtesy of FORD MOTOR CO.
5. Install the components in the order indicated in the following illustration.

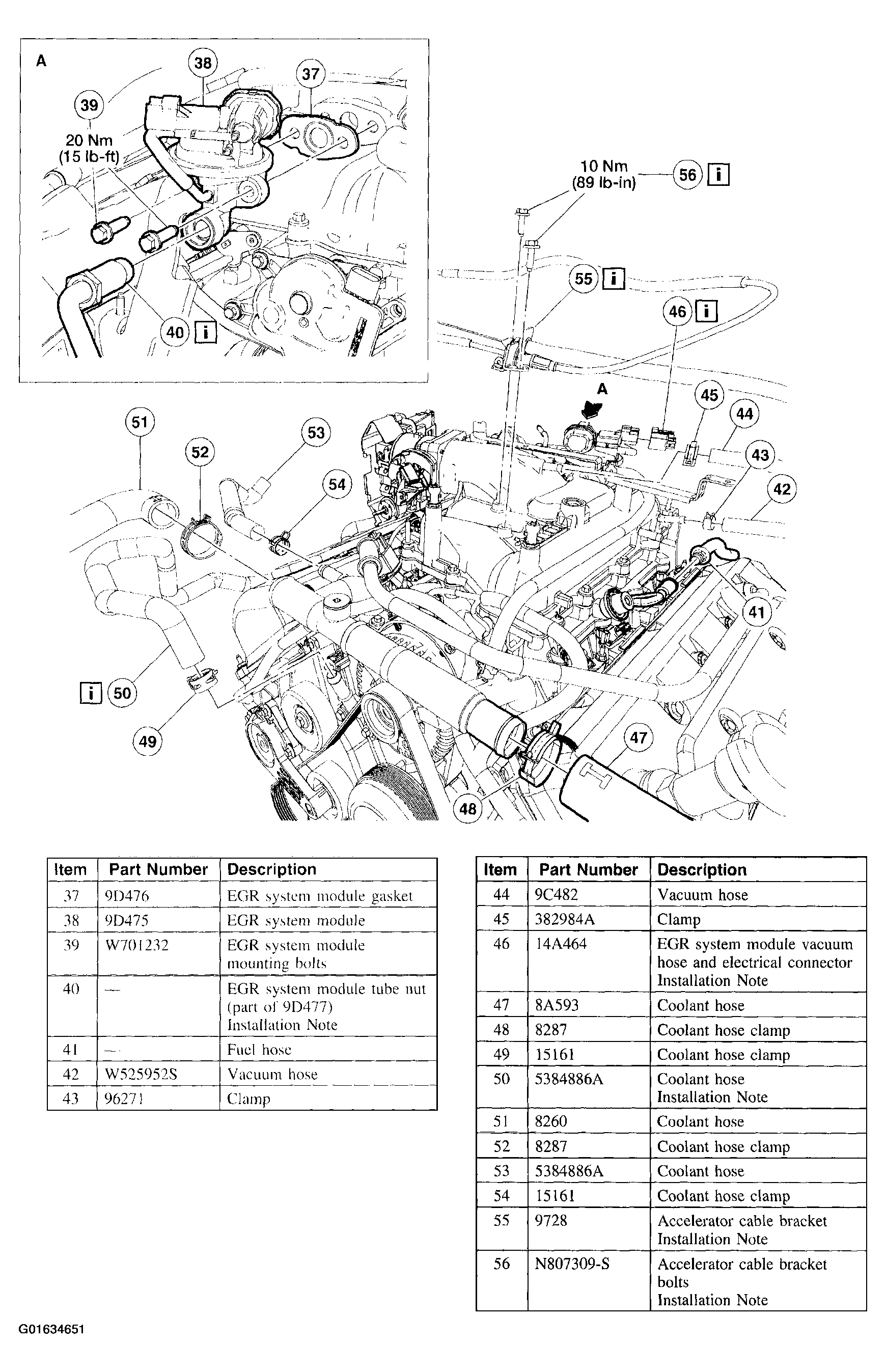

   Fig 7: Engine Installation Procedure (Steps 37-56)

   Courtesy of FORD MOTOR CO.
6. Install the components in the order indicated in the following illustration.

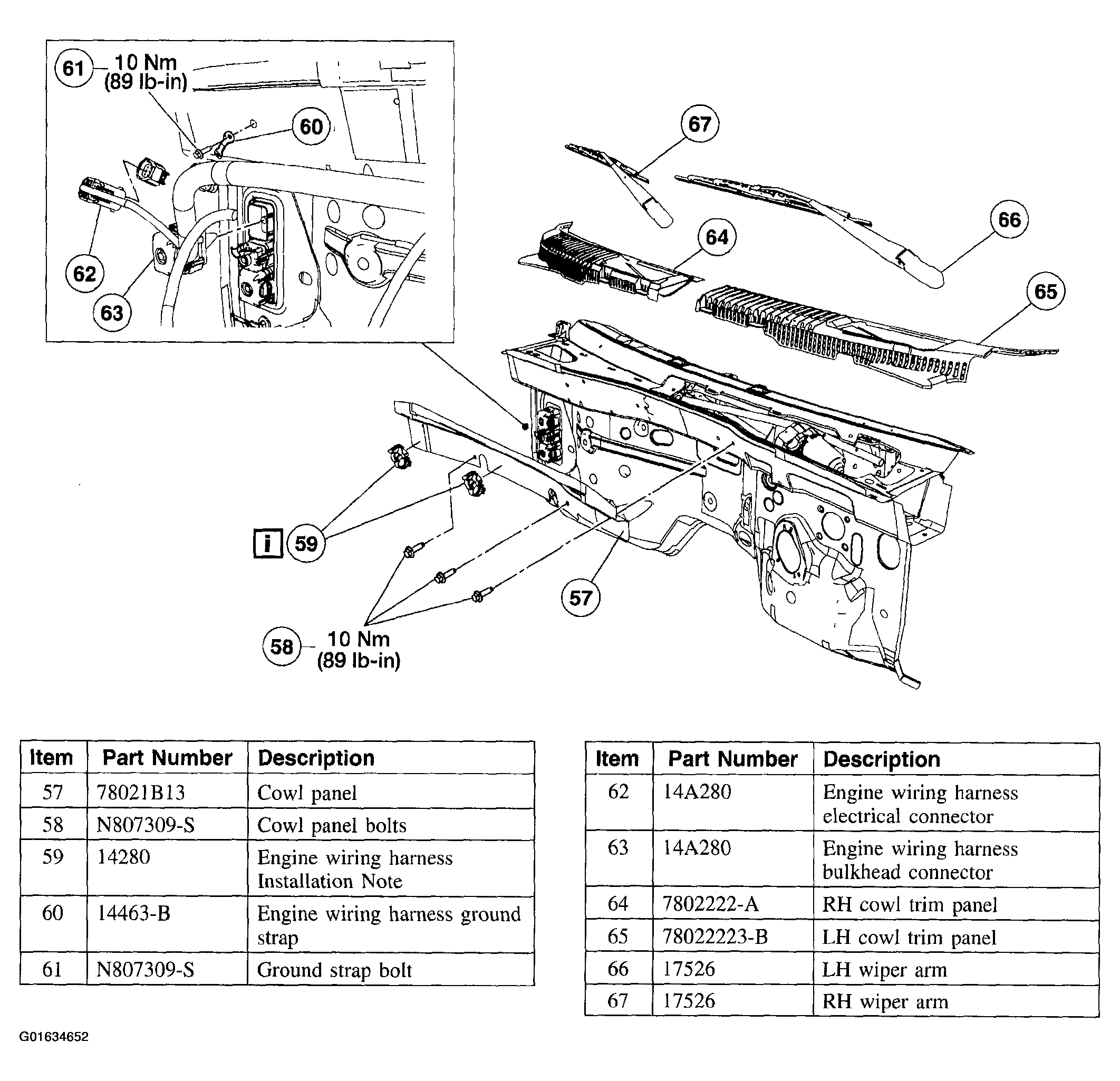

   Fig 8: Engine Installation Procedure (Steps 57-67)

   Courtesy of FORD MOTOR CO.
7. Install the starter motor. For additional information, refer to STARTERS .
8. Install the cooling module. For additional information, refer to ENGINE COOLING .
9. Install the evaporative emissions canister purge valve. For additional information, refer to FUEL SYSTEM .
10. Install the air cleaner assembly.

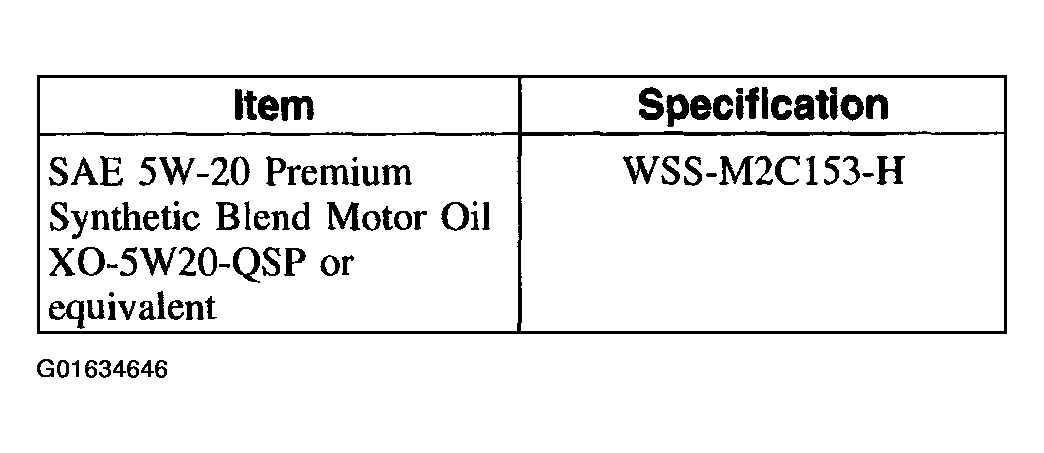

11. Fill the engine with clean engine oil.
12. Connect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
13. Fill and bleed the engine cooling system. For additional information, refer to ENGINE COOLING .
14. Charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM .
15. Install the engine appearance cover.
16. Install the hood. For additional information, refer to BODY SYSTEM - EXTERIOR .

Item 1: Engine Installation Note

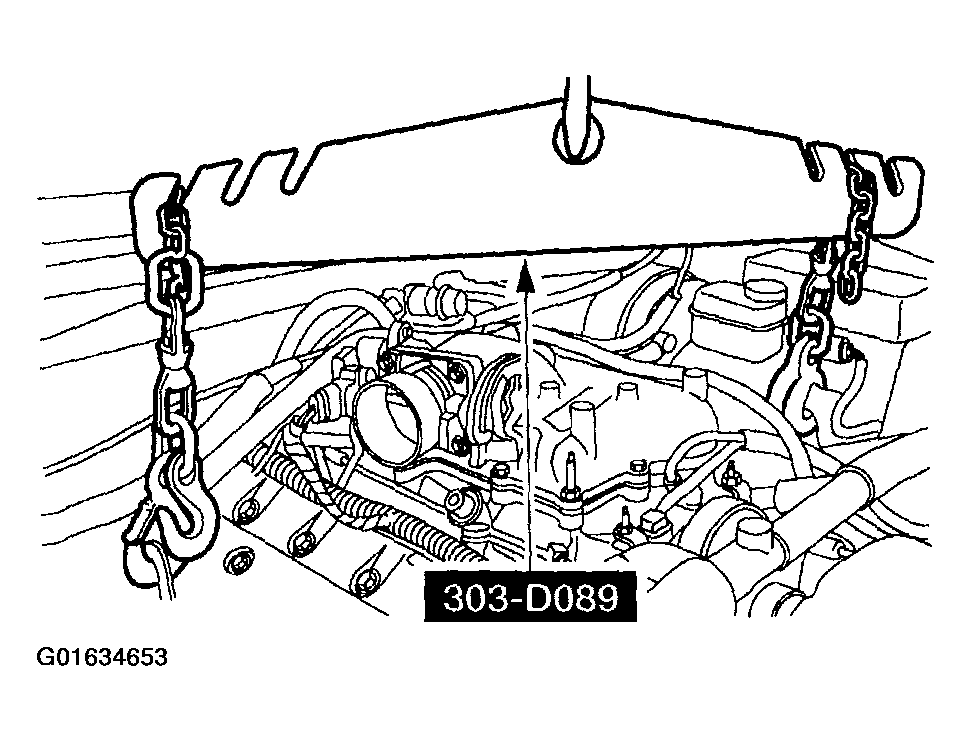

1. Using a suitable lifting crane, install the engine in the vehicle.
   Fig 9: Installing Engine In Vehicle

   Courtesy of FORD MOTOR CO.

Item 18: Power Steering Pressure Hose Fitting Installation Note

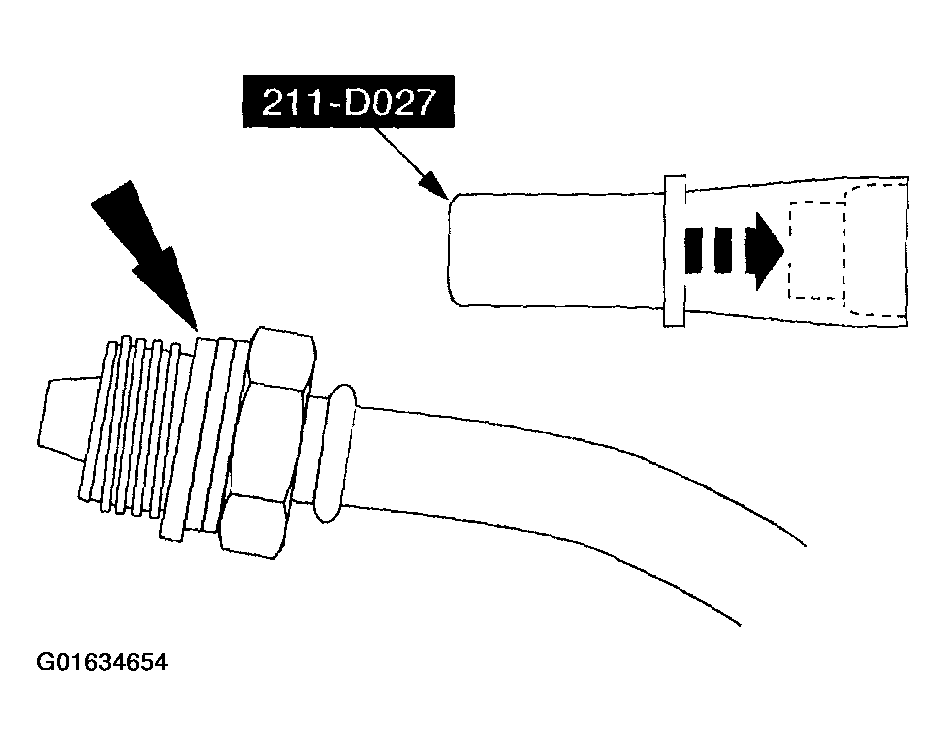

1. Using the special tool, install a new seal on the power steering pressure hose fitting.
   Fig 10: Installing Seal On Power Steering Pressure Hose Fitting

   Courtesy of FORD MOTOR CO.

Item 40: EGR System Module Tube Nut Installation Note

1. Tighten both fittings to 40 Nm (30 lb-ft).

Item 46: EGR System Module Vacuum Hose and Electrical Connector Installation Note

1. Connect the vacuum hoses and the electrical connector to the EGR system module.

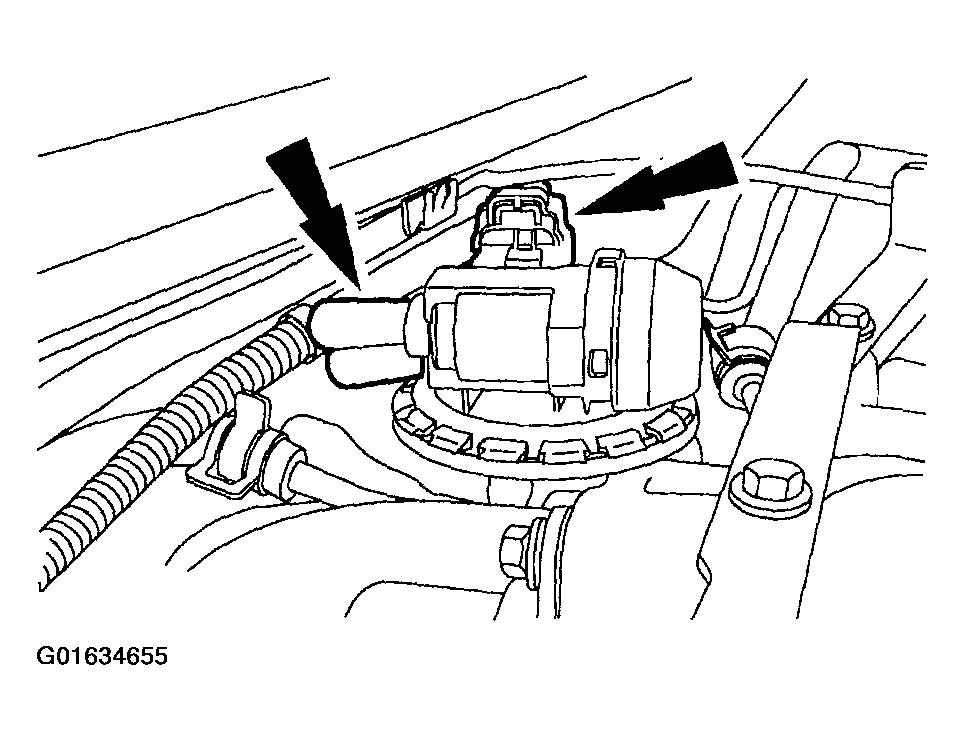

   Fig 11: Connecting Vacuum Hoses And Electrical Connector To EGR System Module

   Courtesy of FORD MOTOR CO.

Item 50: Coolant Hose Installation Note

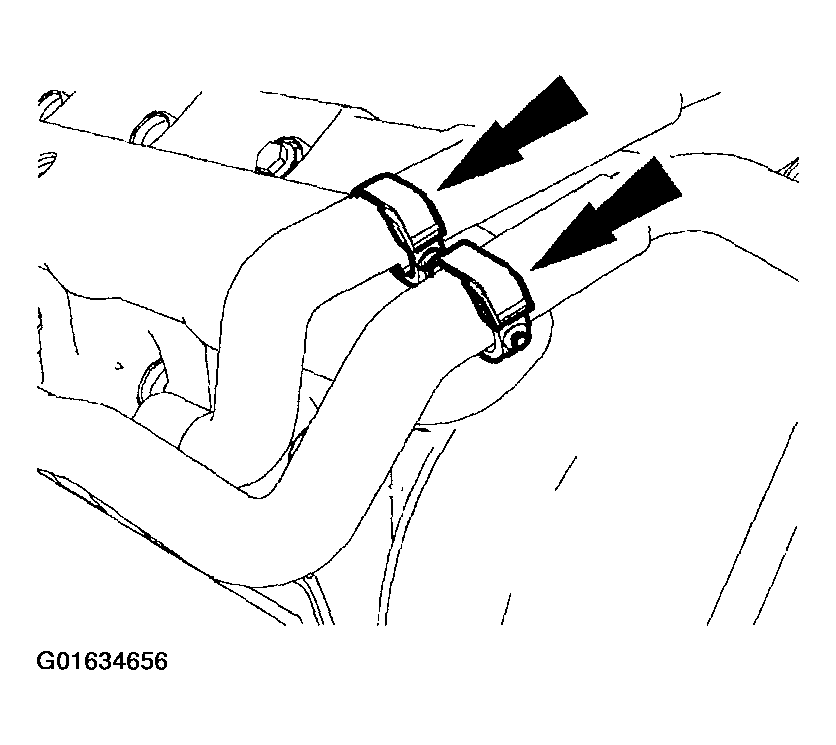

1. Install the coolant hoses into the retaining clips.
   Fig 12: Installing Coolant Hoses Into Retaining Clips

   Courtesy of FORD MOTOR CO.

Items 55 and 56: Accelerator Cable Bracket and Bolts Installation Note

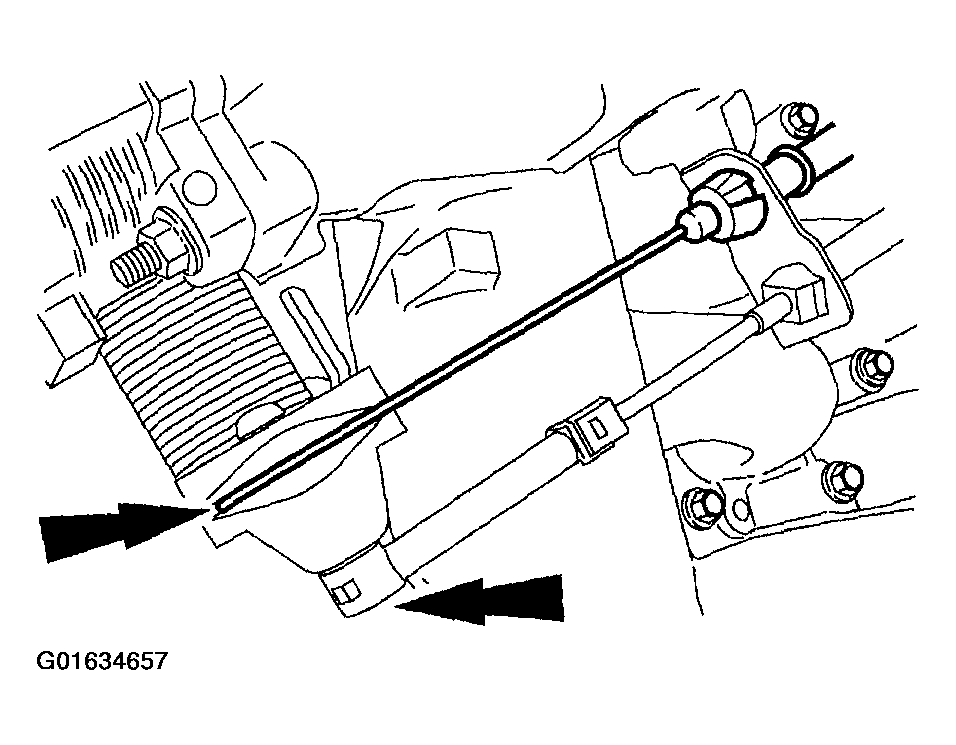

1. Connect the speed control cable and the accelerator cable to the throttle cam.
   Fig 13: Connecting Speed Control Cable And Accelerator Cable To Throttle Cam

   Courtesy of FORD MOTOR CO.

Item 59: Engine Wiring Harness Installation Note

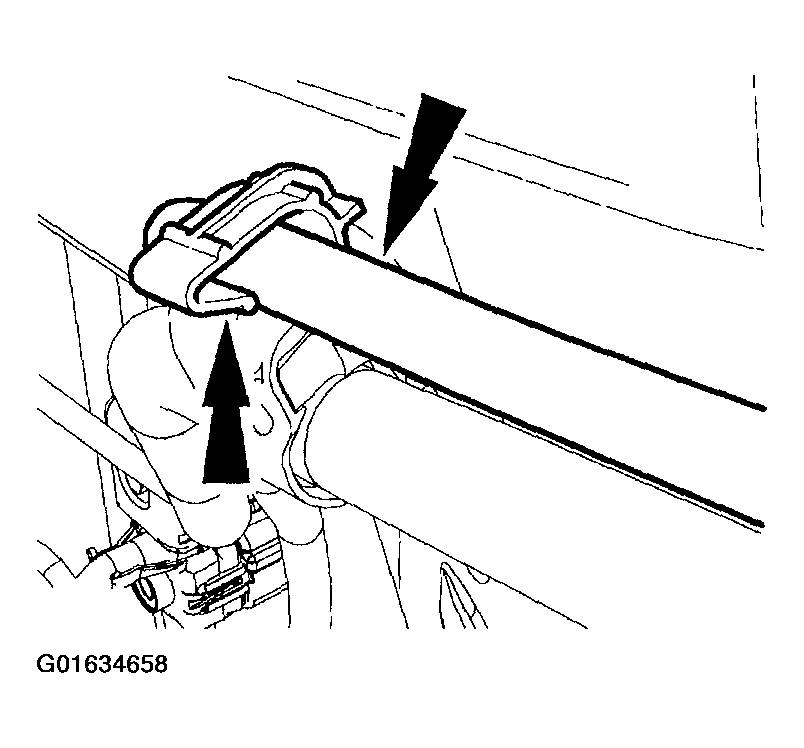

1. Position the transmission wiring harness into the engine wiring harness and mount the engine wiring harness to the cowl.
   Fig 14: Positioning Transmission Wiring Harness Into Engine Wiring Harness

   Courtesy of FORD MOTOR CO.
