Accelerator Cable and Bracket

1. Remove the engine appearance cover.
2. Remove the components in the order indicated in the following illustration.
3. To install, reverse the removal procedure.

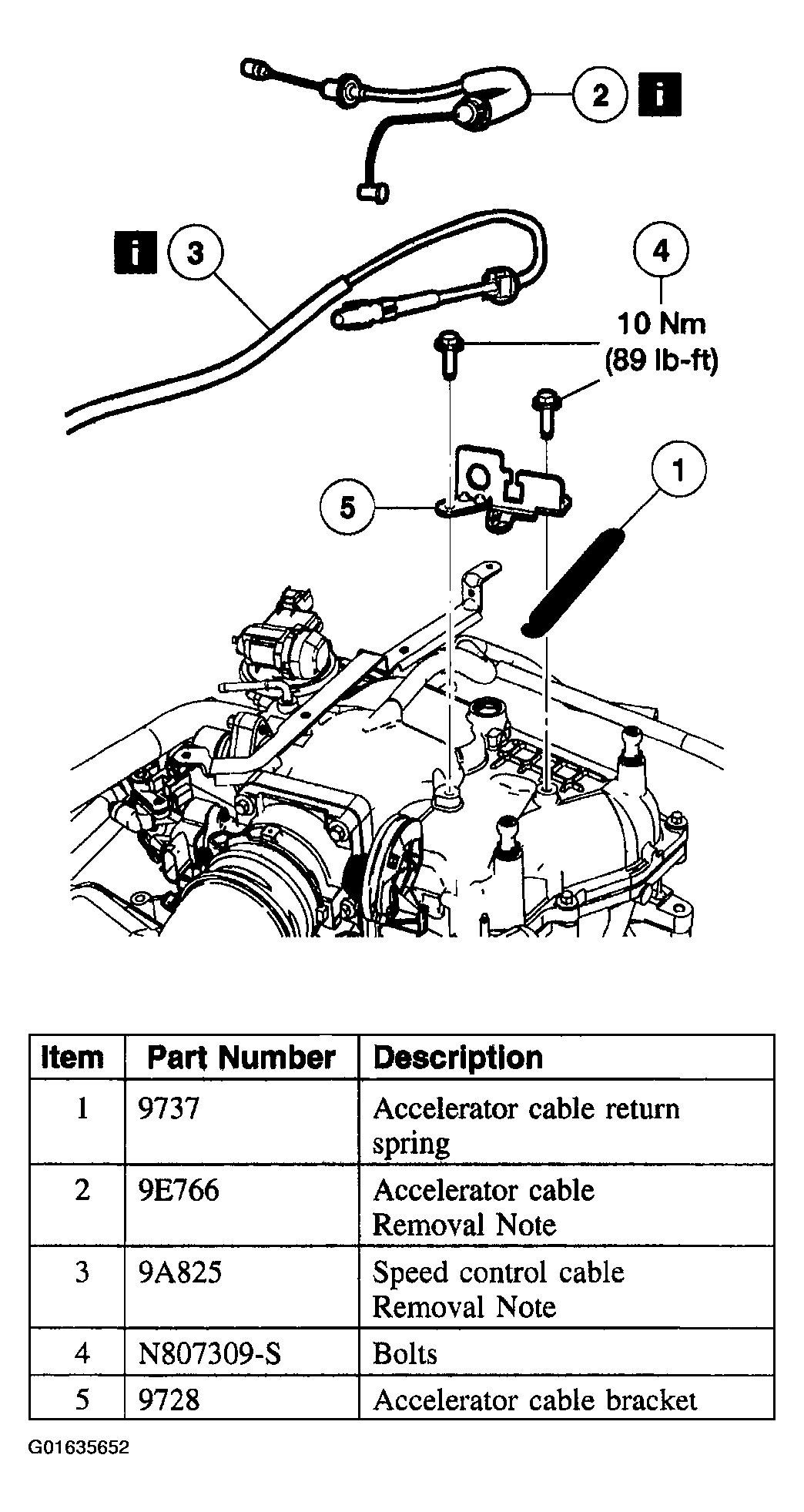

   Fig 1: Removal Sequence Of Accelerator Cable And Bracket

   Courtesy of FORD MOTOR CO.

Item 2: Accelerator Cable Removal Note

1. Remove the accelerator cable from the rubber plunger.

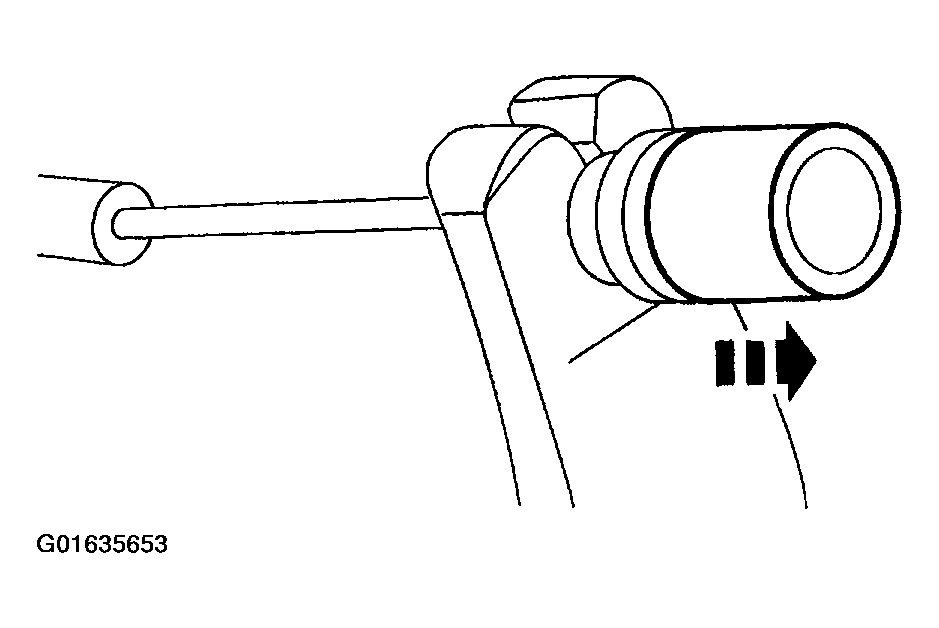

   Fig 2: Removing Accelerator Cable From Rubber Plunger

   Courtesy of FORD MOTOR CO.
2. Position the rubber plunger rearward and remove the cable from the accelerator pedal.

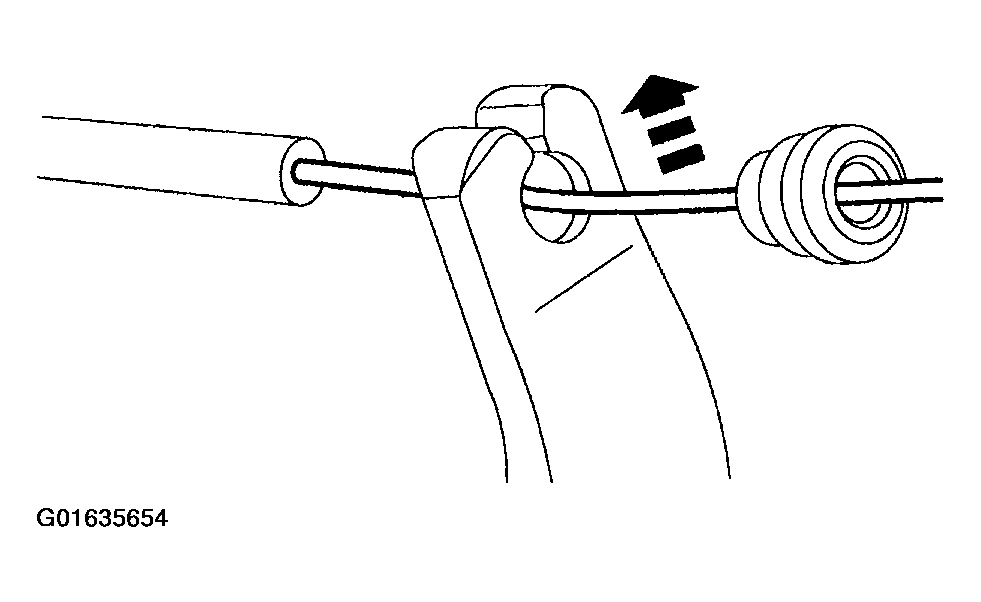

   Fig 3: Removing Cable From Accelerator Pedal

   Courtesy of FORD MOTOR CO.
3. Squeeze the tabs and remove the accelerator cable from the bracket.

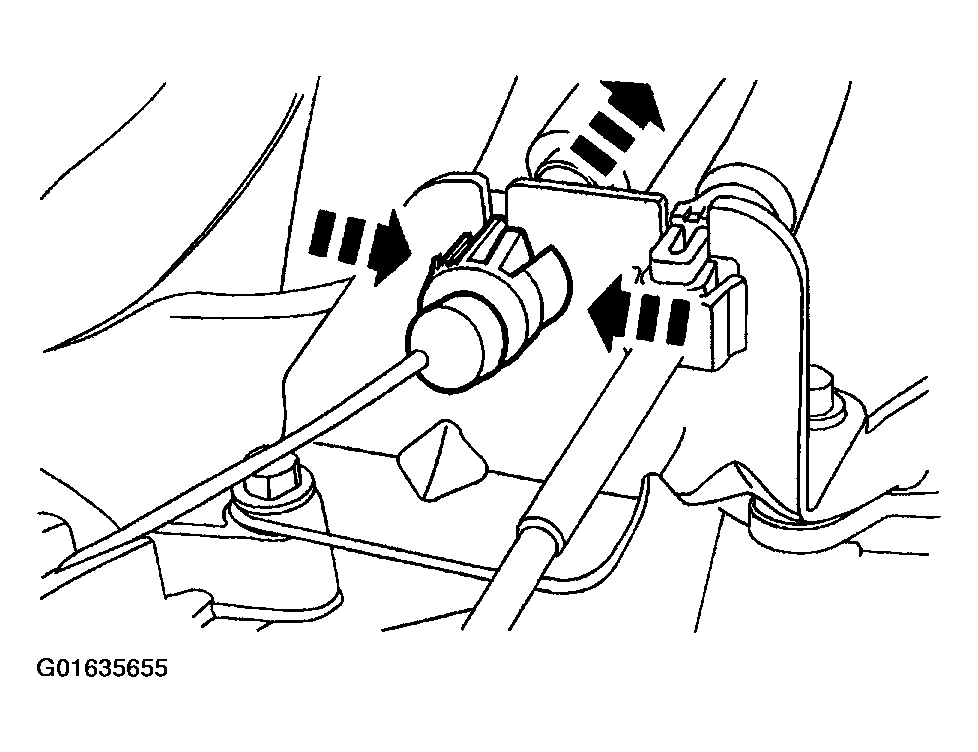

   Fig 4: Removing Accelerator Cable From Bracket

   Courtesy of FORD MOTOR CO.
4. Pull the accelerator cable boot to the unlock position and remove the accelerator cable.

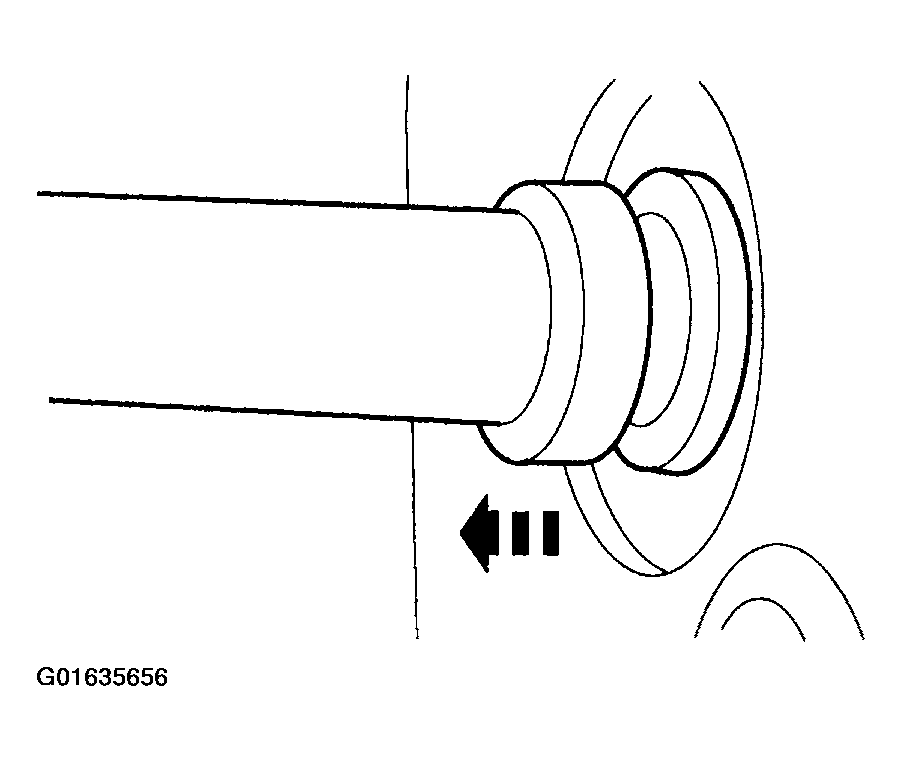

   Fig 5: Pulling Accelerator Cable Boot To Unlock Position

   Courtesy of FORD MOTOR CO.

Item 3: Speed Control Cable Removal Note

1. Disconnect and position the speed control cable aside.
