Park System: Installation

    NOTE: If a new park gear needs to be installed, refer to OUTPUT SHAFT - CHECK .
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.

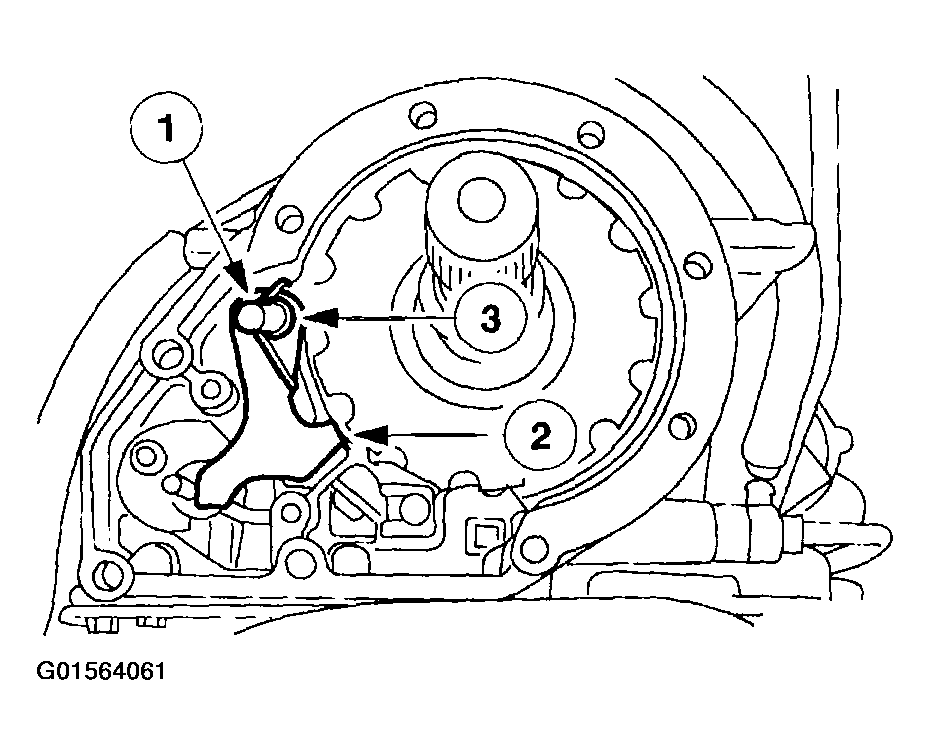

      Fig 1: Installing Park Pawl Shaft
      G01564061Courtesy of FORD MOTOR CO.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

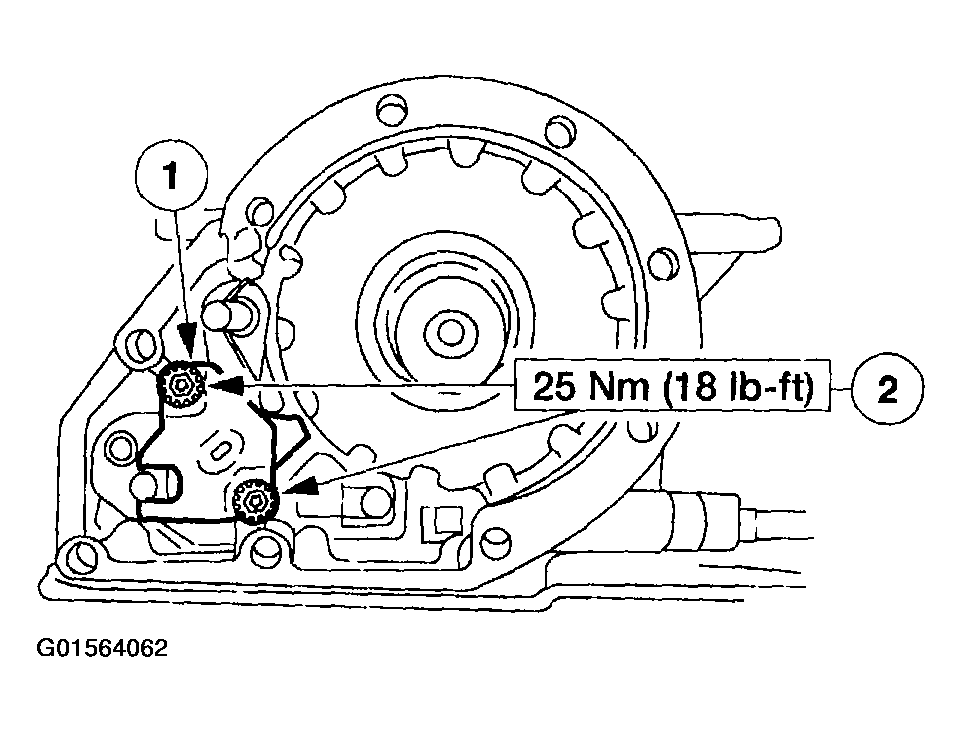

      Fig 2: Installing Parking Rod Guide Plate
      G01564062Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing. For additional information, refer to EXTENSION HOUSING GASKET - 4X2  or EXTENSION HOUSING GASKET - 4X4 .
