Park System: Removal

NOTE: For internal park mechanism service, refer to MANUAL CONTROL LEVER SHAFT AND SEAL .
  1. Remove the extension housing and the extension housing gasket. For additional information, refer to EXTENSION HOUSING GASKET - 4X2  or EXTENSION HOUSING GASKET - 4X4 .
  2. Remove the parking rod guide plate.
    1. Remove the bolts.
    2. Remove the parking rod guide plate.

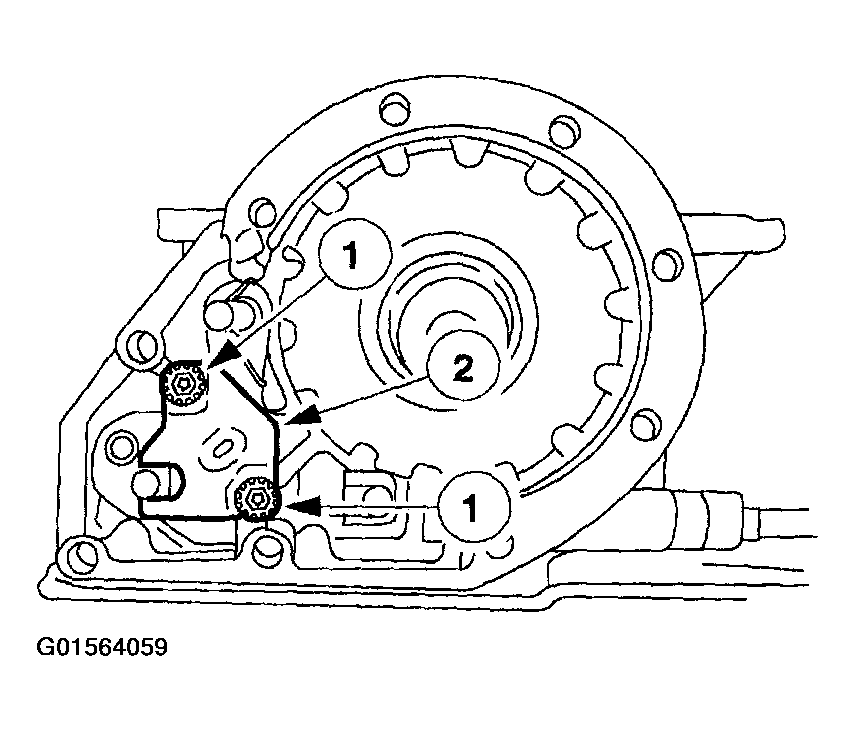

      Fig 1: Removing Parking Rod Guide Plate
      G01564059Courtesy of FORD MOTOR CO.
  3. Remove the park pawl shaft.
  1. Remove the park pawl return spring.
  2. Remove the park pawl.
  3. Remove the park pawl shaft.

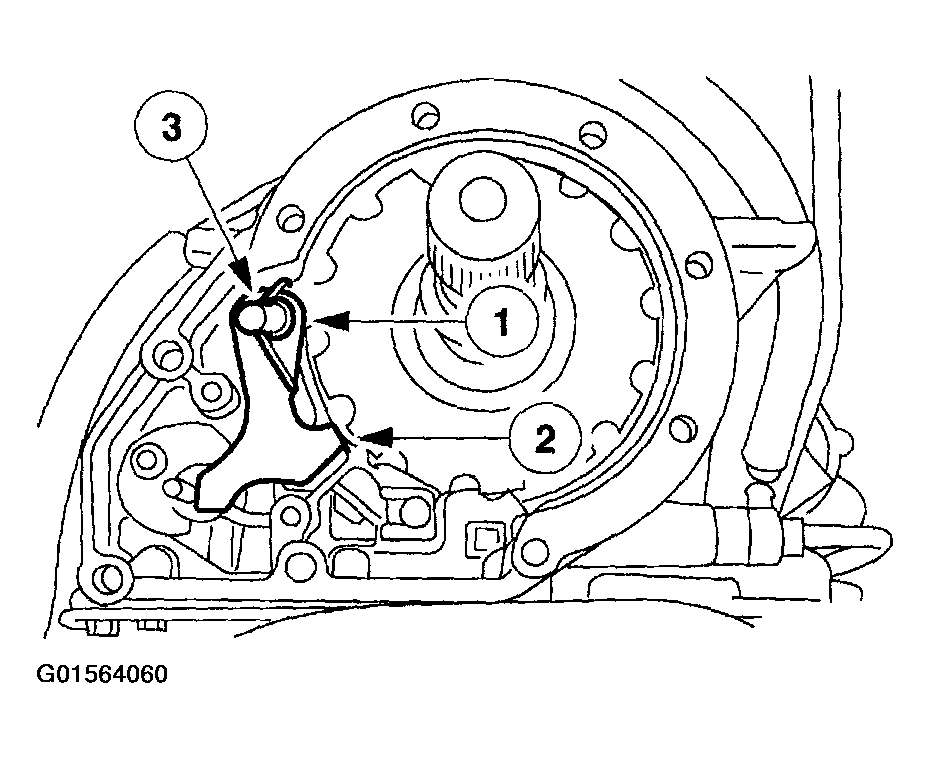

    Fig 2: Removing Park Pawl Shaft
    G01564060Courtesy of FORD MOTOR CO.
