Removal and Installation

  1. Remove the parking brake shoes. For additional information, refer to PARKING BRAKE & ACTUATION .
  2. Disconnect the wheel speed sensor wire from the retaining clips.

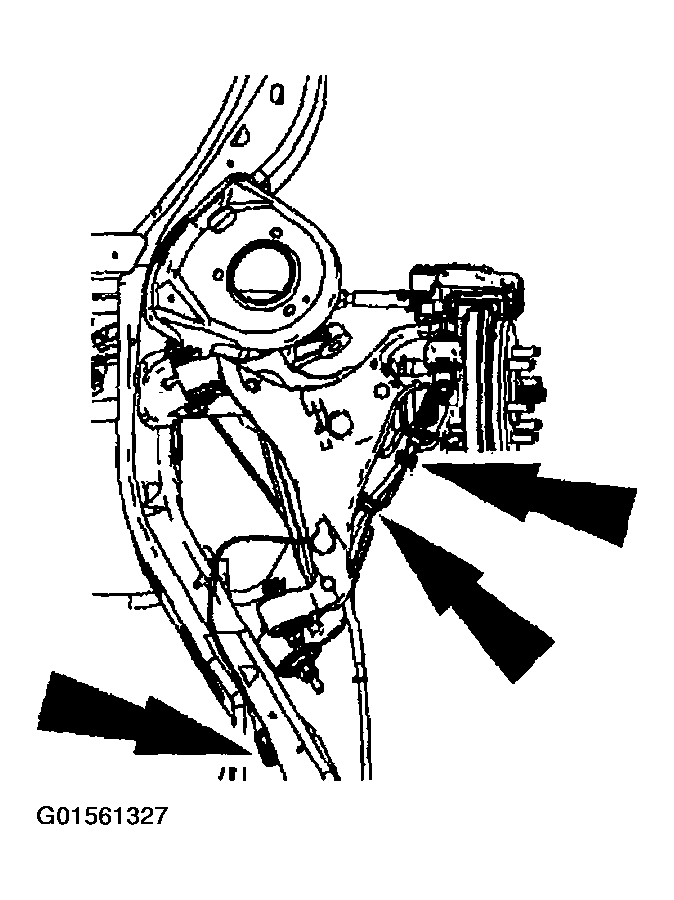

    Fig 1: Disconnecting Wheel Speed Sensor Wire From Retaining Clips
    G01561327Courtesy of FORD MOTOR CO.
  3. Remove the bolt and remove the rear wheel speed sensor.

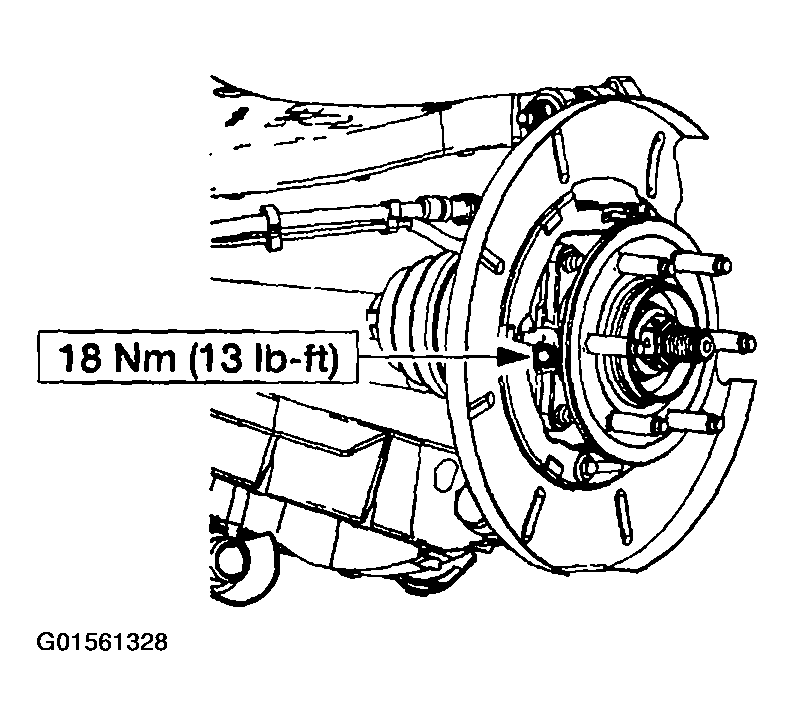

    Fig 2: Removing Bolt And Rear Wheel Speed Sensor
    G01561328Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
