Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

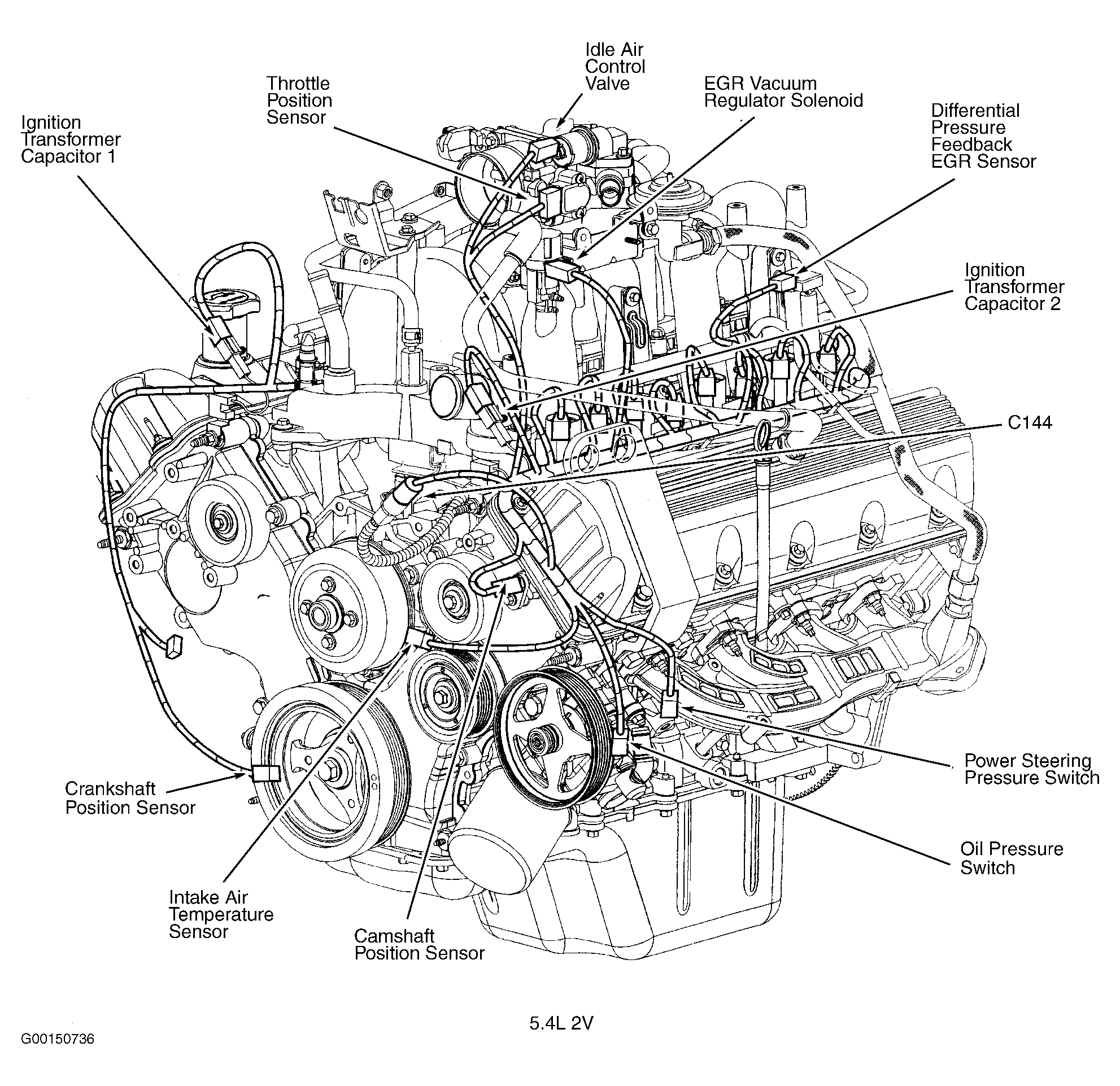

Fig 1: Left Front Of Engine (5.4L 2V)

Courtesy of FORD MOTOR CO.

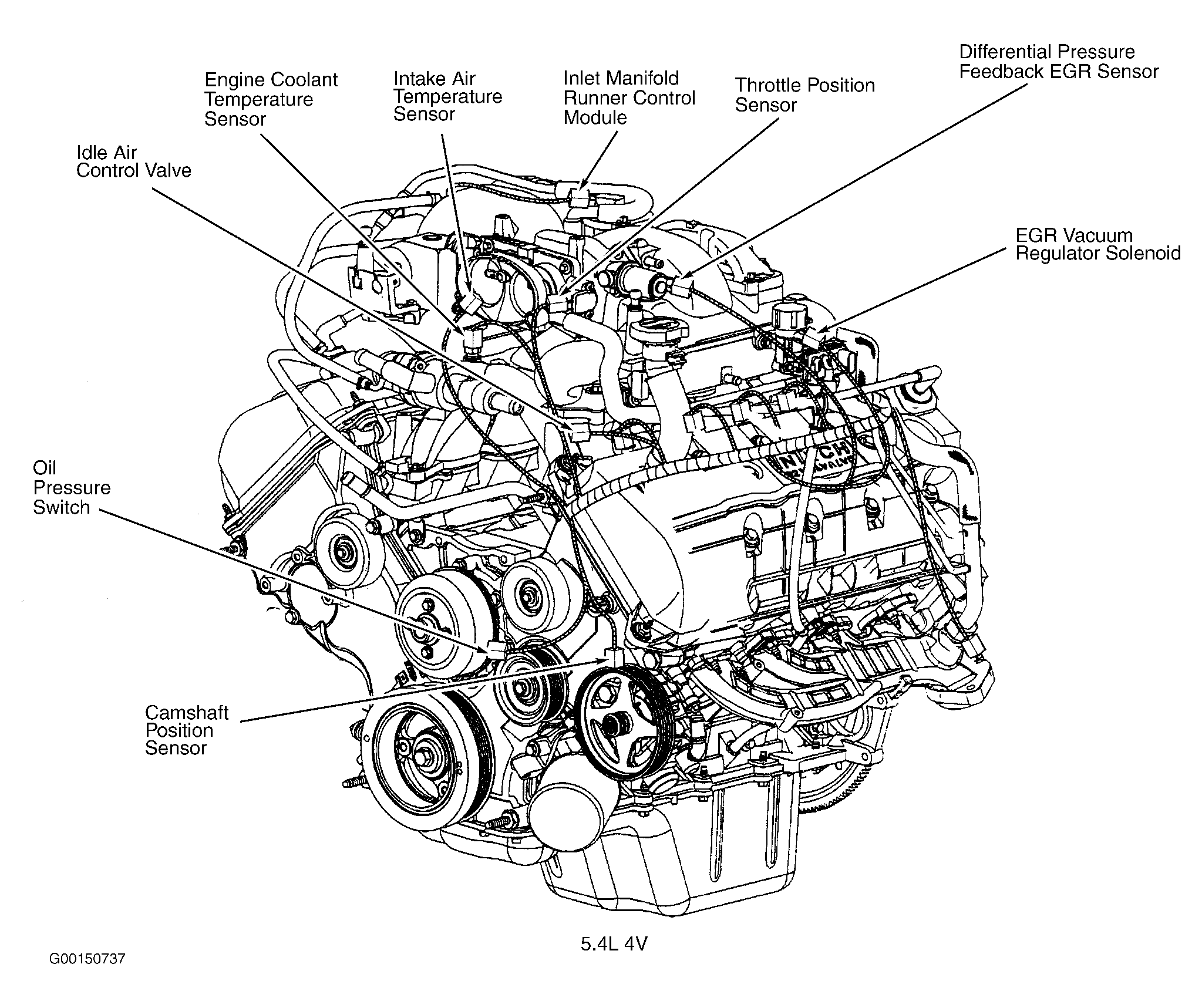

Fig 2: Left Front Of Engine (5.4L 4V)

Courtesy of FORD MOTOR CO.

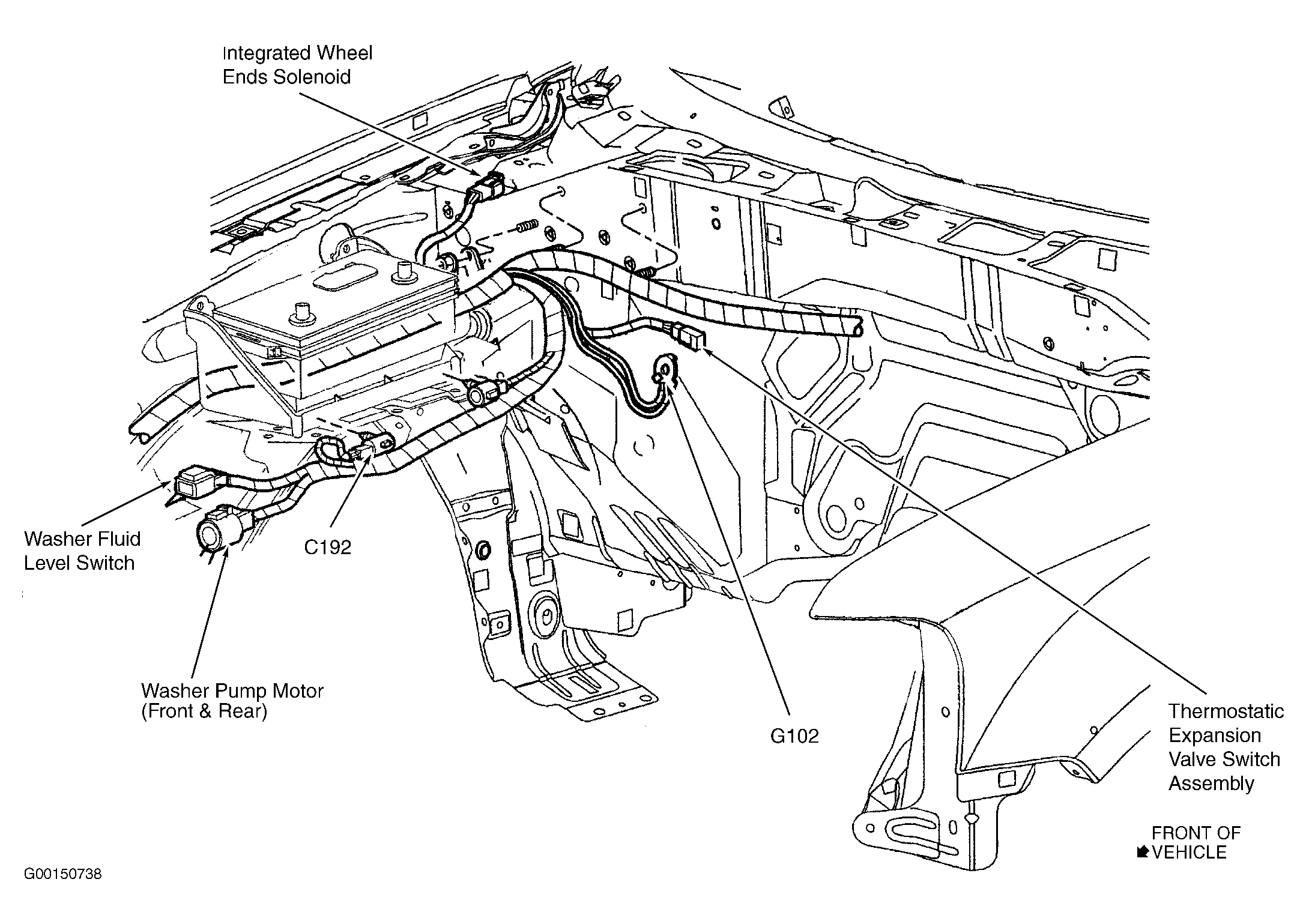

Fig 3: Right Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

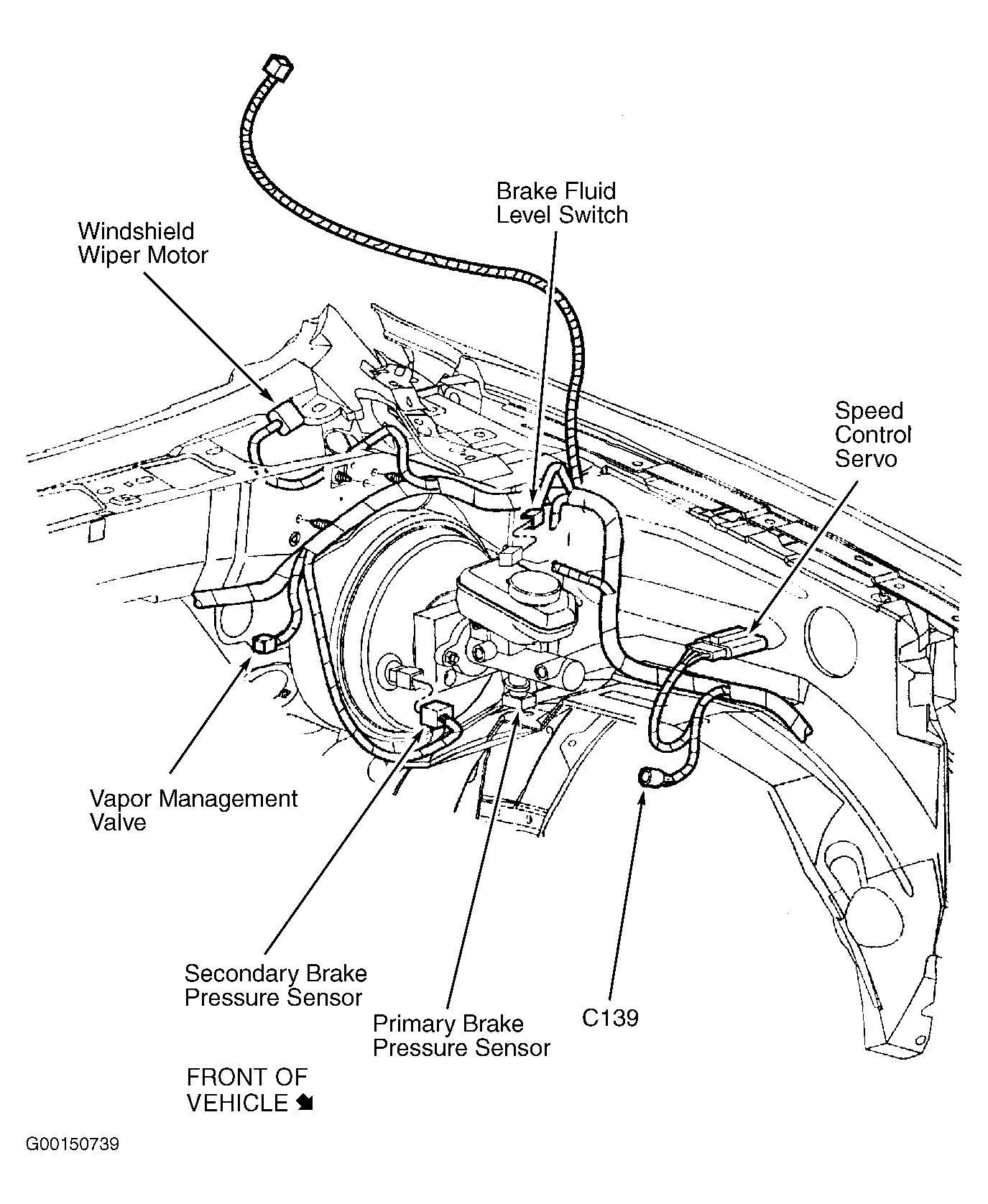

Fig 4: Left Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

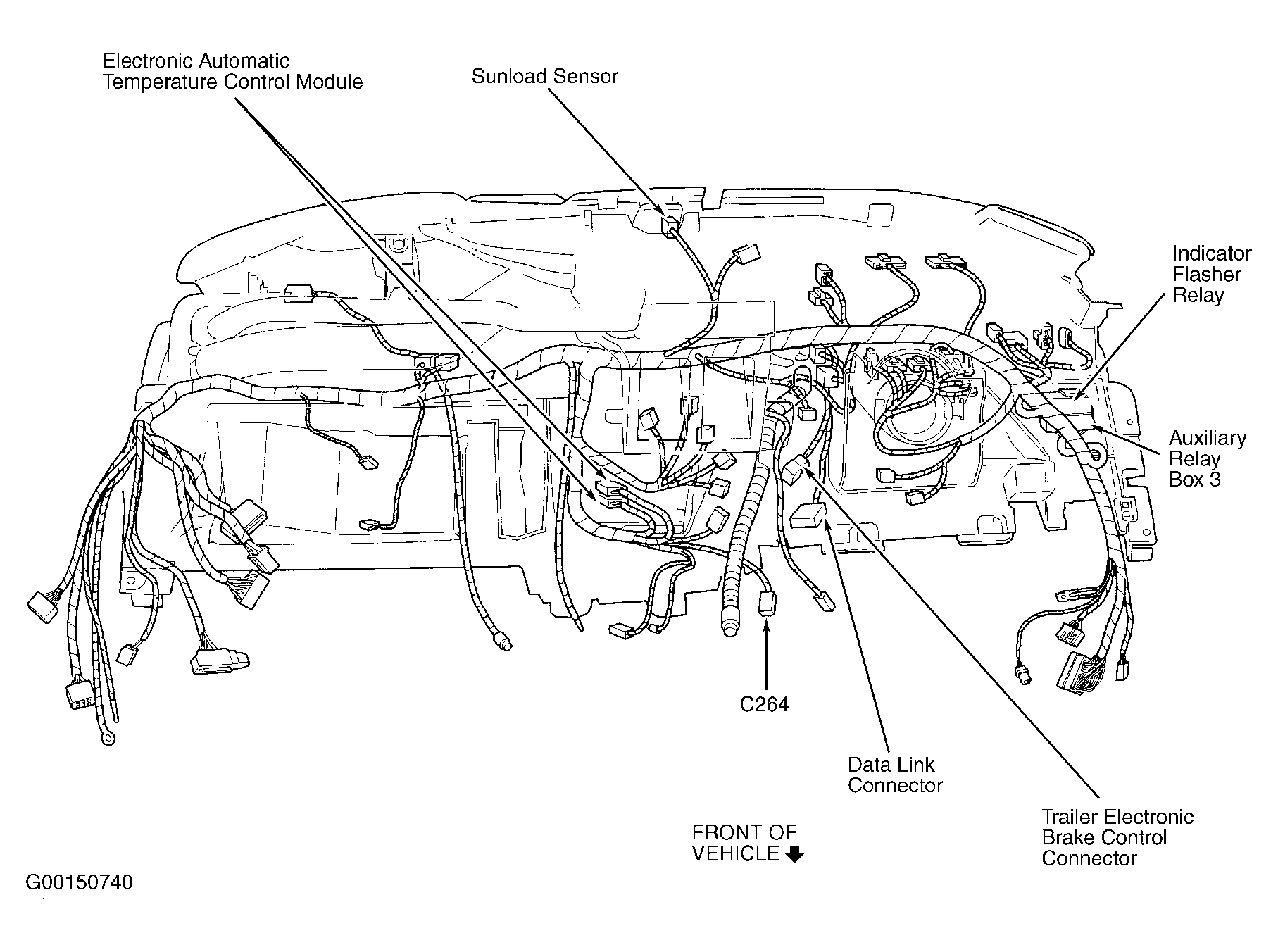

Fig 5: Rear Of Dash

Courtesy of FORD MOTOR CO.

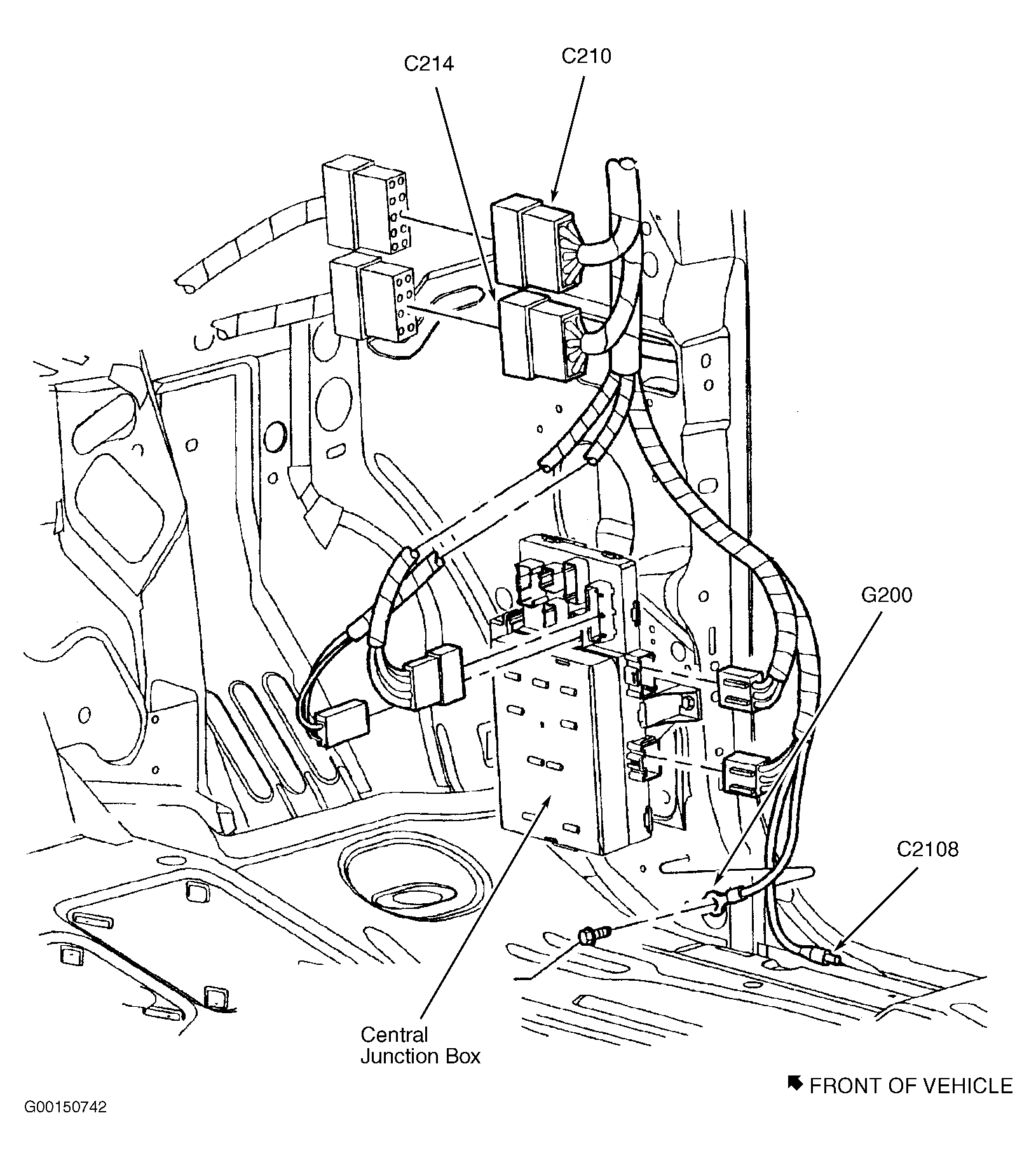

Fig 6: Left Kick Panel Area

Courtesy of FORD MOTOR CO.

Fig 7: Right Kick Panel Area

Courtesy of FORD MOTOR CO.

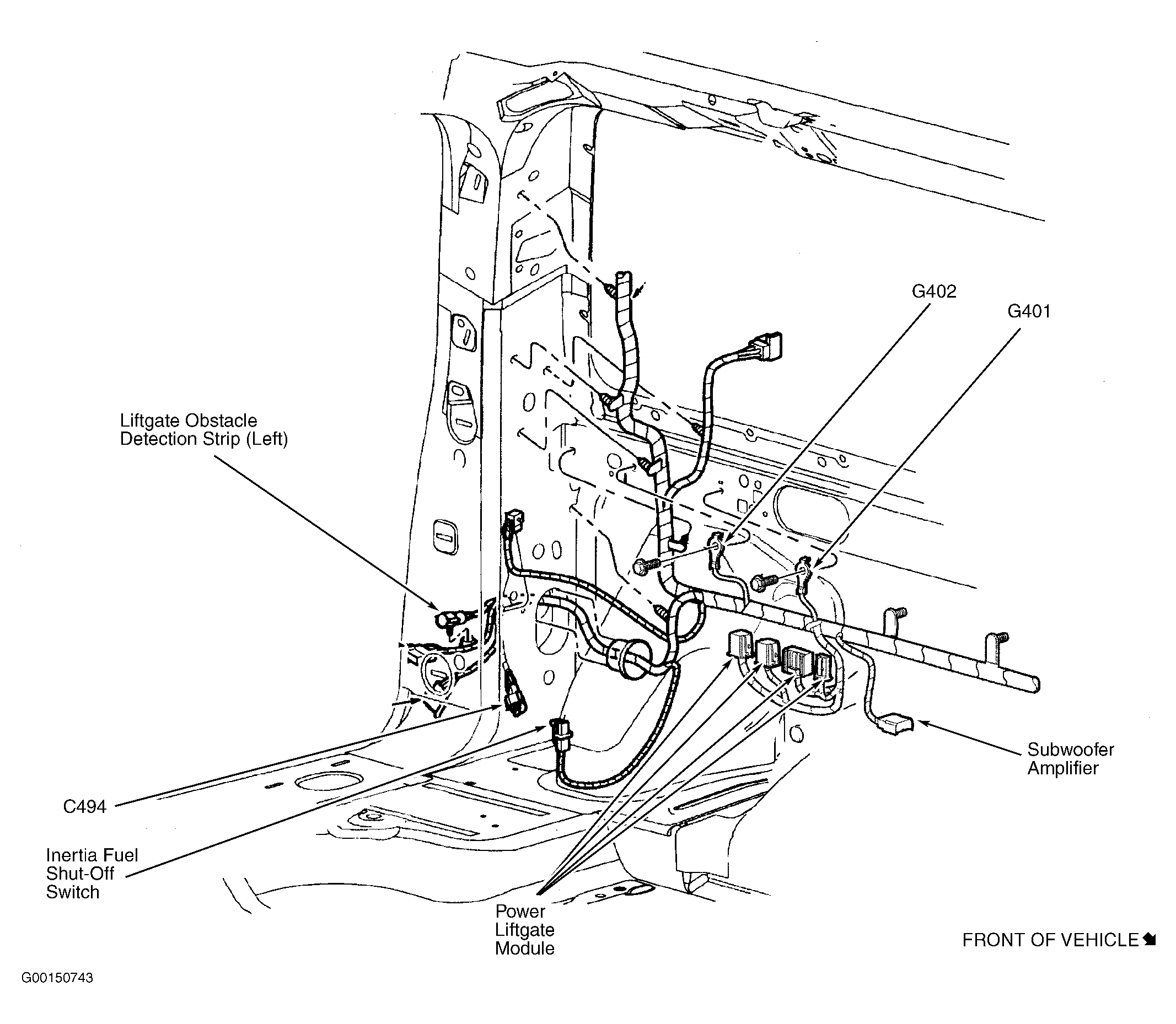

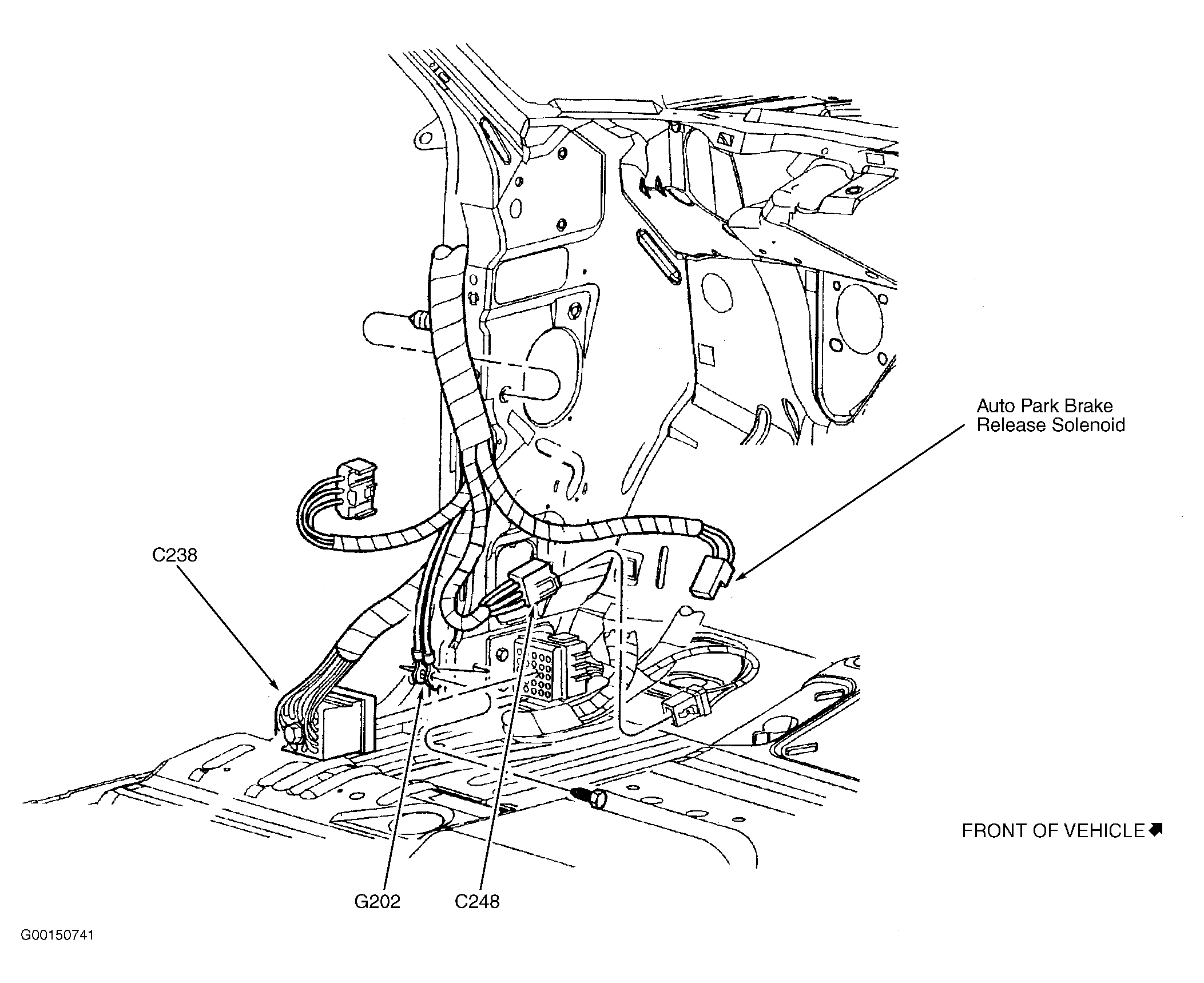

Fig 8: Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

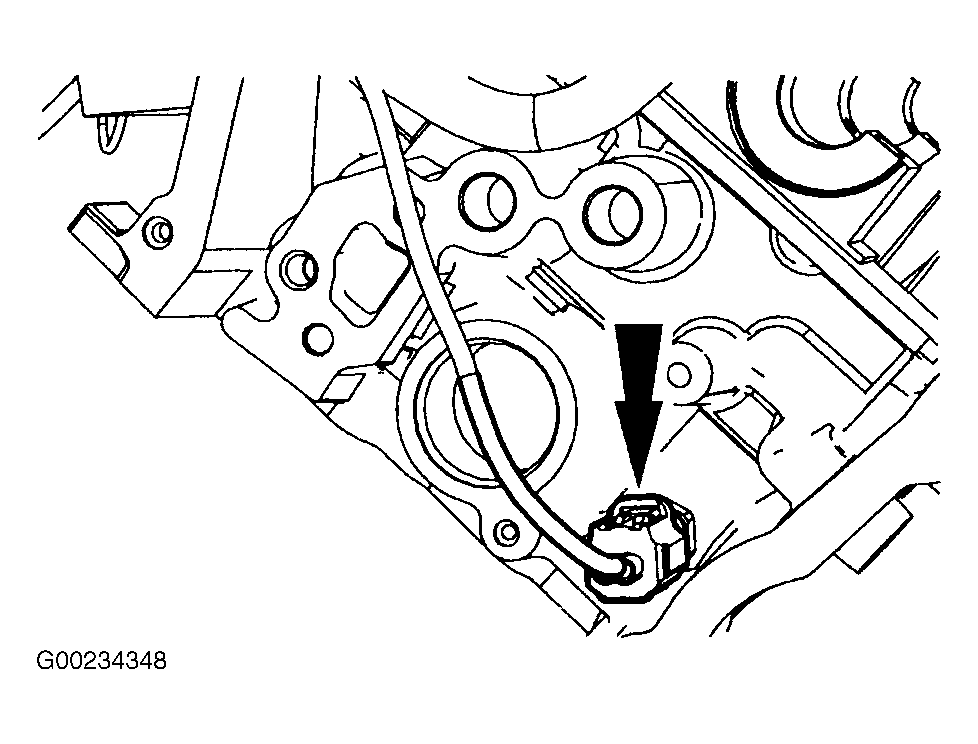

Fig 9: Locating Cylinder Head Temperature Sensor (4.6L & 5.4L 2V)

Courtesy of FORD MOTOR CO.

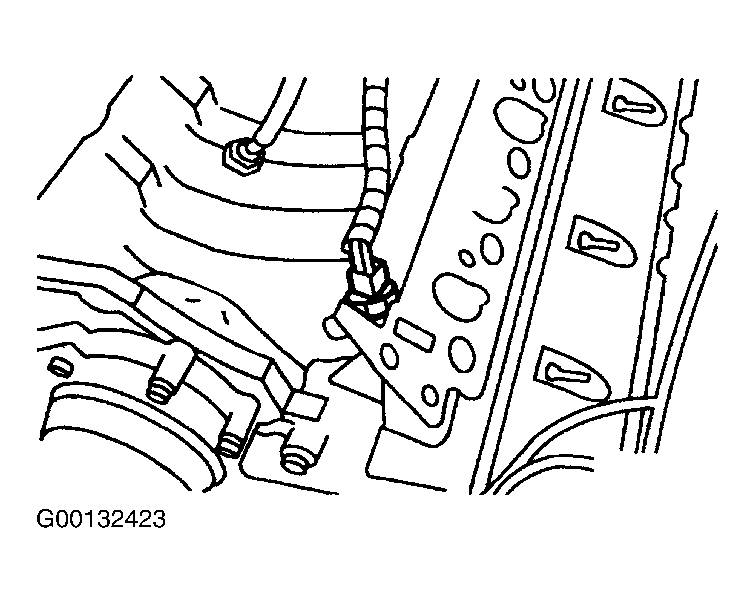

Fig 10: Locating Cylinder Head Temperature Sensor (5.4L 4V)

Courtesy of FORD MOTOR CO.

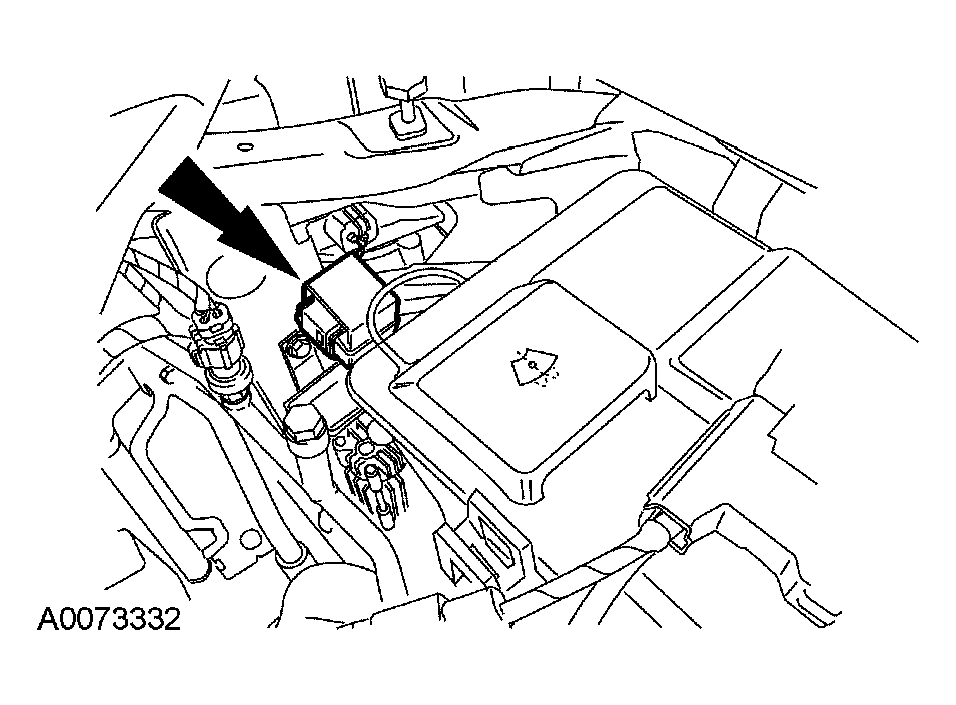

Fig 11: Locating Air Suspension Relay

Courtesy of FORD MOTOR CO.
