Main Components And Functions

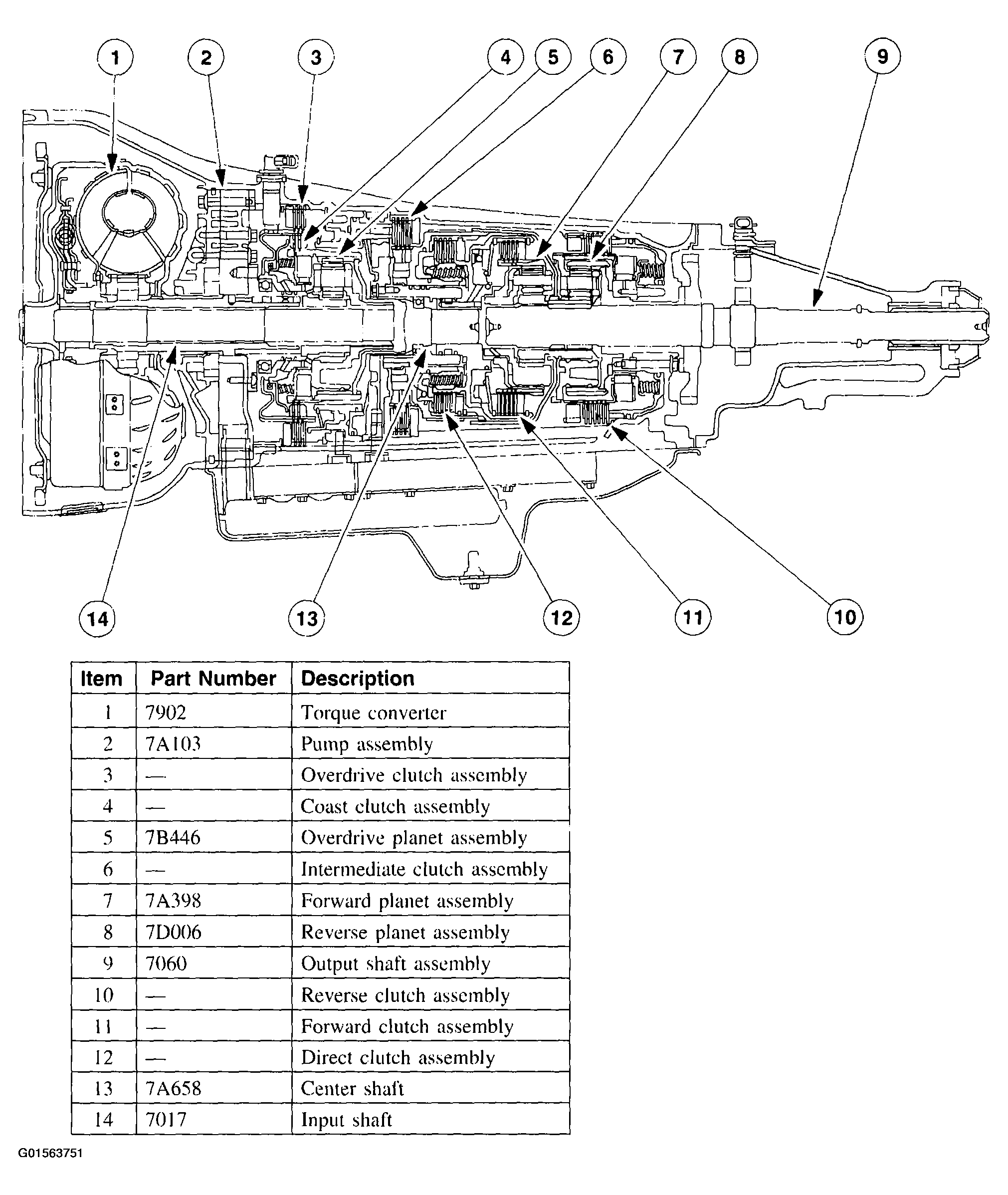

Fig 1: Automatic Transmission - Cross Sectional View And Item Description Chart
G01563751Courtesy of FORD MOTOR CO.

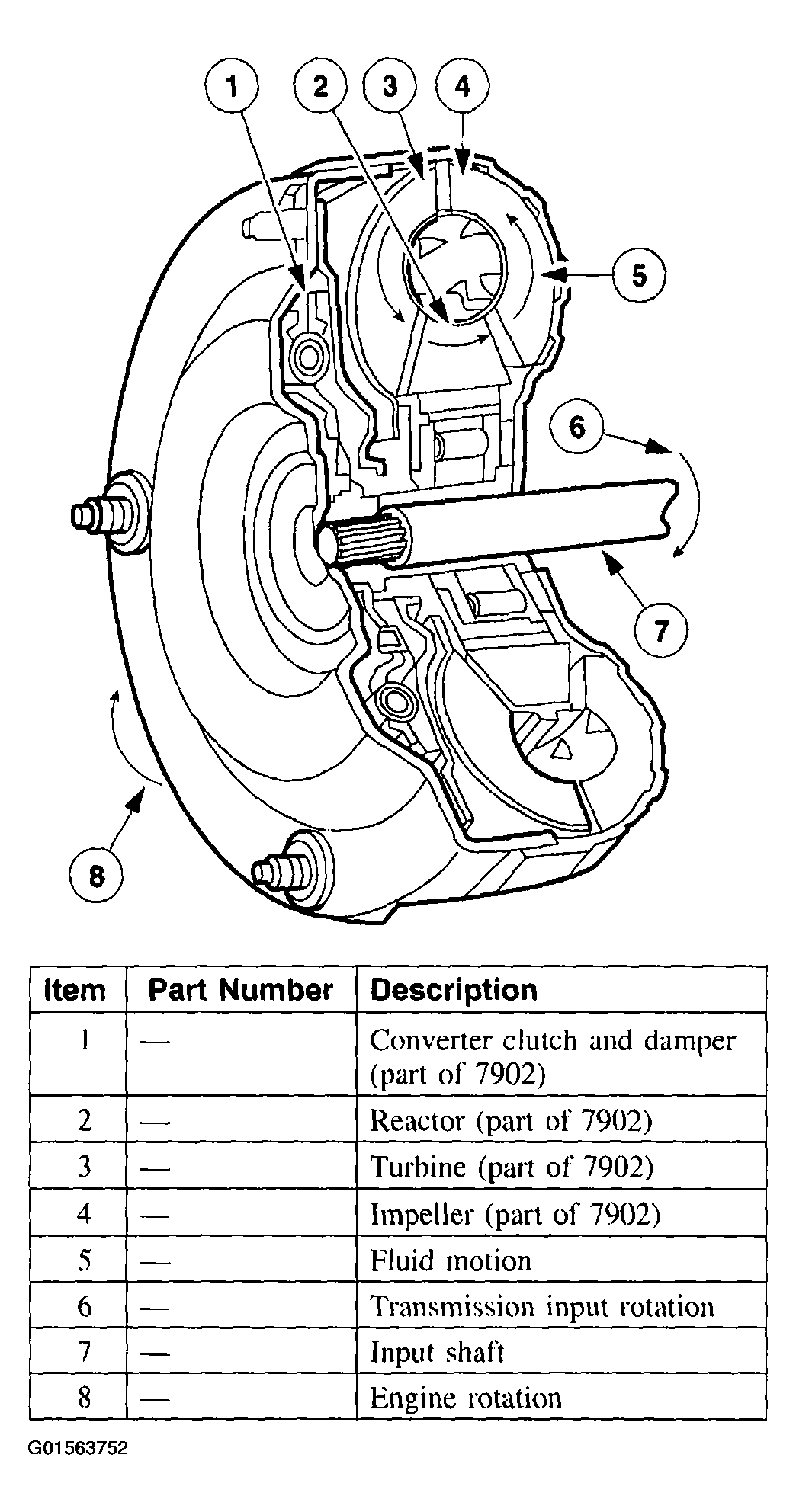

Fig 2: View Of Torque Convertor And Item Description Chart
G01563752Courtesy of FORD MOTOR CO.
