Transmission Connector Layouts: Notes

For connector number and pin location, refer to the Wiring Diagram Manual.

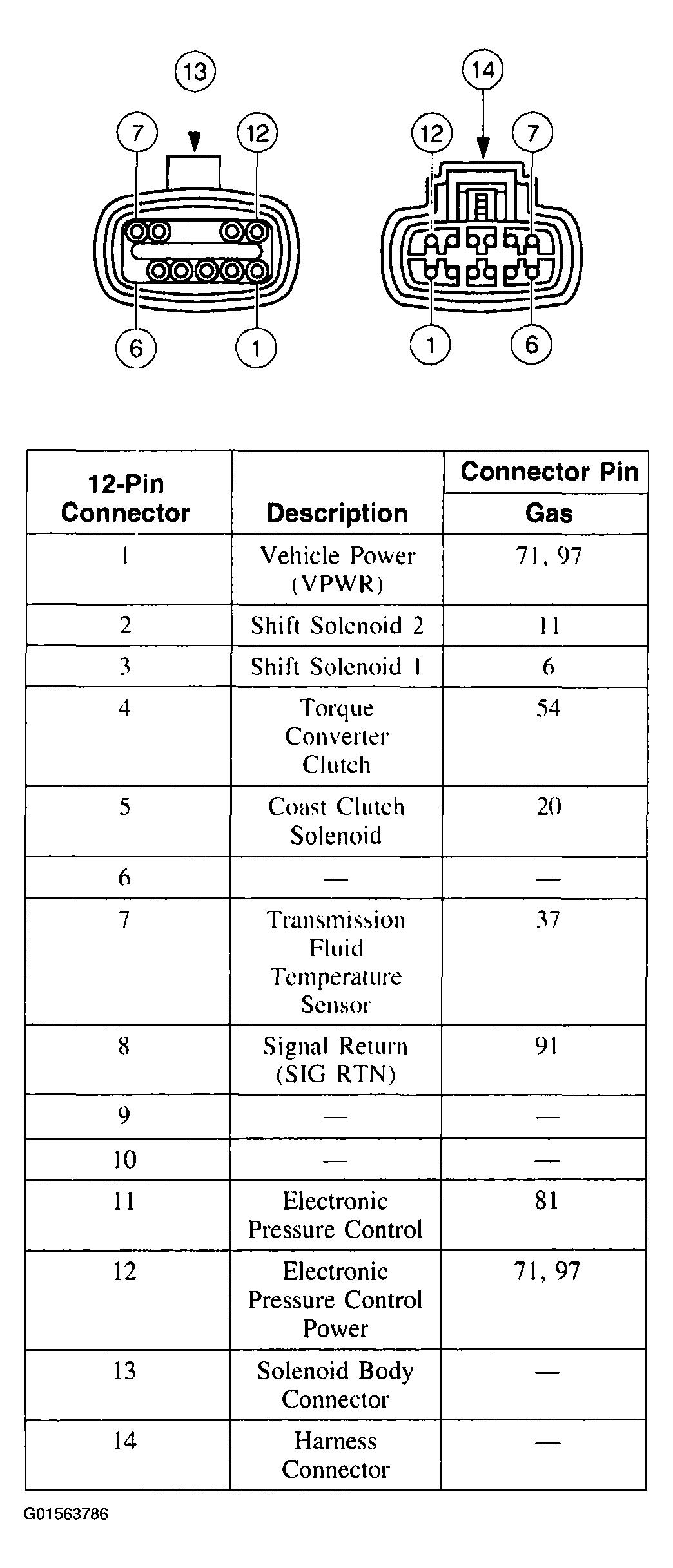

Fig 1: Identifying Transmission Vehicle Harness Connector And Description Chart

Courtesy of FORD MOTOR CO.

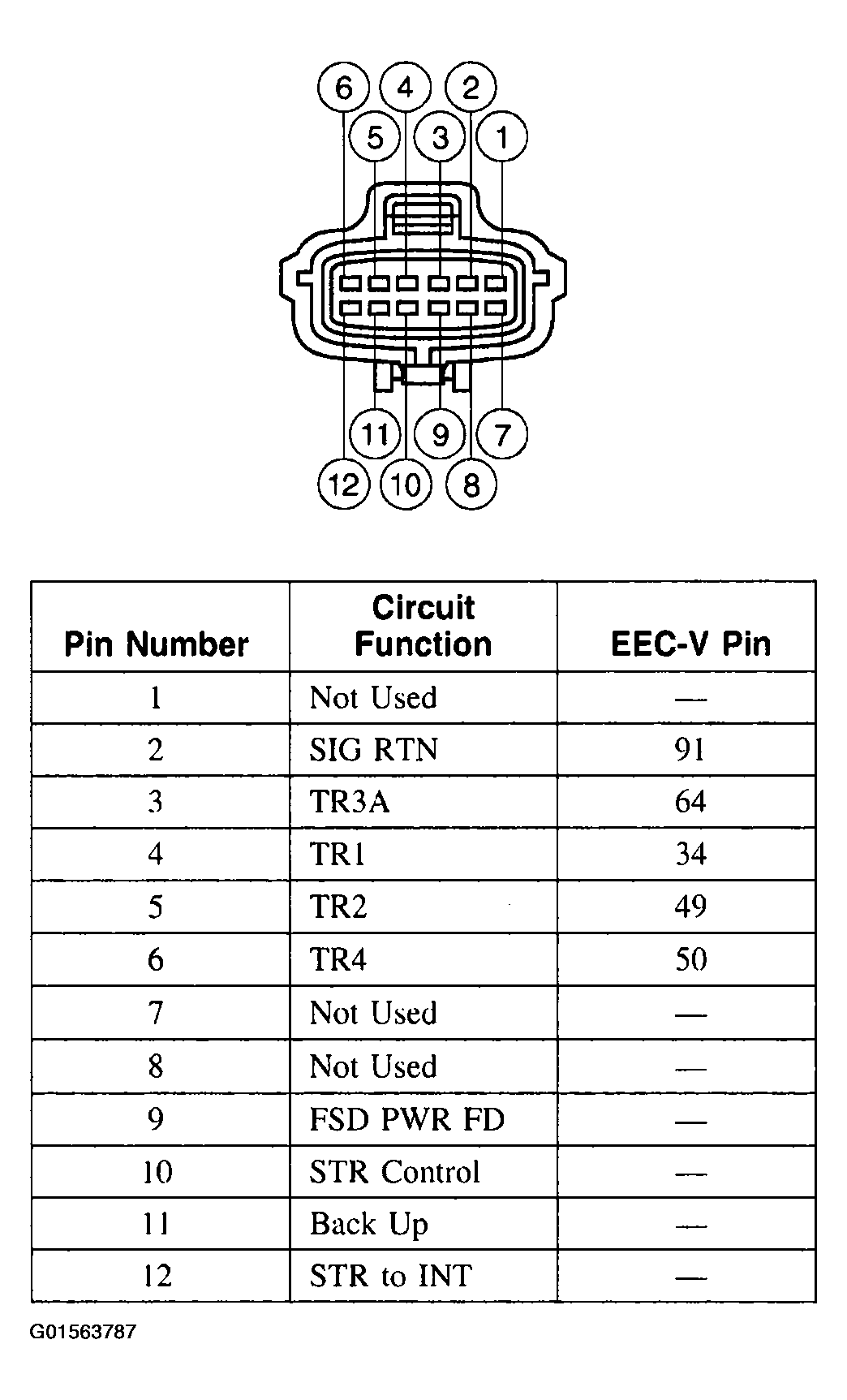

Fig 2: Identifying Digital Transmission Range Sensor Connector And Circuit Function Chart

Courtesy of FORD MOTOR CO.

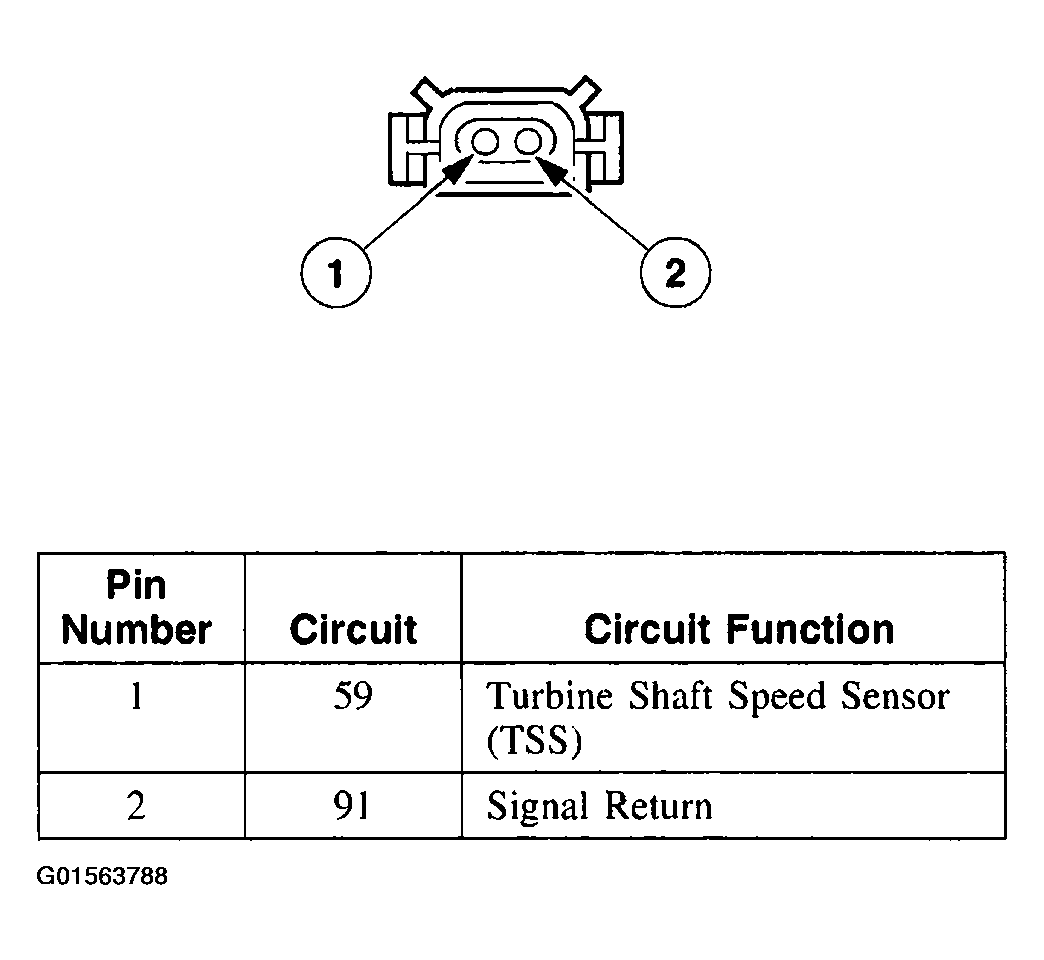

Fig 3: Identifying Turbine Shaft Speed Sensor Harness Connector And Circuit Function Chart

Courtesy of FORD MOTOR CO.

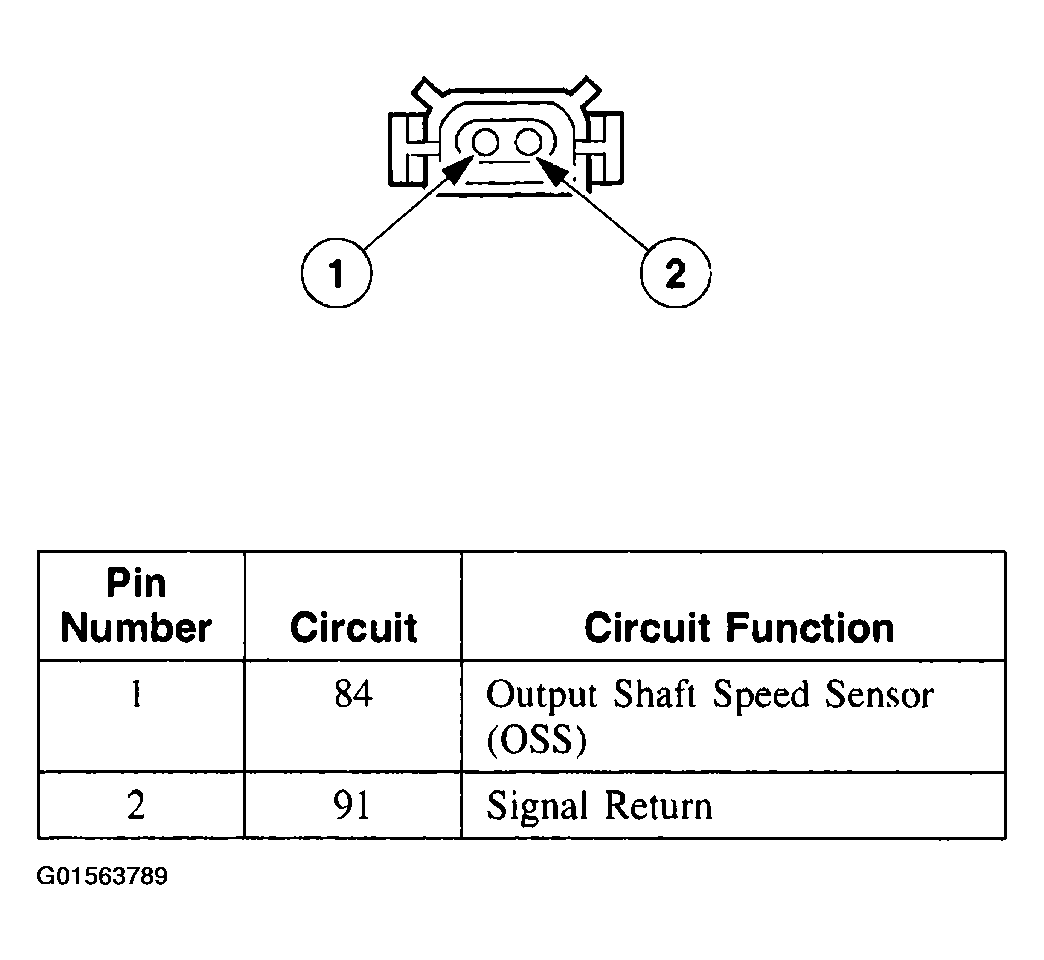

Fig 4: Identifying Output Shaft Speed Sensor Harness Connector And Circuit Function Chart

Courtesy of FORD MOTOR CO.

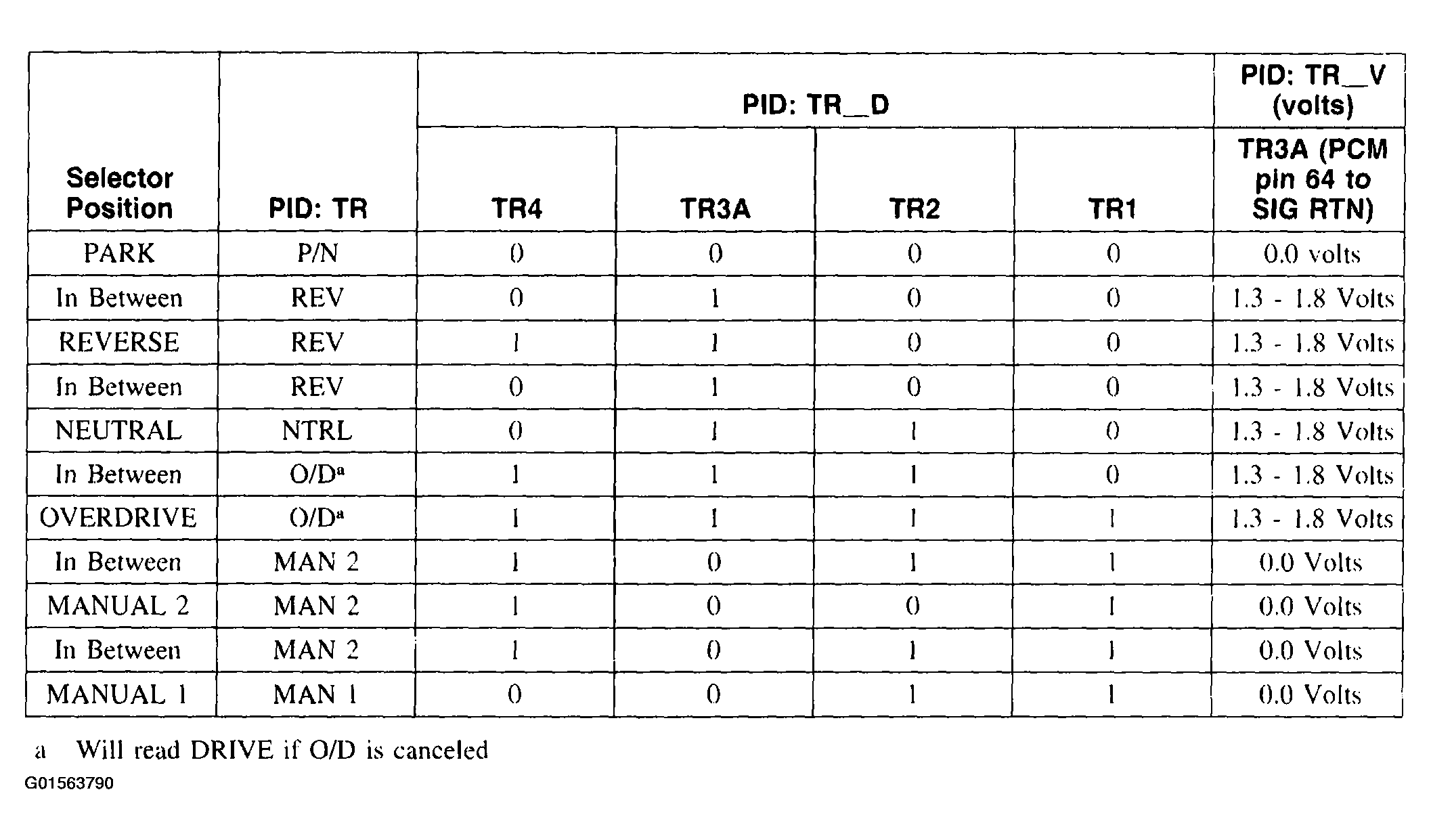

Fig 5: Digital Transmission Range Sensor Diagnosis Chart

Courtesy of FORD MOTOR CO.

1. TR_V is the voltage at the PCM pin 64 (TR3A Circuit) to signal return.
2. "In Between" reading could be caused by a shift cable or digital TR sensor misaligned or a digital TR sensor circuit failure of TR1, TR2, TR3A, or TR4.
3. TR_D: 1= Open digital TR switch, 0= Closed digital TR switch.
4. EEC-V Control System Breakout Box Readings: Taken from PCM signal pins for TR1, TR2, TR3A, TR4 to signal return.
   • Voltages for TR1, TR2, TR4:
   • 0 = 0.0 volts.
   • 1 = 9.0 - 14.0 volts.
   • Voltage for TR3A:
   • 0 = 0.0 volts.
   • 1 = 1.3 - 1.8 volts.
   • 1.8 - 5.0 volts = Invalid Reading (open in wires or bad resistor in digital TR sensor).
