Center Support: Disassembly

  1. Remove and discard the direct clutch seal rings.

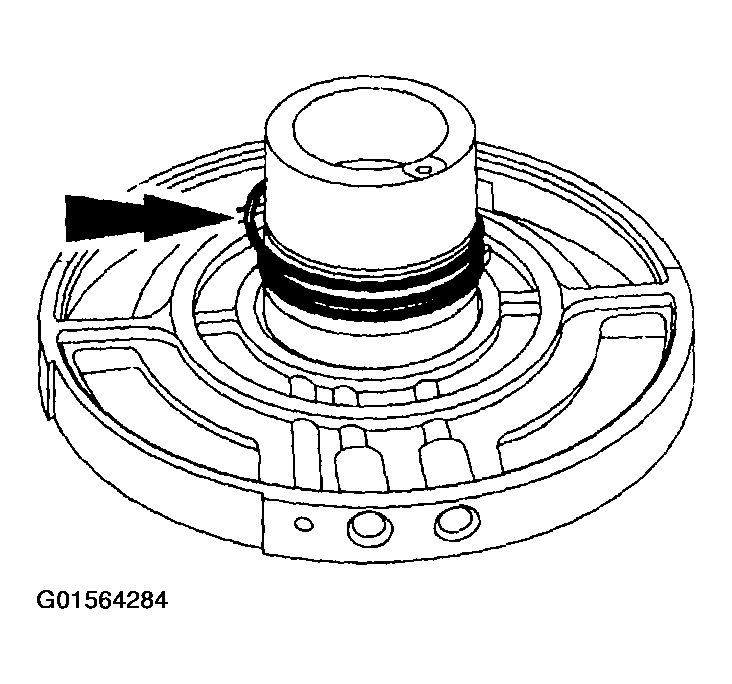

    Fig 1: Removing And Discarding Direct Clutch Seal Rings
    G01564284Courtesy of FORD MOTOR CO.
  2. Inspect the following for contamination or damage. Clean or install as necessary.
    1. Inspect the ball bearing.
    2. Inspect the feedbolt threads.
    3. Remove and inspect the No. 6 center support thrust washer.
    4. Inspect the inner hub diameter.
    5. Inspect the outer hub diameter.
    6. Inspect the seal ring grooves.

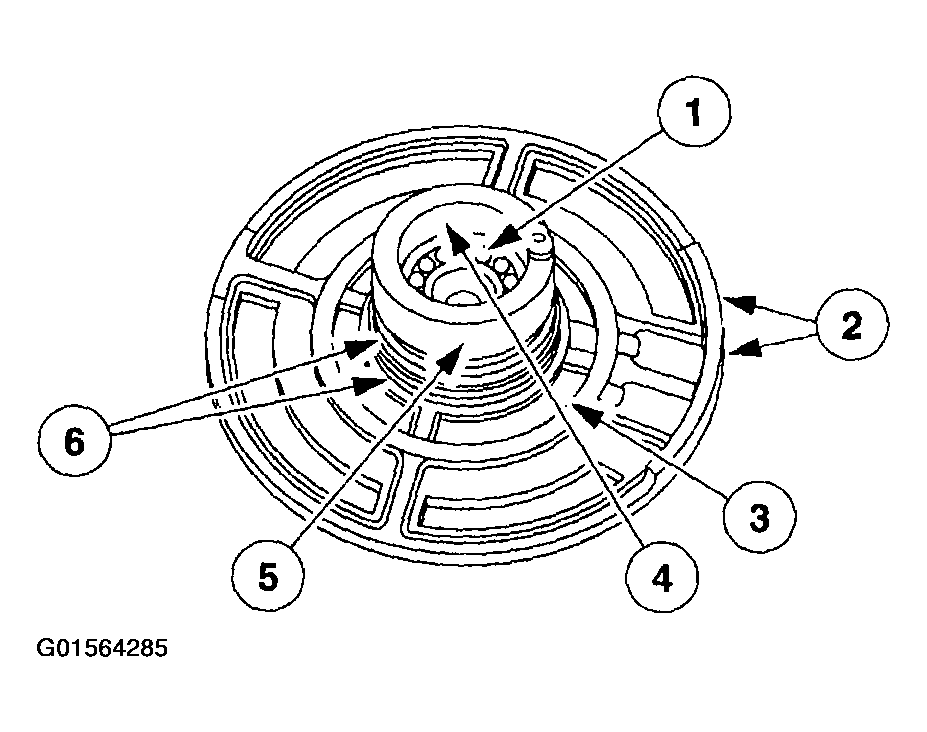

      Fig 2: Inspecting Center Support Components
      G01564285Courtesy of FORD MOTOR CO.
