Forward Clutch Assembly: Notes

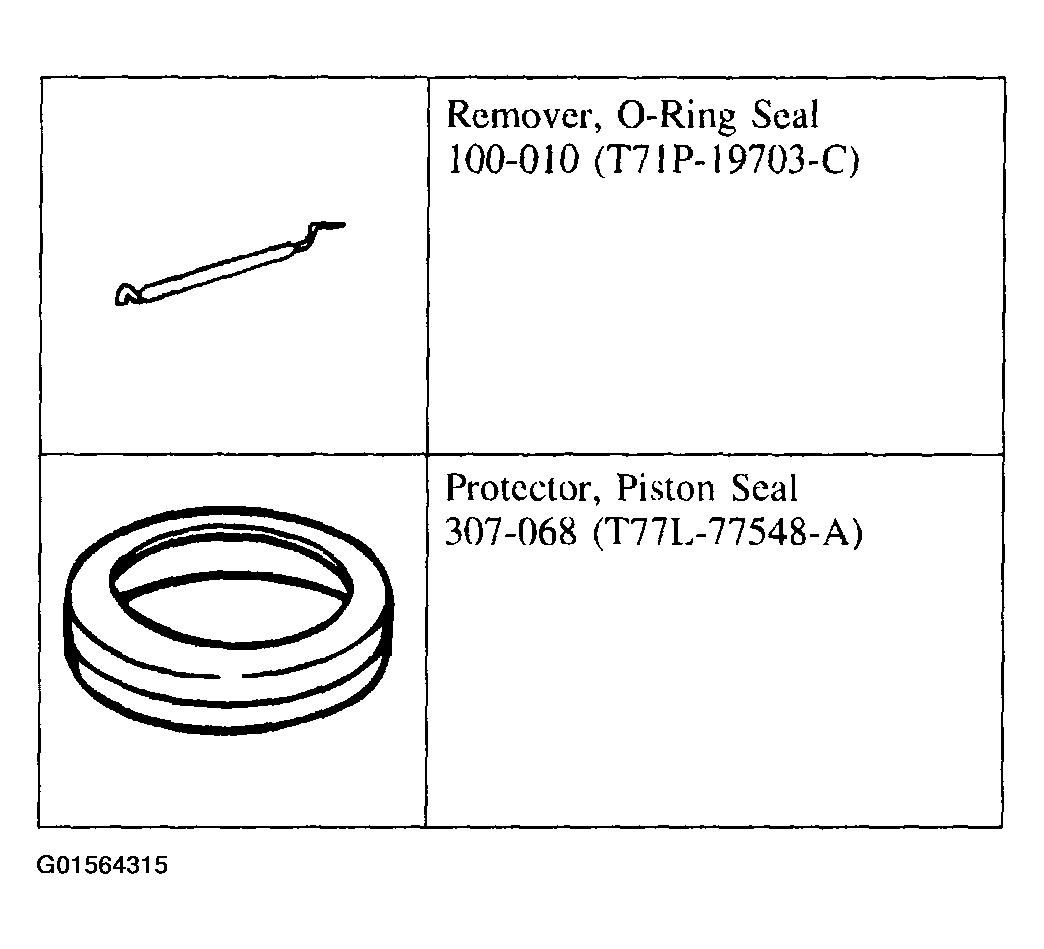

Fig 1: Identifying Special Tools
G01564315Courtesy of FORD MOTOR CO.

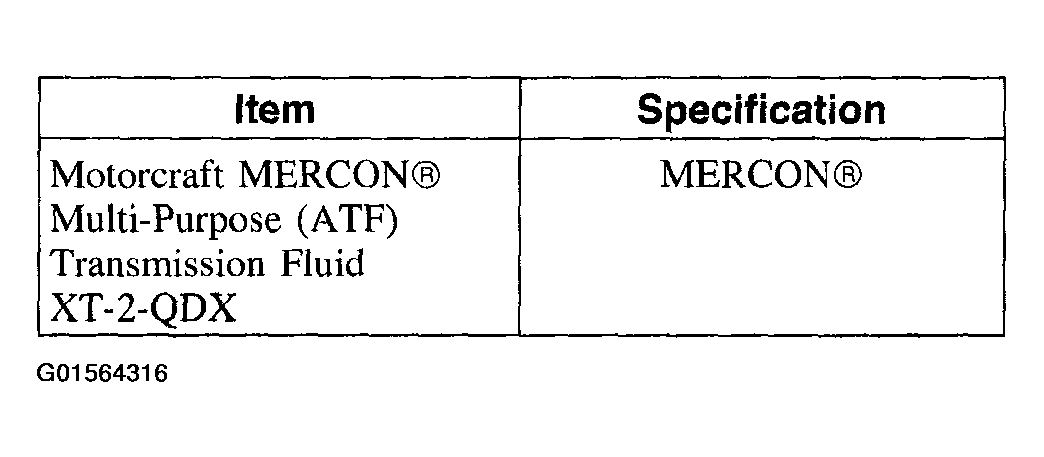

Fig 2: Identifying Material Specifications
G01564316Courtesy of FORD MOTOR CO.

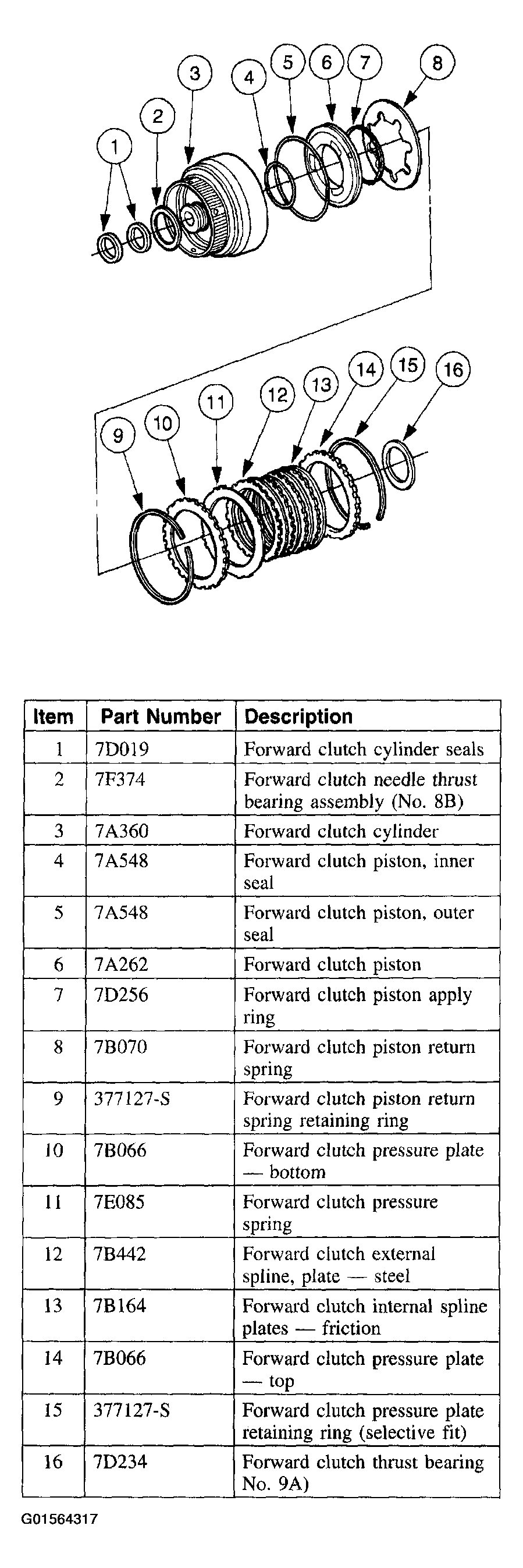

Fig 3: Exploded View Of Forward Clutch Assembly Components And Item Description Chart
G01564317Courtesy of FORD MOTOR CO.
