Intermediate/Overdrive Cylinder Assembly: Notes

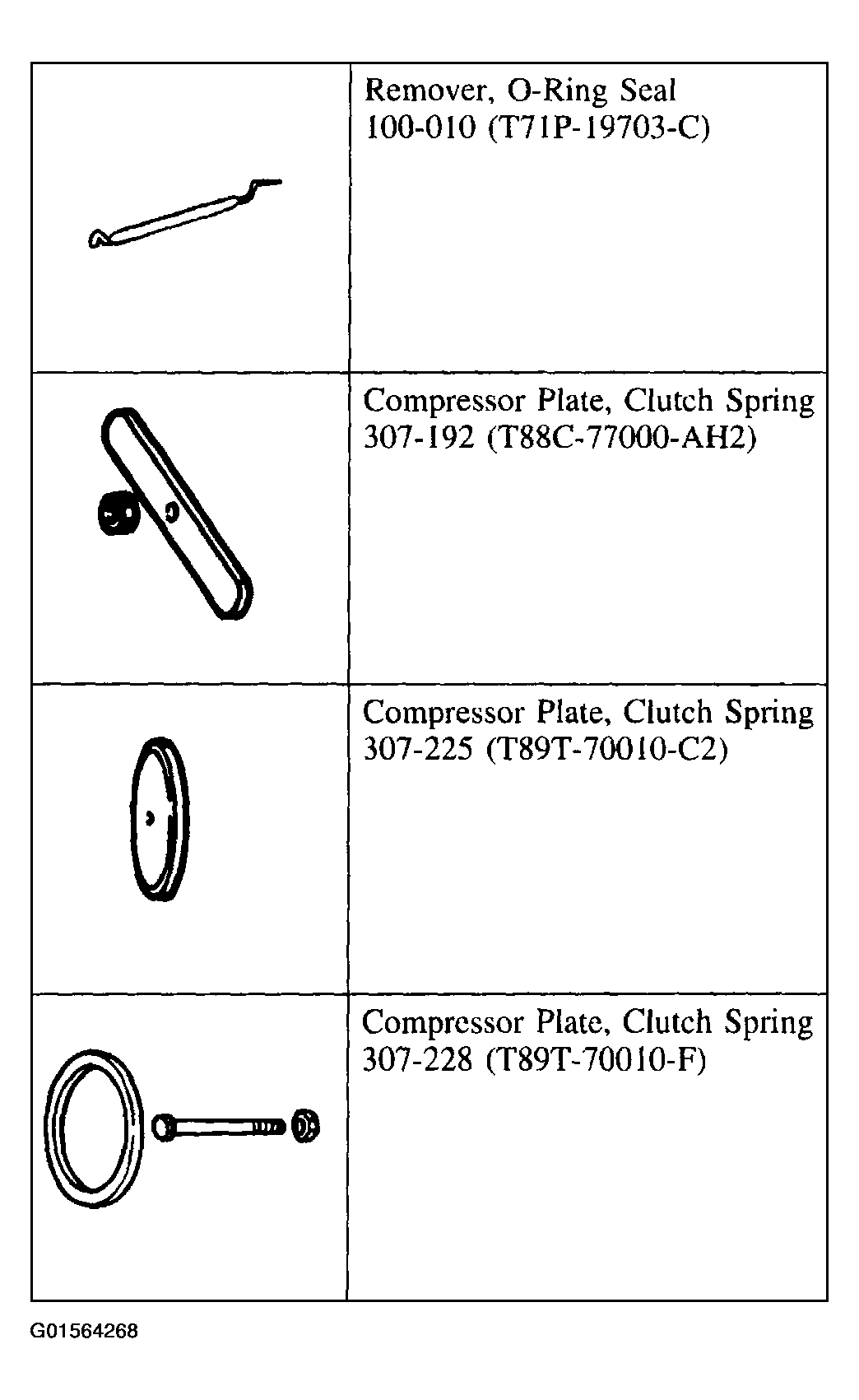

Fig 1: Identifying Special Tools
G01564268Courtesy of FORD MOTOR CO.

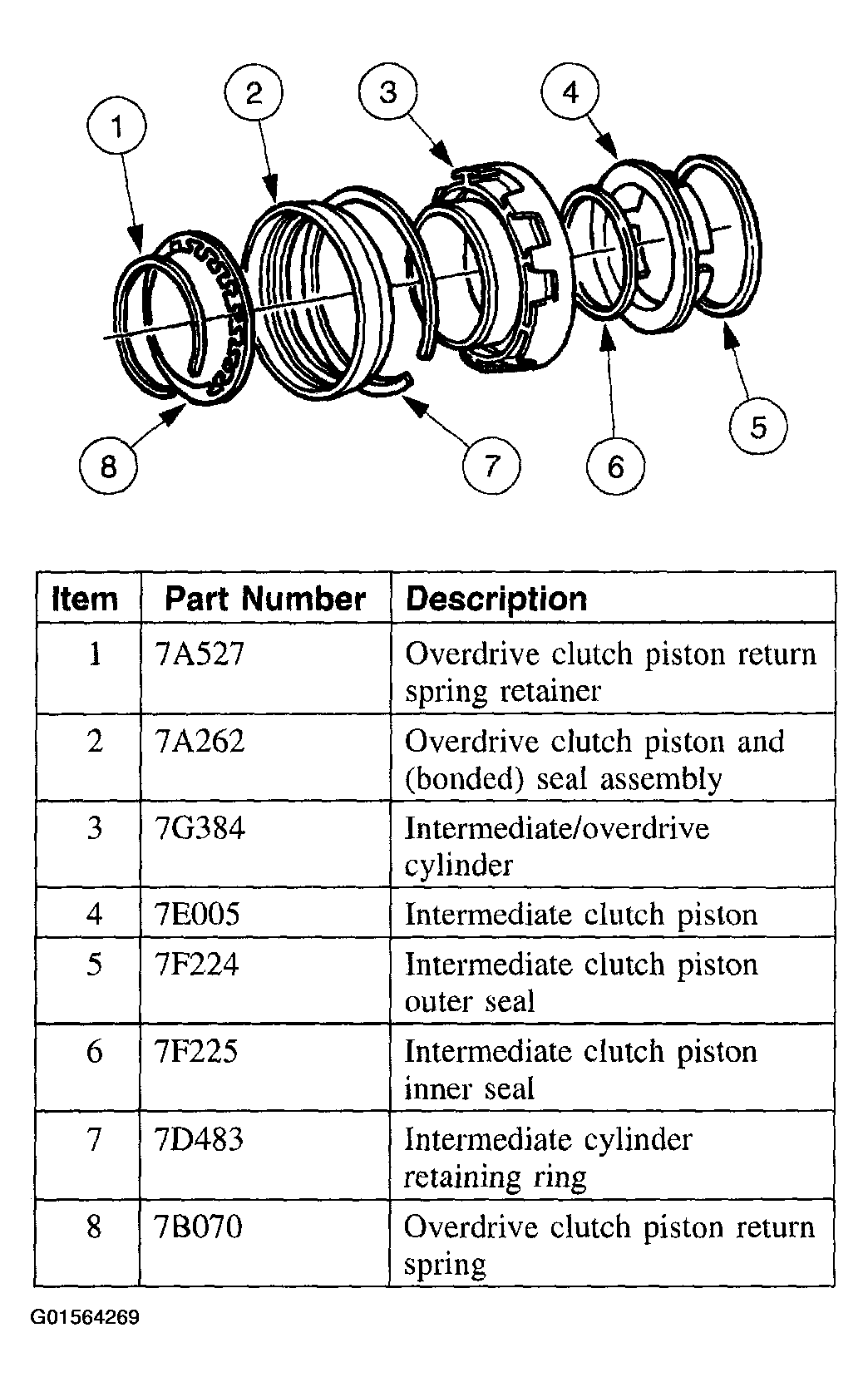

Fig 2: Exploded View Of Intermediate/Overdrive Cylinder Assembly Components And Item Description Chart
G01564269Courtesy of FORD MOTOR CO.
