Main Control Valve Body - Disassembly And Assembly: Assembly

  1. Install the control valves and springs from the lower main control valve body.

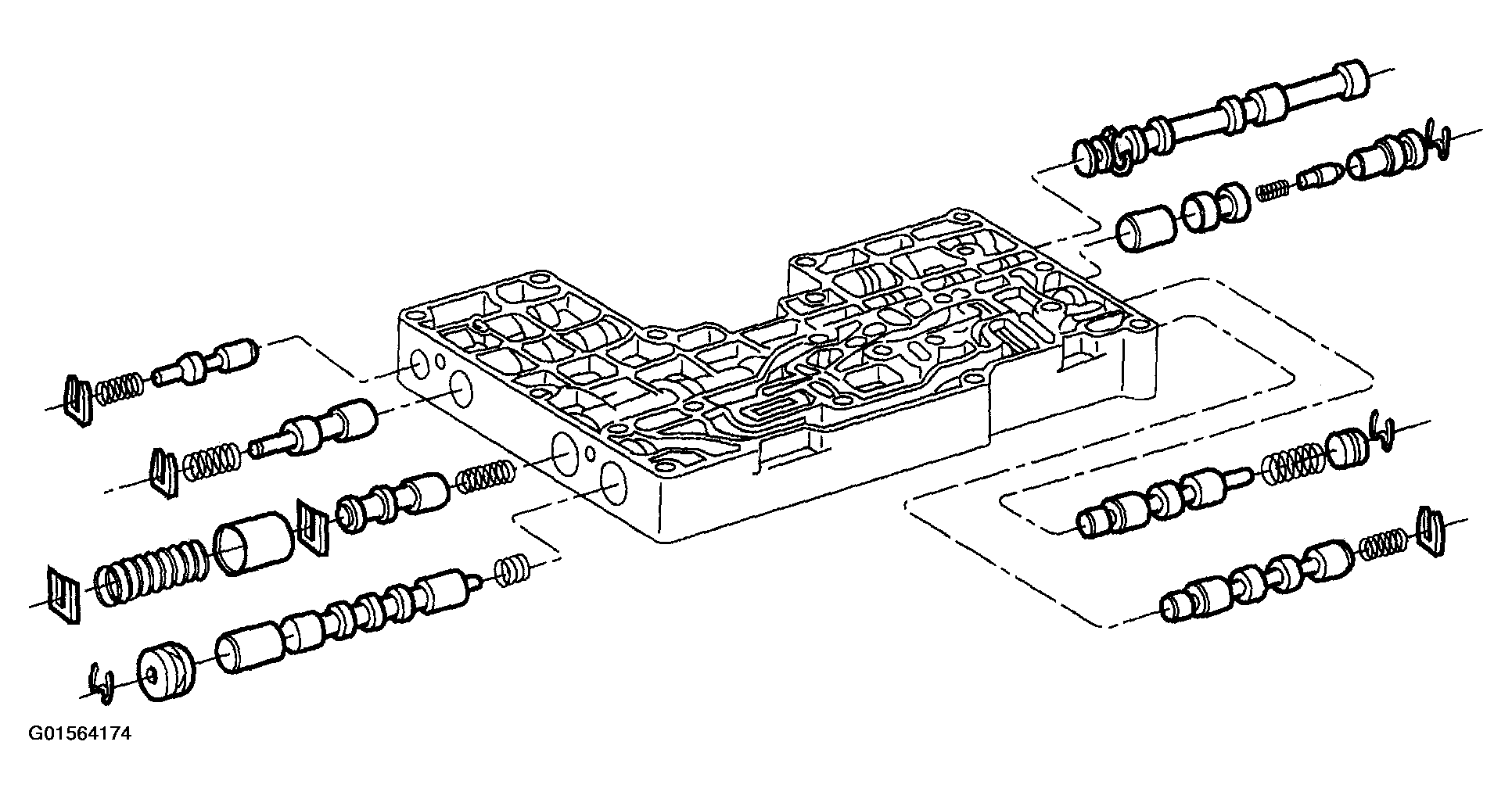

    Fig 1: Installing Control Valves And Springs To Lower Main Control Valve Body
    G01564174Courtesy of FORD MOTOR CO.
  2. Install the control valves and springs from the upper main control valve body.

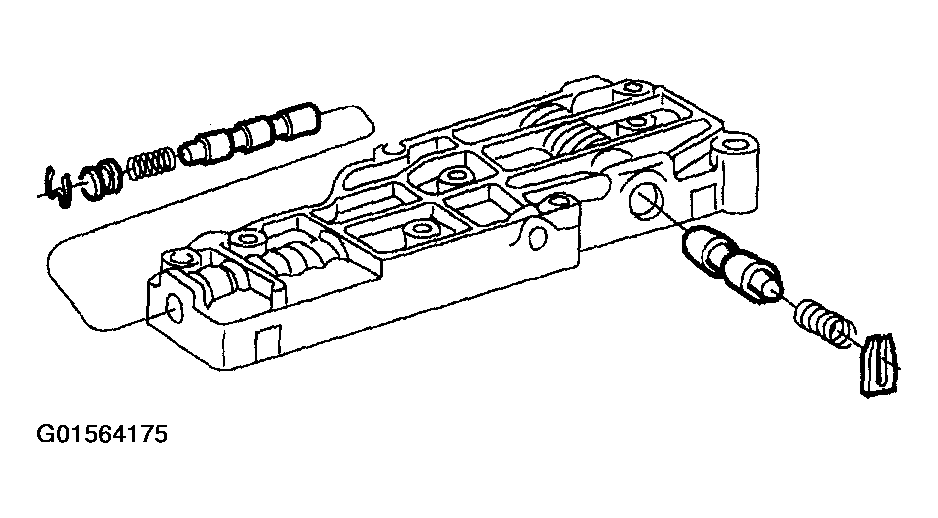

    Fig 2: Installing Control Valves And Springs To Upper Main Control Valve Body
    G01564175Courtesy of FORD MOTOR CO.
  3. Install the check balls.
    Fig 3: Installing Check Balls And Item Description Chart
    G01564176Courtesy of FORD MOTOR CO.
  4. Using the special tools, install the lower control valve body.
    1. Install the special tools.
    2. Install the control valve body separator plate.
    3. Install the lower control valve body.
    4. Install the bolts.

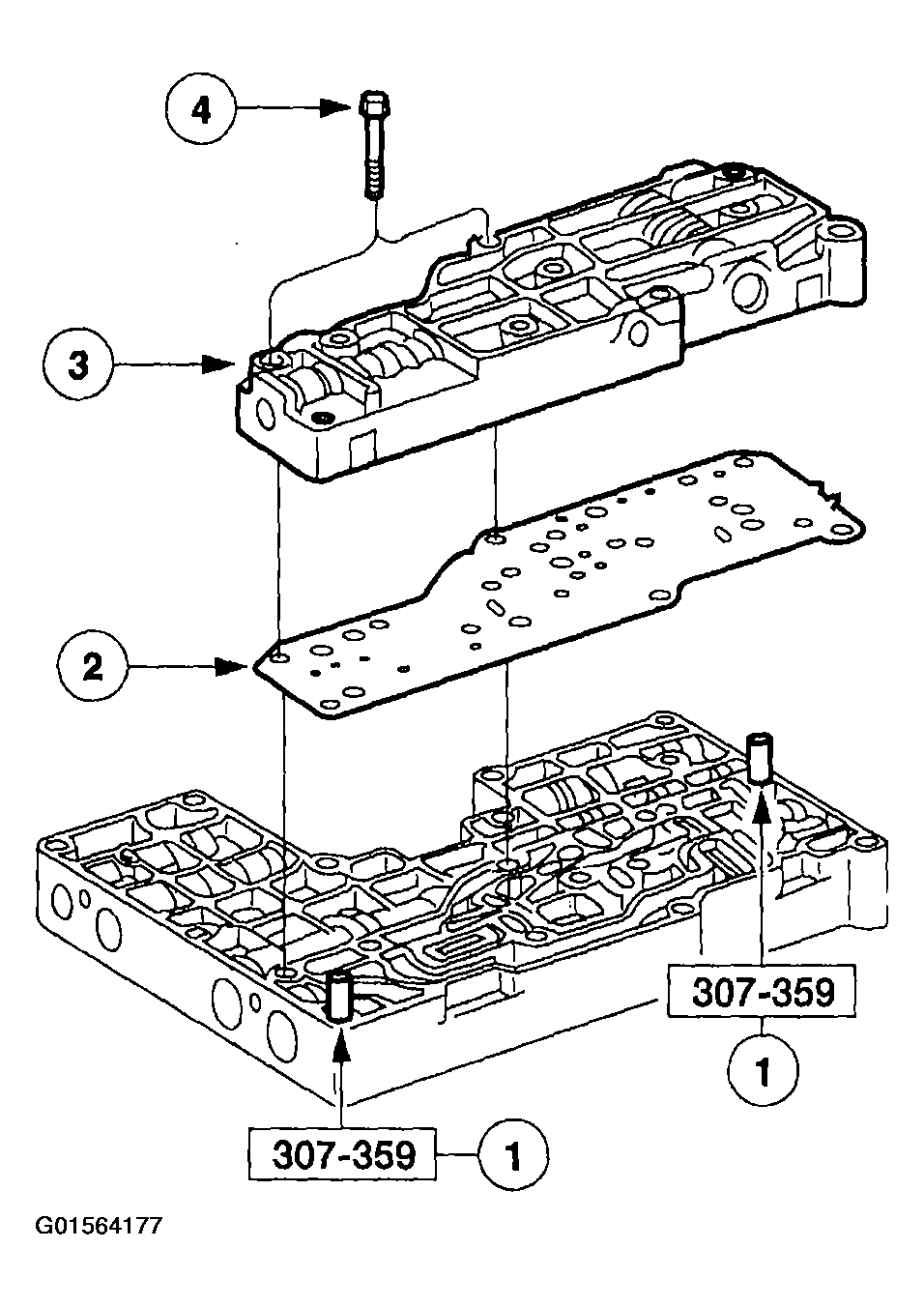

      Fig 4: Installing Lower Control Valve Body Bolts
      G01564177Courtesy of FORD MOTOR CO.
