Output Shaft - Check: Assembly

    NOTE: If any damage is found to the output shaft drive sprocket speed sensor wheel, a new output shaft drive sprocket speed sensor wheel will need to be installed.

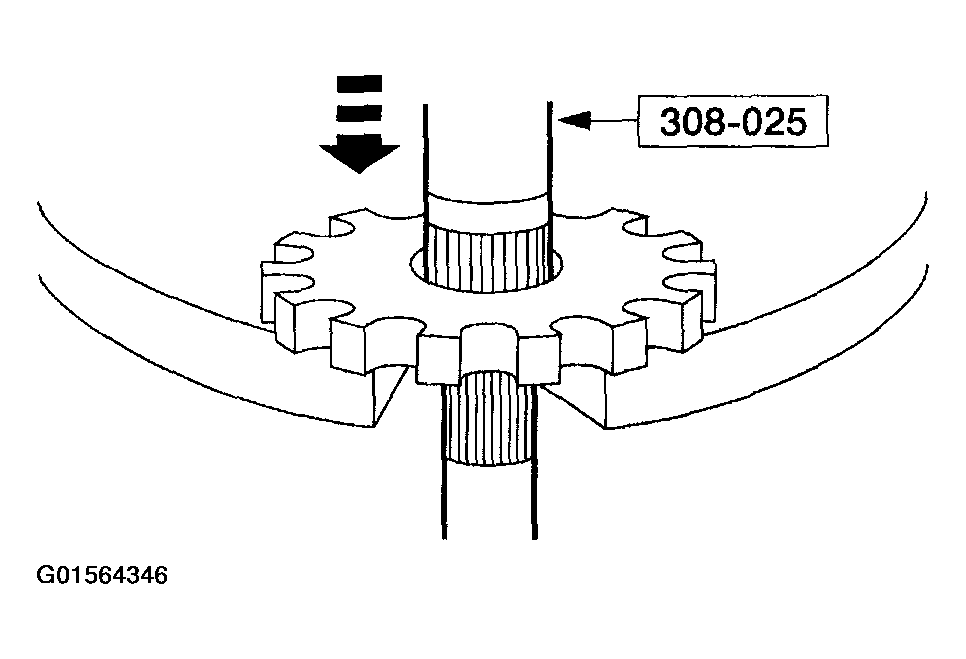

    Fig 1: Installing Park Gear (1 Of 2)
    G01564346Courtesy of FORD MOTOR CO.
  1. If removed, use the arbor press and the special tool to install the park gear. Press the park gear onto the output shaft until it stops at the shoulder on the output shaft.
  2. If removed, install the output shaft drive sprocket speed sensor wheel using the special tool.

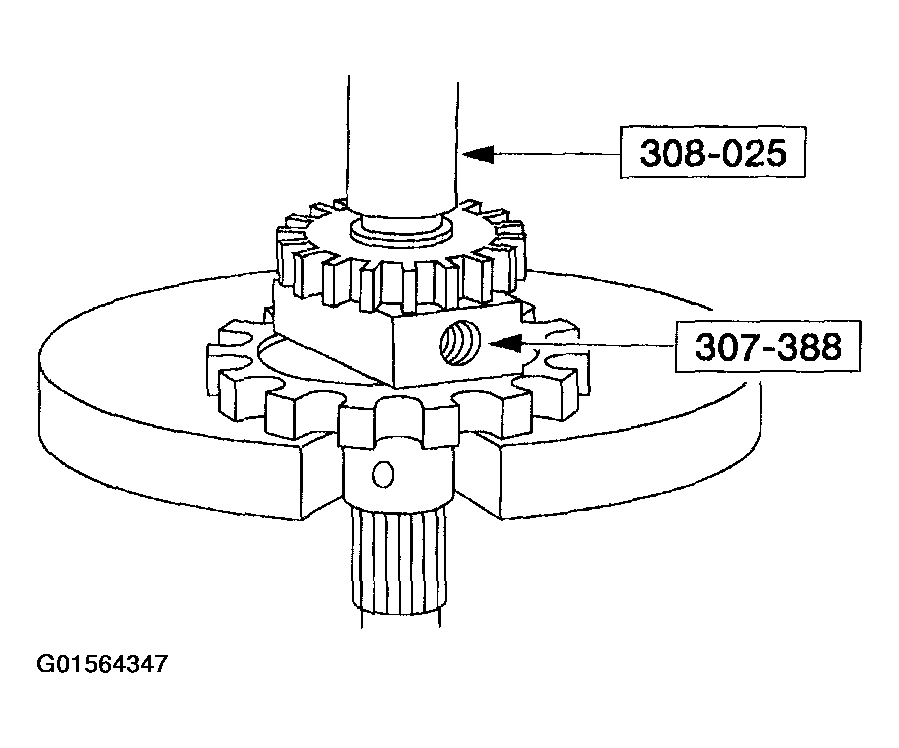

    Fig 2: Installing Park Gear (2 Of 2)
    G01564347Courtesy of FORD MOTOR CO.
