Pump Assembly: Notes

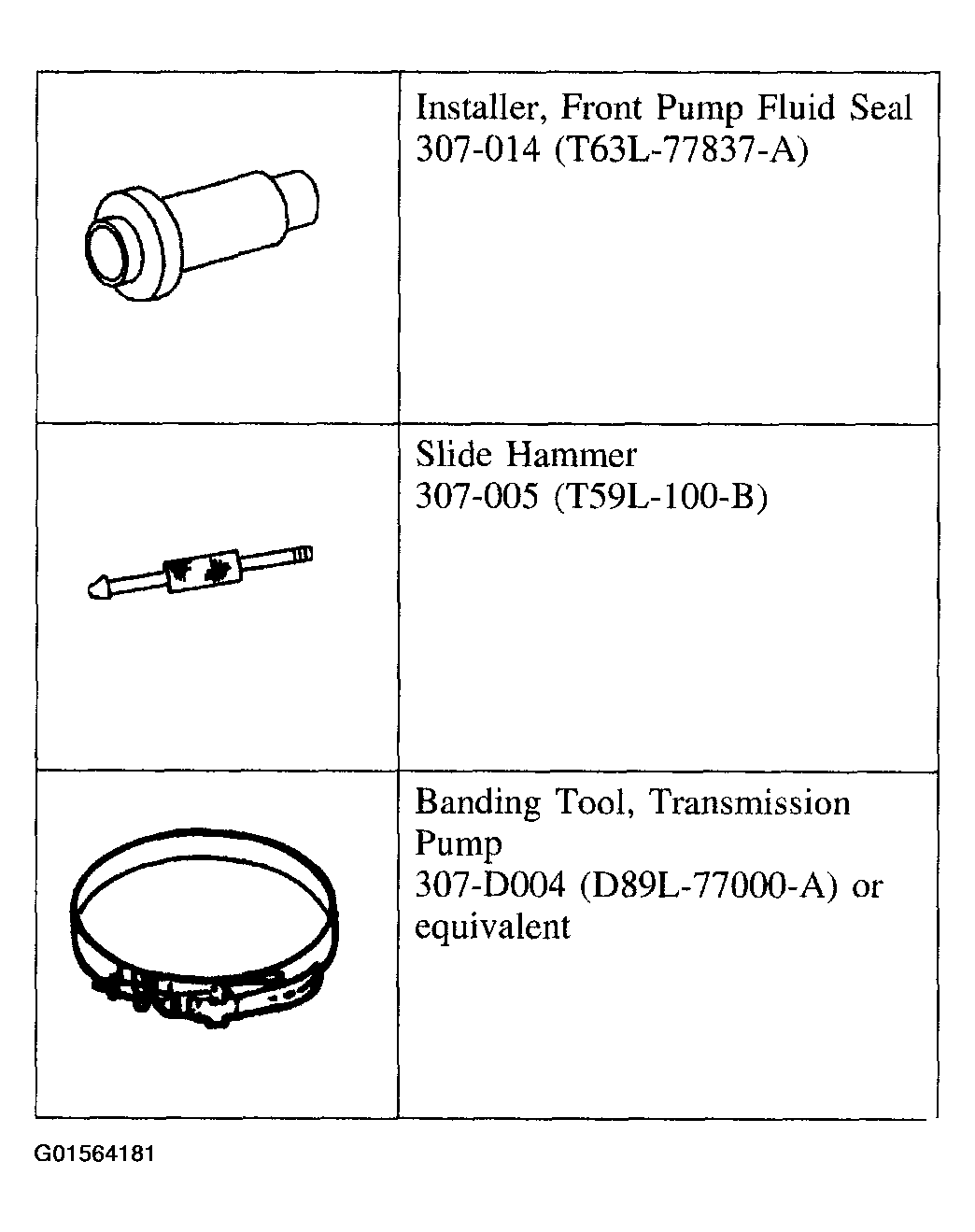

Fig 1: Identifying Special Tool (1 Of 2)

Courtesy of FORD MOTOR CO.

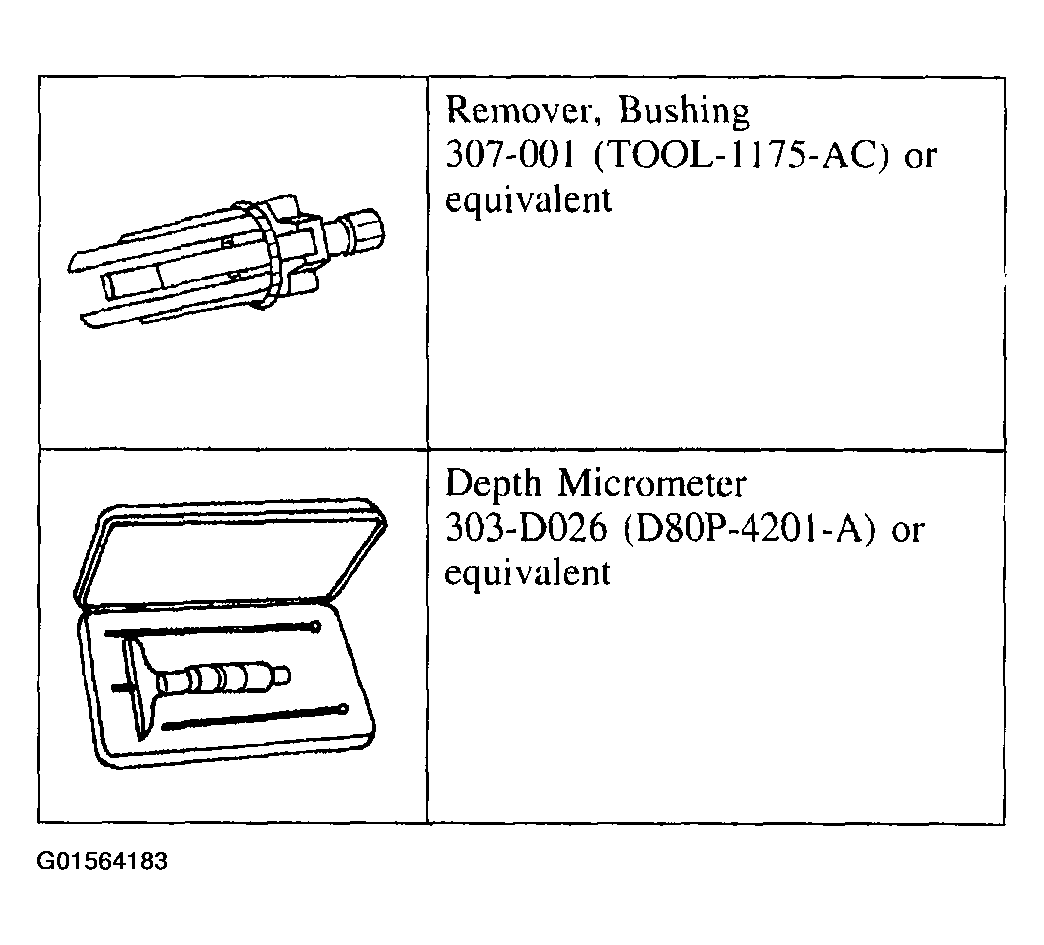

Fig 2: Identifying Special Tool (2 Of 2)

Courtesy of FORD MOTOR CO.

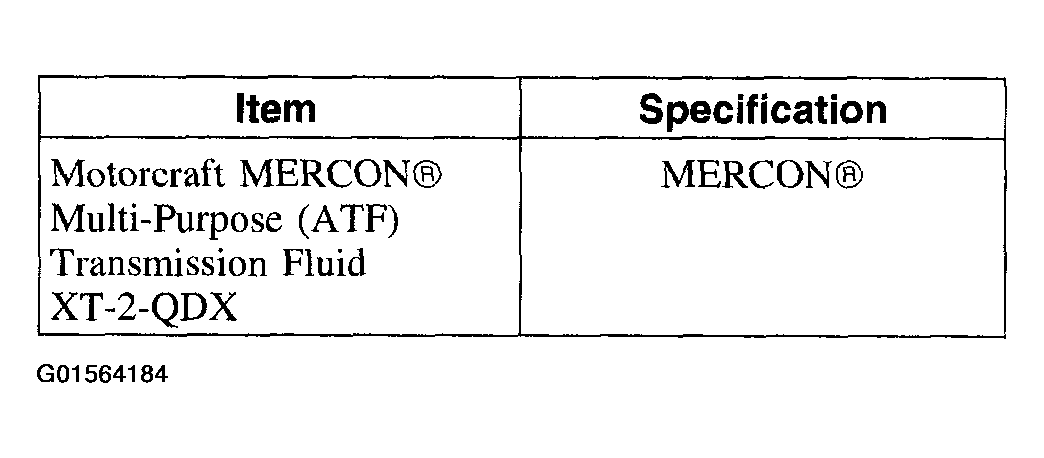

Fig 3: Identifying Material Specifications

Courtesy of FORD MOTOR CO.

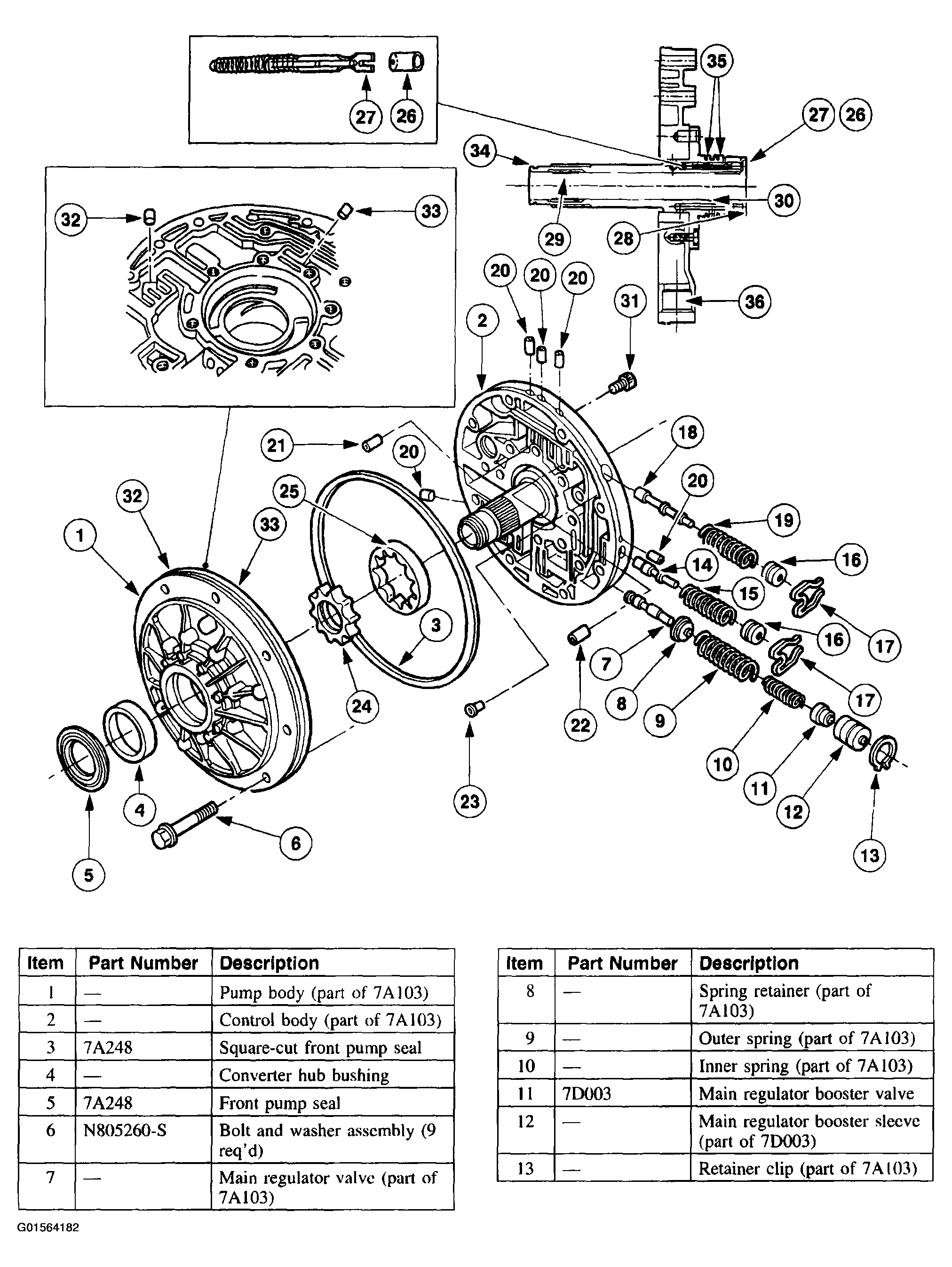

Fig 4: Exploded View Of Pump Assembly Components And Item Description Chart

Courtesy of FORD MOTOR CO.

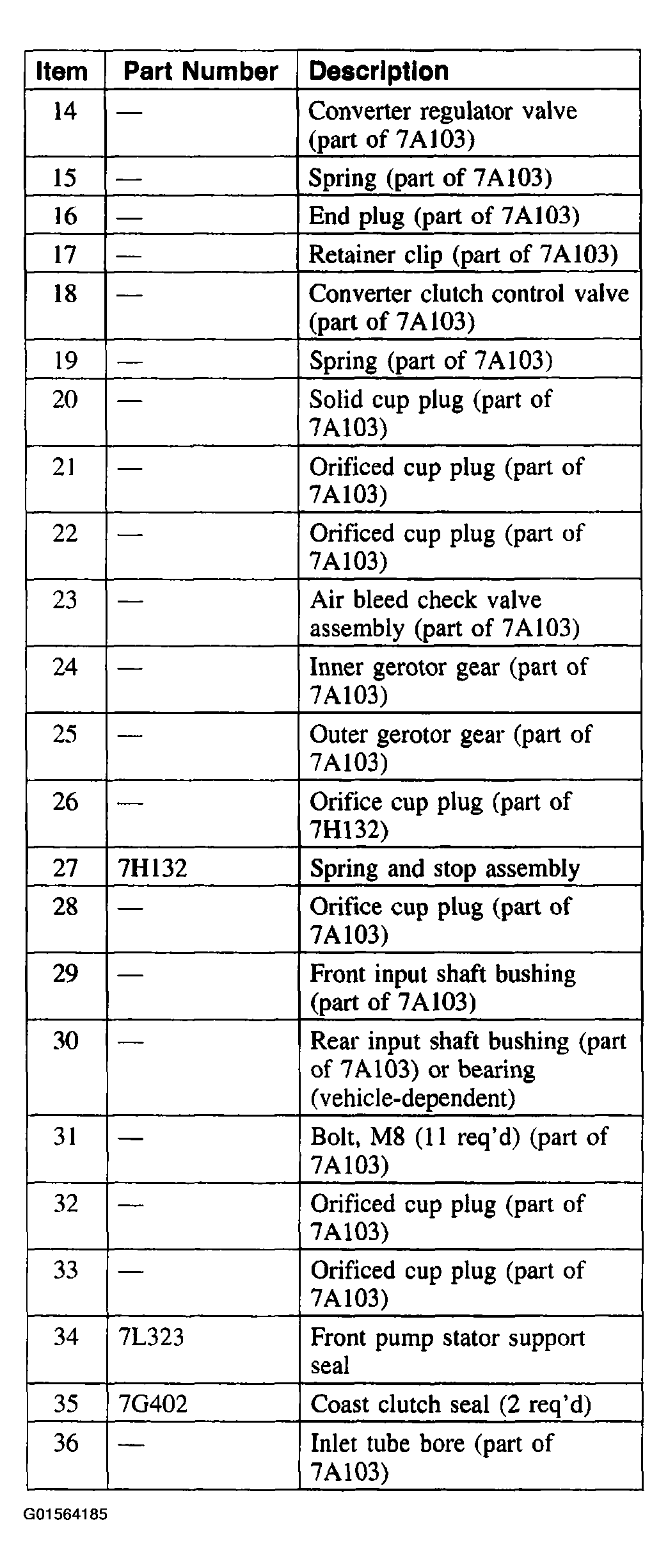

Fig 5: Identifying Pump Assembly Components Item Description Chart

Courtesy of FORD MOTOR CO.
