Rear Case Bushings: Assembly

    NOTE: The rear case bushing has one lube groove. The front case bushing has three lube grooves.

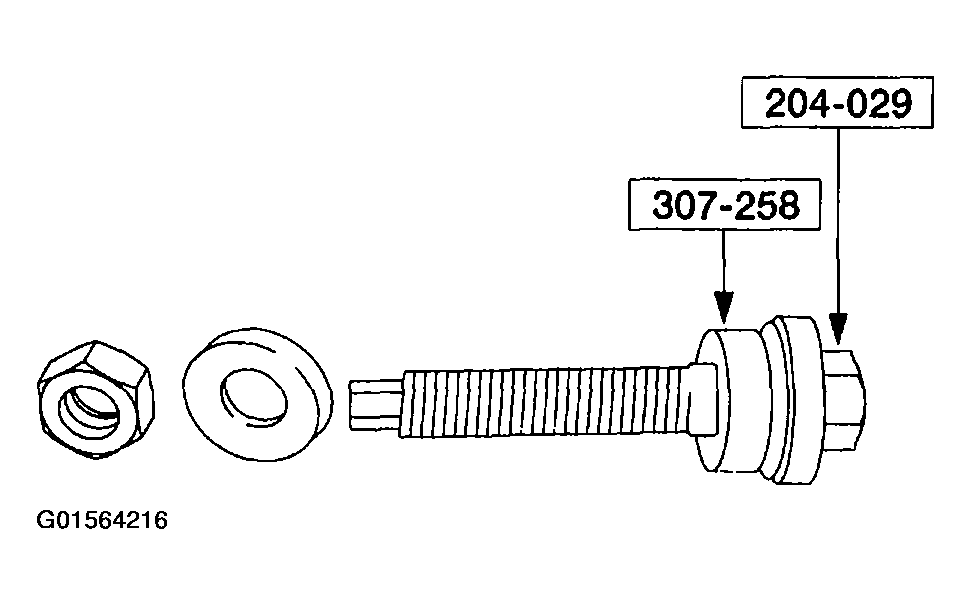

    Fig 1: Assembling Special Tools
    G01564216Courtesy of FORD MOTOR CO.
  1. Assemble the special tools.
  2. Place the assembled special tools through the case and into the front case bushing.

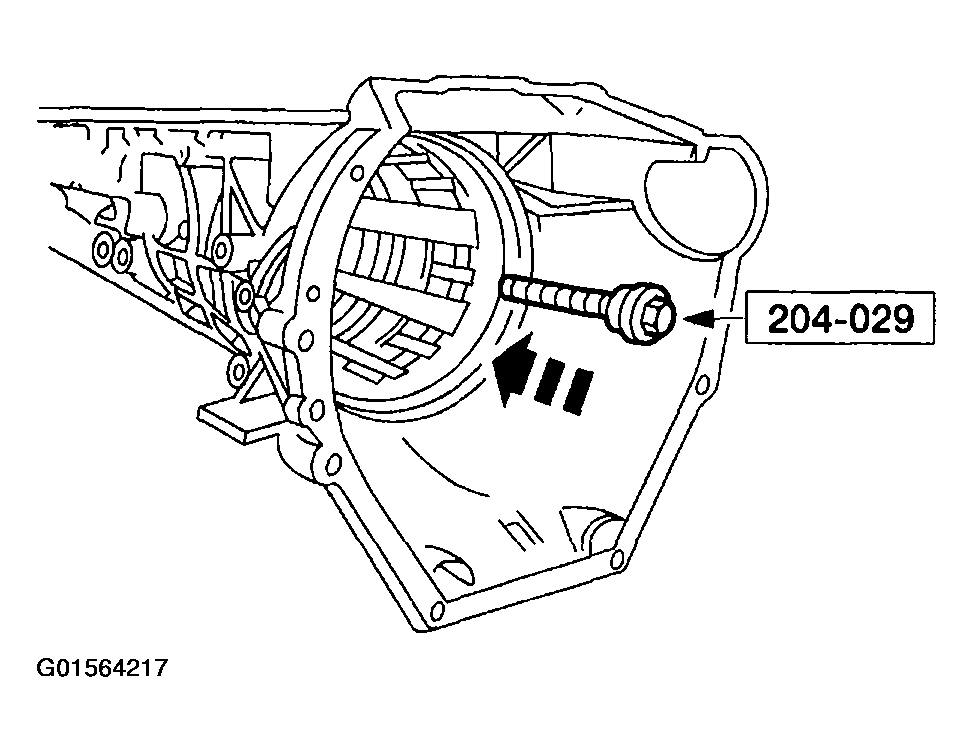

    Fig 2: Placing Special Tools Through Case Into Front Case Bushing
    G01564217Courtesy of FORD MOTOR CO.
    3. CAUTION: Make sure the bushing and tool are centered in the bore.
  3. Install the rear case bushing.
    1. Install the rear case bushing over the special tool into the case.
    2. Install the special tool.
    3. Install the washer and the nut hand-tight.

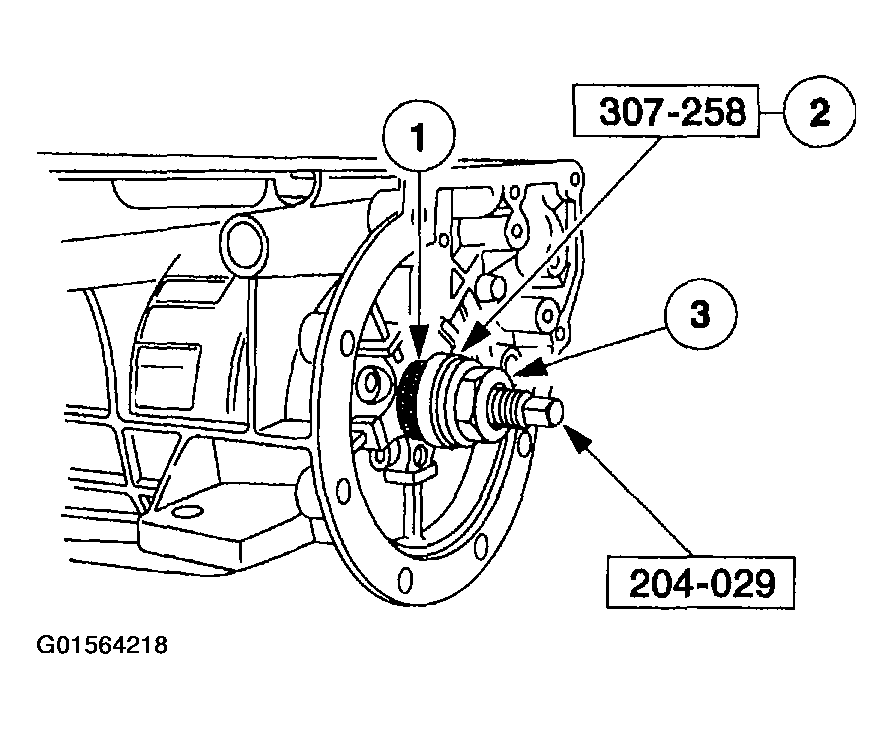

      Fig 3: Installing Special Tool And Washer And Nut
      G01564218Courtesy of FORD MOTOR CO.
  4. Hold the special tool while turning the nut until the rear case bushing is fully seated. Remove the tools.

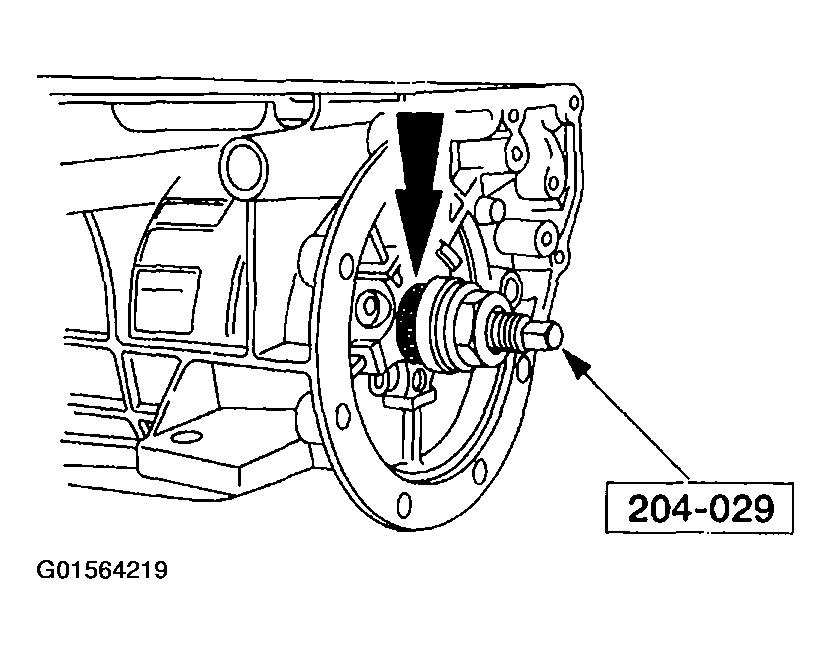

    Fig 4: Removing Tool
    G01564219Courtesy of FORD MOTOR CO.
