Rear Case Bushings: Disassembly

NOTE: Remove any minor nicks or burrs using a fine oil stone. Remove the case bushings only if they show signs of excessive wear or scoring.

Inspect the case bushing bores for nicks or burrs.

CAUTION: Be careful not to damage the case bore while removing the bushing.

NOTE: Always replace both bushings when either bushing is replaced. However, remove and replace only one bushing at a time. Use the other bushing in the case to help align the tool and replacement bushing during installation.

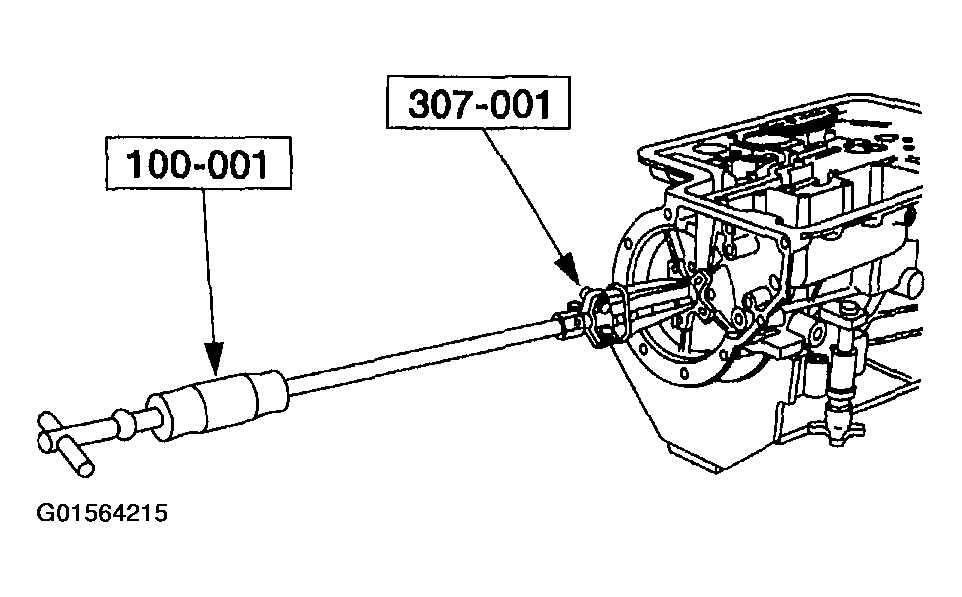

Fig 1: Removing Rear Case Bushing

Courtesy of FORD MOTOR CO.

Using the special tools, remove the rear case bushing.
