Torque Converter End Play Check

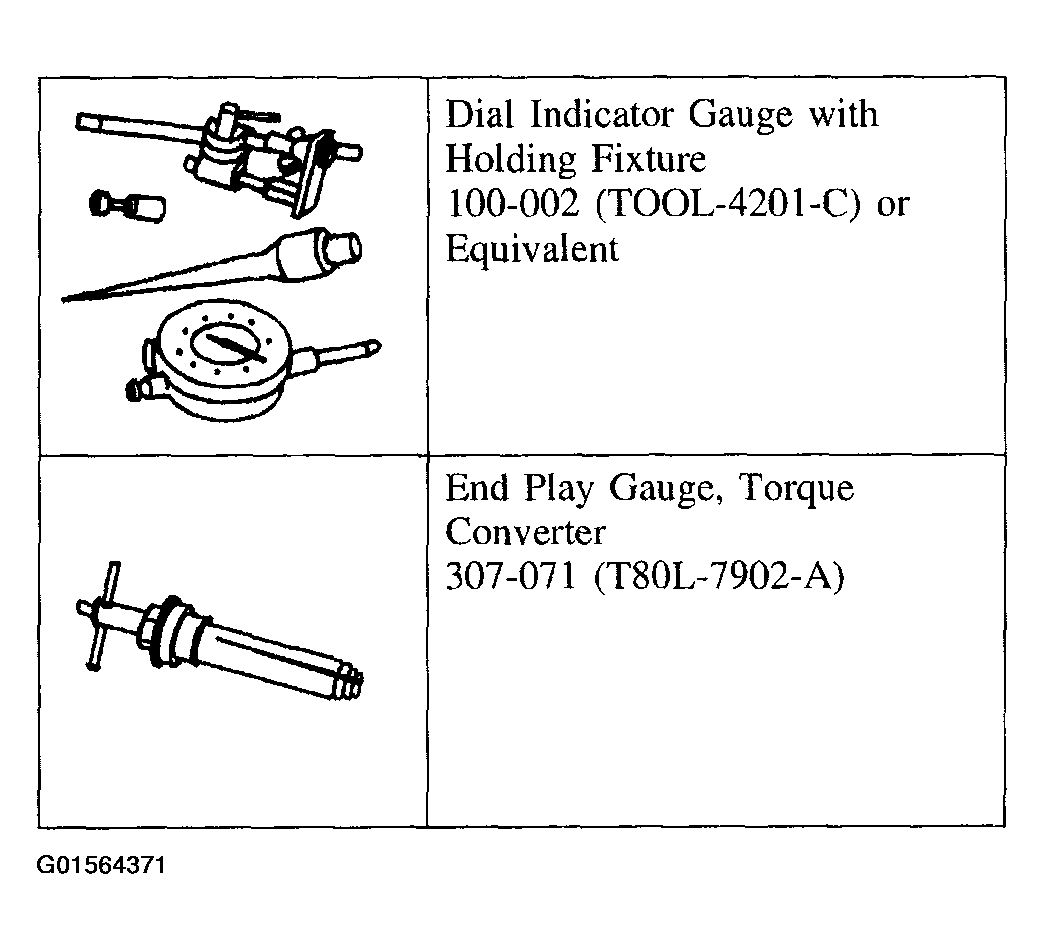

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Install the special tool into the torque converter pump drive.
- Tighten the inner post until the tool is securely locked.

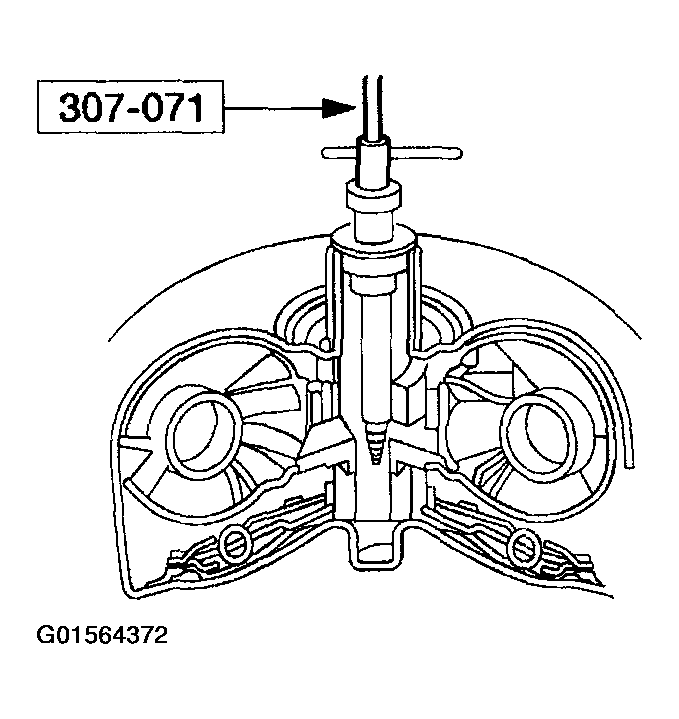

  Fig 2: Installing Special Tool Into Torque Converter Pump Drive
  Courtesy of FORD MOTOR CO.
Install the special tool on the converter pump drive hub and zero the dial indicator.

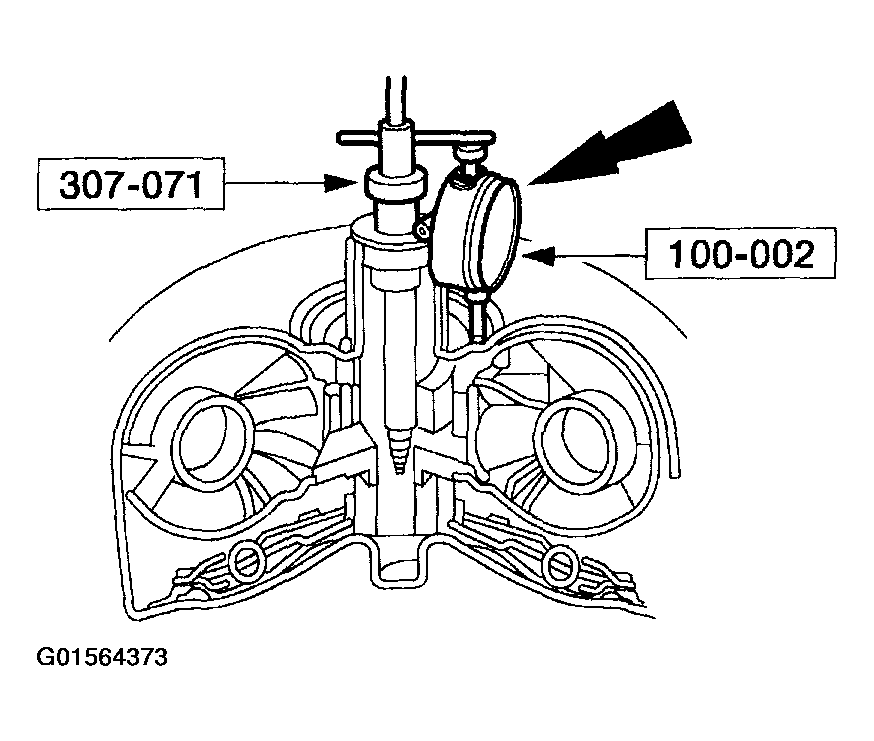

Fig 3: Installing Special Tool On Converter Pump Drive Hub
Courtesy of FORD MOTOR CO.

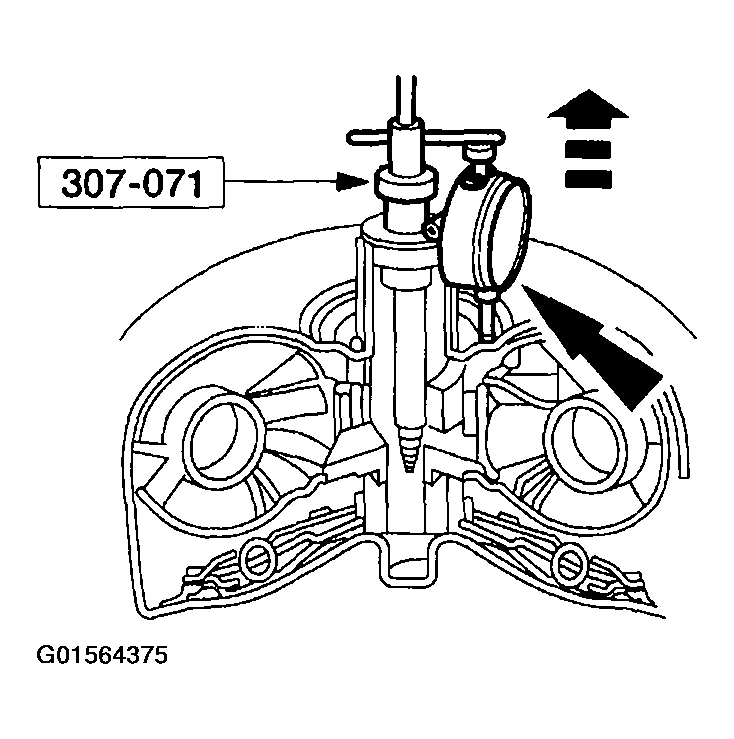

Lift up on the special tool as far as it will move and note the dial indicator reading.
- If the reading exceeds end play limits, replace the torque converter.
Torque Converter End Play

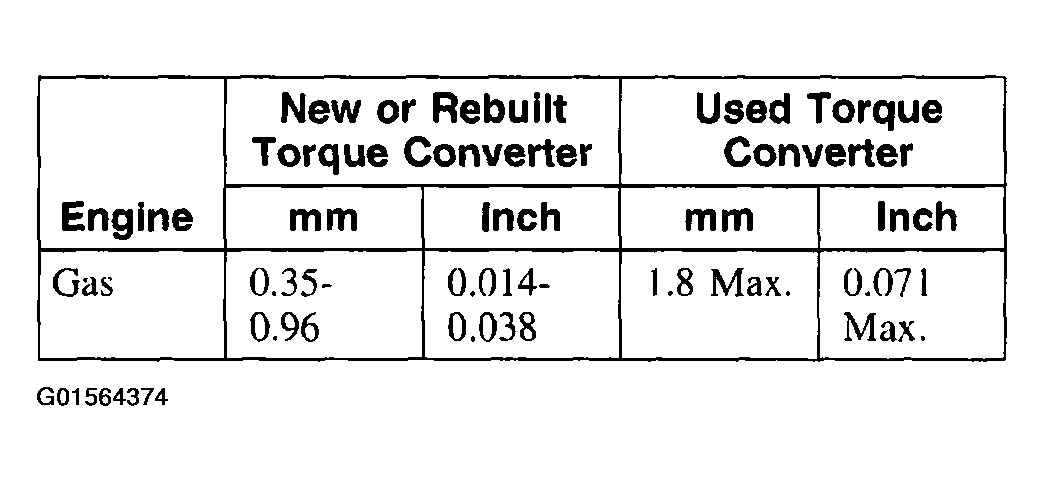

Fig 4: Torque Converter End Play Specifications
Courtesy of FORD MOTOR CO.

Fig 5: Removing Special Tool
Courtesy of FORD MOTOR CO.
Remove the special tool.
