Transmission Range (Tr) Sensor Adjustment

Fig 1: Identifying Transmission Range Sensor Adjustment Special Tools

Courtesy of FORD MOTOR CO.

Position the vehicle on a hoist.
Loosen the digital TR sensor bolts.

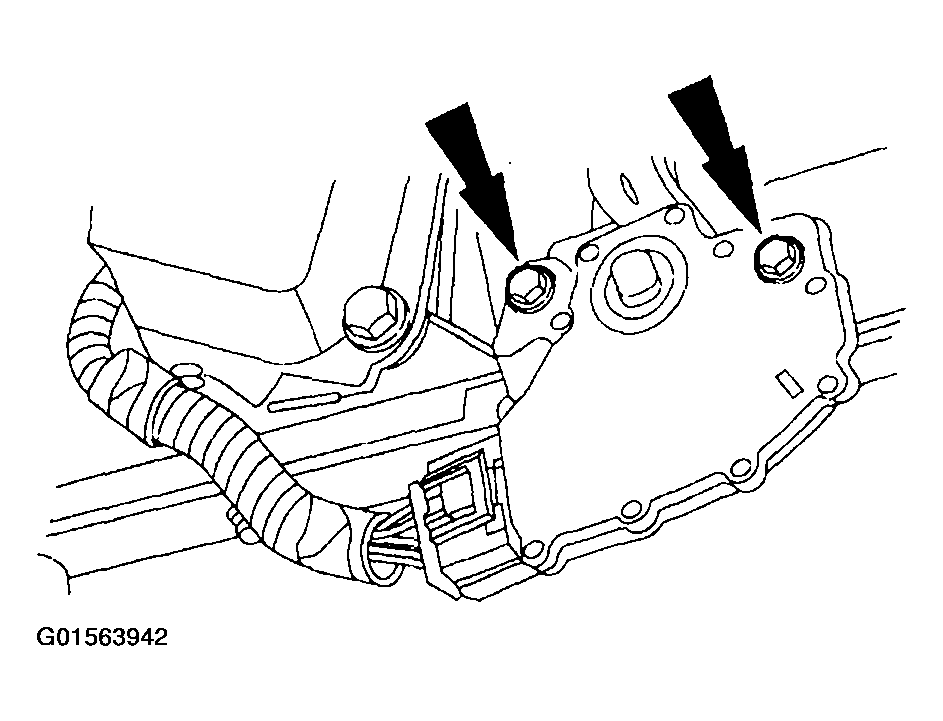

Fig 2: Loosening Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual control lever is in the NEUTRAL position.

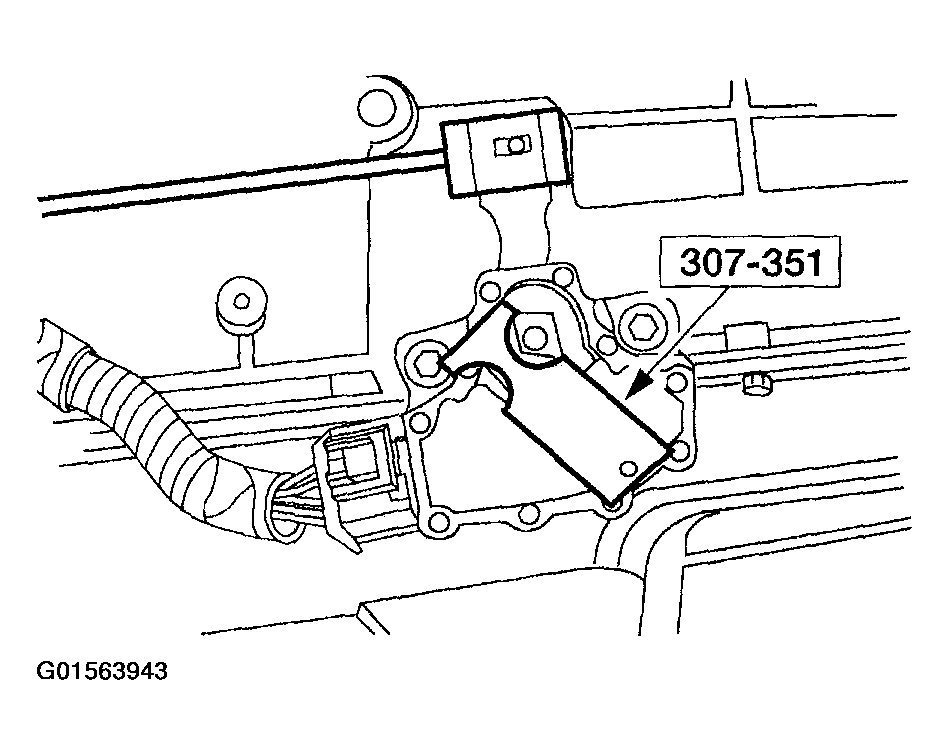

Fig 3: Aligning Digital TR Sensor

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor.
Tighten the bolts.

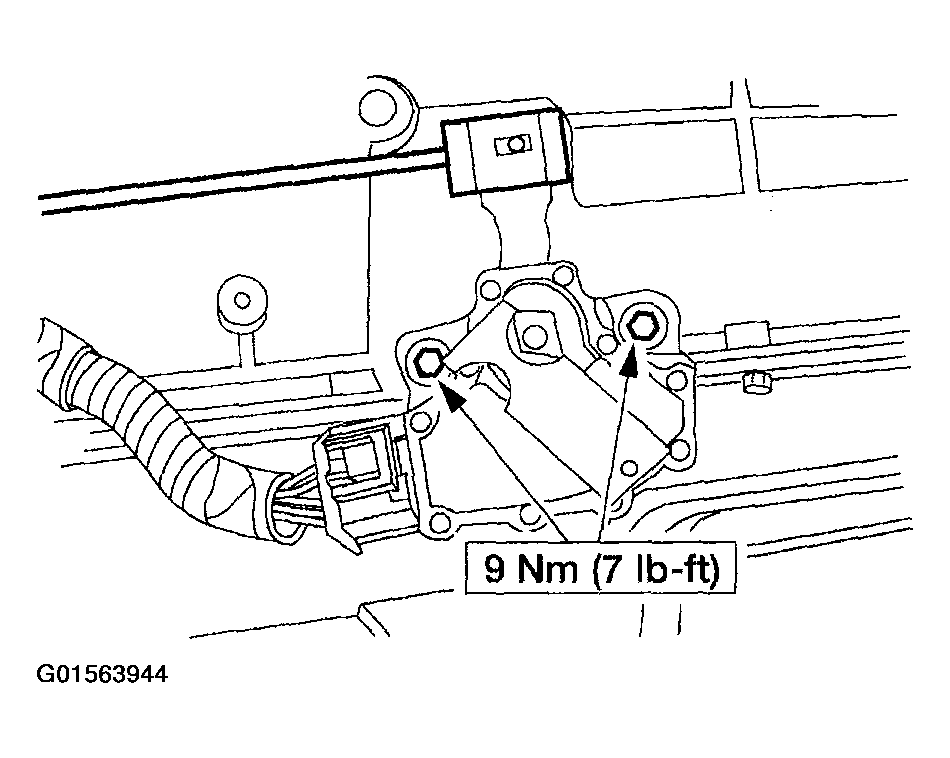

Fig 4: Tightening Digital TR Sensor Bolts And Torque Specifications
Courtesy of FORD MOTOR CO.
Lower the vehicle.
