Digital Transmission Range (Tr) Sensor: Installation

  1. Install the digital transmission range (TR) sensor.
    1. Install digital transmission range (TR) sensor.
    2. Loosely install the bolts.

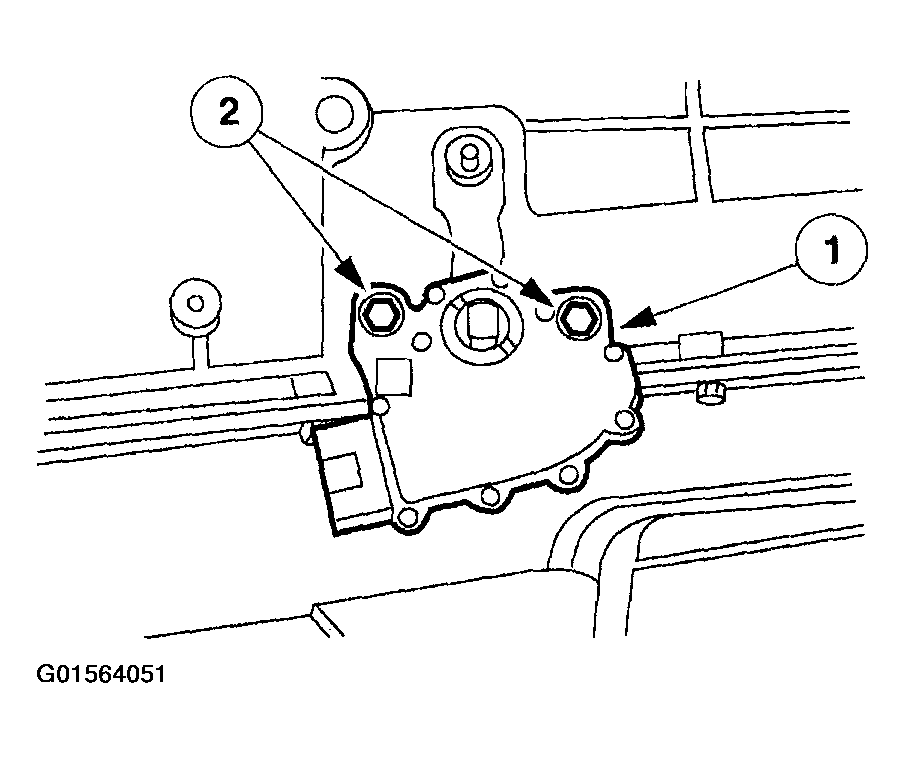

      Fig 1: Installing Digital Transmission Range Sensor
      G01564051Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that the manual control lever is in the NEUTRAL position.

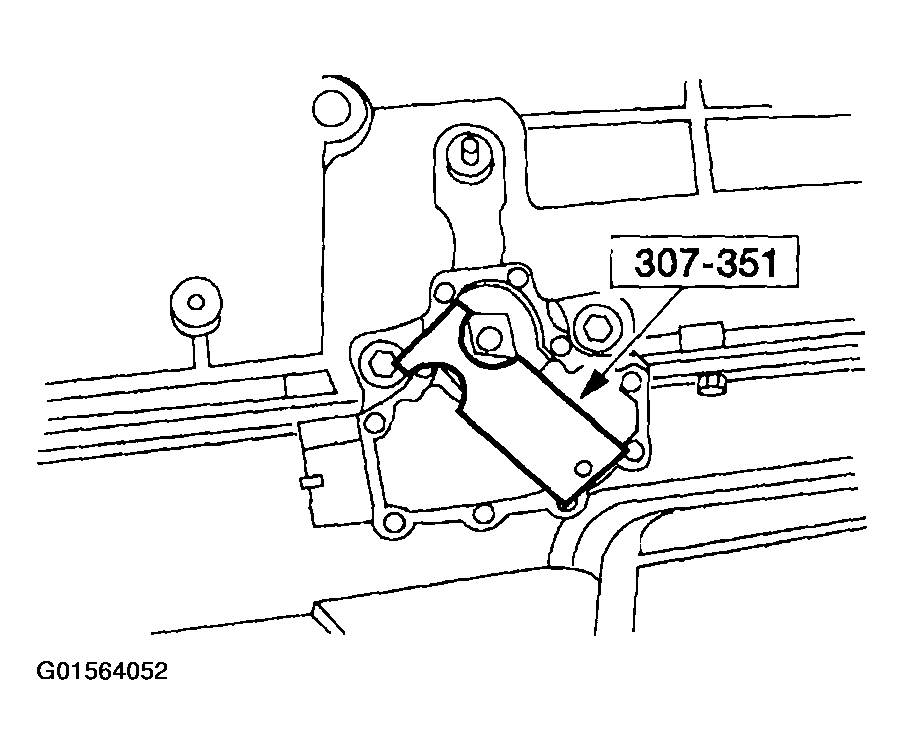

    Fig 2: Aligning digital transmission range sensor
    G01564052Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor.
  3. Tighten the bolts.

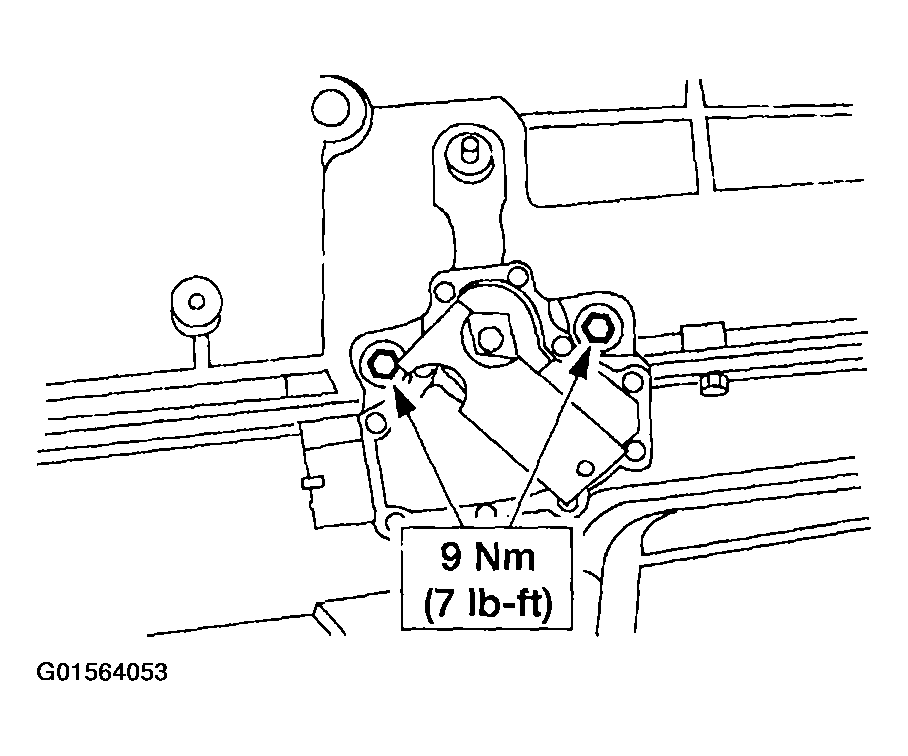

    Fig 3: Tightening Digital Transmission Range Sensor Bolts
    G01564053Courtesy of FORD MOTOR CO.
  4. Reconnect the shift cable at the manual control lever.

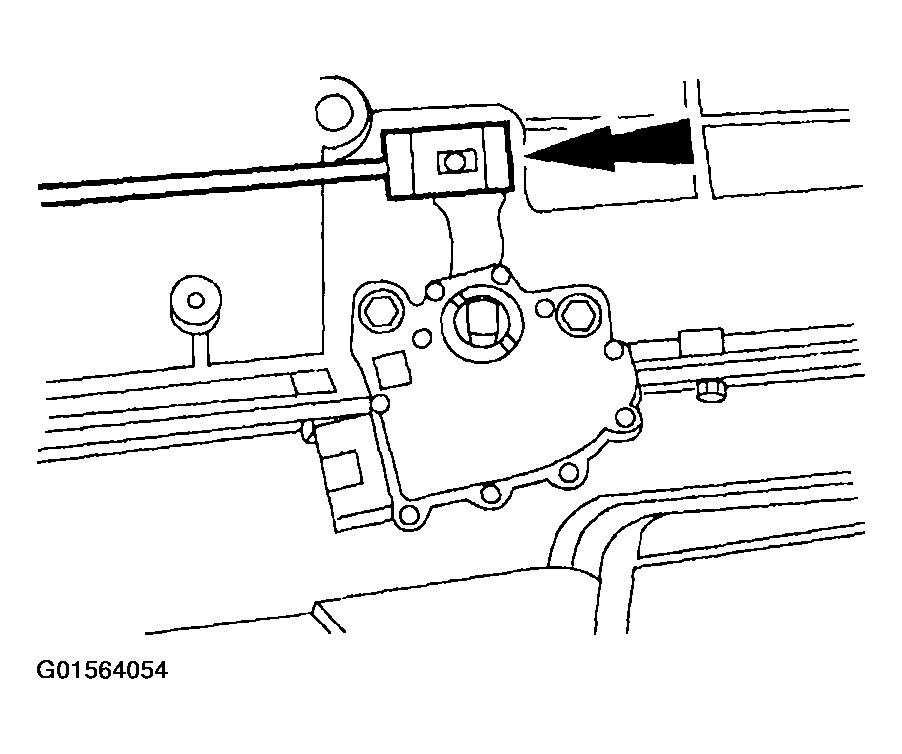

    Fig 4: Connecting Shift Cable At Manual Control Lever
    G01564054Courtesy of FORD MOTOR CO.
  5. Reconnect the connector.

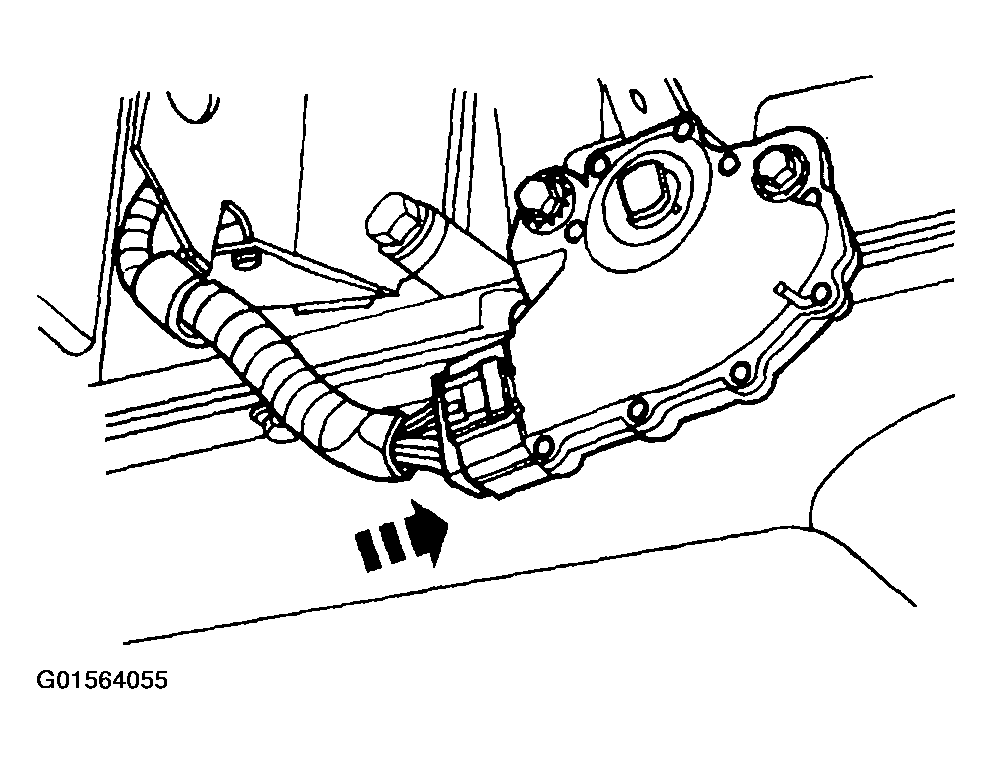

    Fig 5: Connecting Connector
    G01564055Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
  7. Reconnect the battery ground cable.
