Transmission Insulator And Retainer: Installation

  1. Install the rear transmission mount and the bolts.

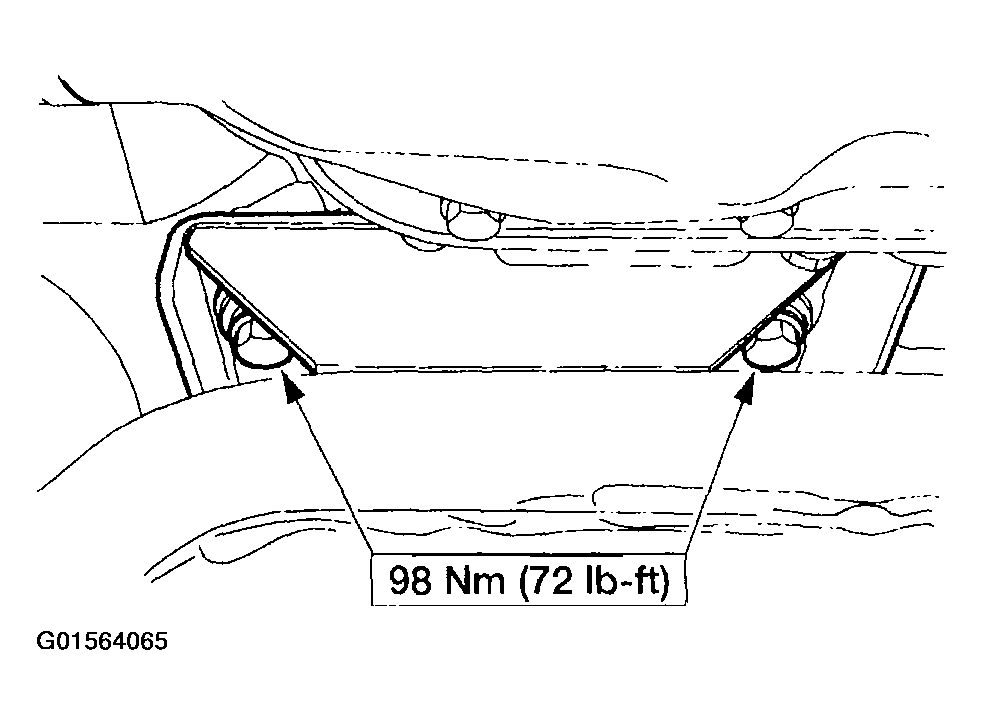

    Fig 1: Installing Rear Transmission Bolts And Torque Specifications
    G01564065Courtesy of FORD MOTOR CO.
  2. Lower the transmission onto the crossmember and install the nuts.

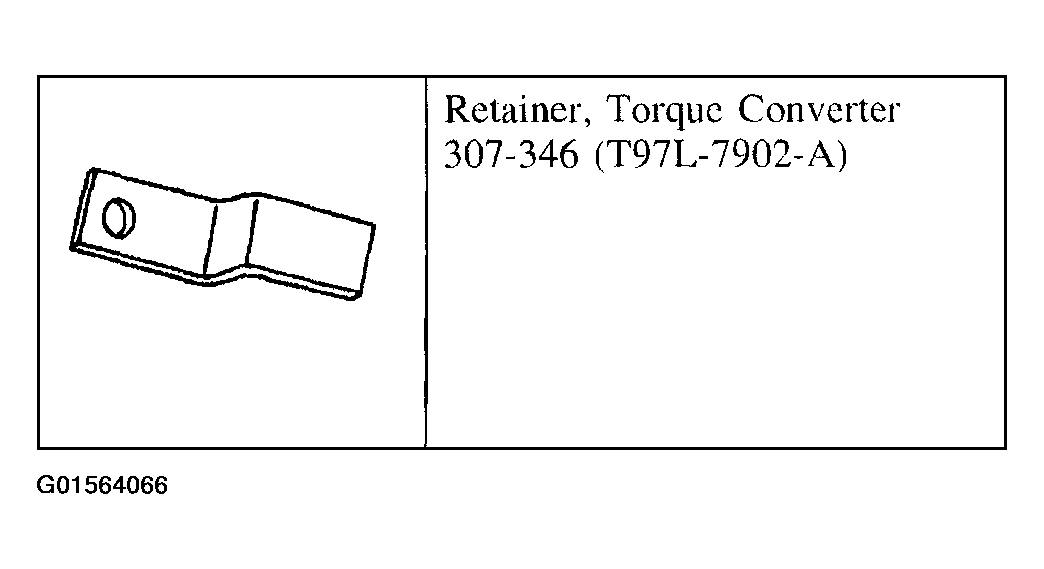

    Fig 2: Identifying Special Tools
    G01564066Courtesy of FORD MOTOR CO.
  3. Remove the high lift transmission jack.
  4. Lower the vehicle.
  5. Connect the battery ground cable.
