Band/Clutch Specifications

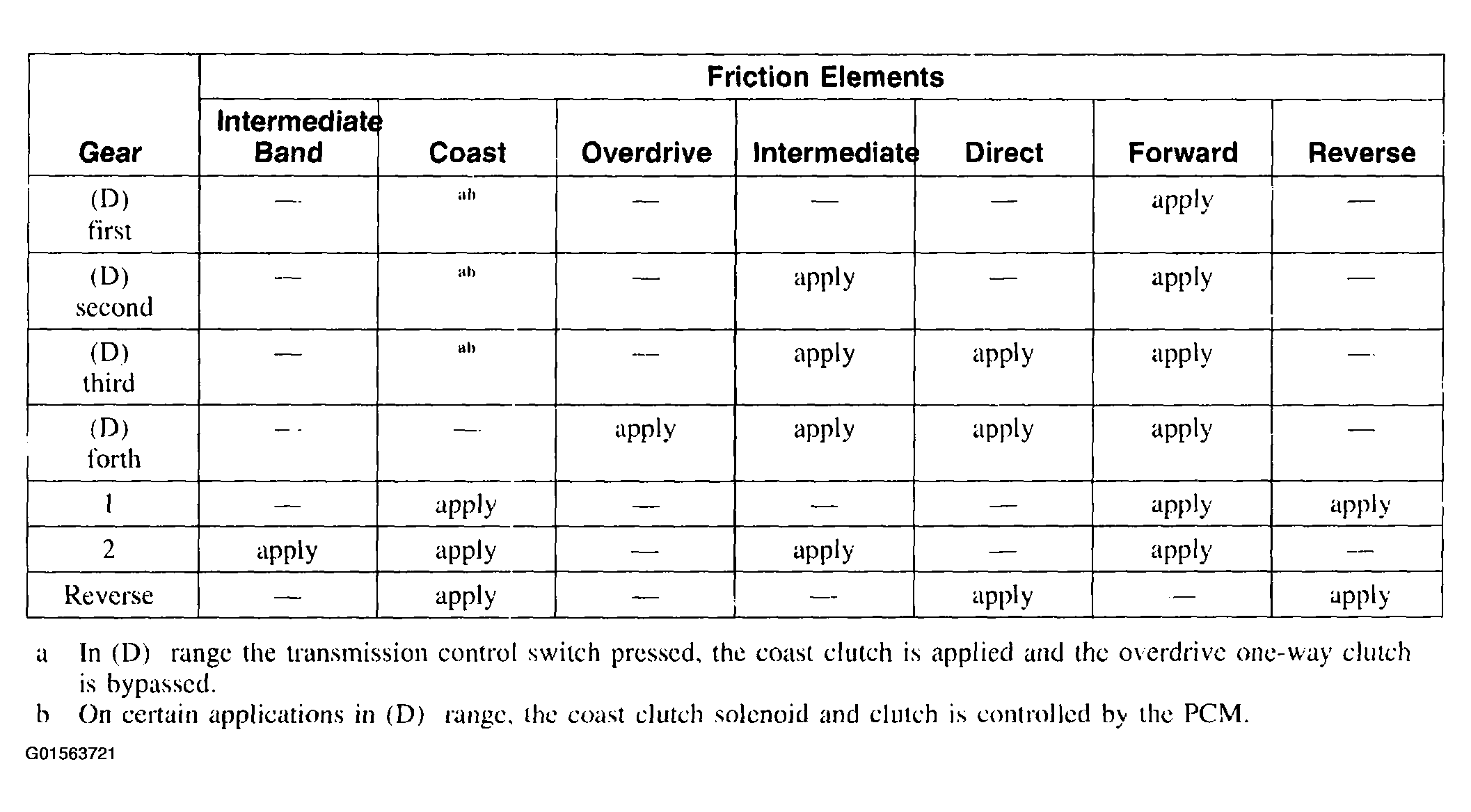

Fig 1: Identifying Band/Clutch Application Chart A
G01563721Courtesy of FORD MOTOR CO.

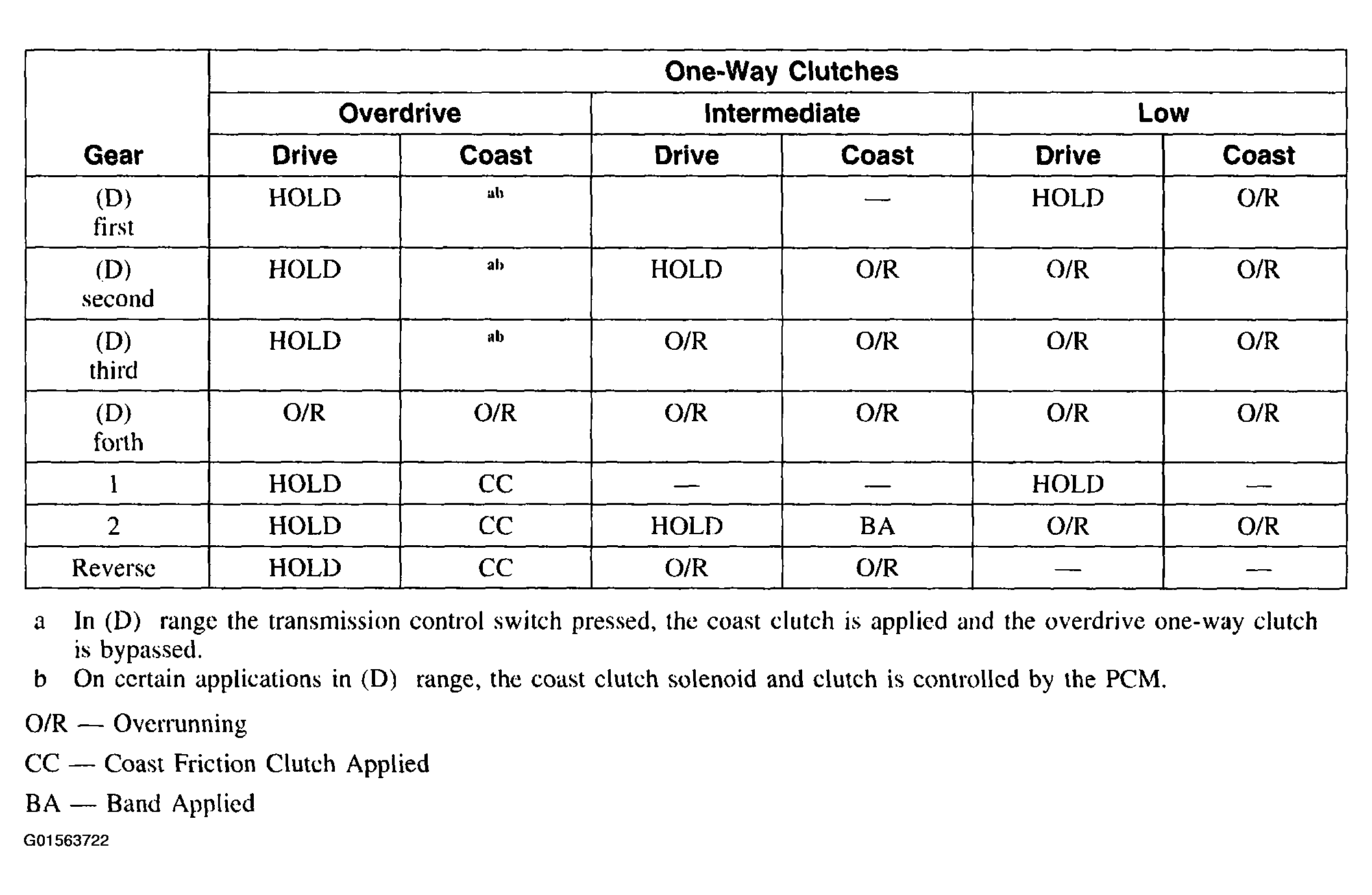

Fig 2: Band/Clutch Application Chart B
G01563722Courtesy of FORD MOTOR CO.
