Line Pressure Specifications

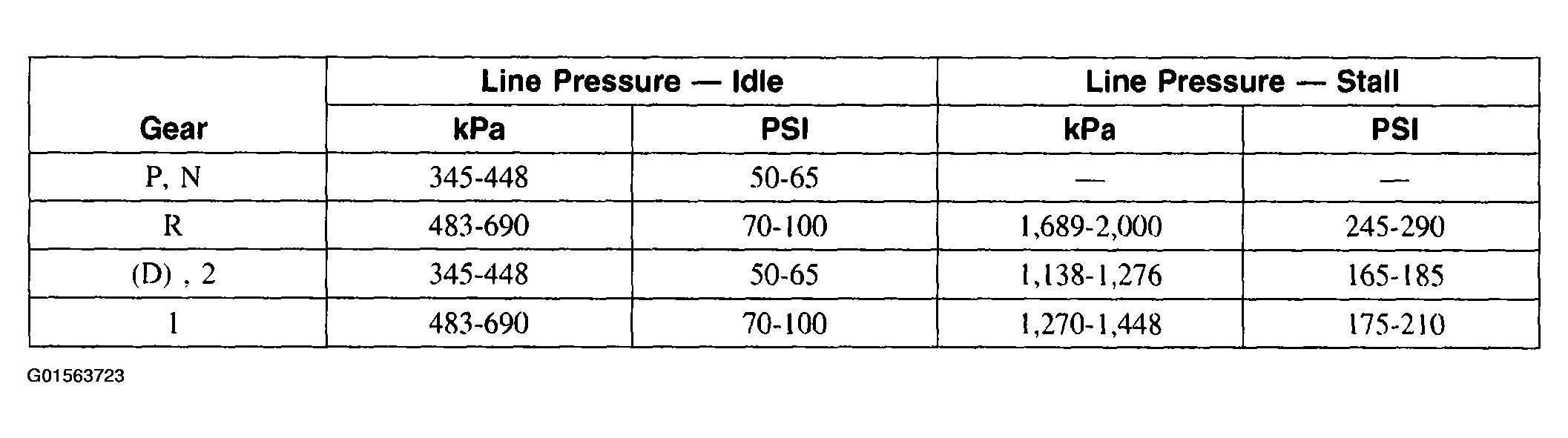

Fig 1: Line Pressure Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
