Removal and Installation

Disconnect the battery ground cable. For additional information, see BATTERY, MOUNTING & CABLES .
Remove the pin-type retainers and lower the instrument panel lower insulator.

Fig 1: Removing Instrument Panel Lower Insulator
Courtesy of FORD MOTOR CO.
Remove the instrument panel lower insulator.
1. Disconnect the power point electrical connector.
2. Remove the footwell lamp.
Fig 2: Disconnecting Instrument panel Lower Insulator
Courtesy of FORD MOTOR CO.
Remove the air suspension module.
1. Disconnect the electrical connectors.
2. Release the spring clips to remove the module from the bracket.

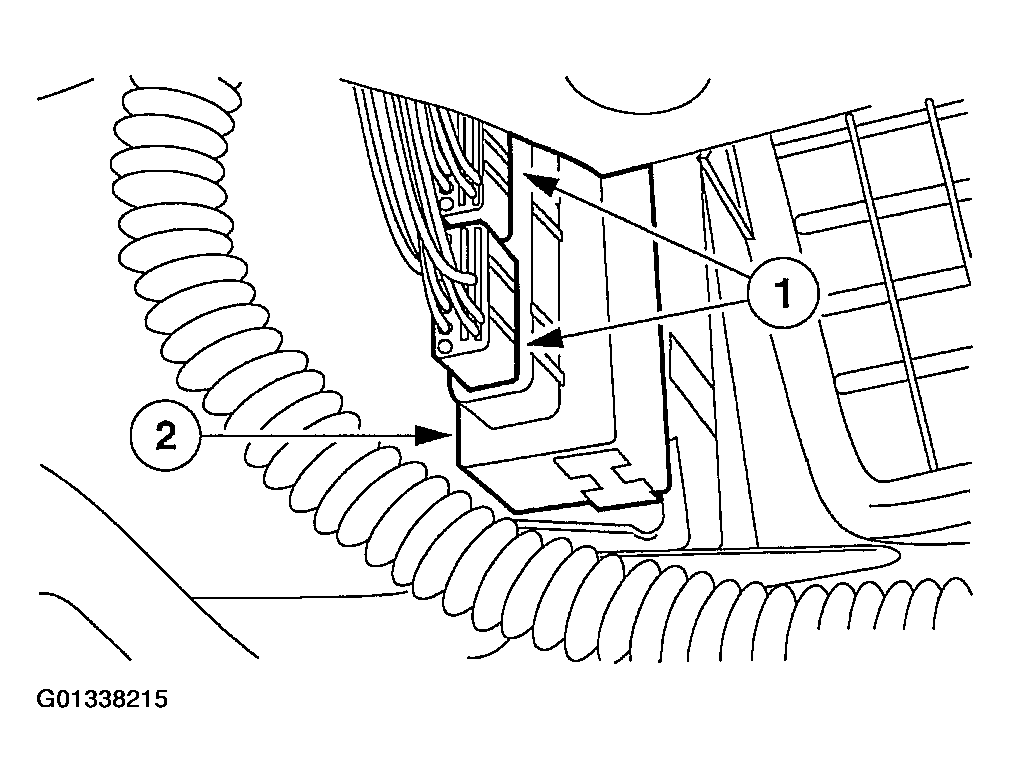

Fig 3: Removing Air Suspension Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
