Removal and Installation

Remove the front engine appearance cover (6A951) and the throttle return spring (9B569).
Disconnect the accelerator cable (9A758) from the throttle body lever.

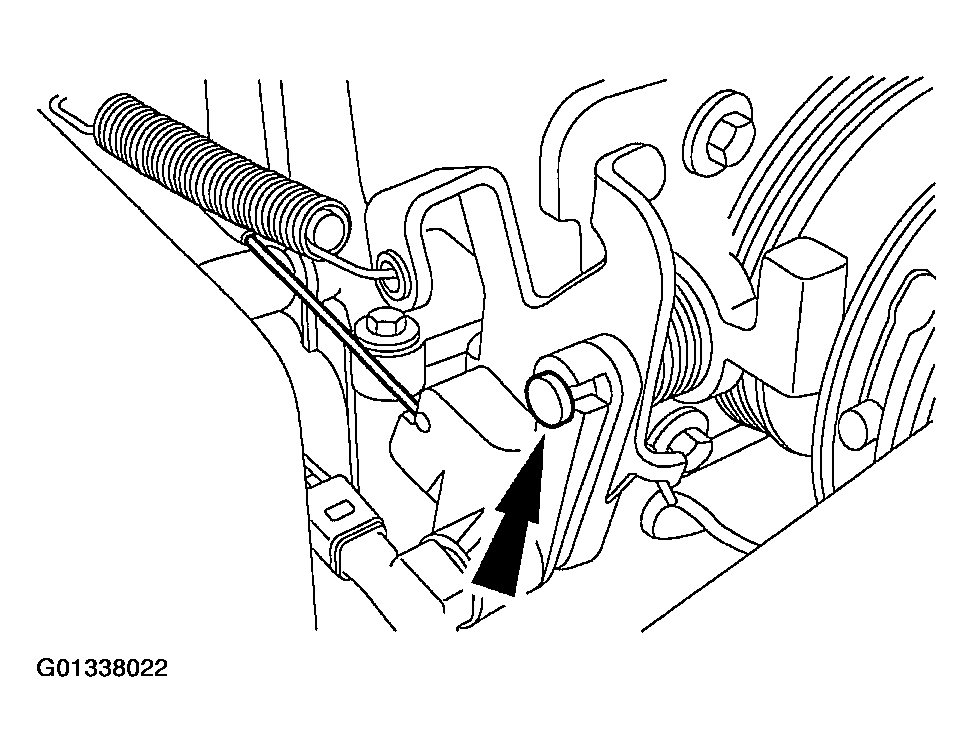

Fig 1: Locating Accelerator Cable In Throttle Body Lever
Courtesy of FORD MOTOR CO.
Remove the screw (cable to bracket) and remove the accelerator cable from the accelerator cable bracket (9728).

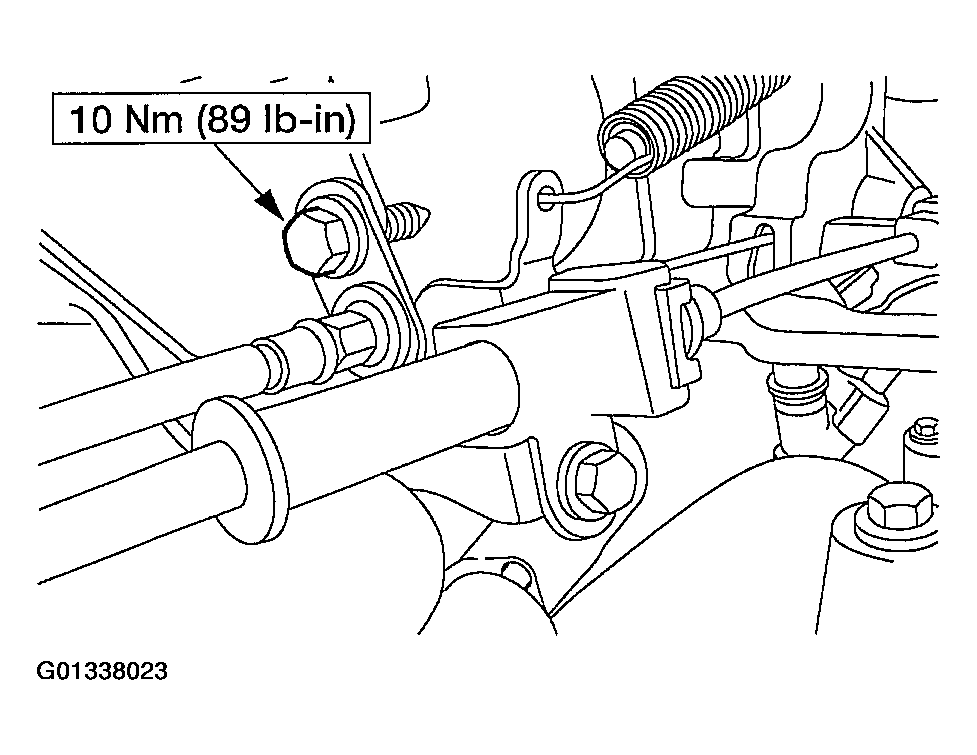

Fig 2: Locating Accelerator Cable Retaining Screw
Courtesy of FORD MOTOR CO.
Remove the speed control cable. For additional information, see SPEED CONTROL .
Remove the spring.

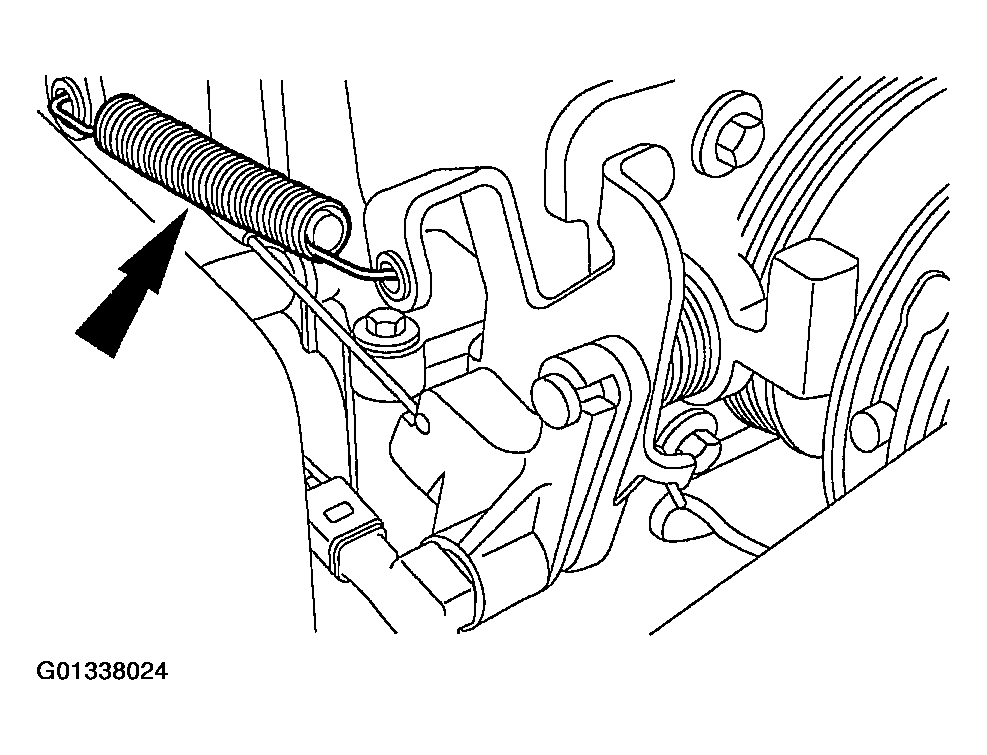

Fig 3: Locating Throttle Return Spring
Courtesy of FORD MOTOR CO.
Remove the screws and the nut and remove the accelerator cable bracket.

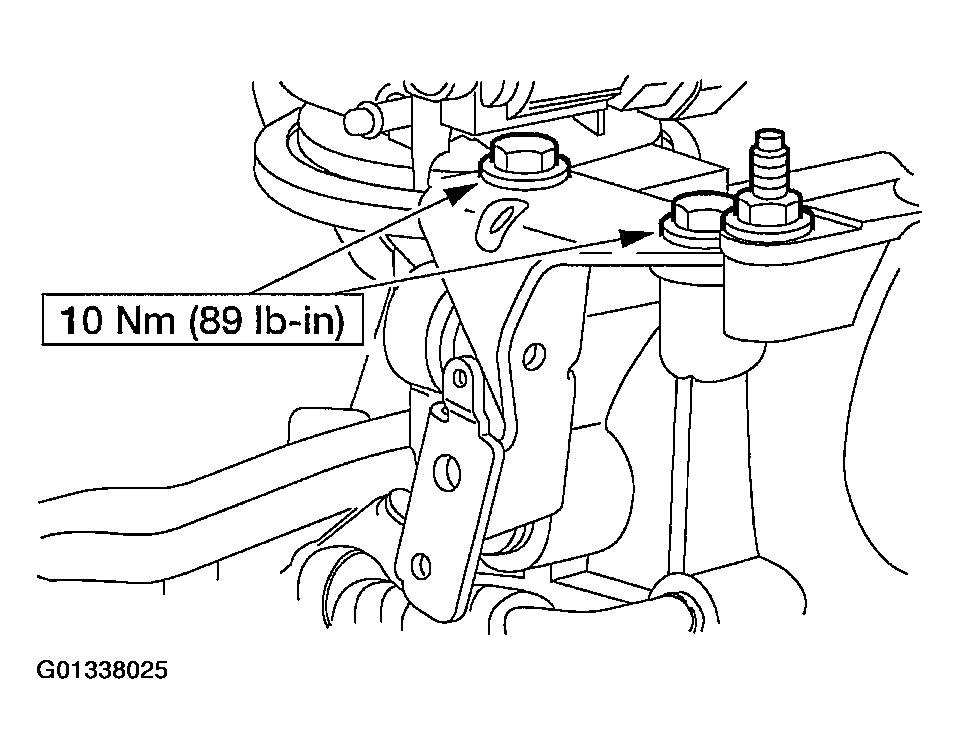

Fig 4: Locating Accelerator Cable Bracket Screws & Nut
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
