Removal and Installation

Disconnect the battery ground cable. For additional information, see BATTERY DISCONNECT .
Disconnect the anti-lock brake system module electrical connectors.
- Disconnect the control module electrical connector.
- Disconnect the pump motor electrical connector.

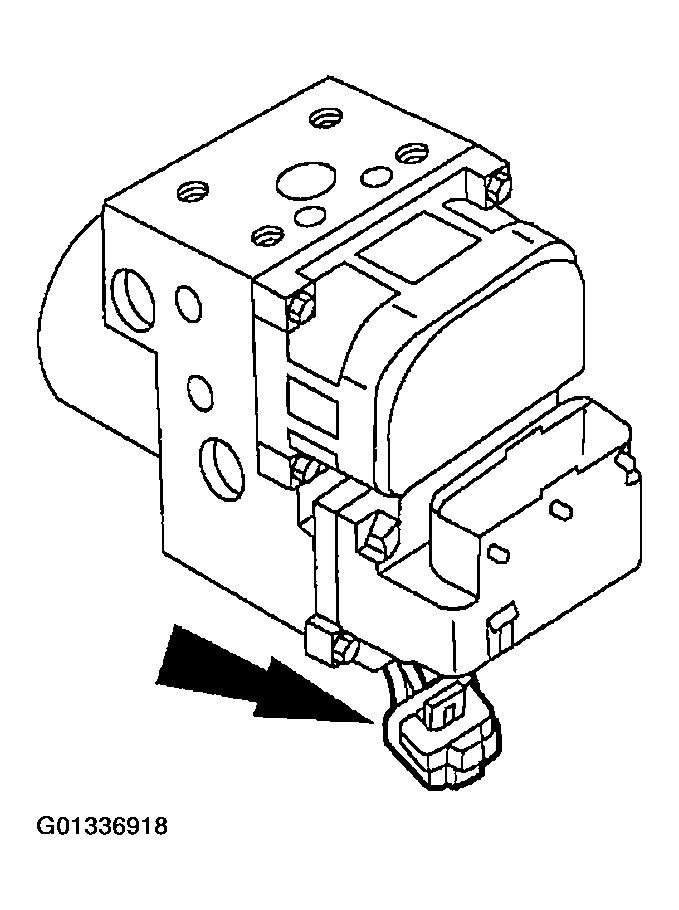

Fig 1: Locating Anti-Lock Brake System Module Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Do not pry the module from the HCU.

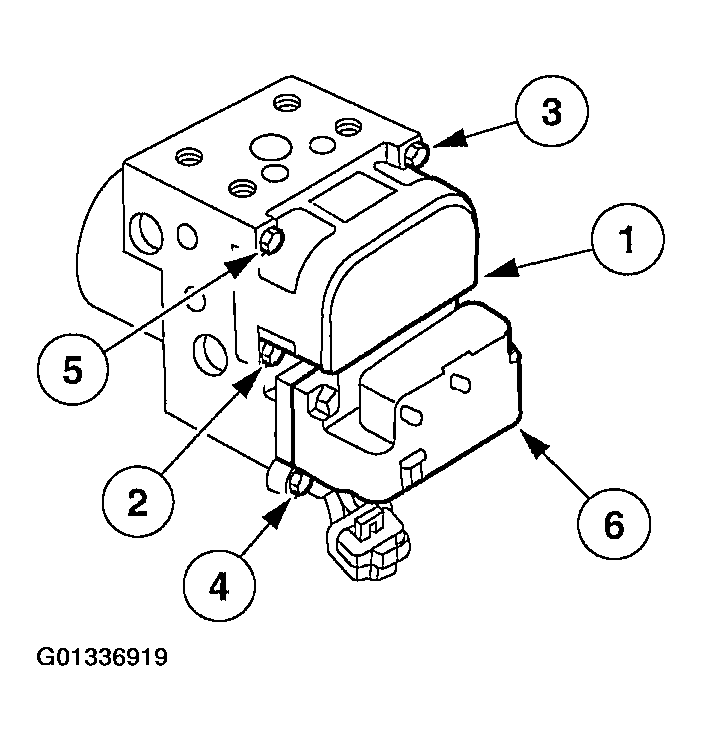

Fig 2: Anti-Lock Brake System Module Screw Removal Sequence

Courtesy of FORD MOTOR CO.

Remove the anti-lock brake system module.
- Remove the screws in the sequence shown.
- Remove the module.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn its strategy.

NOTE: Be sure the ABS module-to-HCU gasket is clean and installed correctly.

To install, reverse the removal procedure.
