Removal and Installation

Remove the front engine appearance cover (6A951) and the throttle return spring (9B569).
Disconnect the accelerator cable (9A758) from the throttle body lever.

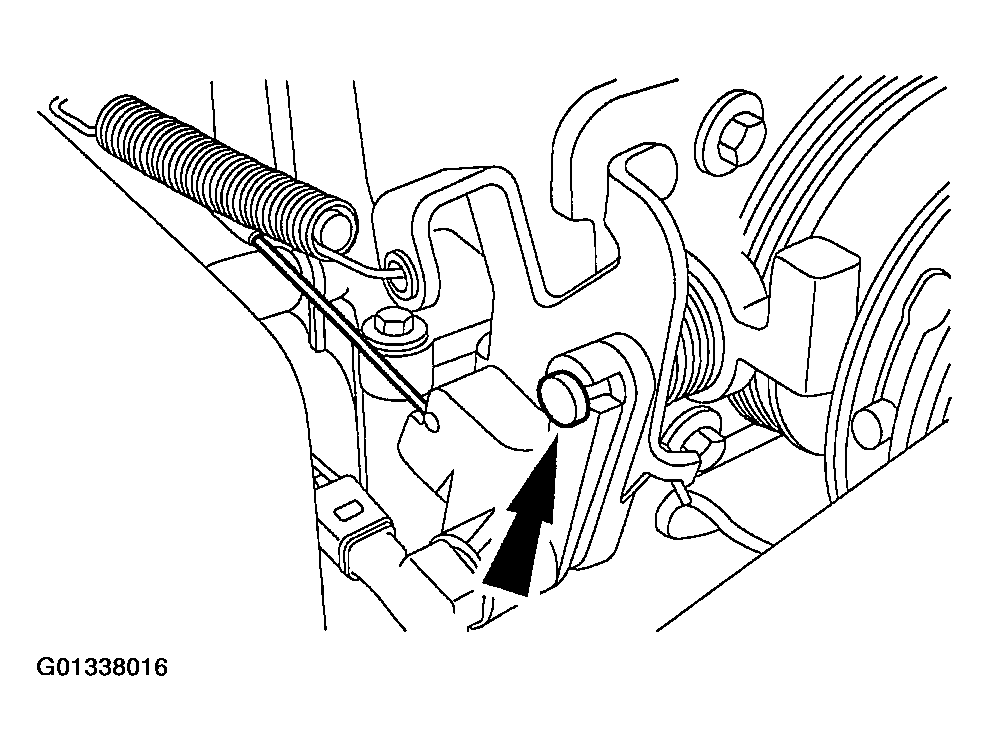

Fig 1: Locating Accelerator Cable In Throttle Body Lever
Courtesy of FORD MOTOR CO.
Remove the screw (cable to bracket) and remove the accelerator cable from the accelerator cable bracket (9728).

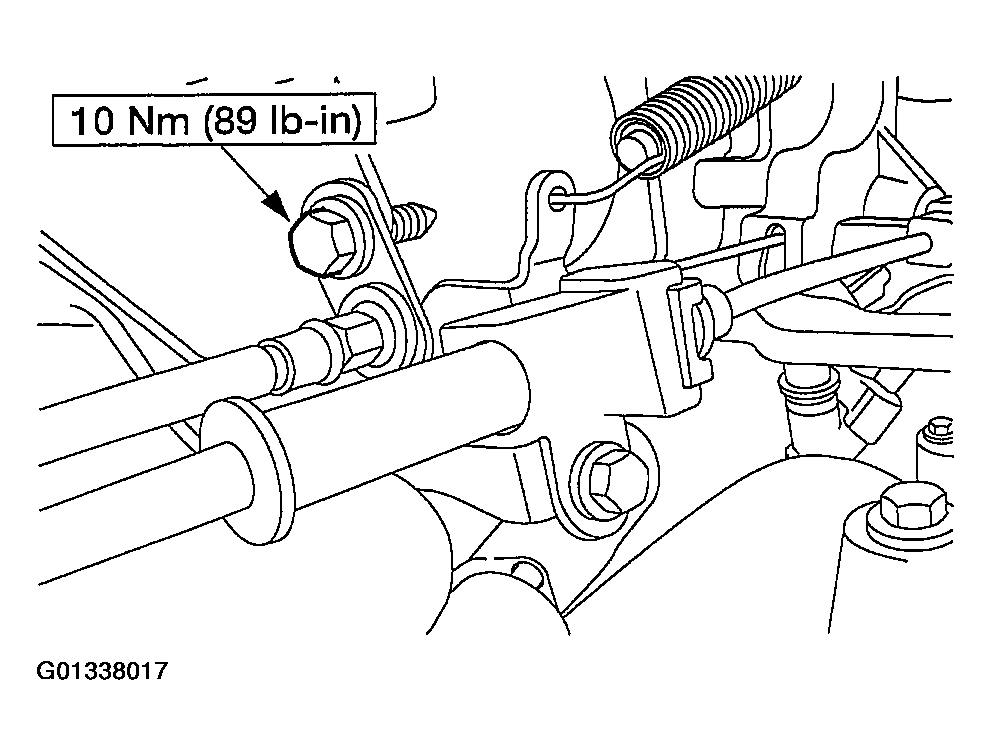

Fig 2: Locating Accelerator Cable Retaining Screw
Courtesy of FORD MOTOR CO.
Remove the accelerator cable from the clip.

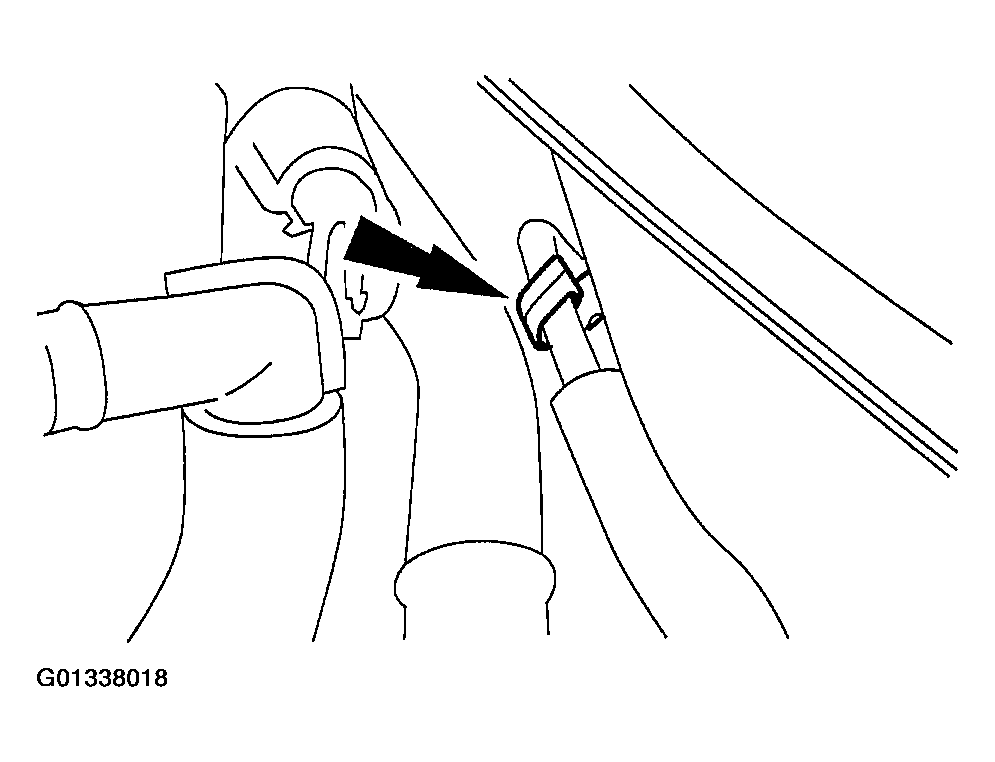

Fig 3: Locating Accelerator Cable Clip
Courtesy of FORD MOTOR CO.
Remove the nuts.

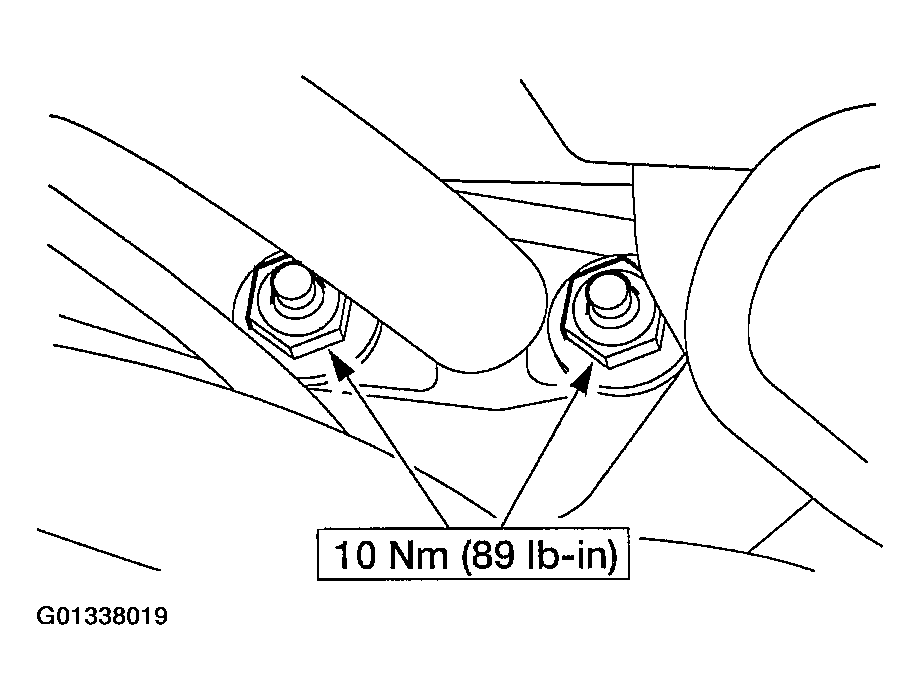

Fig 4: Locating Accelerator Cable Nuts
Courtesy of FORD MOTOR CO.

NOTE: Non-memory pedal shown, memory pedal similar.

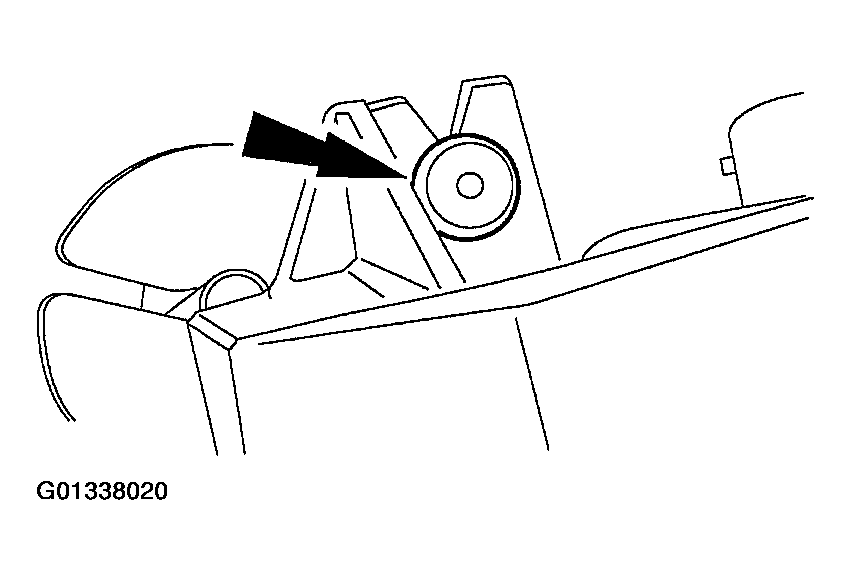

Fig 5: Removing Accelerator Cable From Accelerator Pedal

Courtesy of FORD MOTOR CO.

Disconnect the accelerator cable from the accelerator pedal and shaft (9725).
Remove the accelerator cable retainer (9E728).

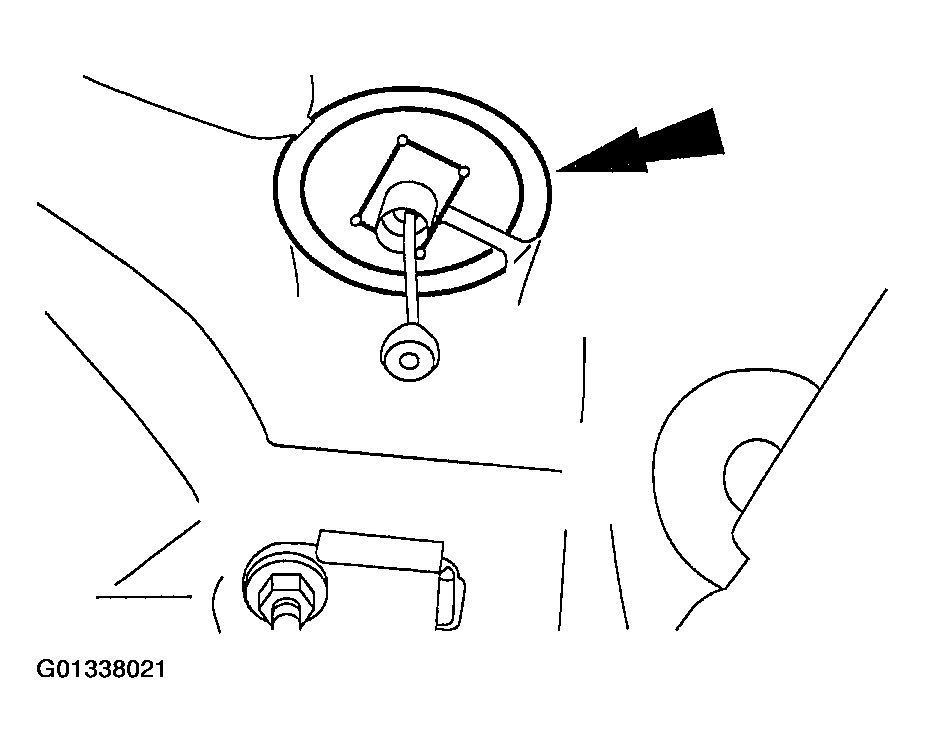

Fig 6: Locating Accelerator Cable Retainer
Courtesy of FORD MOTOR CO.
Pull cable through the dash panel and remove from the vehicle.
To install, reverse the removal procedure.
