Accelerator Pedal and Shaft - Adjustable: Installation

CAUTION: Before driving the vehicle, check that the engine returns to idle after depressing the accelerator.
  1. Install the accelerator pedal and shaft assembly and the two nuts.

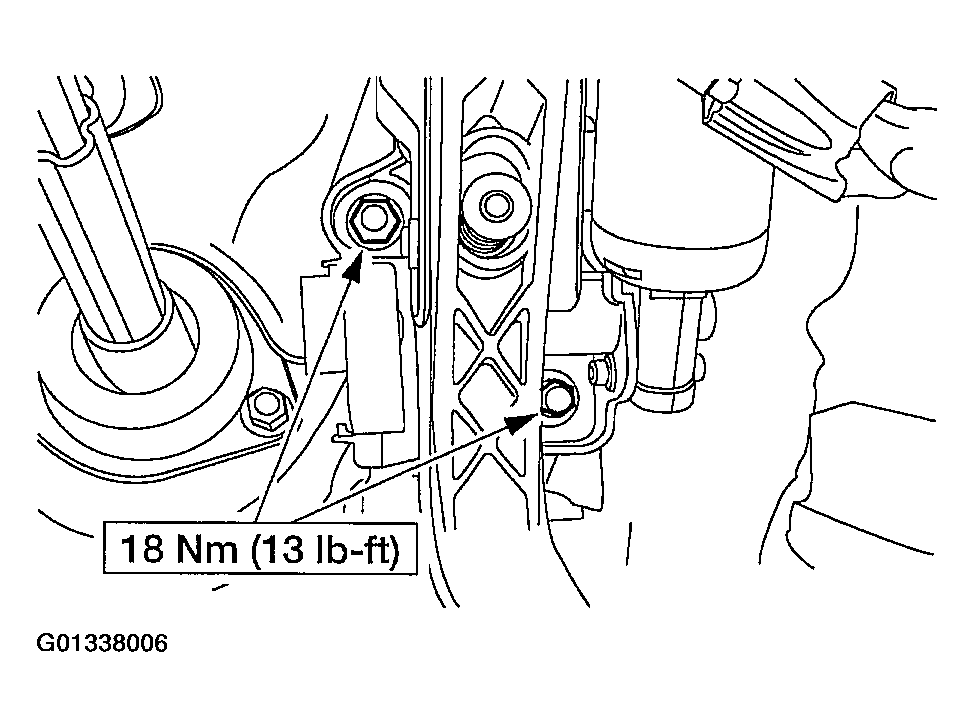

    Fig 1: Locating Accelerator Pedal & Shaft Assembly Retaining Nuts
    G01338006Courtesy of FORD MOTOR CO.
  2. Connect the drive motor electrical connector.

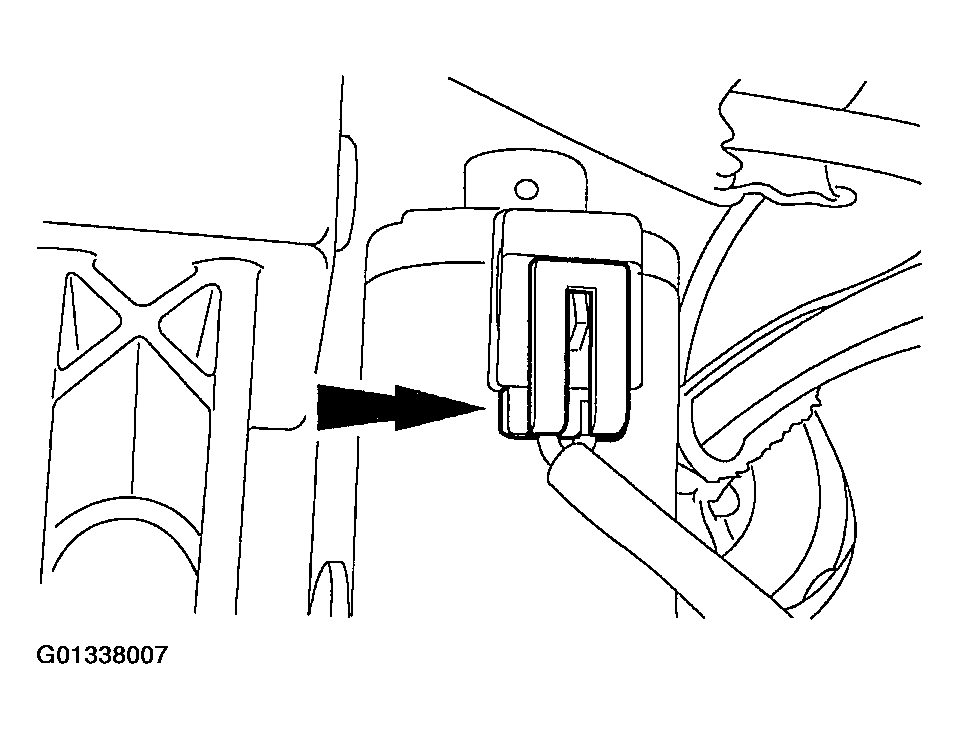

    Fig 2: Locating Drive Motor Electrical Connector
    G01338007Courtesy of FORD MOTOR CO.
  3. Attach the accelerator cable to the accelerator pedal and shaft assembly.
    Fig 3: Connecting Accelerator Cable From Accelerator Pedal
    G01338008Courtesy of FORD MOTOR CO.
  4. Connect the battery ground cable. For additional information, see BATTERY, MOUNTING & CABLES .
  5. Index the adjustable brake and accelerator pedals. For additional information, see HYDRAULIC BRAKE ACTUATION .
  6. Install the instrument close-out panel.
    1. Turn the lamp socket clockwise to connect it to the close-out panel.
    2. Insert the push-pins in locations shown.

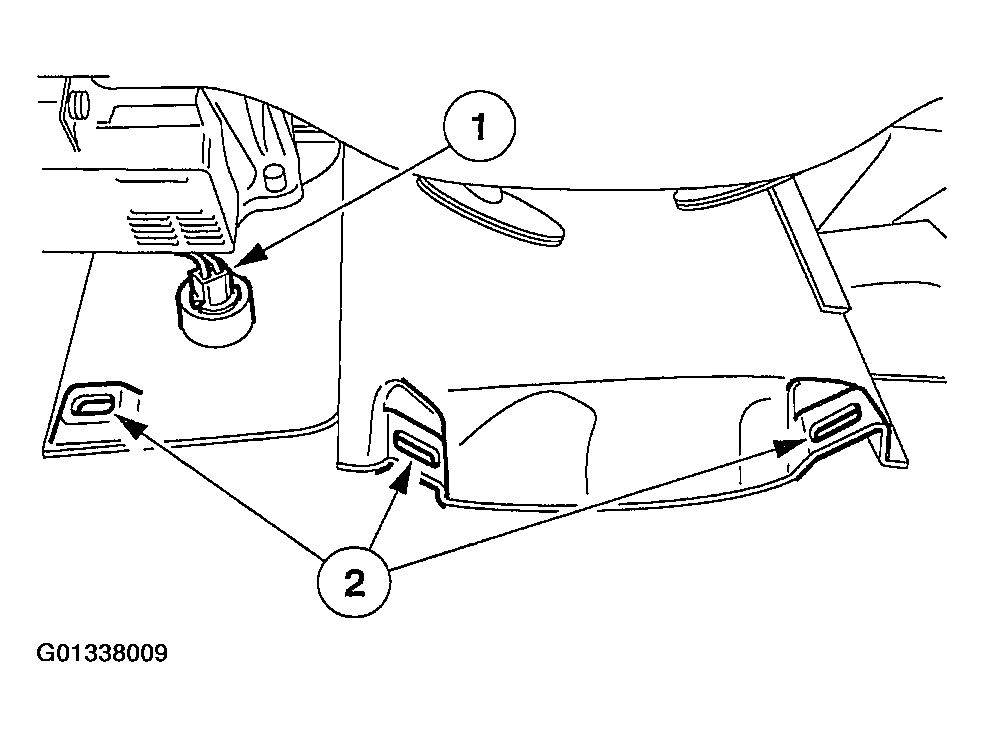

    Fig 4: Installing Instrument Panel Close-Out Panel
    G01338009Courtesy of FORD MOTOR CO.
