Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

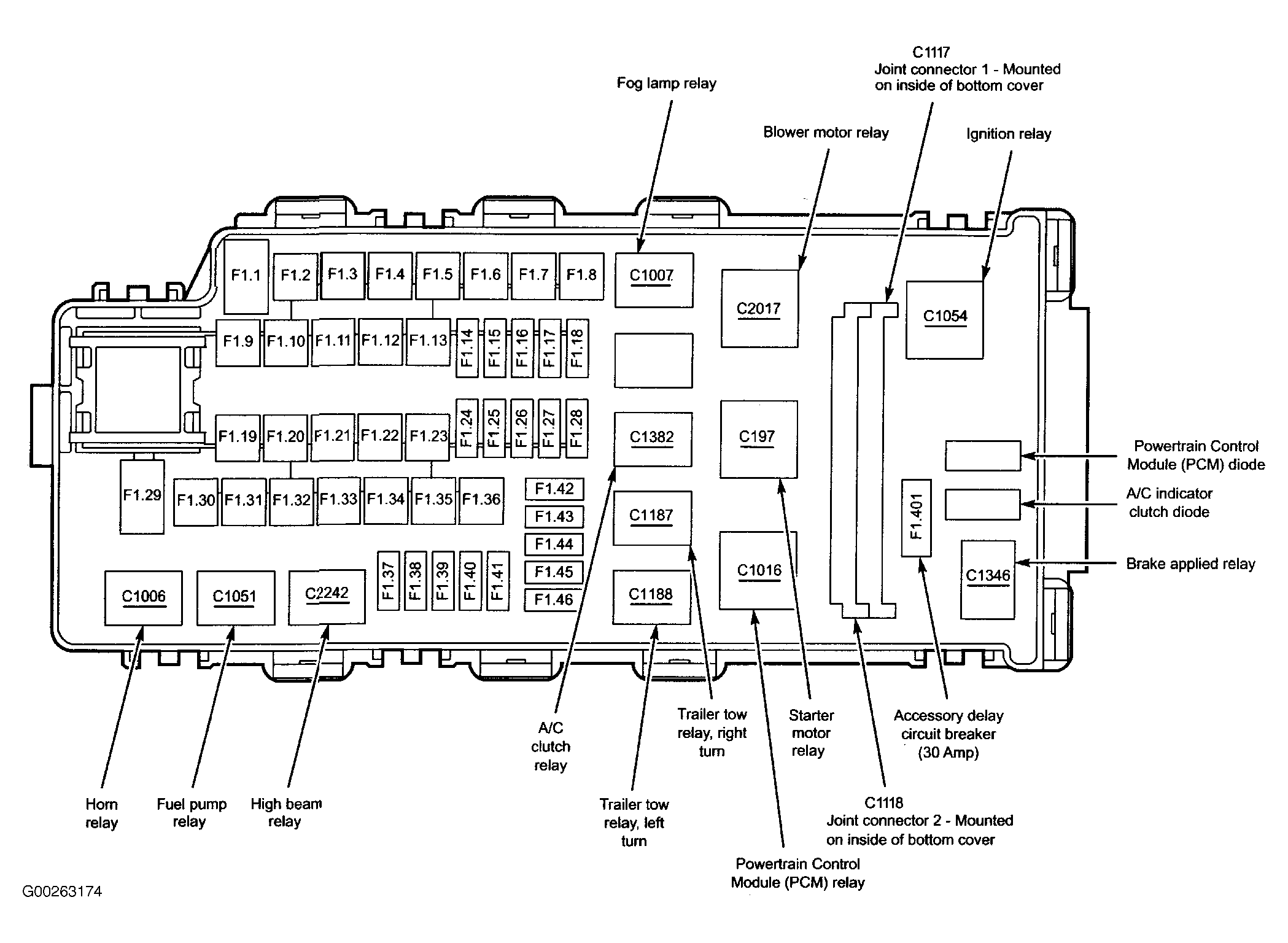

| Accessory Delay Circuit Breaker | In battery junction box. See Figure . |
| A/C Indicator Clutch Diode | In battery junction box. See Figure . |
| Auxiliary Junction Box (AJB) | Right side of engine compartment, at fender apron. |

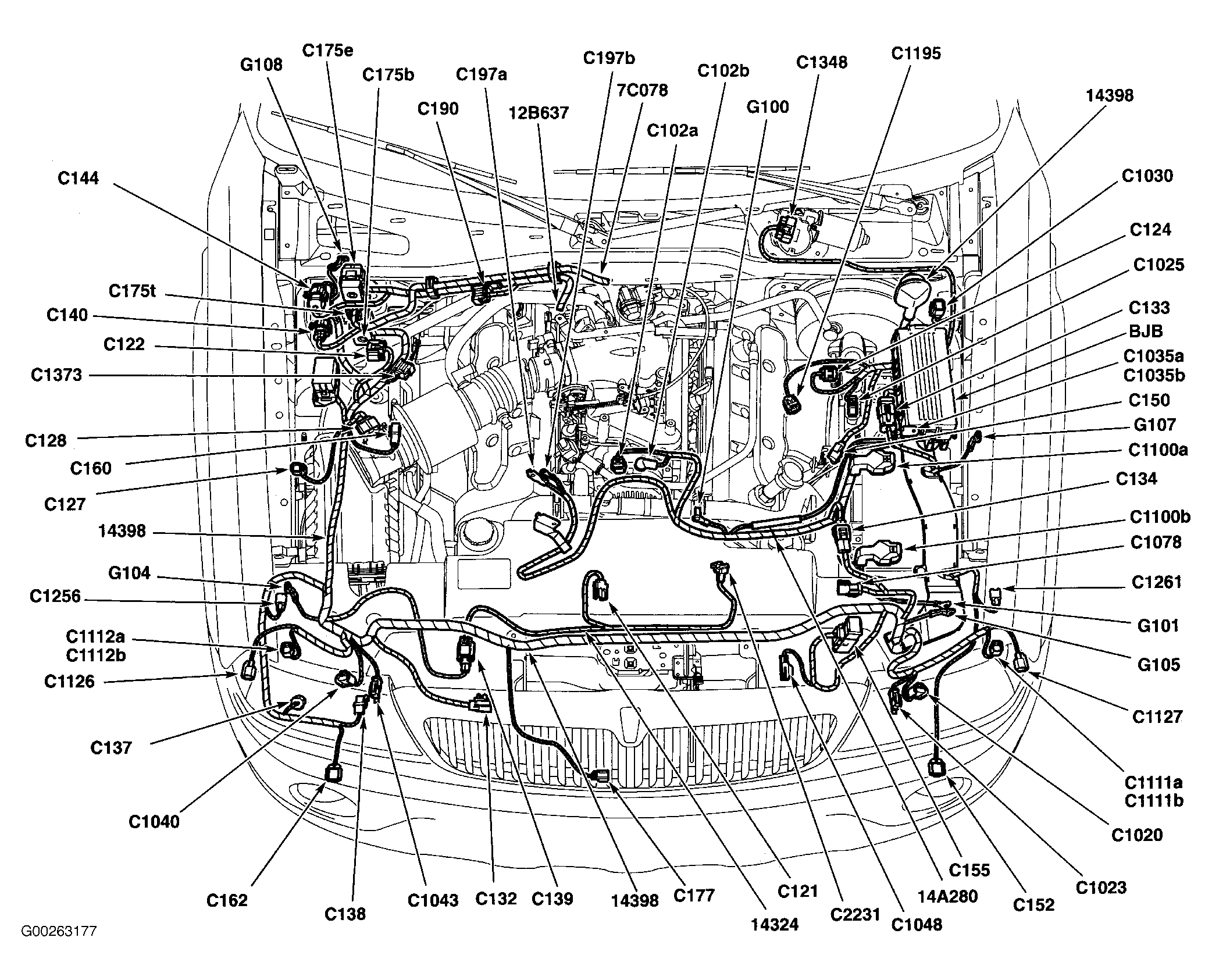

| Battery Junction Box (BJB) (C1035a & C1035b) | Left side of engine compartment, at fender apron. See Figure . |

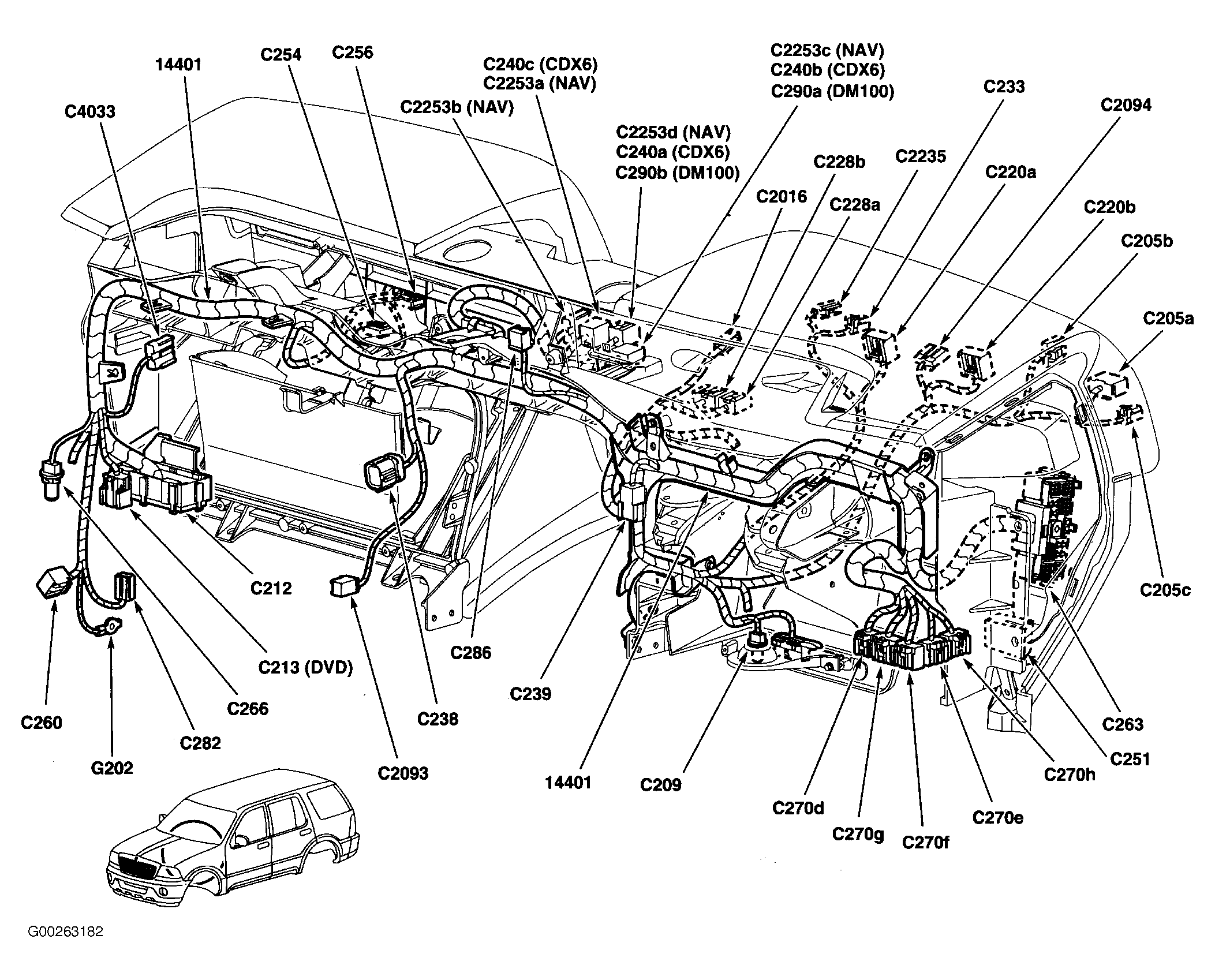

| Central Junction Box (CJB) (C270a Through C270h) | Behind left side of dash. See Figure . |
| Powertrain Control Module (PCM) Diode | In battery junction box. See Figure . |

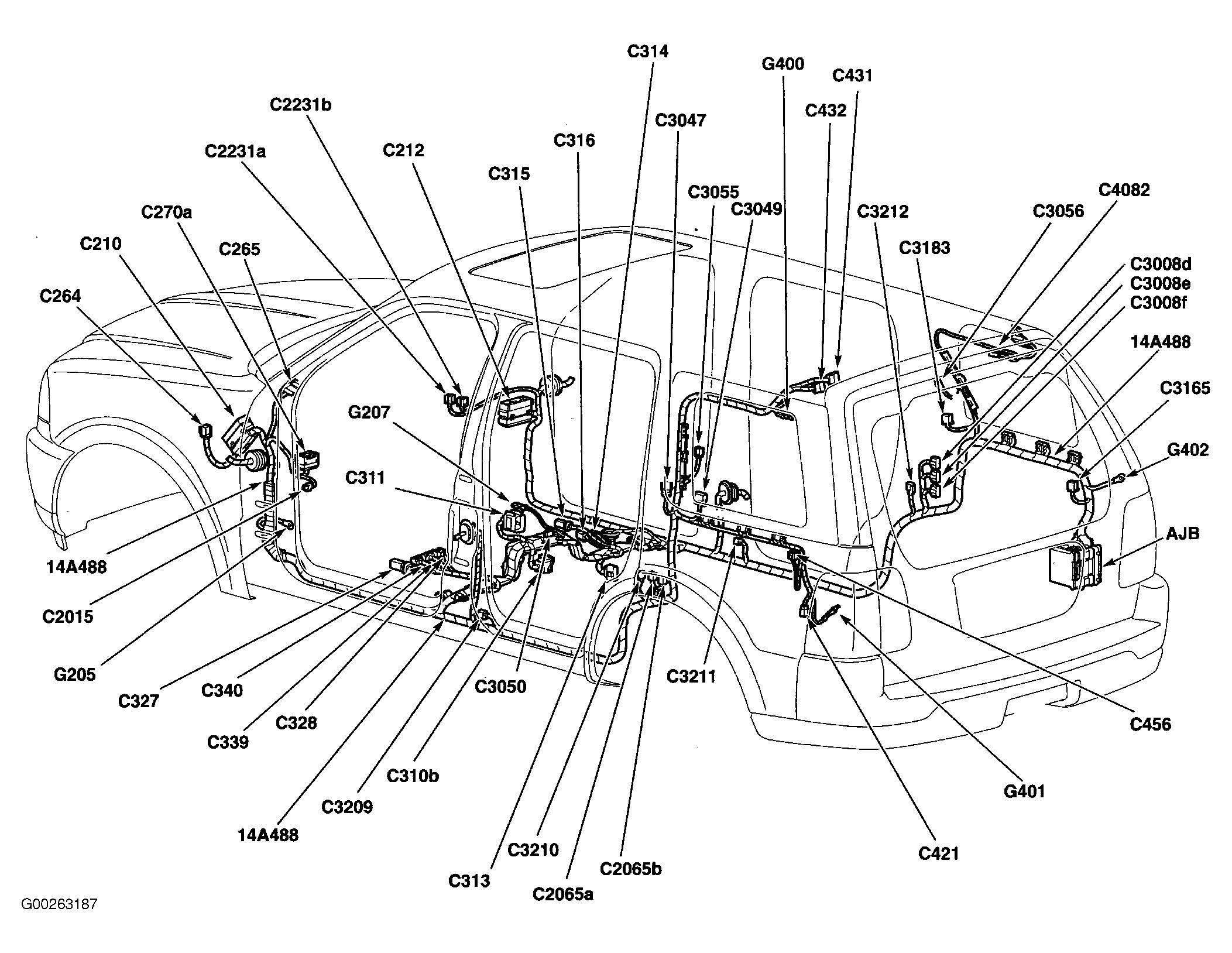

| Rear Auxiliary Junction Box | In right rear of cargo area. See Figure . |
