Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00263174

Courtesy of FORD MOTOR CO.

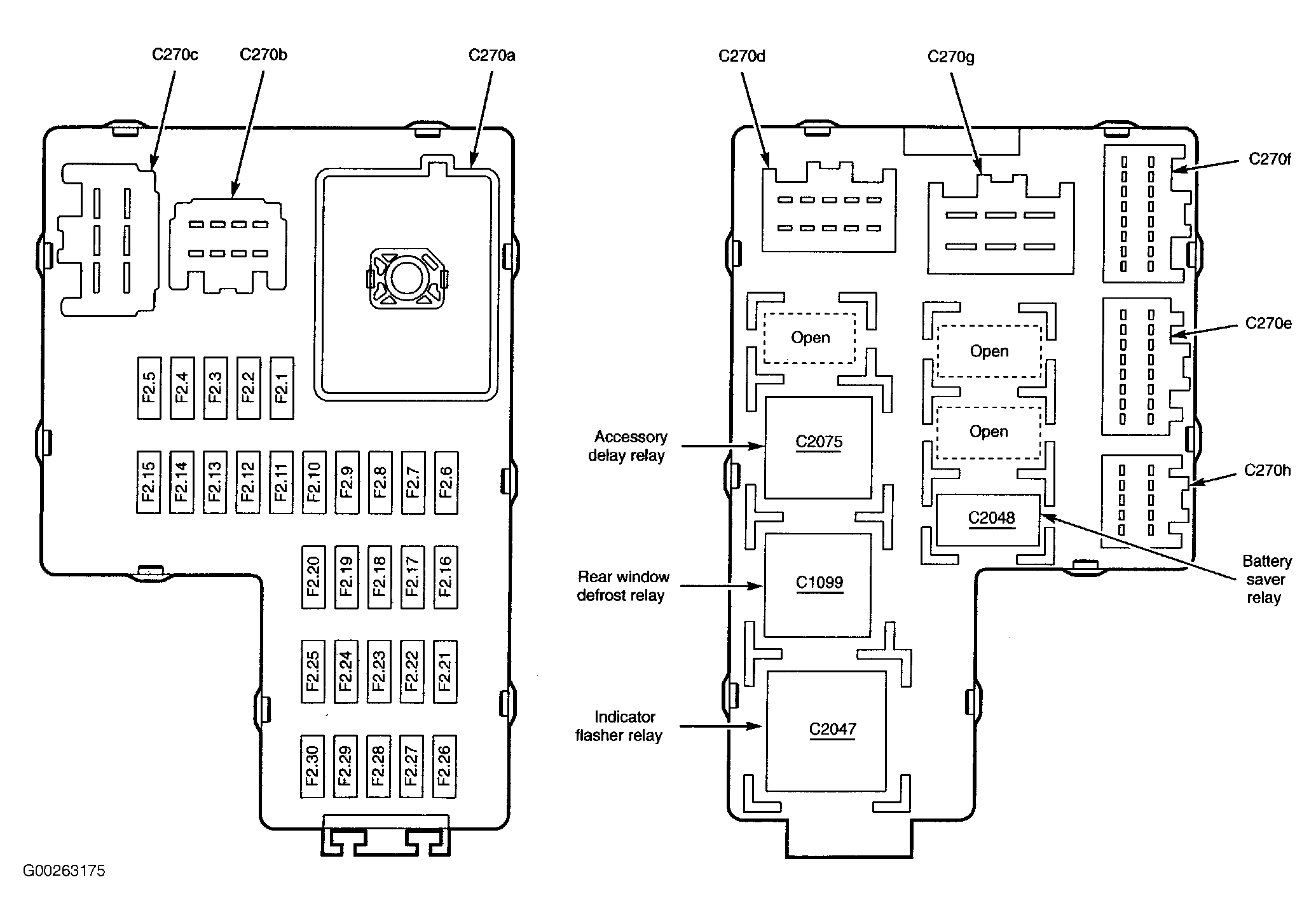

Fig 2: Central Junction Box (CJB)

G00263175

Courtesy of FORD MOTOR CO.

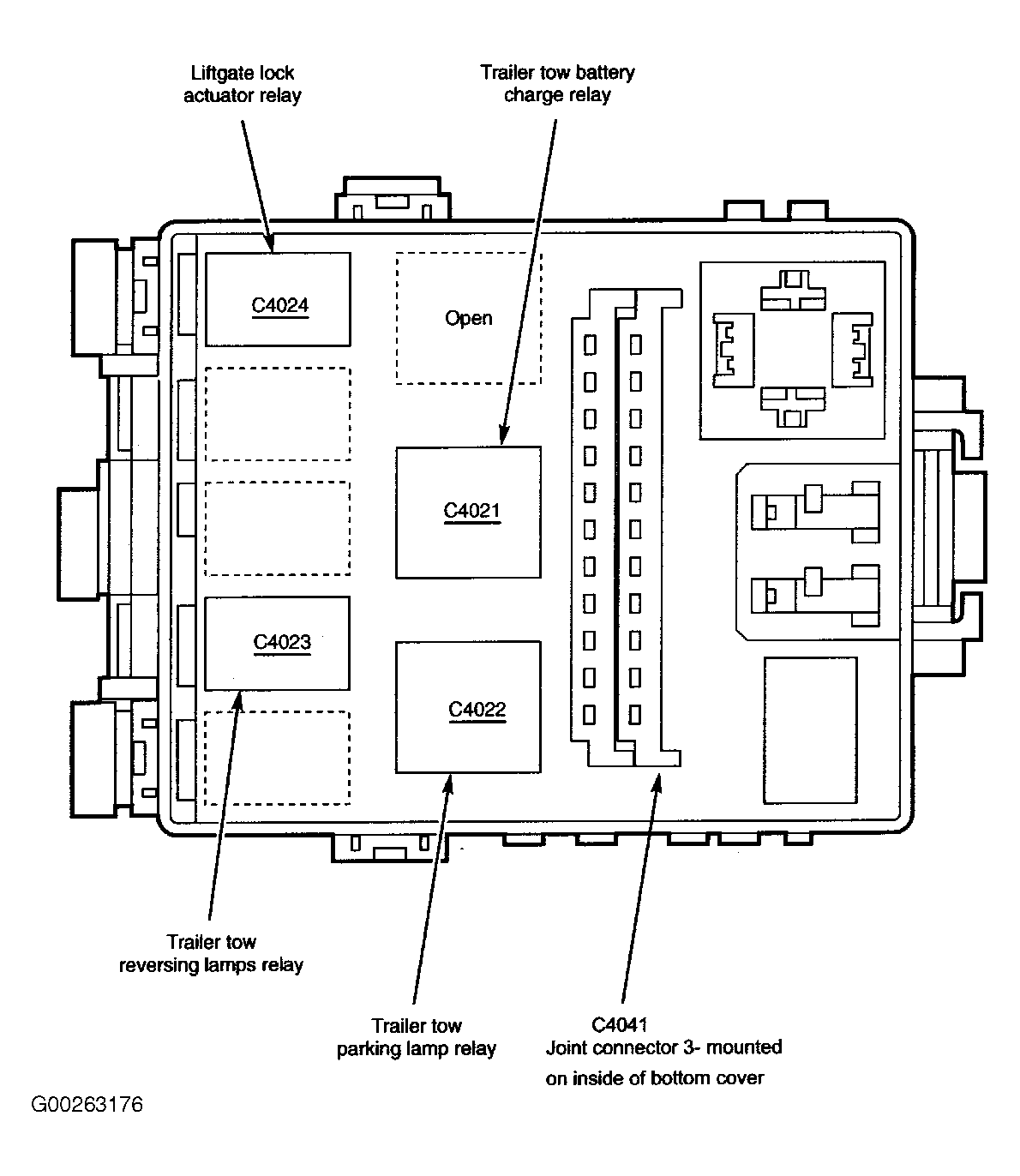

Fig 3: Rear Auxiliary Junction Box (AJB)

G00263176

Courtesy of FORD MOTOR CO.

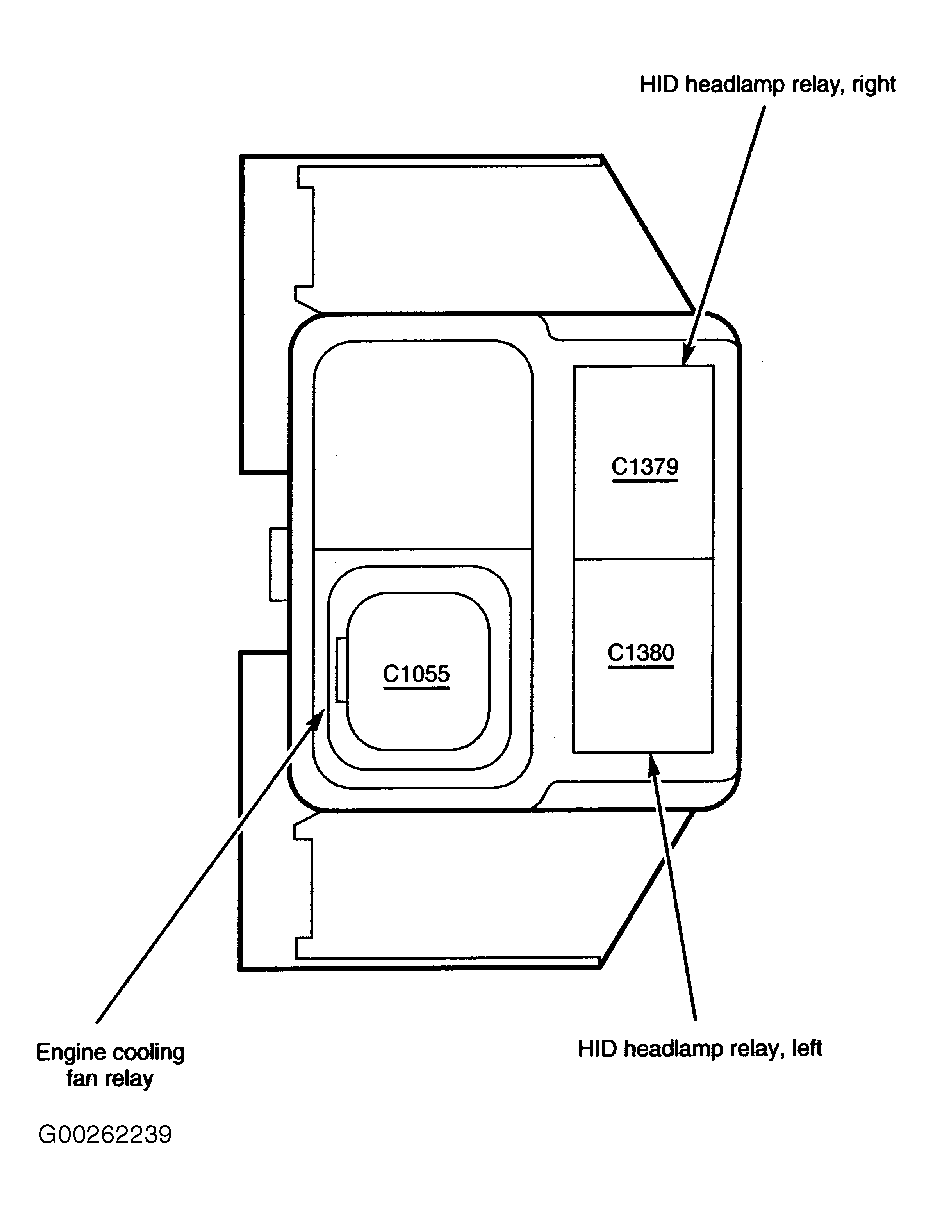

Fig 4: Auxiliary Junction Box (AJB)

G00262239

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment

G00263177

Courtesy of FORD MOTOR CO.

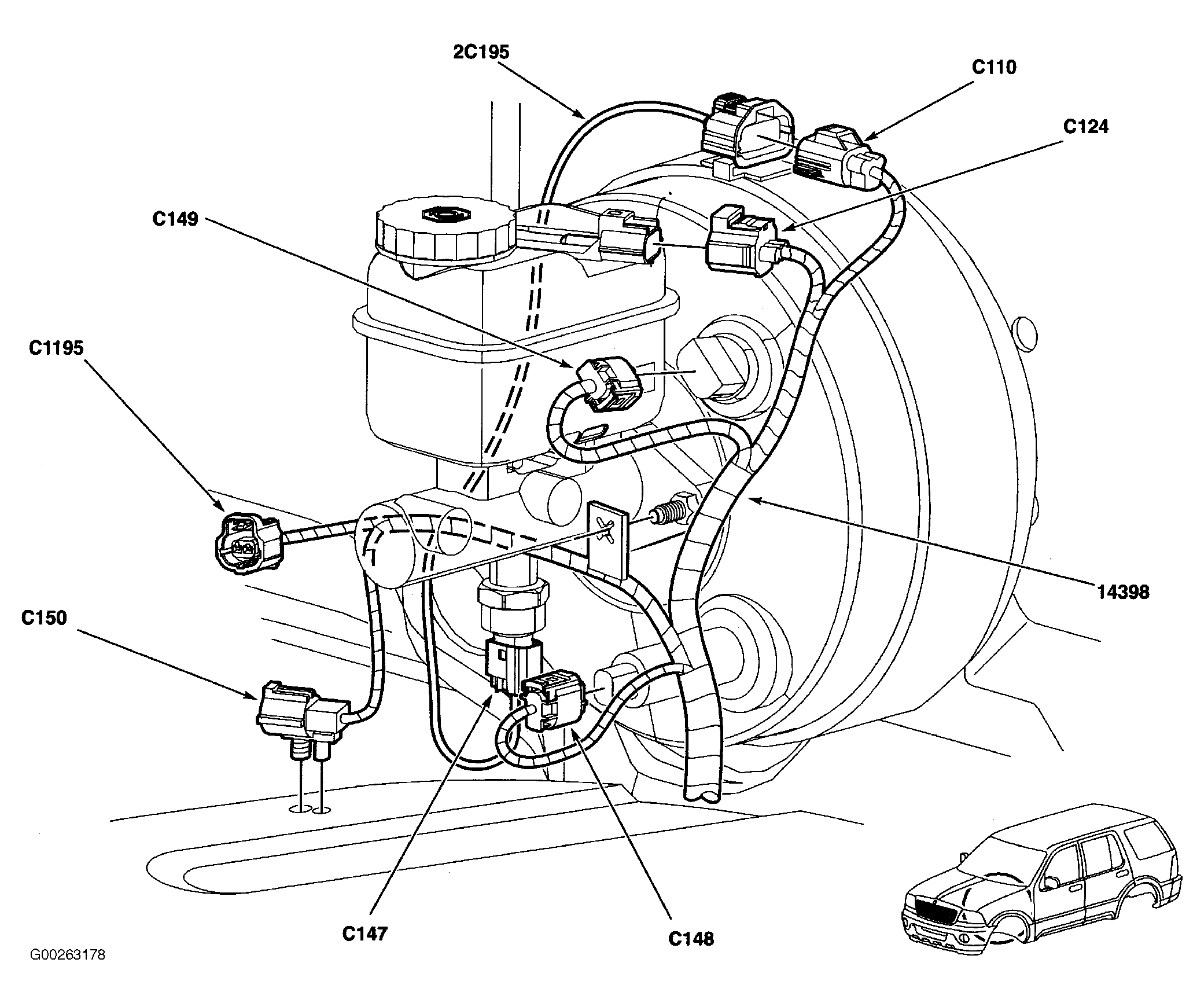

Fig 6: Left Rear Of Engine Compartment

G00263178

Courtesy of FORD MOTOR CO.

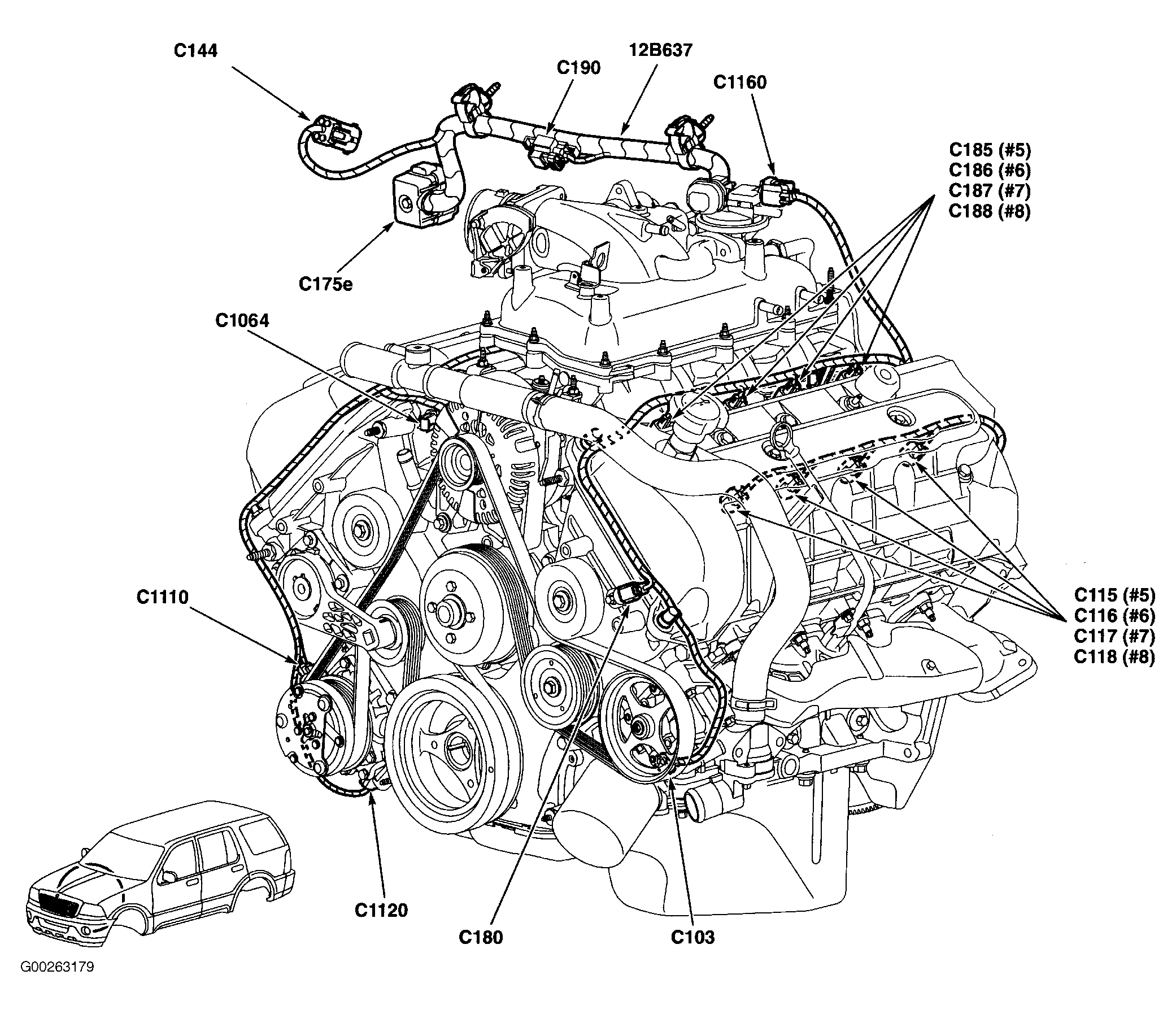

Fig 7: Front Of Engine

G00263179

Courtesy of FORD MOTOR CO.

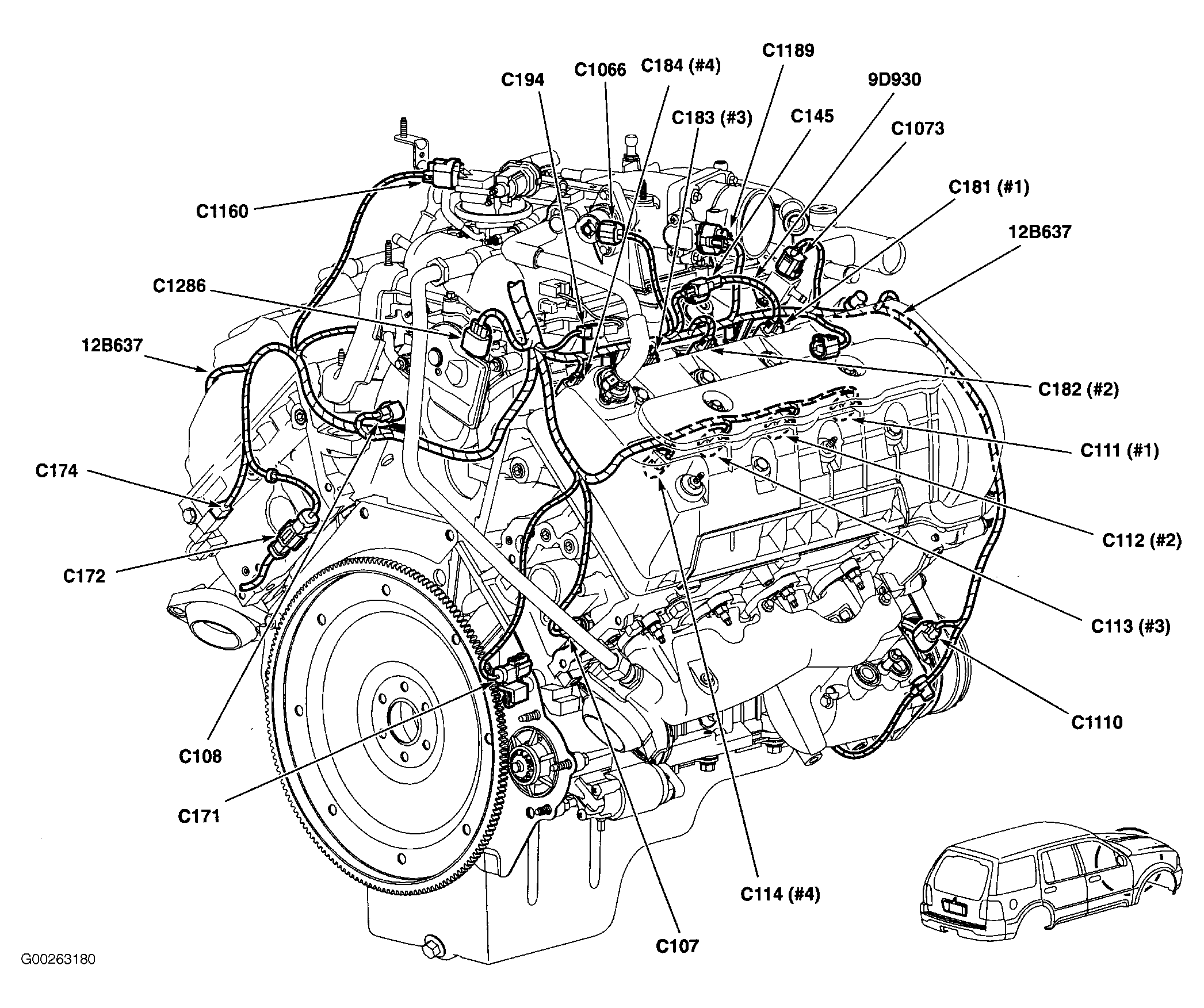

Fig 8: Rear Of Engine

G00263180

Courtesy of FORD MOTOR CO.

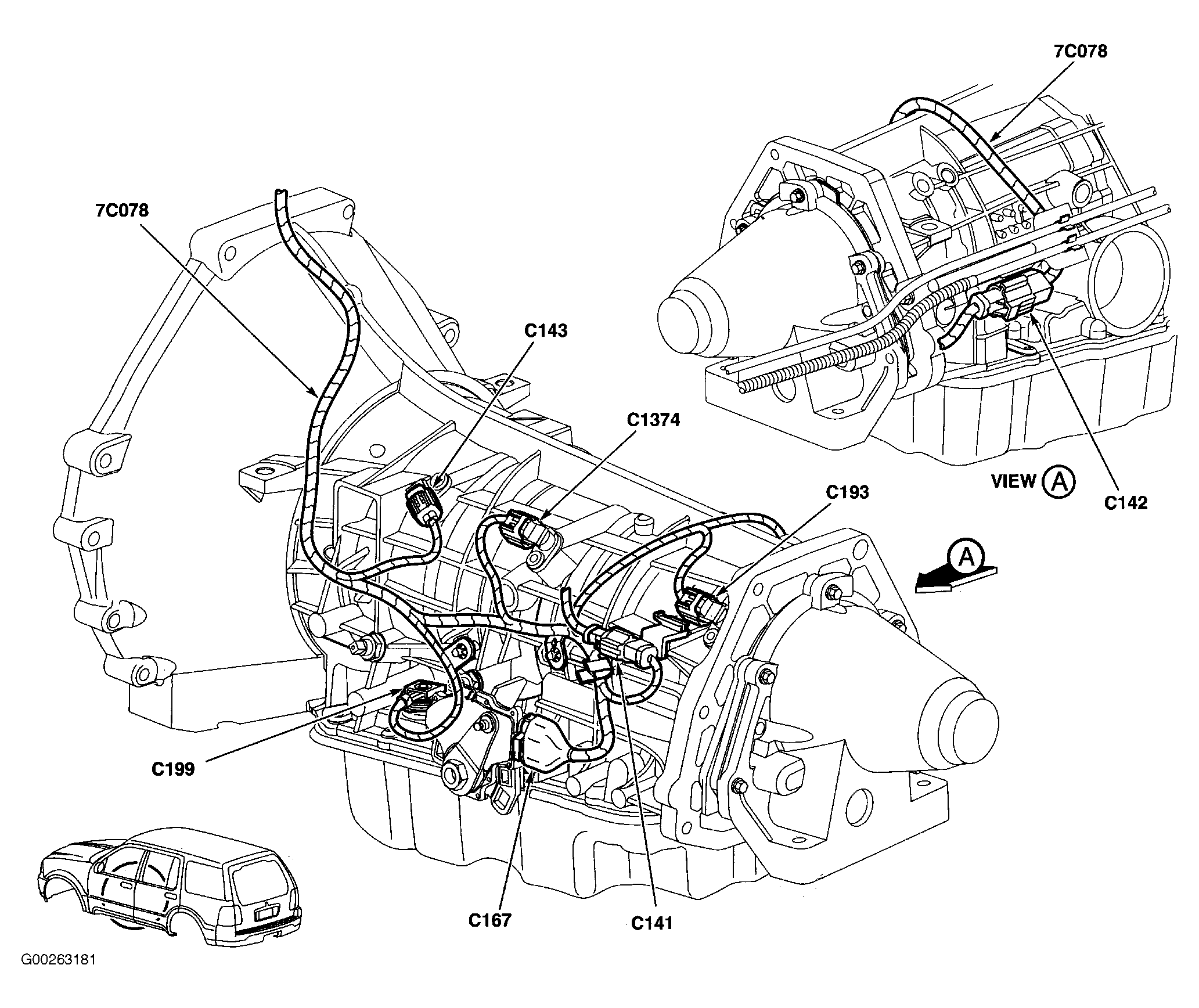

Fig 9: Automatic Transmission

G00263181

Courtesy of FORD MOTOR CO.

Fig 10: Rear Of Dash

G00263182

Courtesy of FORD MOTOR CO.

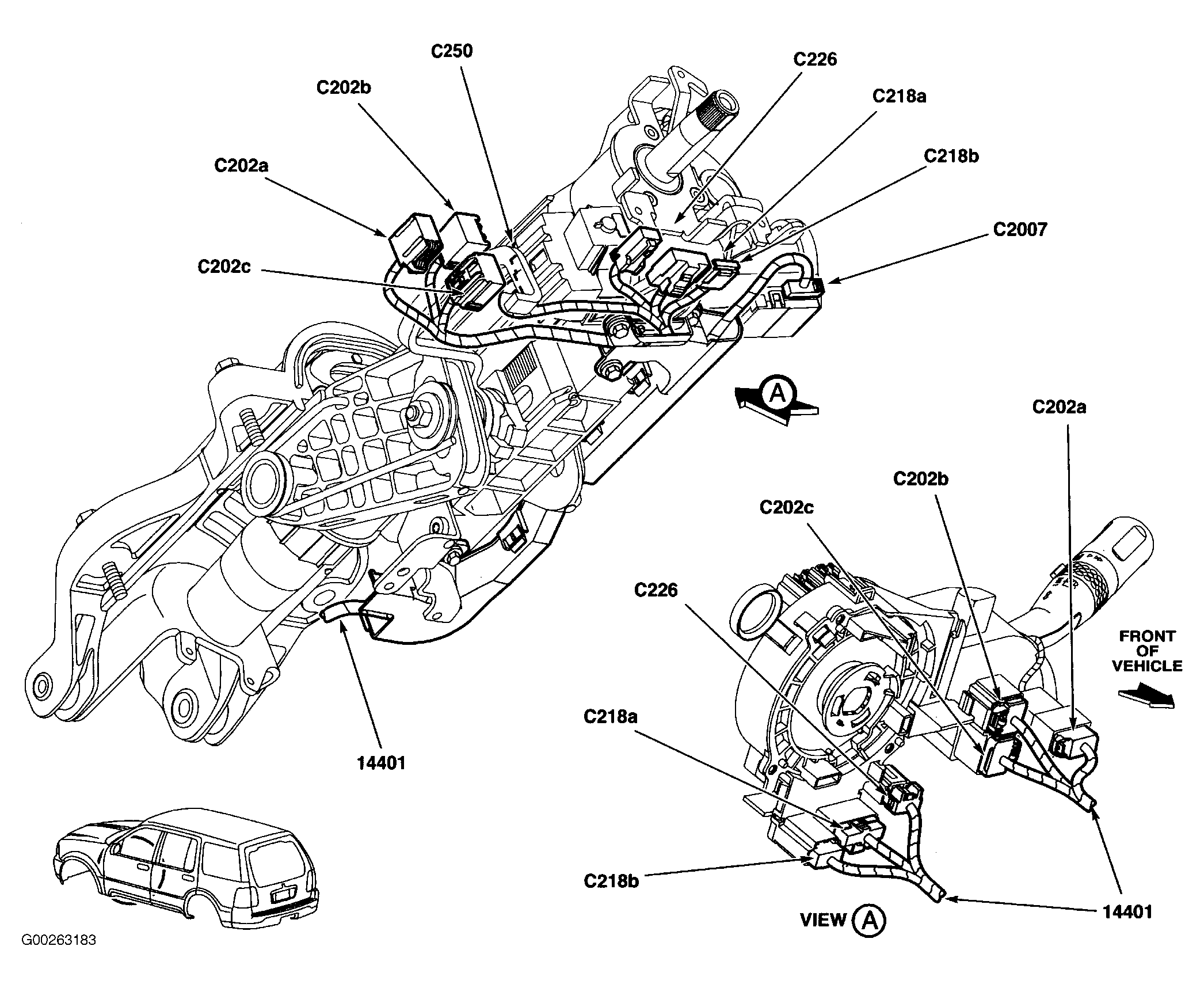

Fig 11: Steering Column

G00263183

Courtesy of FORD MOTOR CO.

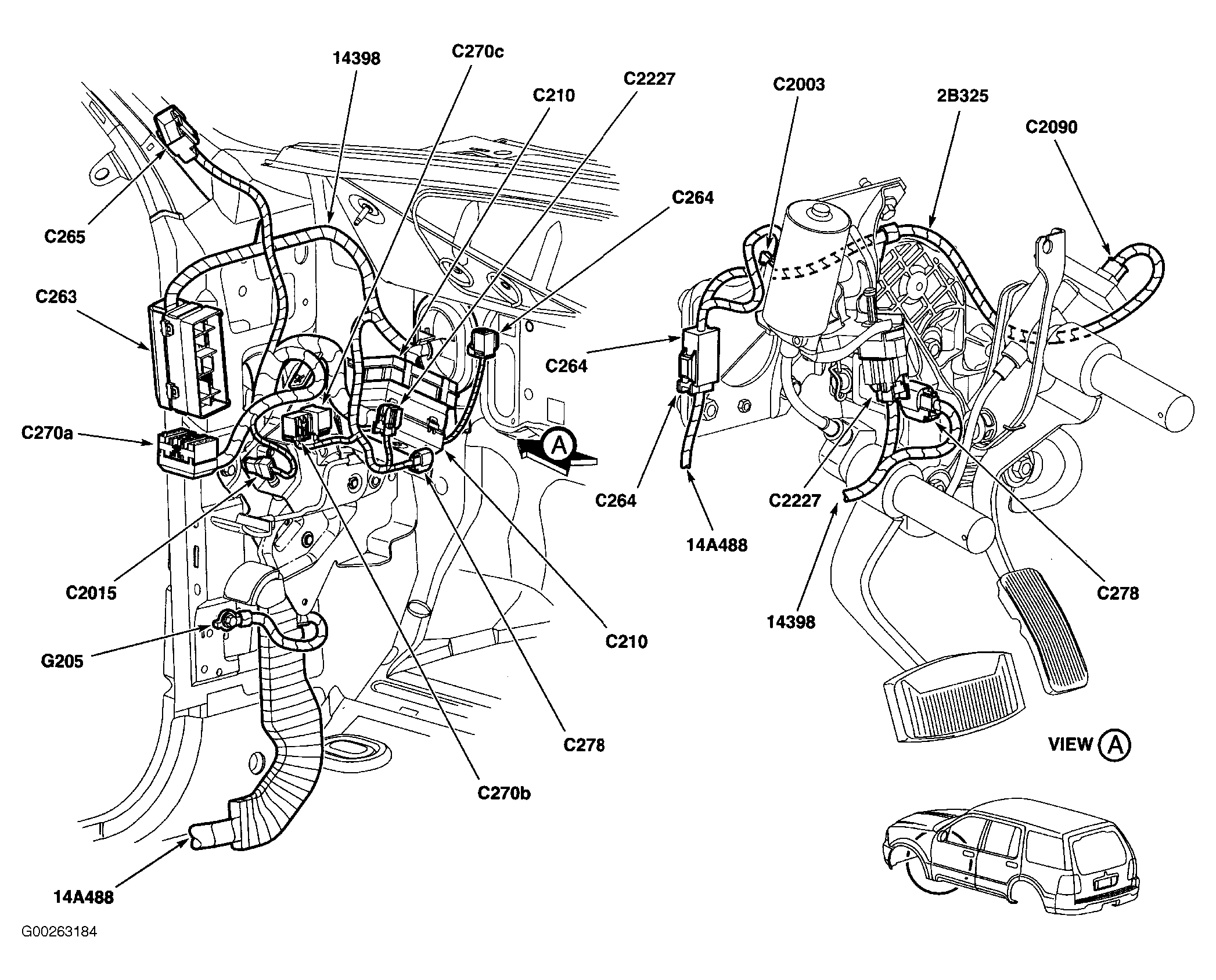

Fig 12: Left Kick Panel/Left Side Of Dash

G00263184

Courtesy of FORD MOTOR CO.

Fig 13: Right Kick Panel/Right Side Of Dash

G00263185

Courtesy of FORD MOTOR CO.

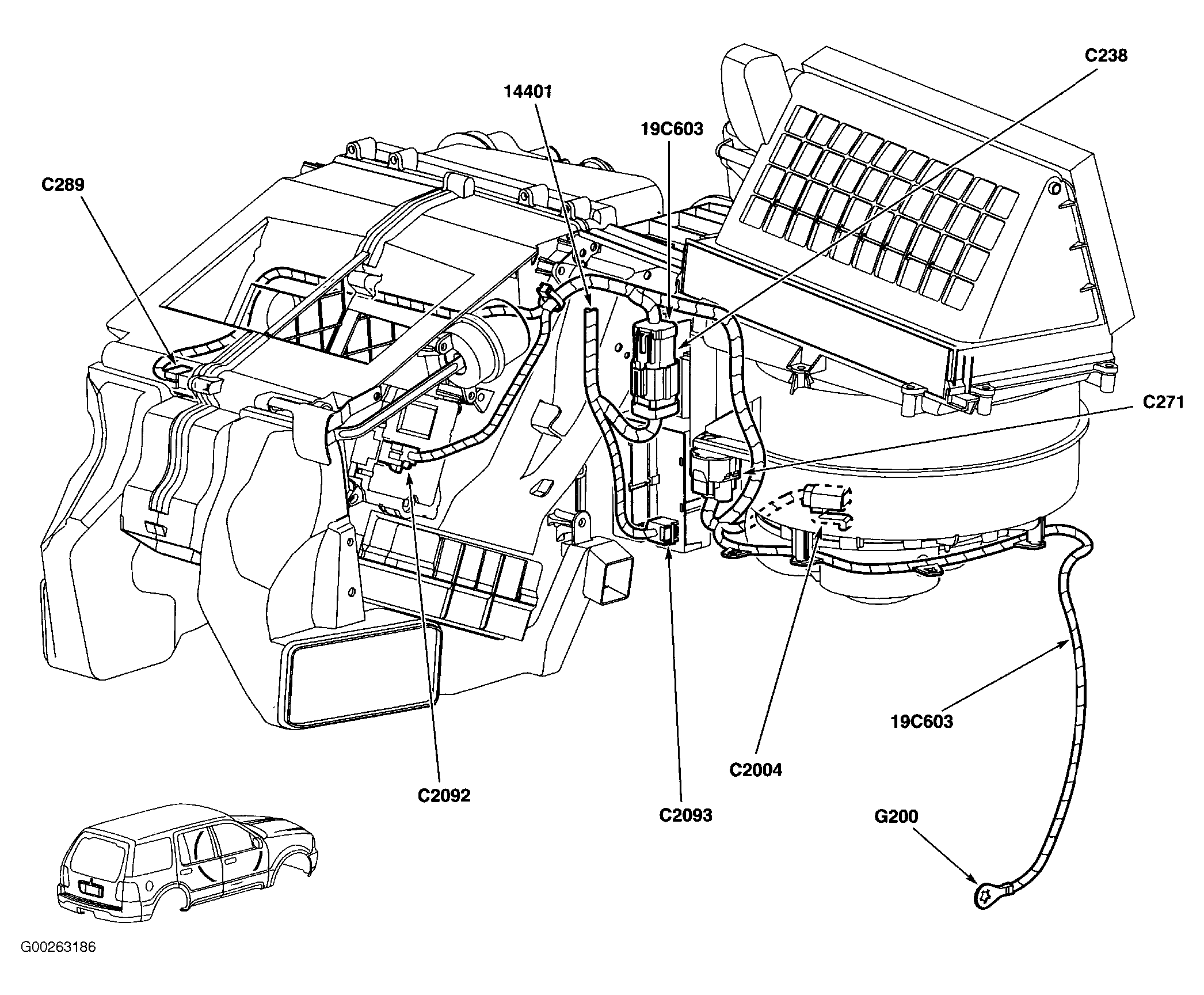

Fig 14: Right Side Of Dash

G00263186

Courtesy of FORD MOTOR CO.

Fig 15: Vehicle Overview

G00263187

Courtesy of FORD MOTOR CO.

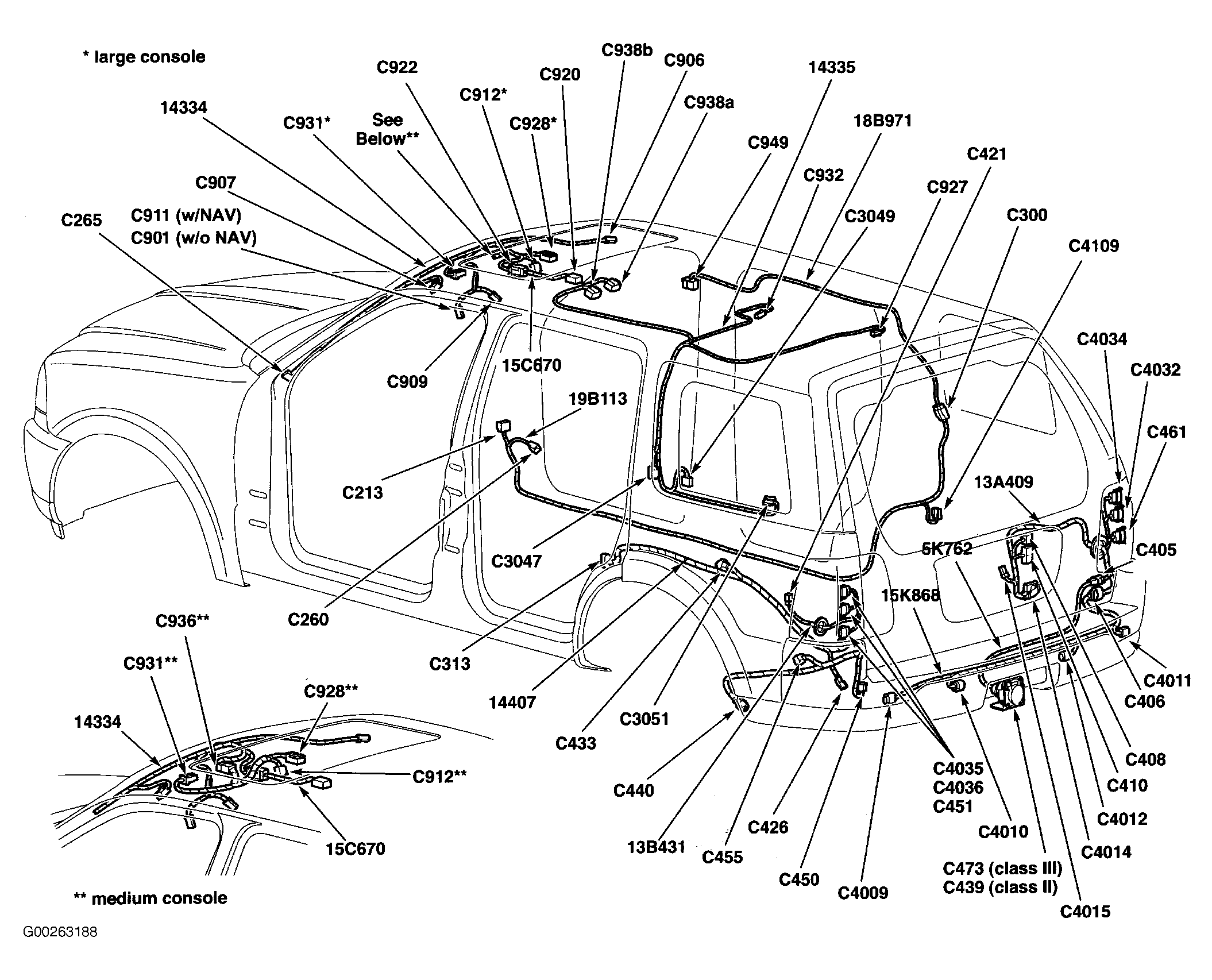

Fig 16: Vehicle Overview

G00263188

Courtesy of FORD MOTOR CO.

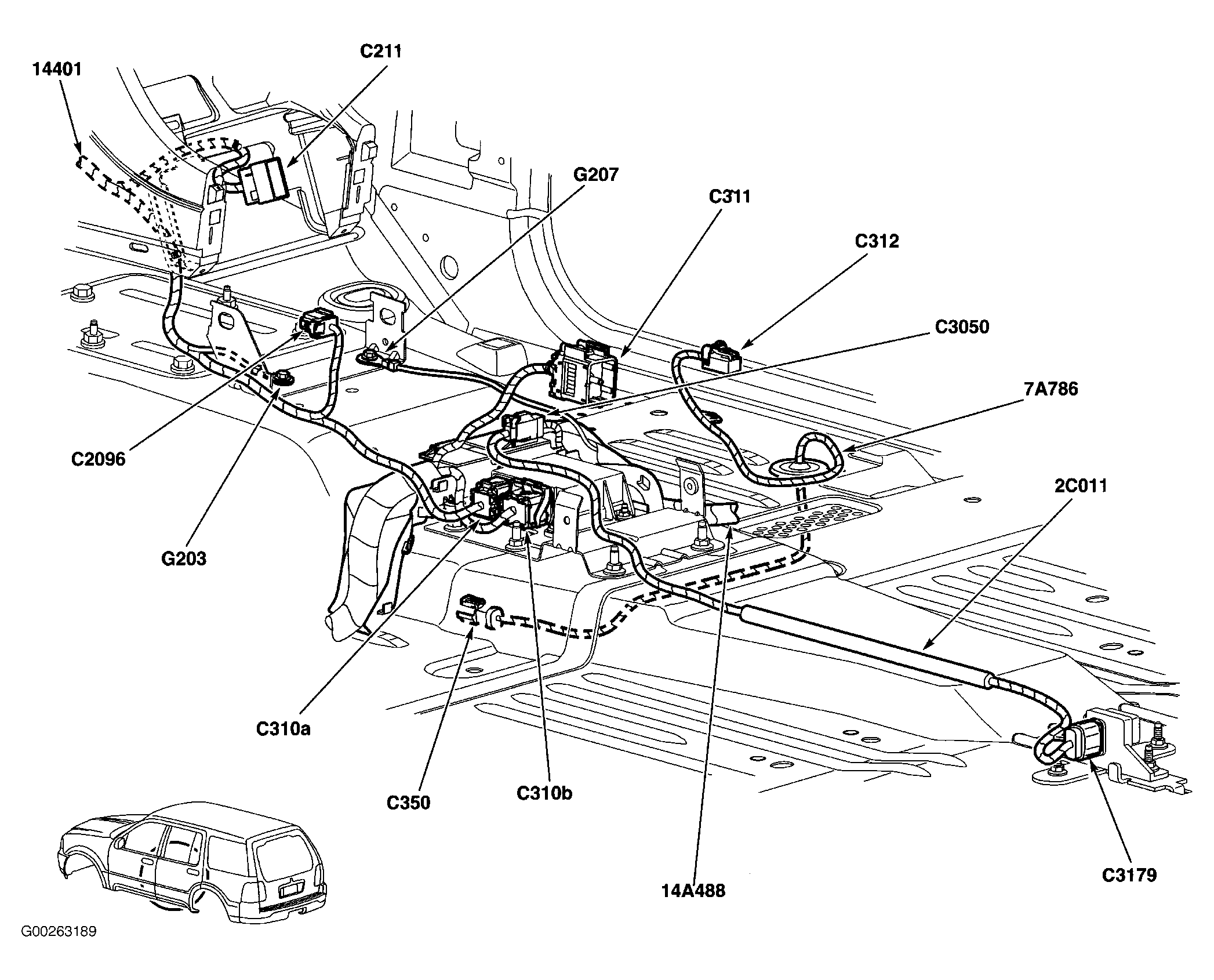

Fig 17: Center Tunnel Of Floor

G00263189

Courtesy of FORD MOTOR CO.

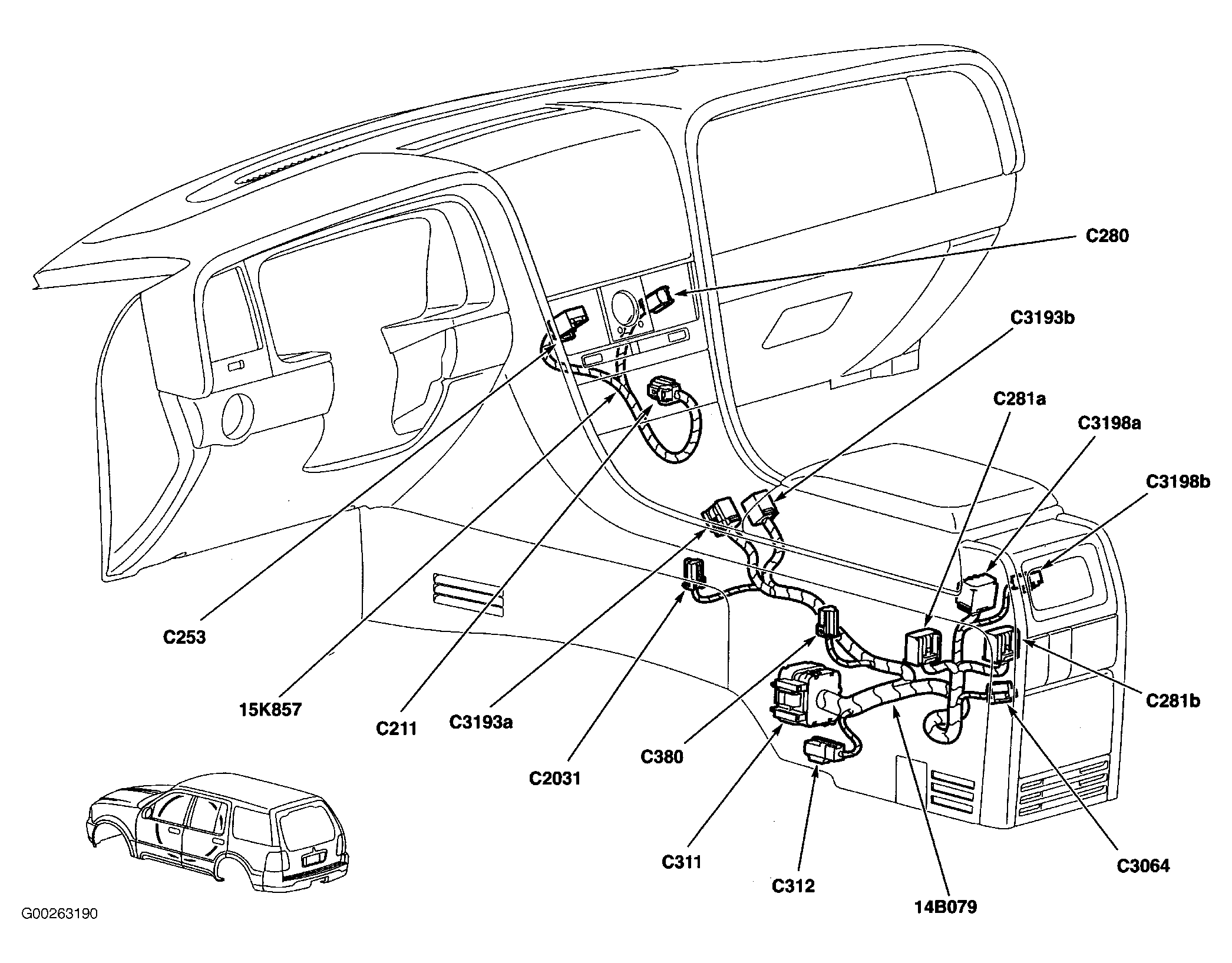

Fig 18: Center Console

G00263190

Courtesy of FORD MOTOR CO.

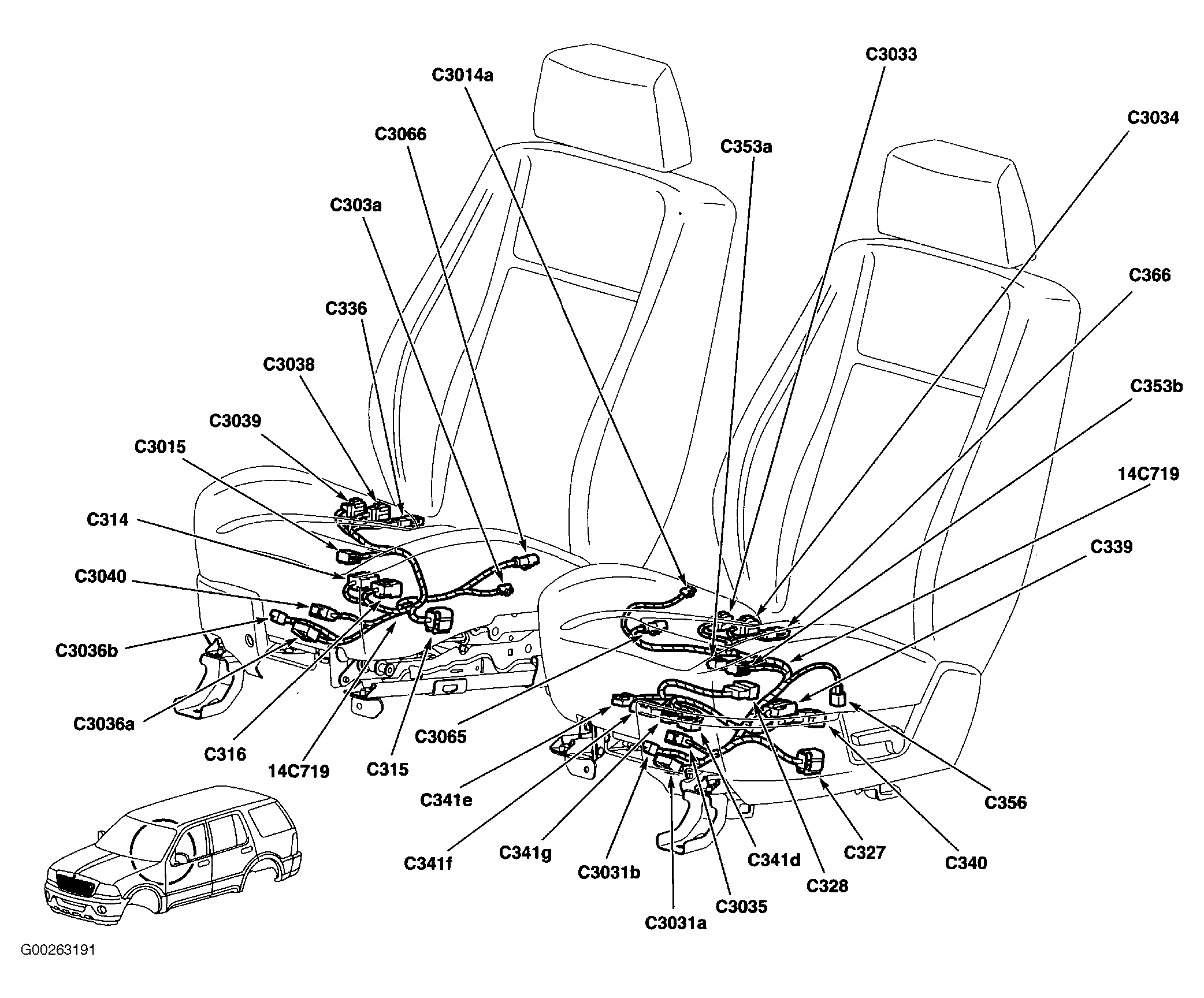

Fig 19: Seats

G00263191

Courtesy of FORD MOTOR CO.

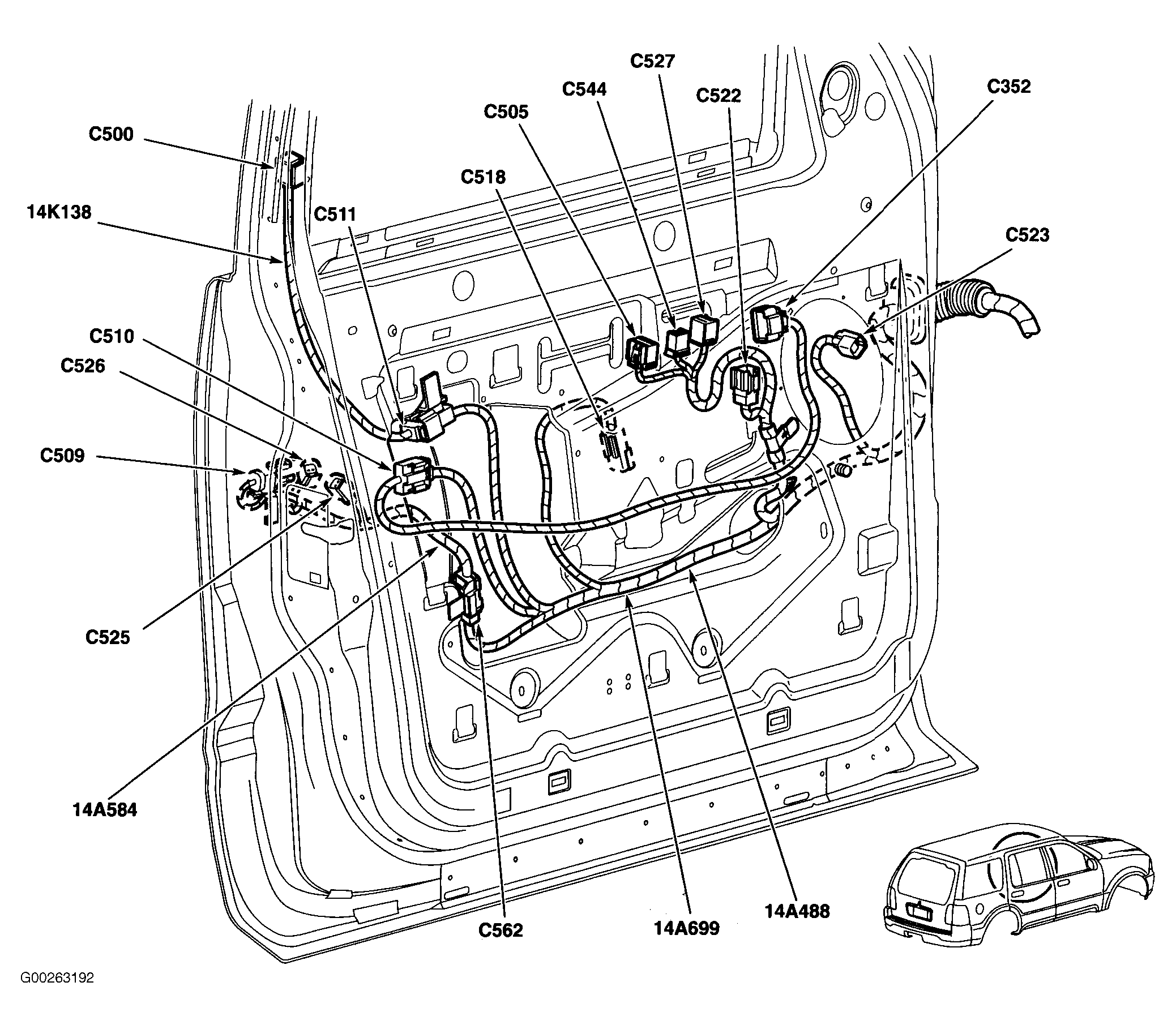

Fig 20: Driver Door

G00263192

Courtesy of FORD MOTOR CO.

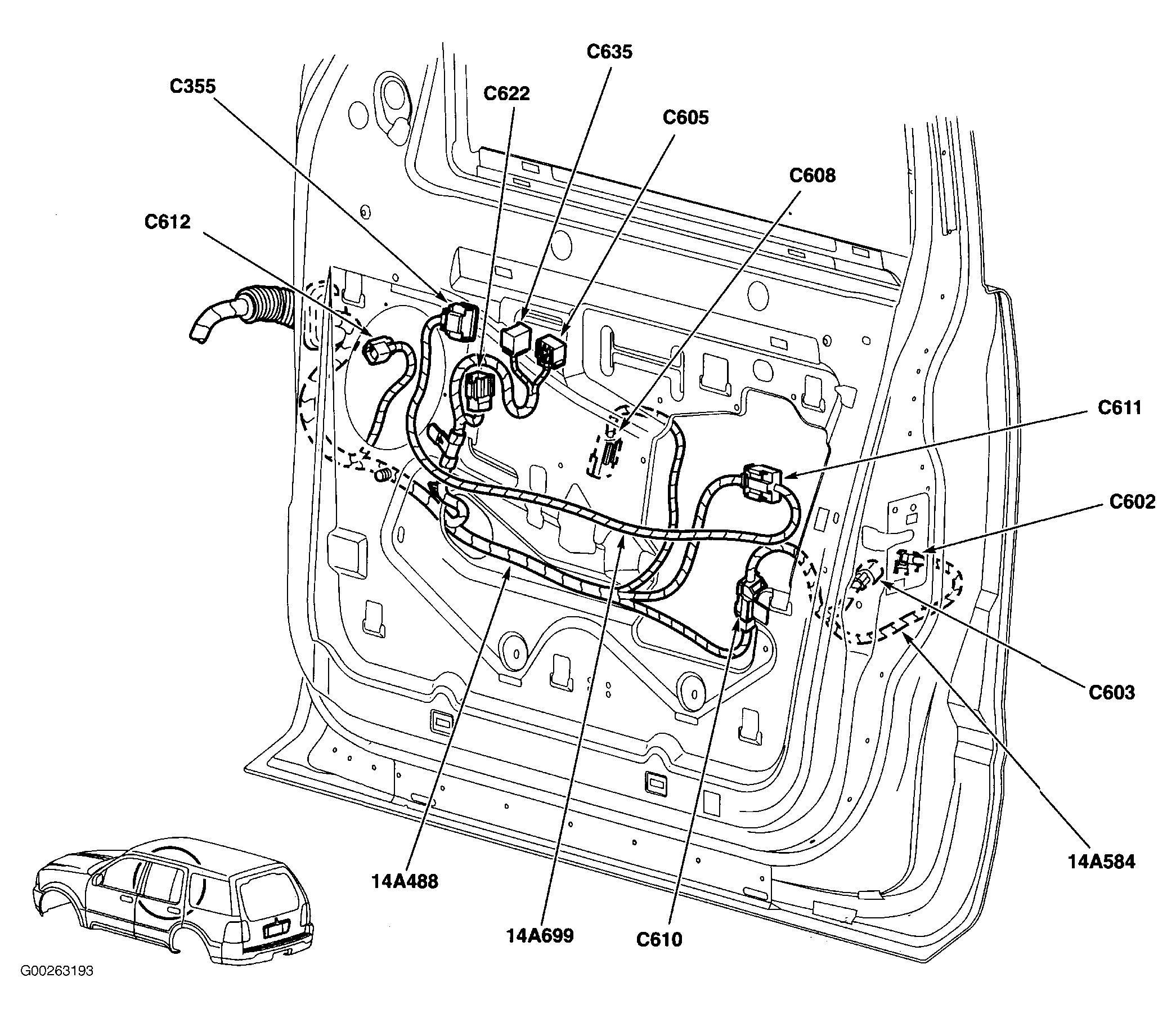

Fig 21: Right Front Door

G00263193

Courtesy of FORD MOTOR CO.

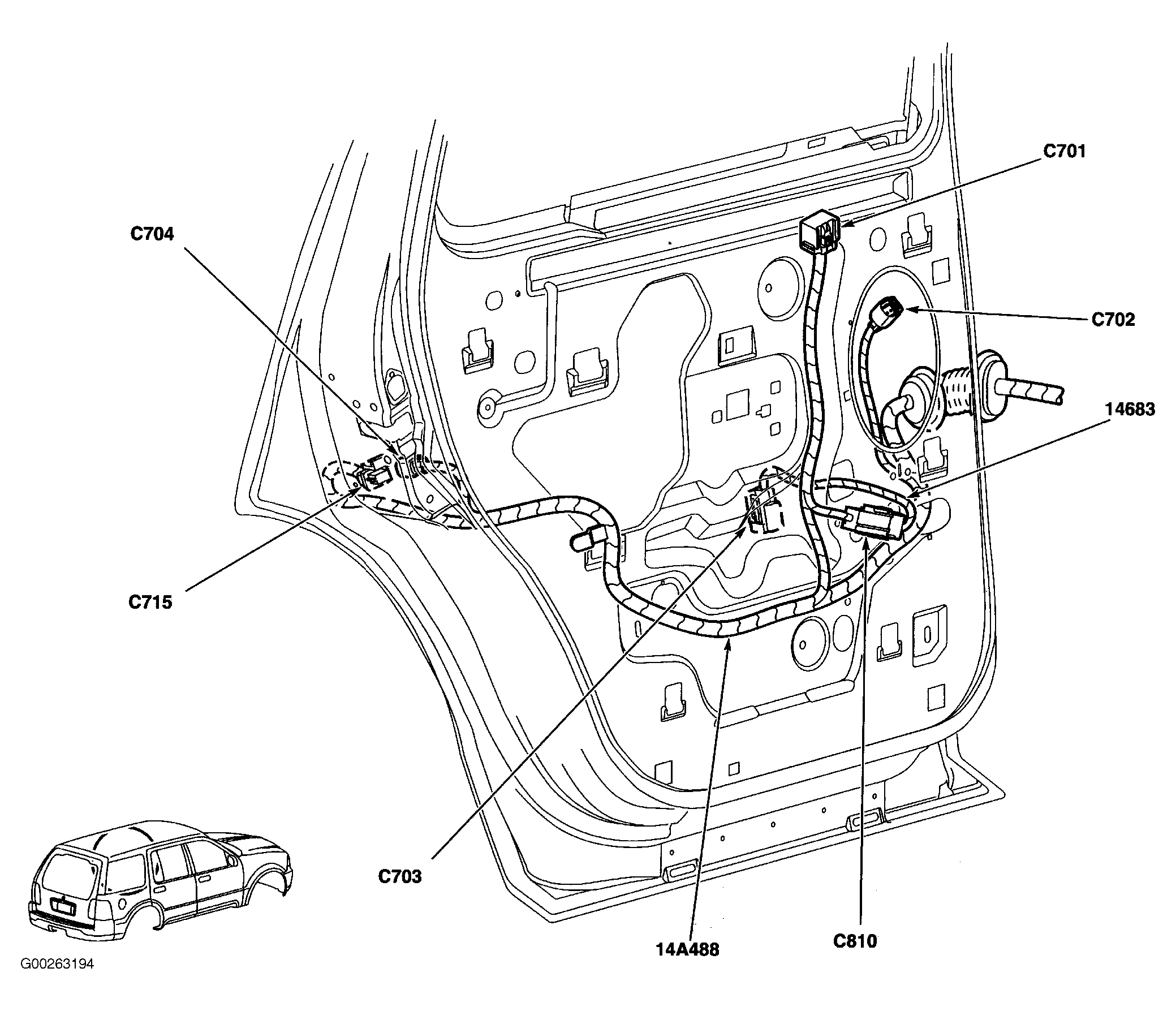

Fig 22: Left Rear Door

G00263194

Courtesy of FORD MOTOR CO.

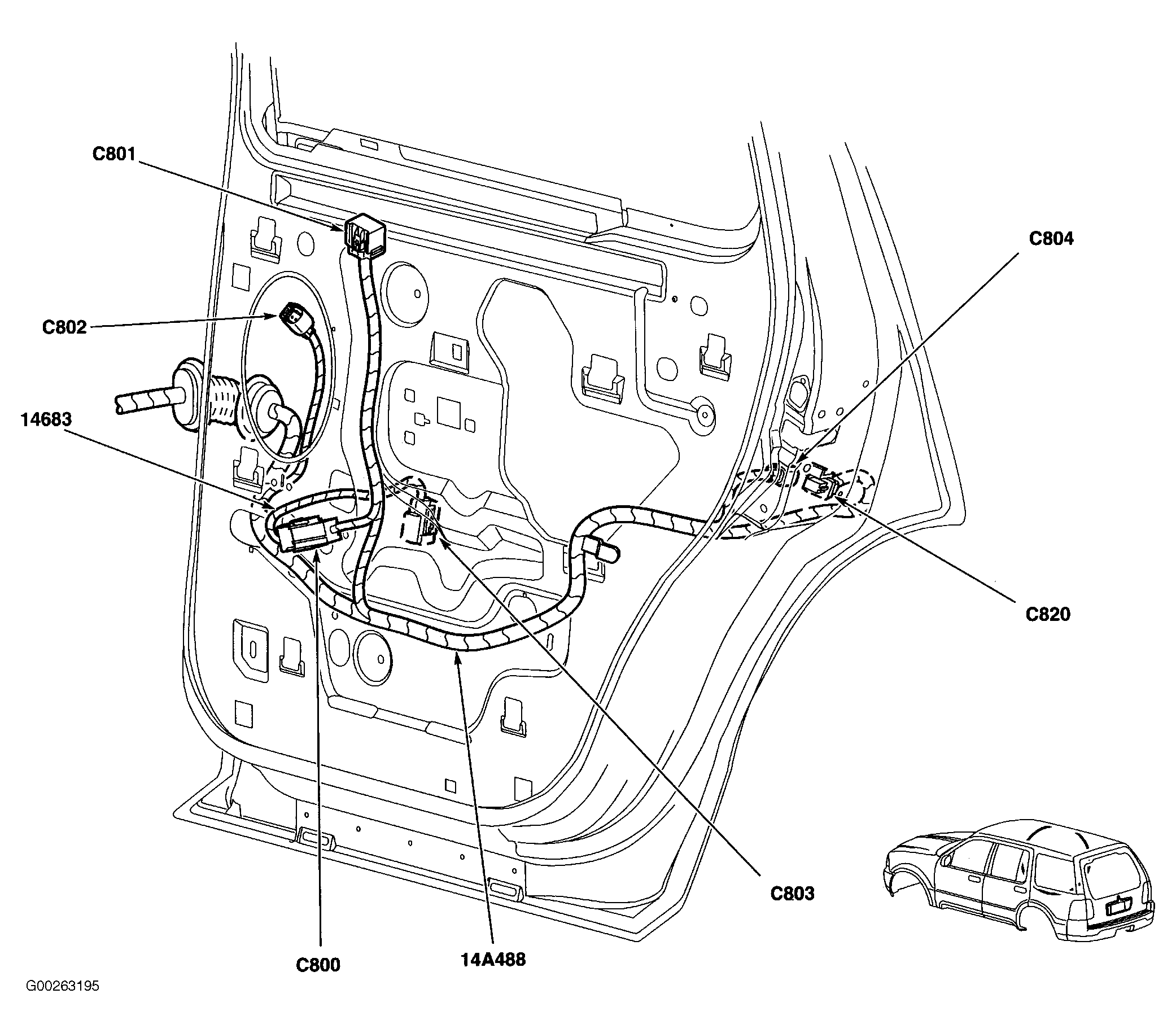

Fig 23: Right Rear Door

G00263195

Courtesy of FORD MOTOR CO.

Fig 24: Liftgate

G00263196

Courtesy of FORD MOTOR CO.

Fig 25: Left Rear Of Vehicle

G00263197

Courtesy of FORD MOTOR CO.

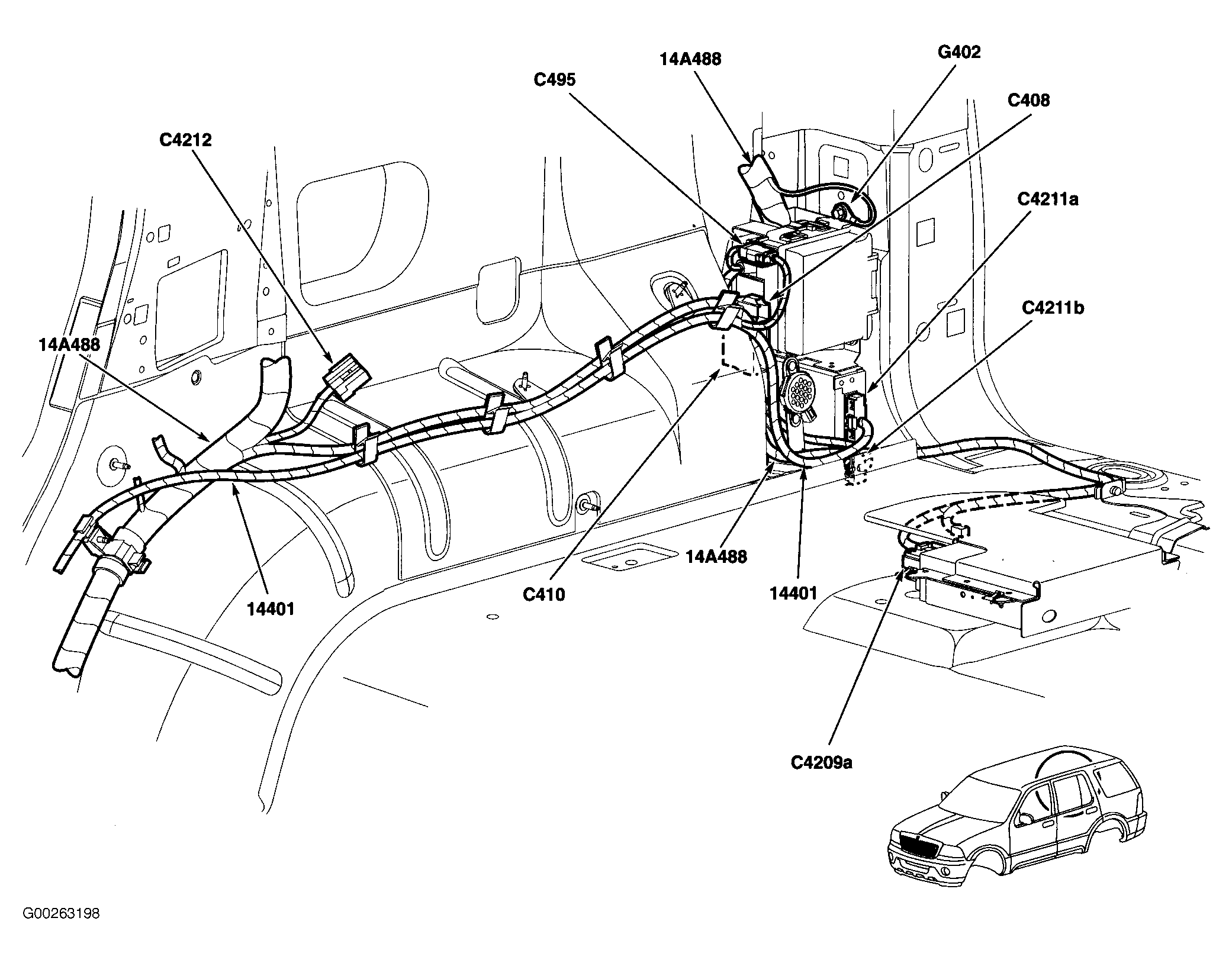

Fig 26: Right Rear Of Vehicle

G00263198

Courtesy of FORD MOTOR CO.
