Cylinder Head: Notes

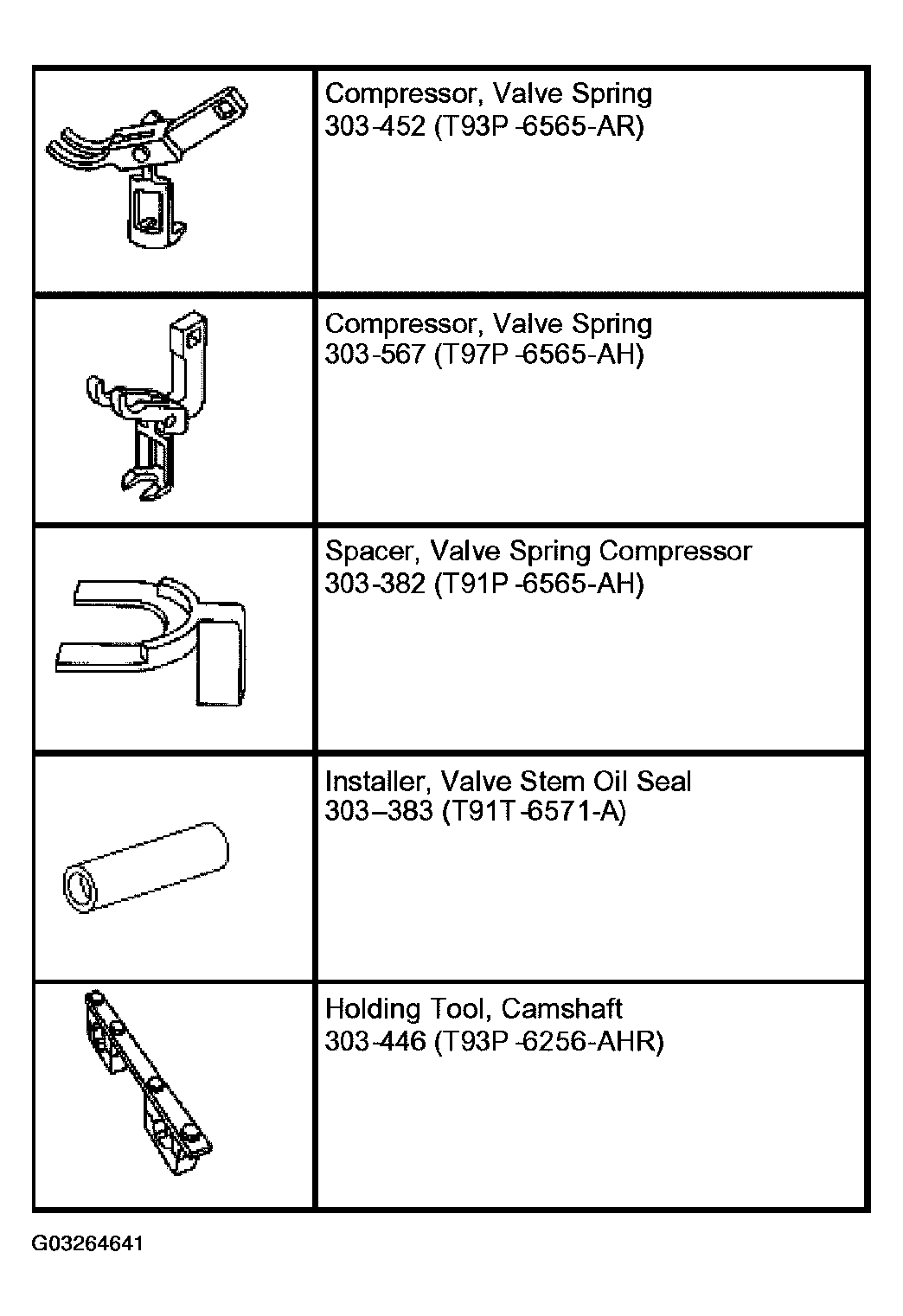

Fig 1: Identifying Special Tool(s)
G03264641Courtesy of FORD MOTOR CO.
MATERIALS

Item Specification
SAE 5W-20 Super Premium Synthetic Blend Engine Oil XO-5W20-QSP or equivalent WSS-M2C153-H
    NOTE: LH is shown, RH is similar.

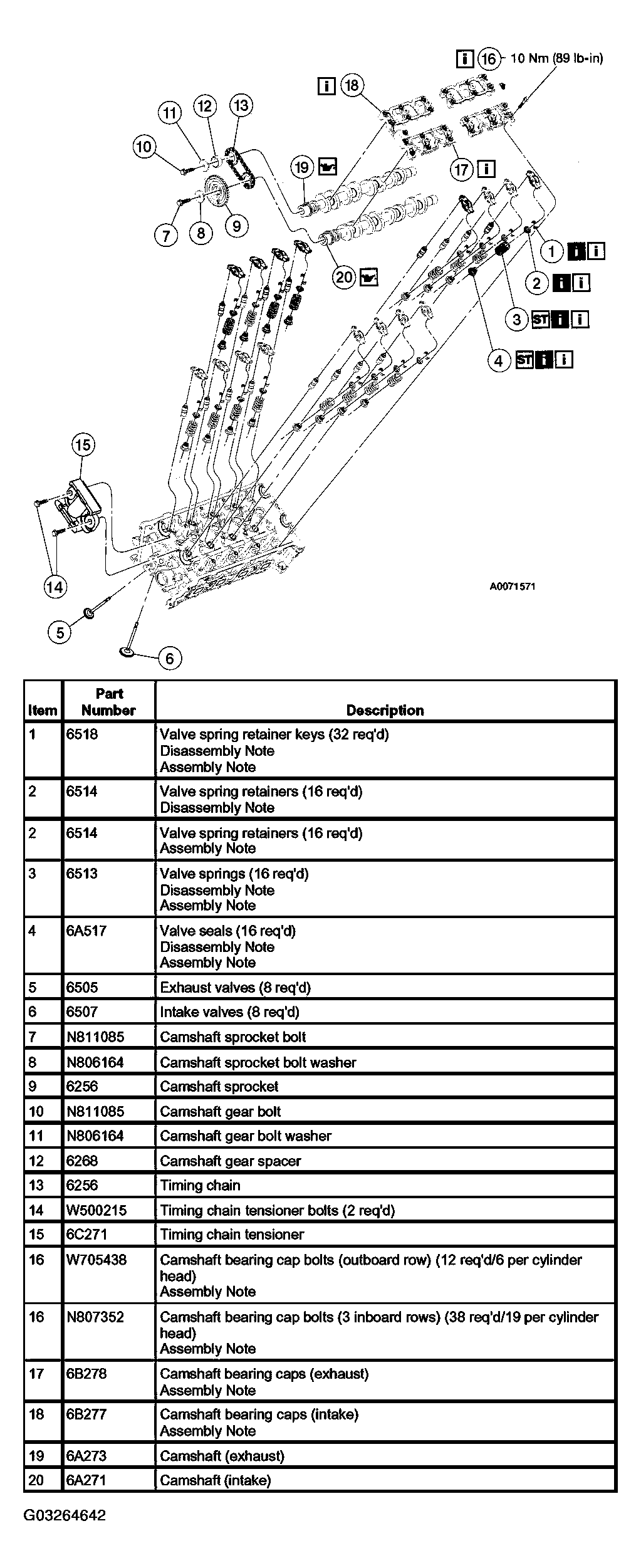

    Fig 2: Removing Cylinder Head Components
    G03264642Courtesy of FORD MOTOR CO.
  1. Remove the parts in the order indicated in the following illustration and table.
  2. To assemble, reverse the disassembly procedure.
